Hole and swage plates

A hole swage plate in combination with a stable base frame is a versatile tool for the forge. We offer two different versions:

The classic - standard:

Our standard hole swage plate are made of special cast iron. One side is planed, with various round and square holes, as well as radii on the front sides.

The new - well thought out:

Our modular perforated plate is screwed together from hardened tool steel plates and, in combination with the bogie, enables very flexible work. If it wears out, the wearing part can be replaced.

We can supply other sizes and special straightening plates made of hardened tool steel on request.

stand LU 350

00441035

stand LU 350 for hole plate 350 x 350 mm for a working height of approx. 800 mm, made of strong angle iron. The swage hole plate can also be placed upright in the base frame. The swage hole plate shown is not included in the price.

in stock

€385.00*

pcs

stand LU 400

00441040

stand LU 400 for hole plate 400 x 400 mm for a working height of approx. 800 mm, made of strong angle iron. The swage hole plate can also be placed upright in the base frame. The swage hole plate shown in Picture 3 is not included in the price.

in stock

€399.00*

pcs

Tip

Turning stand for hole plate 600 x 250

00441042

Turning stand for hole plate 600 x 250 for hole plate 600 x 250 mm, for a working height of approx. 800 mm, stable welded construction, accessible with a lift truck, allows the perforated plate to be rotated quickly and easily. The swage hole plate shown in "gray" is not included in the scope of delivery and is sold separately.

in stock

€890.00*

pcs

hole and swage plate 350

00443500

hole and swage plate 350 350 x 350 x 80 mm, 60 kg made of special cast iron, and radius at the sides, surface planed, with various round and square holes, for horizontal or vertical use,

Currently not available

€1,250.00*

Details

hole and swage plate 400

00444000

hole and swage plate 400 400 x 400 x 100 mm, 80 kg made of special cast iron, one surface planed, with various round and square holes, and radius at the sides, for horizontal or vertical use

in stock

€1,350.00*

pcs

Tip

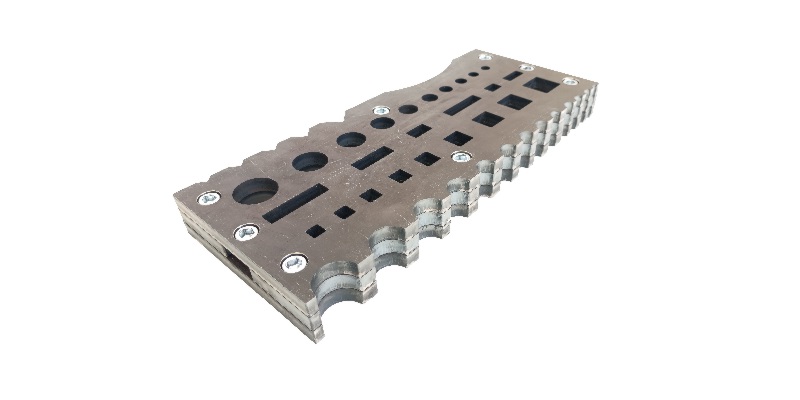

Hole and swage plate 600 x 250

00446025

Hole and swage plate 600 x 250 600 x 250 x 60 mm, 55 kg made of hardened special steel (three-layer), with various round and square holes, radius at the sides, for horizontal or vertical use.

in stock

€1,150.00*

pcs
