Moulding

Casting molds

The mold boxes consist of an upper and lower box, which can be positioned one above the other using locating pins. The molding boxes are produced in our factory in Ochsenhausen.

stable welded construction
precisely fitting guide
no more screw clamps required thanks to threaded fitting bolts
profiled to prevent the sand from slipping
good temperature resistance

In addition to our standard molding boxes, we also offer almost every conceivable special size and type.

10 %

Moulding box set

00860035

Set consisting of: 1x Moulding box 100 x 200 x 100 mm 1x Moulding box 200 x 300 x 160 mm 1x Moulding box 250 x 350 x 200 mm Features: Sturdy welded construction Robust design Precisely fitting guides Threaded fitting bolts eliminate the need for screw clamps Profiled to prevent sand from slipping Good temperature resistance (The picture shows the profiled inner edge - this is only done in this way for molding boxes of size 200x300x160 and above. This is not needed for the small box 100x200x100, here the sand holds itself firmly enough in the mold)

€391.51* €435.00*

pcs

moulding box 100 x 200 x 100 mm

00865110

two-piece construction 5mm, each side 50 mm high solid welded construction with accurately fitting bolts Features: Sturdy welded construction Robust design Precisely fitting guides Threaded fitting bolts eliminate the need for screw clamps Profiled to prevent sand from slipping Good temperature resistance The specified dimensions are the clear interior dimensions – that is, the space that is actually freely available. (The picture shows the profiled inner edge - this is only done in this way for molding boxes of size 200x300x160 and above. This is not needed for the small box 100x200x100, here the sand holds itself firmly enough in the mold)

€125.00*

pcs

moulding box 200 x 300 x 160 mm

00865112

two-piece construction, each 80 mm high solid welded construction with accurately fitting bolts, inner face moulded to avoid sand from falling out Features: Sturdy welded construction Robust design Precisely fitting guides Threaded fitting bolts eliminate the need for screw clamps Profiled to prevent sand from slipping Good temperature resistance The specified dimensions are the clear interior dimensions – that is, the space that is actually freely available. (The picture shows the profiled inner edge - this is only done in this way for molding boxes of size 200x300x160 and above. This is not needed for the small box 100x200x100, here the sand holds itself firmly enough in the mold)

€145.00*

pcs

moulding box 250 x 350 x 200 mm

00865114

two-piece construction, each 100 mm high solid welded construction with accurately fitting bolts, inner face moulded to avoid sand from falling out Features: Sturdy welded construction Robust design Precisely fitting guides Threaded fitting bolts eliminate the need for screw clamps Profiled to prevent sand from slipping Good temperature resistance The specified dimensions are the clear interior dimensions – that is, the space that is actually freely available. (The picture shows the profiled inner edge - this is only done in this way for molding boxes of size 200x300x160 and above. This is not needed for the small box 100x200x100, here the sand holds itself firmly enough in the mold)

€164.90*

pcs

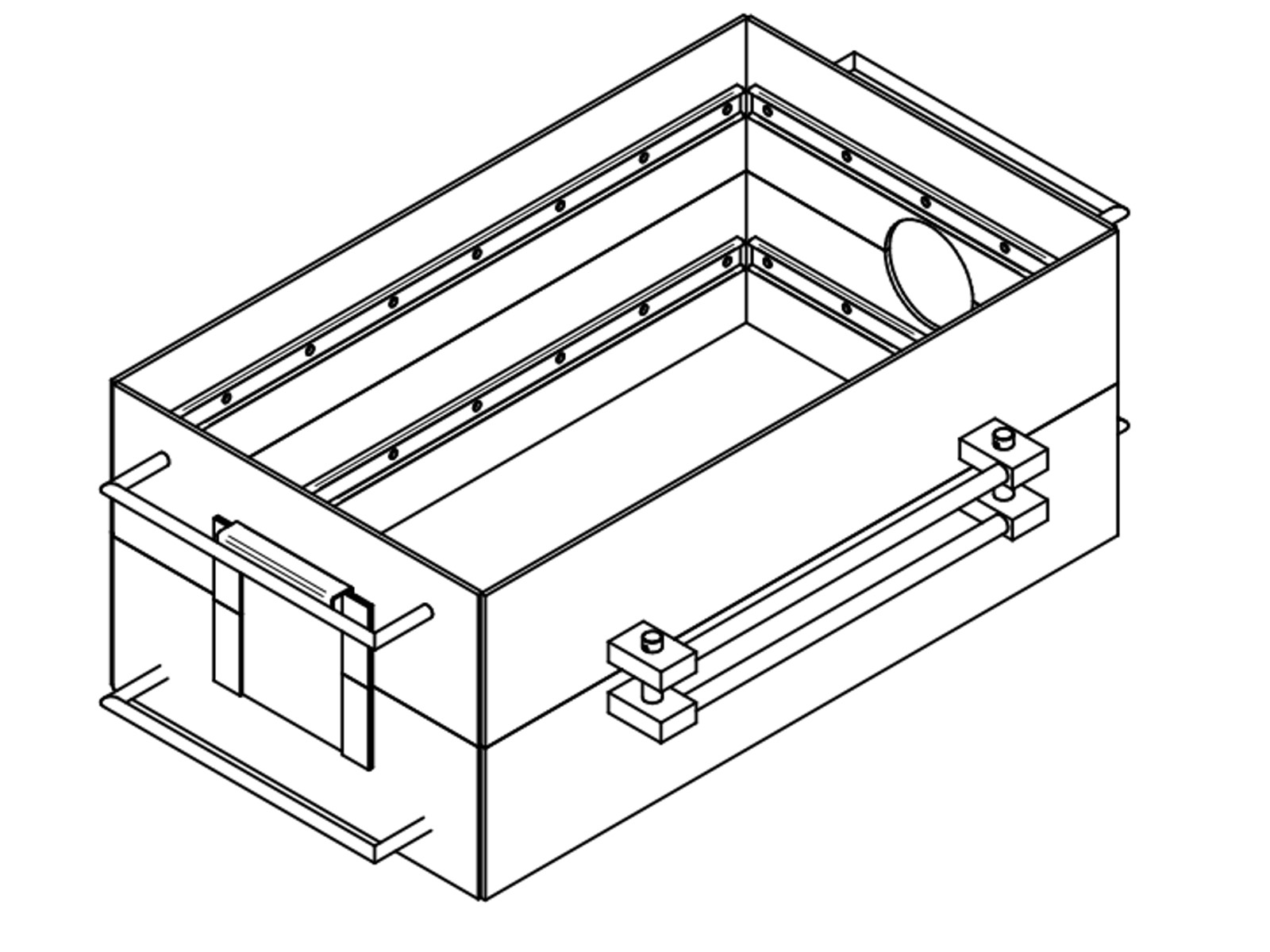

Moulding box 400 x 700 x 300 mm

00865119

two-piece construction, each 150 mm high, stable welded construction made of 5 mm sheet steel, with accurately fitting bolts, profiled inside to prevent the molding sand from slipping. including stretcher or crane bracket, including two lockable openings on the short side Features: Sturdy welded construction Robust design Precisely fitting guides Threaded fitting bolts eliminate the need for screw clamps Profiled to prevent sand from slipping Good temperature resistance The specified dimensions are the clear interior dimensions – that is, the space that is actually freely available.

€706.00*

pcs

Mold 180 ml

00865138.180

for excess melt Size: app. 60x60x100 mm Excess melt should not remain in the crucible and must therefore be poured off. With this mold, excess melt can be quickly and easily poured into ingots and then remelted. Features: Made of steel alloy Sturdy construction Thermally stable For rapid cooling of the melt Robust design V-shape allows for quick removal of the melt High thermal shock resistance

€15.01*

pcs

Molding Box Support

00865139

Sturdy aluminum molding box support, Size: 100x100 mm, Thickness: 5 mm, deburred Features: Made of aluminum Lightweight Sturdy Easy to clean Protects your table

From €21.00*

pull off steel - mold box

00865399

square, sharp-edged 12 mm, approx. 500 mm long This "pull off steel" is used to remove excess molding sand. The sharp edge allows for a clean finish. This can be seen in more detail in the video starting at 0:52. Features: Sharp-edged profile Chamfered ends according to DIN 178

€4.20*

pcs

Barrel model 40 mm

00865400

40x10x8 mm, trapezoidal The barrel model allows for the design of a simple sprue. The beveled sides allow for easy removal later. Figure 2 shows a mold box with inserted letter, sprue (round rod) and barrel model.

€4.00*

pcs

letter 25 mm

00865405

special plastic material A-Z and 0-9, set with 36 pcs

€45.90*

set

Clip connector 4/14,1-20

11102404

gauge number 3,6 mm

€0.90*

pcs

Fireproof mat

59104040

Heat protection mat with special coating, protects against direct flame, welding spatter, or molten metal splashes. Ideal as a base for electric or gas furnaces. Protects the workshop floor, workbench, and surrounding flammable objects. Can also be used as a protective mat for mold boxes during casting. Features: · Very good resistance to sparks, flames, welding spatter and molten metal splashes Certified and approved according to DIN EN standards FM-Approved FM Global Reversible Extreme heat resistance Continuously heat resistant up to 1000 °C, short-term peak load up to 1200 °C Excellent protective barrier Resistant to direct flames, sparks, weld spatter, and molten metal splashes Retains its shape and stability even under extreme heat · High mechanical strength Exceptionally robust and durable under harsh operating conditions Easy processing: Despite its high resistance, it is flexible, easy to cut, and easy to handle Fire protection: High-quality protective material for industrial and fire protection applications Welding and grinding work: Use as an effective welding curtain or welding blanket Shipbuilding and plant construction: Protection against sparks and thermal stress in sensitive areas Metal industry: Protection against intense heat and dangerous metal splashes to increase workplace safety Maximum heat protection: Suitable for application temperatures up to 1200 °C and even resistant to molten metal splashes. The special mineral protective layer acts like a shield: At extreme temperatures, it melts away on the surface, reliably protecting the core of the fabric from flames and dangerous metal splashes. The backing is non-combustible and perfectly suited for vertical and horizontal applications in welding or plasma cutting. It reliably protects against weld spatter, sparks, direct flames, and molten metal splashes. Other sizes and variations with eyelets and more can be made upon request.

From €59.00*

Molding

Here we show how the upper box is molded. The basic principle remains the same for the lower box.

When molding, it is important that sieved sand is used and that the model is well covered with release powder.

It must also be carefully tamped and the oil sand must be well compacted.

This is the only way to avoid surprises such as a rough surface or deformed contours when removing the mold.

Questions - Answers - FAQ

Many questions about the molds and mold boxes that we try to answer without meaningless AI texts.

Do you still have questions? Then please ask us directly here:

E-mail:

What is a mold used for?

A mold is used to hold the molding sand and to give the oil sand a stable frame.

A model is later formed or placed in the sand, which is then tamped in the mold.

What material are molds made of?

Our molds are made of sturdy steel.
However, molds made of wood or other materials can also be used.
We use steel because it is robust, durable, quickly adaptable and has proven itself over the years.

Where can I buy casting molds?

You're welcome to do so from us ;)
We manufacture our casting molds and mold boxes ourselves in our metal workshop.
The bolts and dowel pins are turned and the stable welded construction is carefully assembled by us
We can also manufacture special sizes in small quantities and with short delivery times.

What should I look out for when buying?

The mold should be sturdily built and the parts must fit well together.

Are the molds durable?

We have been building our molds for many years and our customers include both hobby casters and professionals.
However, larger special molds are usually used here, which only differ from the standard in terms of their basic structure in small features.

Does a mold wear out?

After very intensive use or a very, very long time, casting molds also wear out.
A hobby caster who casts every week will not experience this.
If the bolts are worn out at some point, the hole can be drilled out and the bolt replaced with a larger one.

Suitable mold?

The mold should fit the workpiece. This saves sand and time when molding.
Handling is also made easier with a suitable mold.
You can't find the right mold?
We make molds in any size from a quantity of 1.
With 2 or 4 bolts, with a slotted hole, with a crane eyelet, carrying handle, and much more.
Just ask us.
