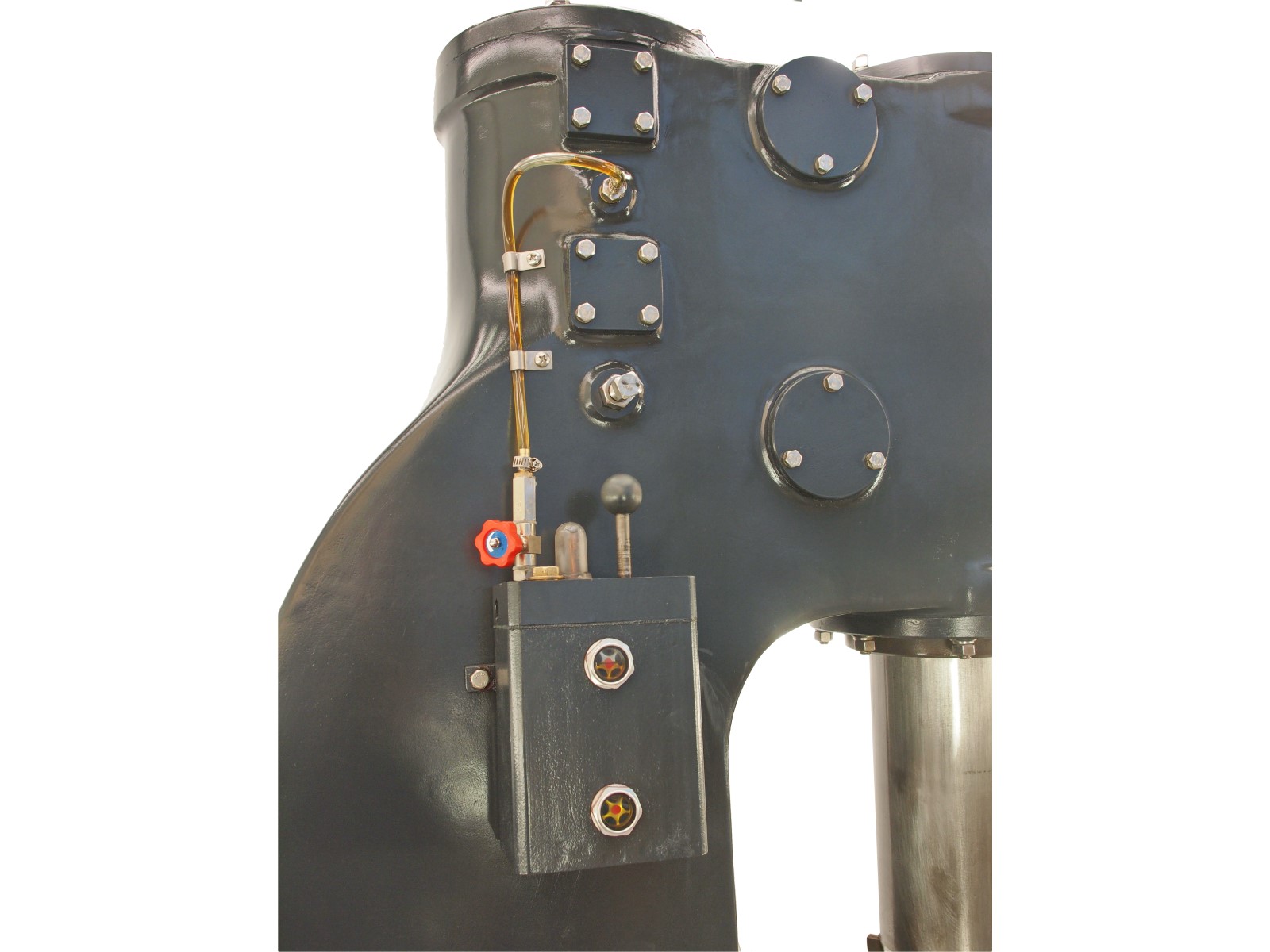

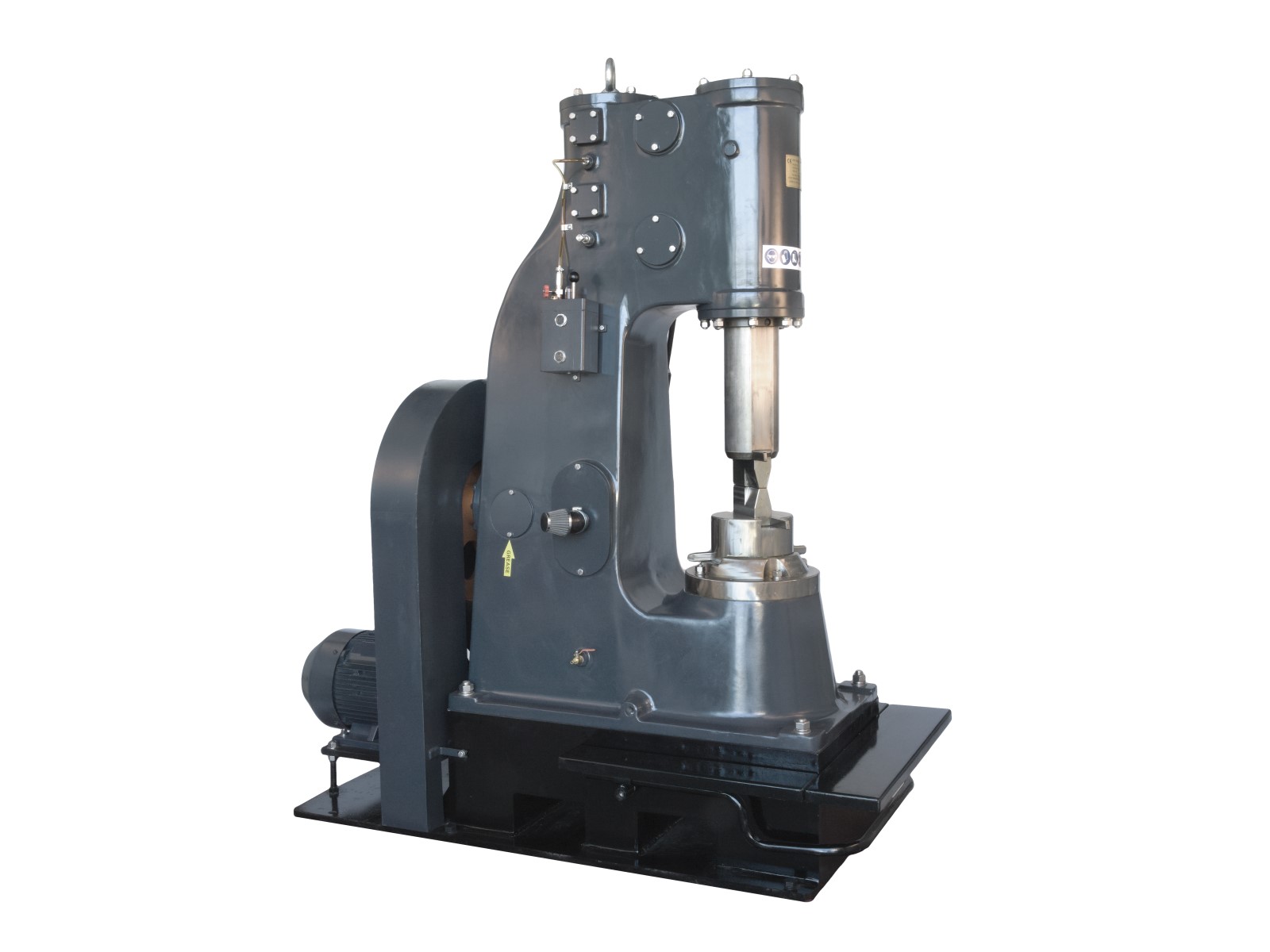

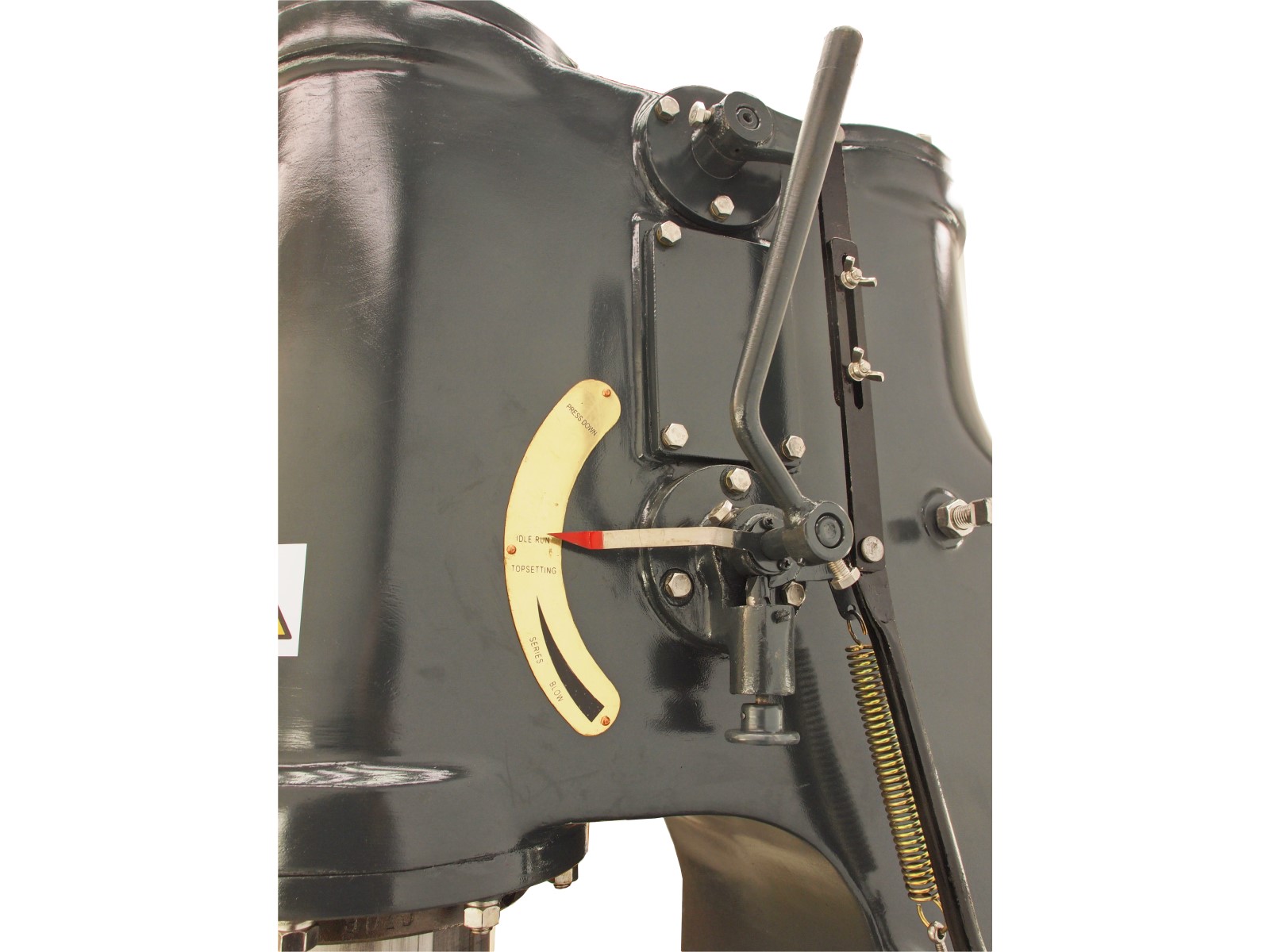

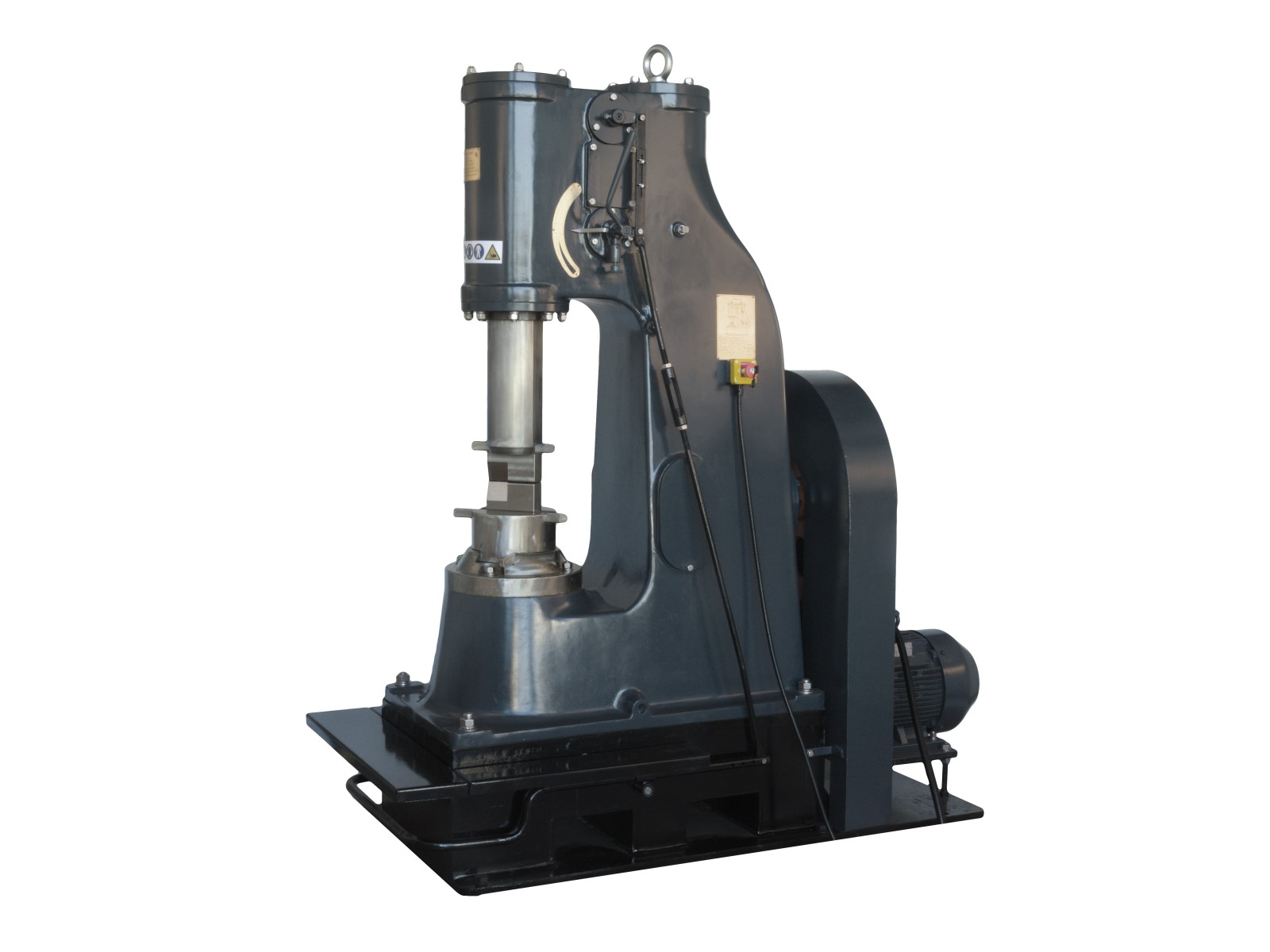

AN-55 L airhammer
Product number:
00667052
Weight:
1720 kg
Please note:
Freight costs are calculated by weight!
Description
ram weight 55 kg
hit energy 0.7 kJ,
horiz. clearance 300 mm, free height of working area 270 mm,
number of strokes 230 strokes/min,
electric power 7,5 kW, three-phase 3 x 400 Volt,
total weight 1720 kg,

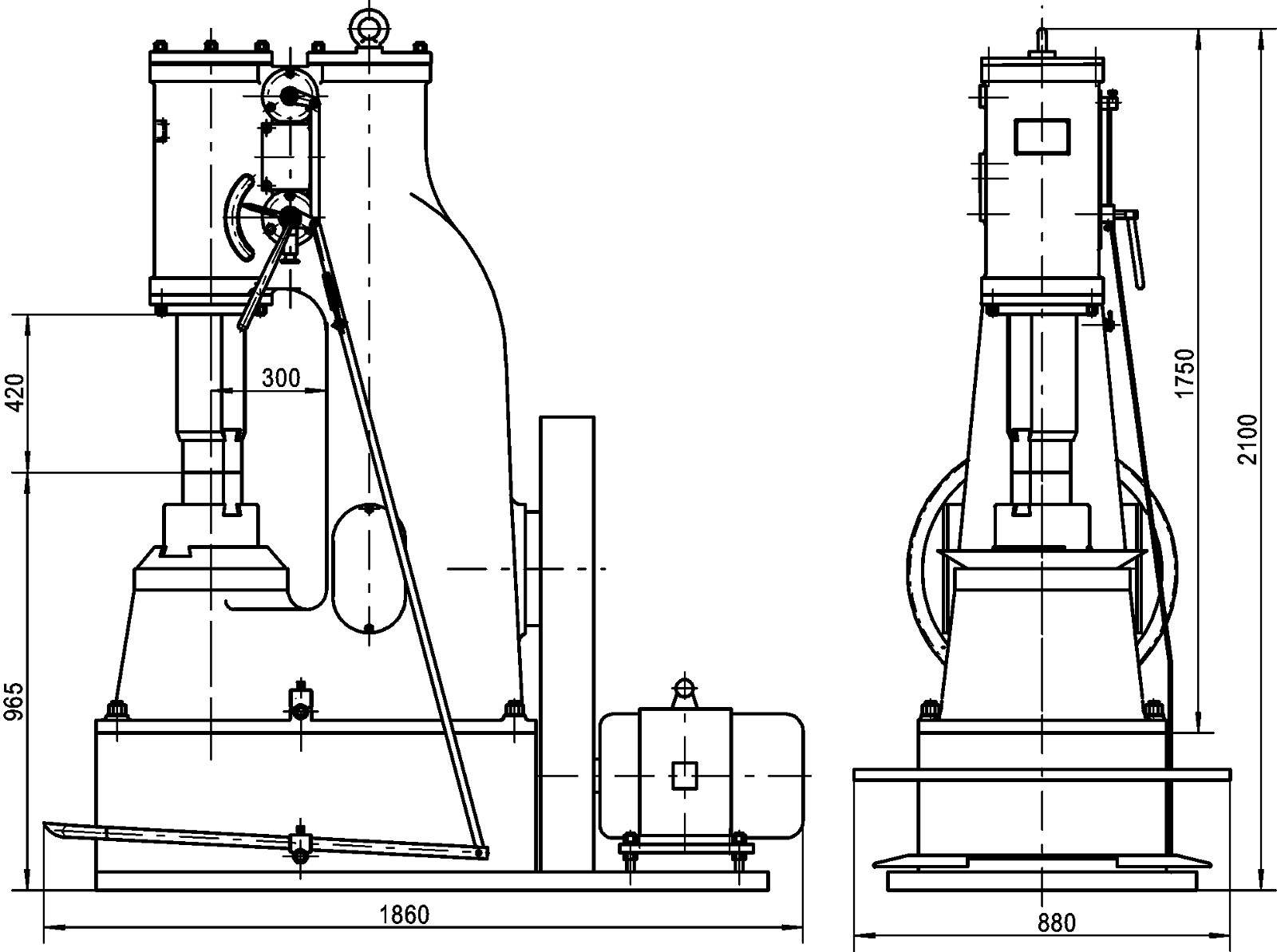

length x width x height: 1860 x 880 x 2100 mm

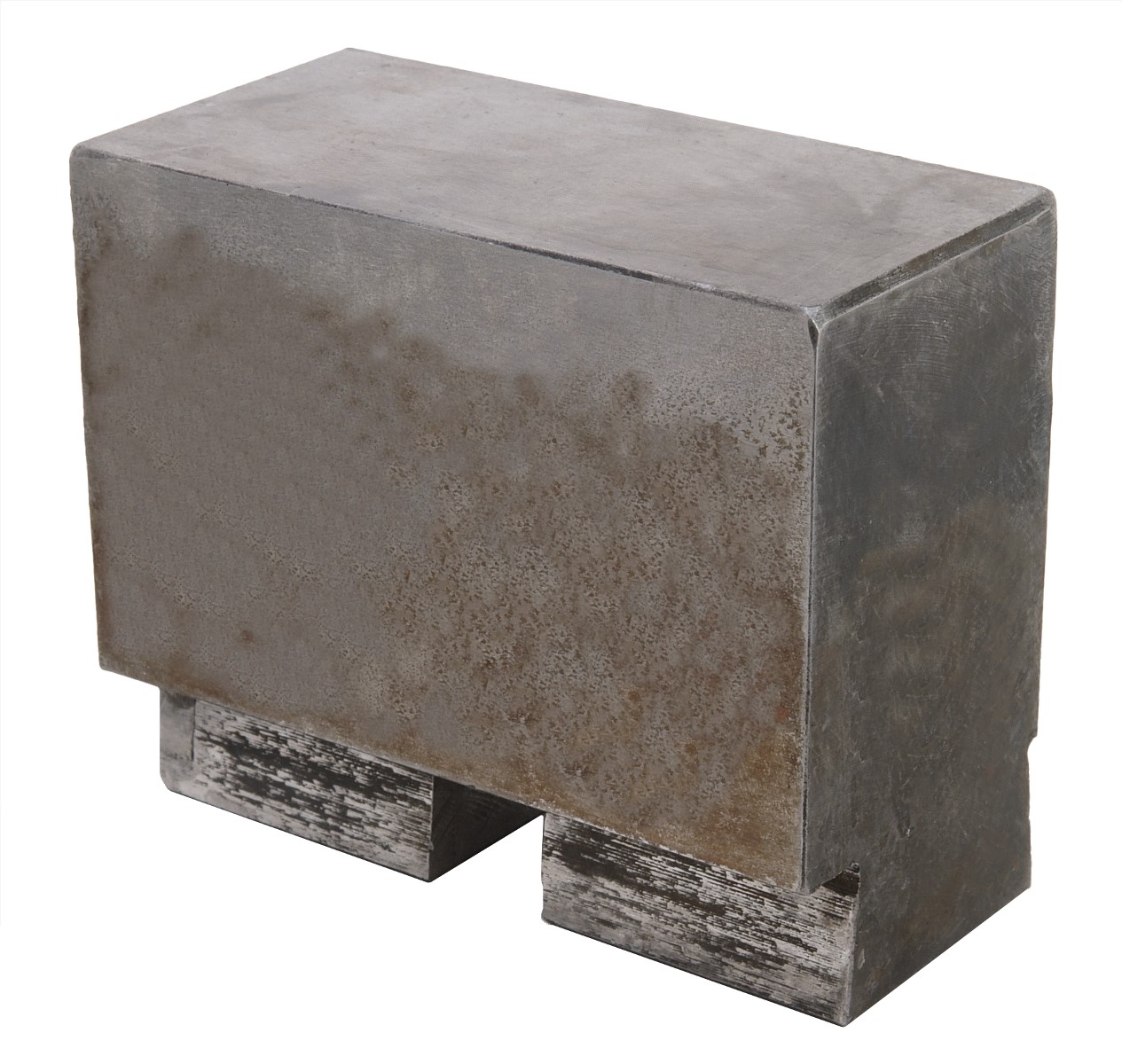

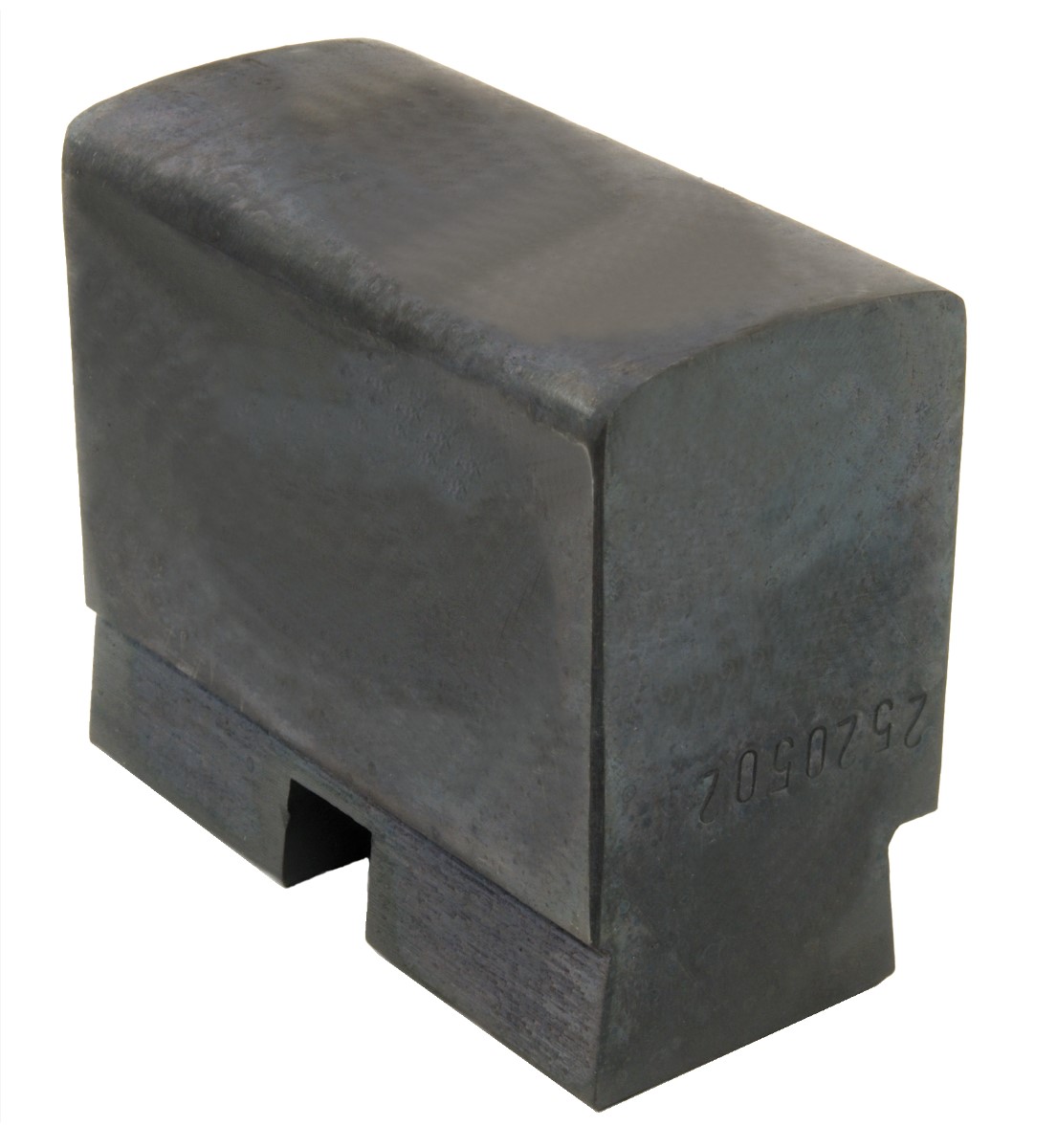

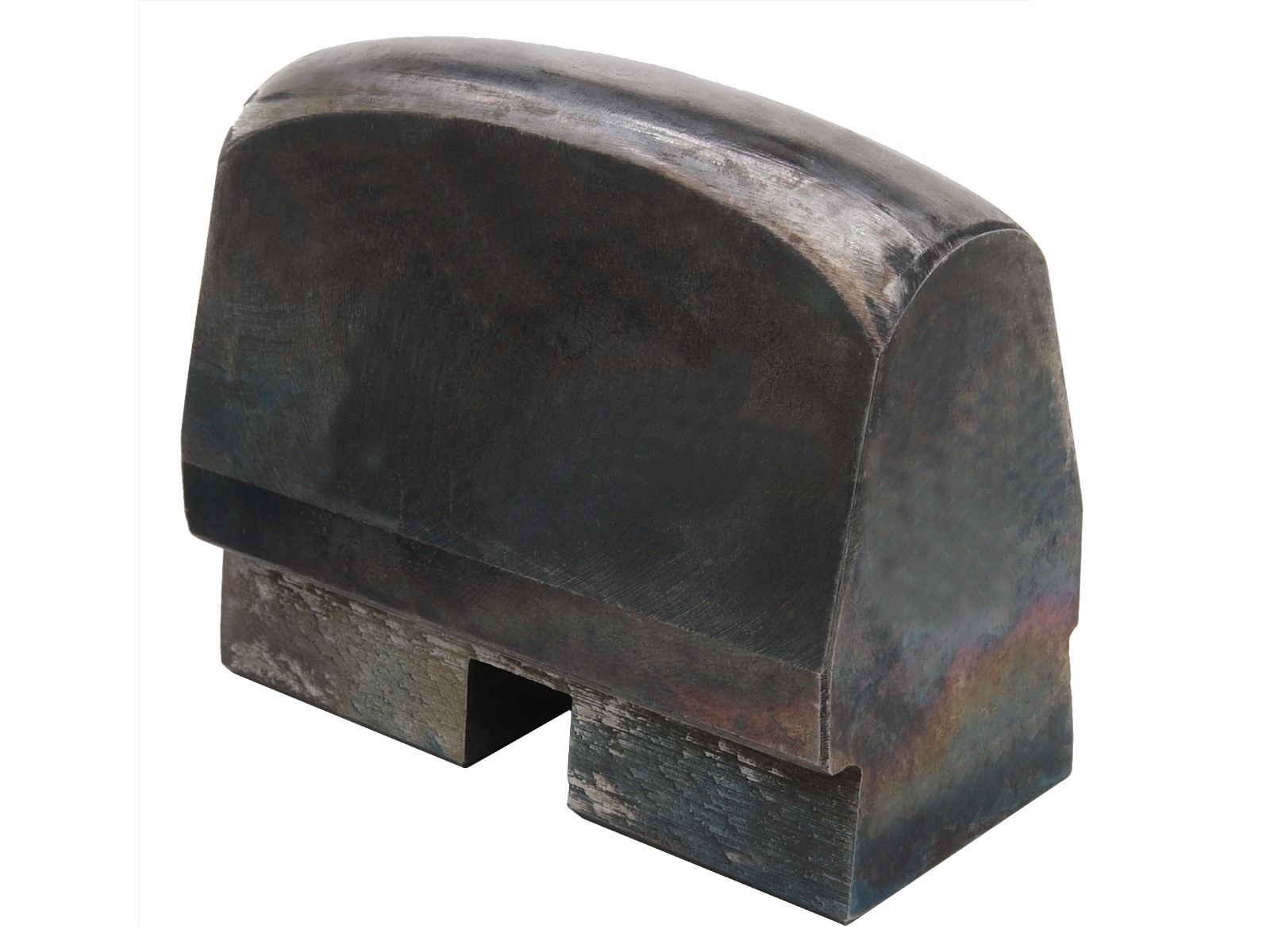

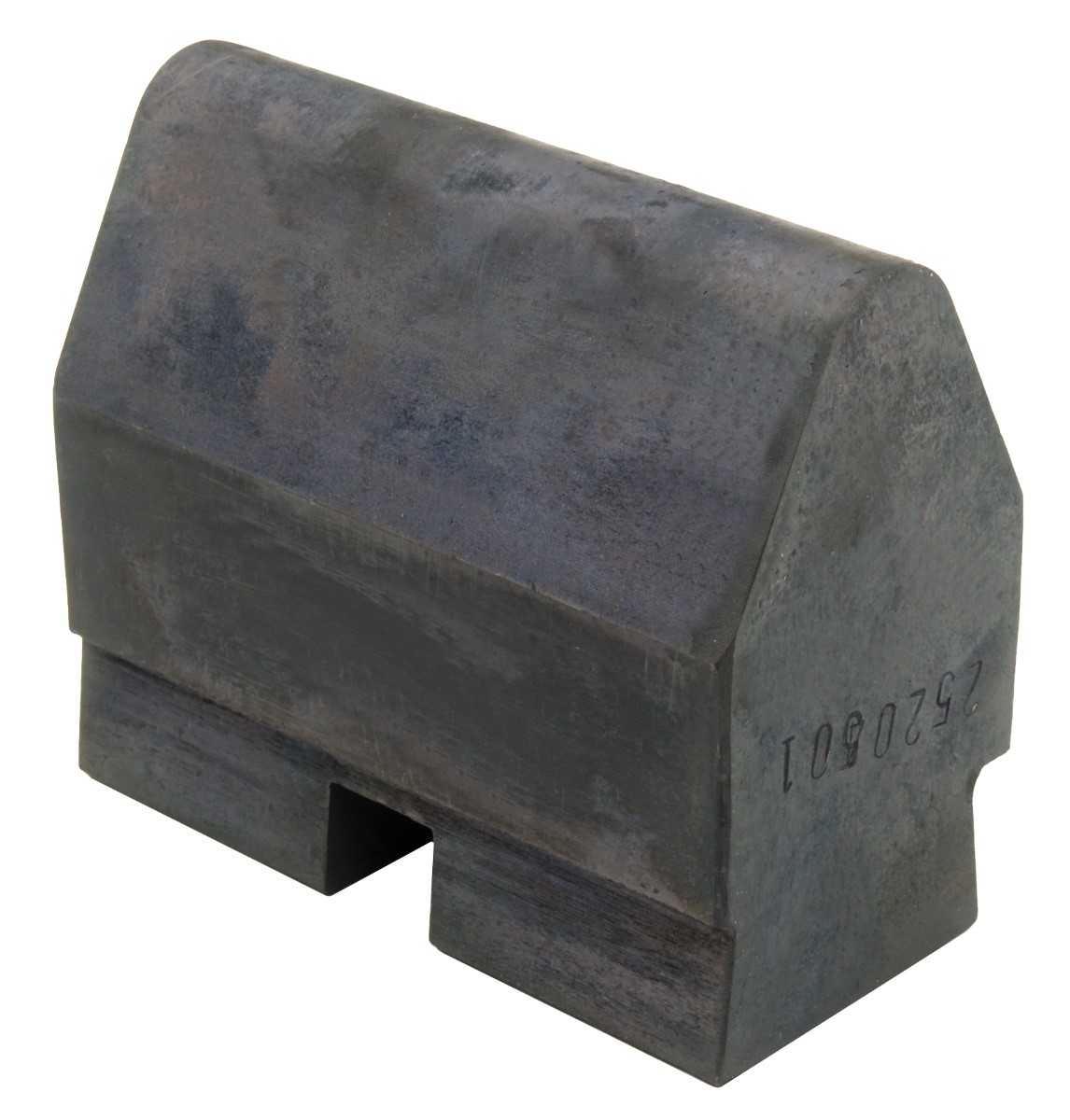

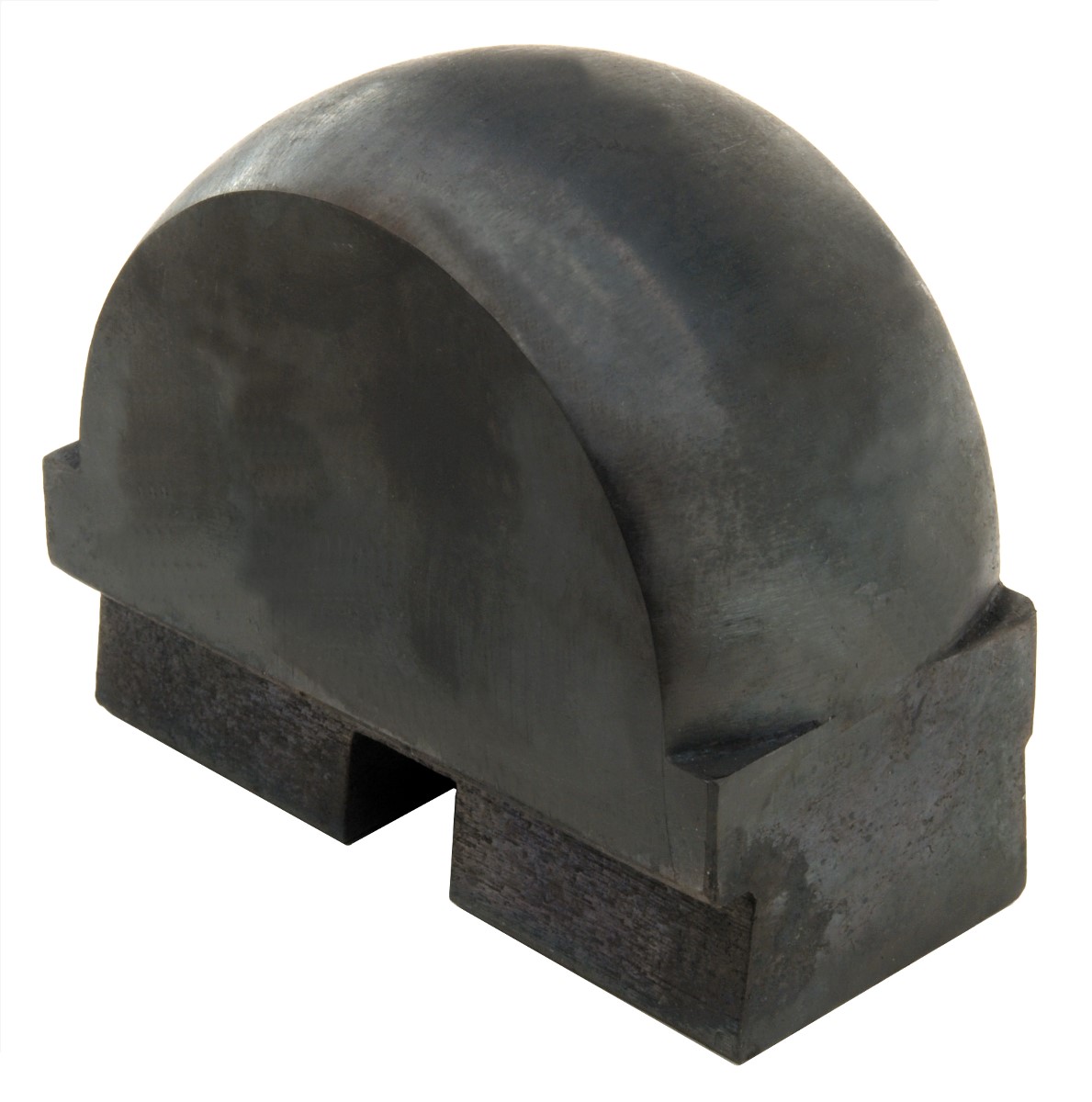

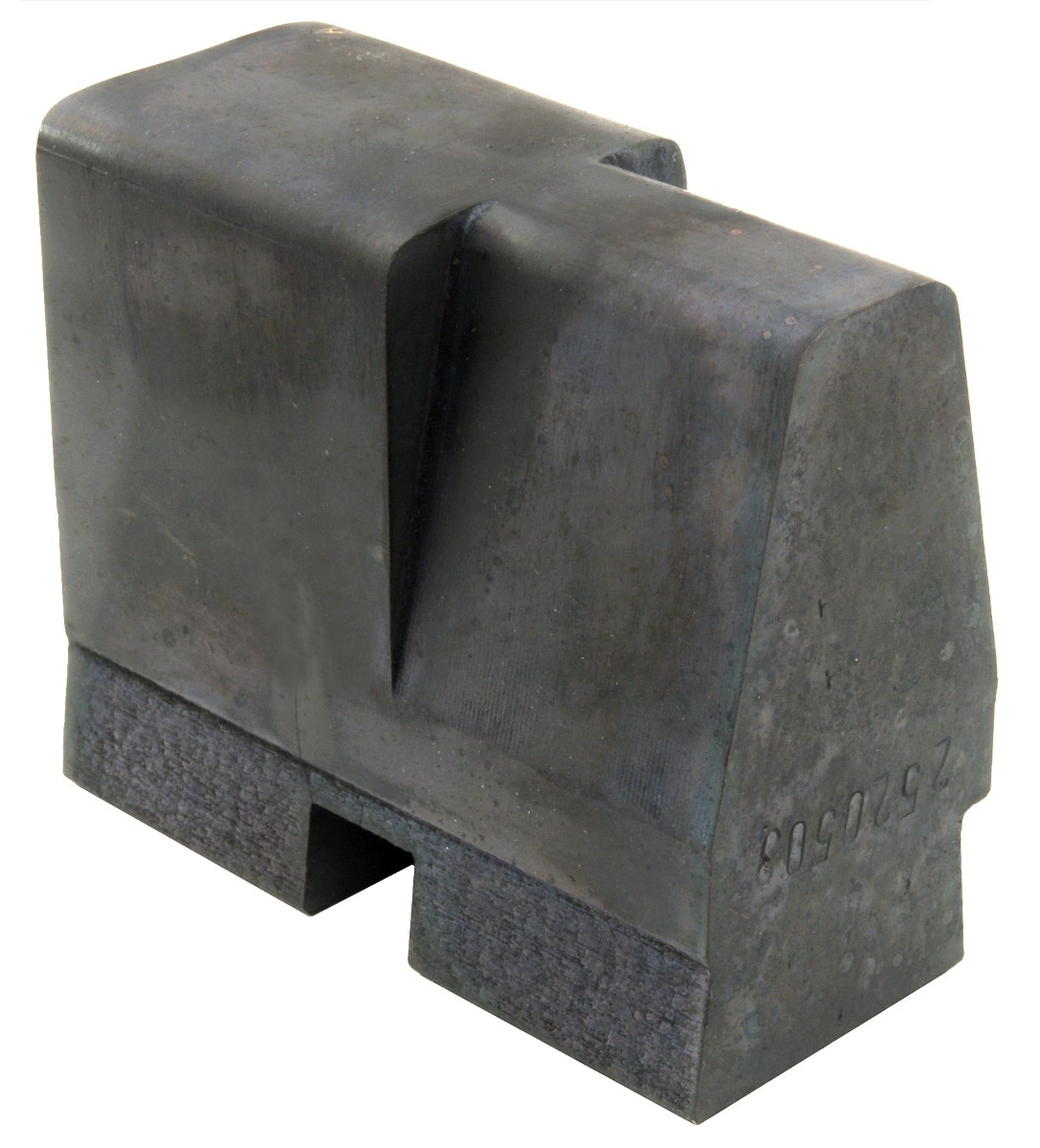

equipped with 2 combination dies (top/bottom),
with motor-protection-switch and emergency-stop,
mounted on steel base.
serial no. #N
New / revised series of airhammers:
- No insertion of the dies into the bear -> enables the installation of extra wide dies
- increased projection of the C-frame -> larger working area
- Higher anvil weight -> larger counterweight to the bear
