AN-75 L airhammer
Product number:
00667072
Weight:
2800 kg
Please note:
Freight costs are calculated by weight!
Description
ram weight 75 kg
hit energy 1,0 kJ,
horiz. clearance 330 mm, free height of working area 297 mm,
number of strokes 210 strokes/min,
electric power 7,5 kW, three-phase 3 x 400 Volt,
total weight 2800 kg,

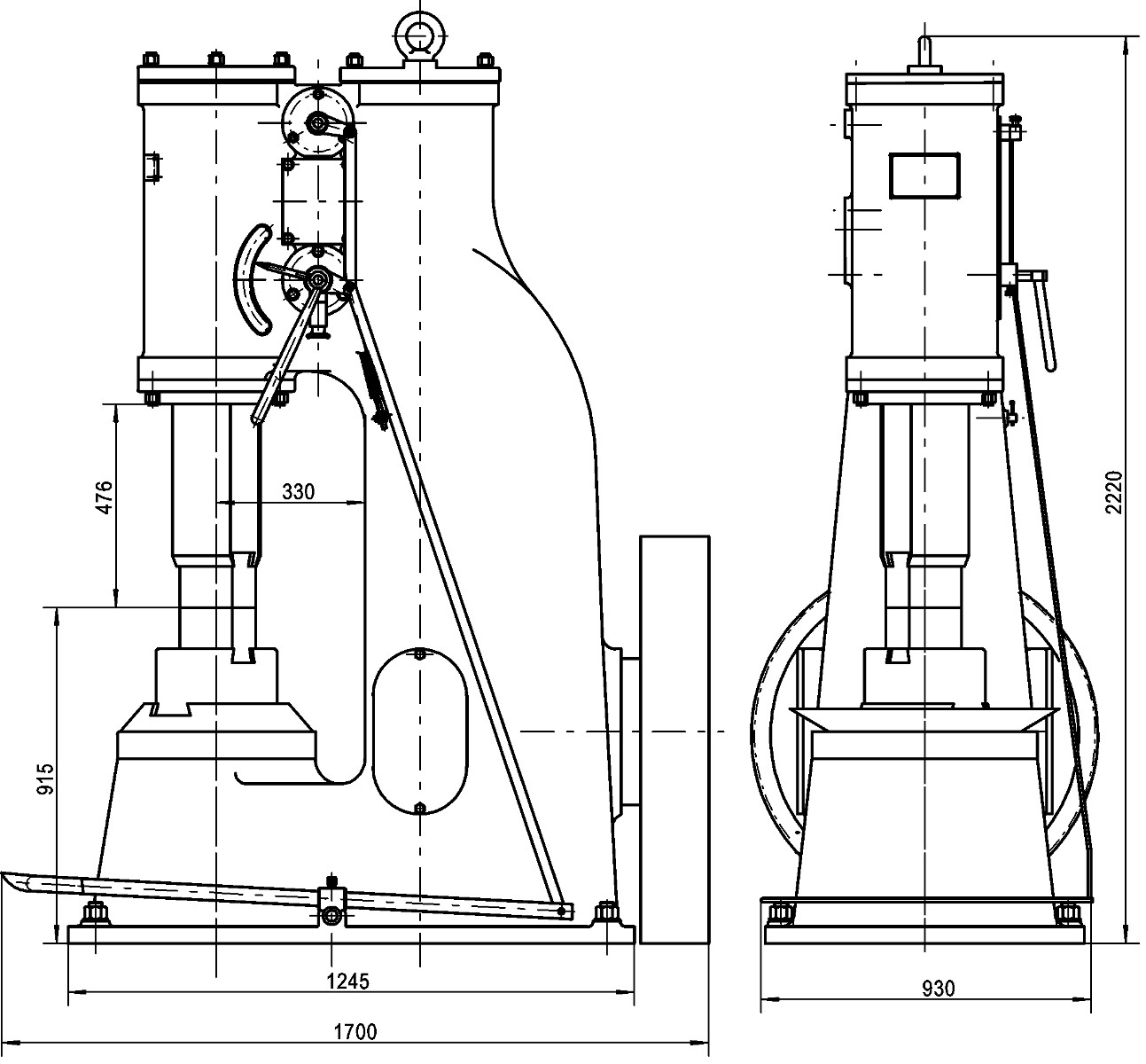

length x width x height: 1620 x 930 x 2200 mm

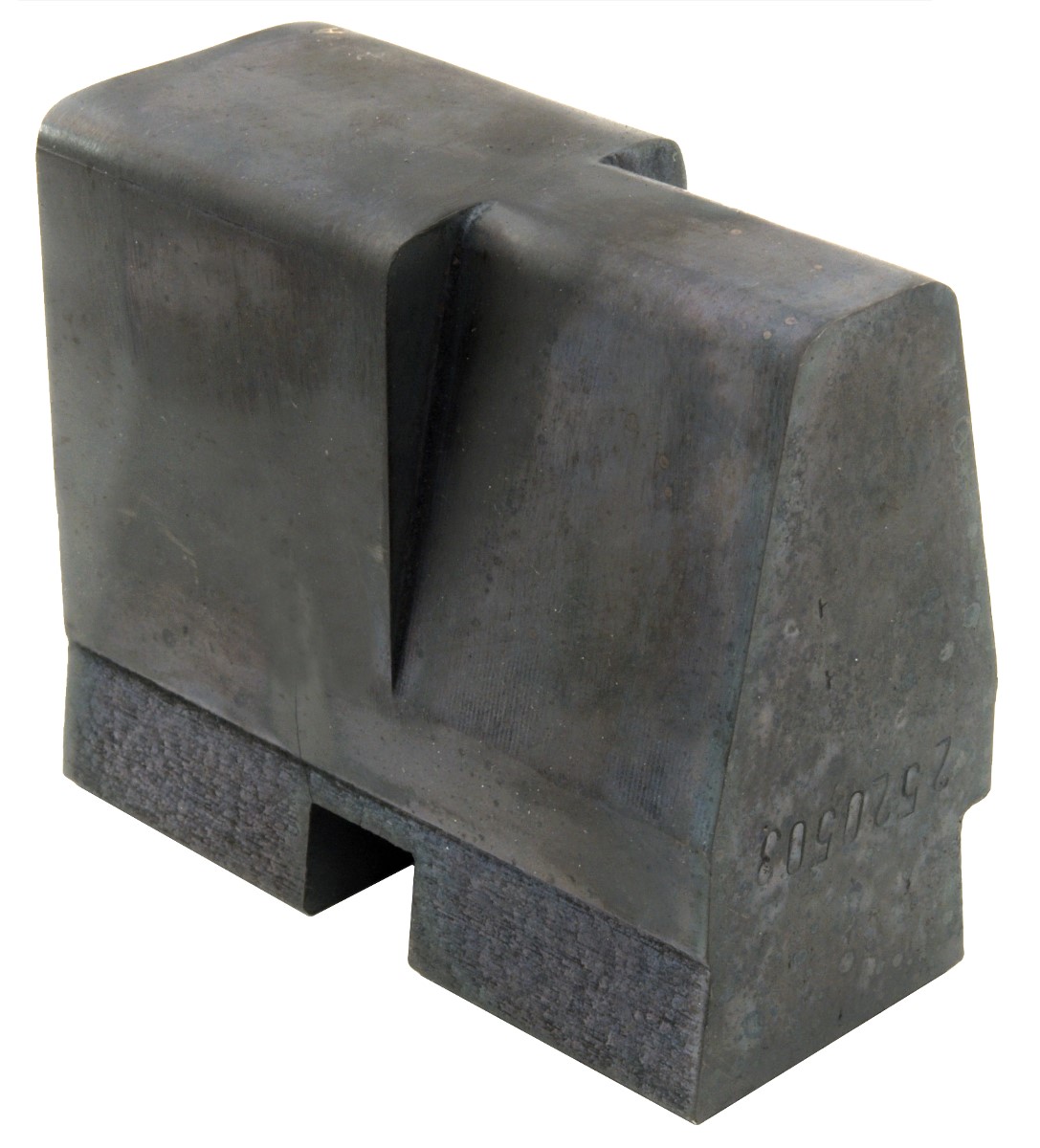

equipped with 2 combination dies (top/bottom),
with motor-protection-switch and emergency-stop.
serial no. #N
New / revised series of airhammers:
- No insertion of the dies into the bear -> enables the installation of extra wide dies
- increased projection of the C-frame -> larger working area
- Higher anvil weight -> larger counterweight to the bear
