Spare parts Kuhn

damping mat 450x80x25 mm

00660061

suitable for AN-15 or other air and spring hammers These damping mats provide a technically clean decoupling of air forging or spring hammers. They are made of a special polyurethane elastomer and are mounted between the steel base and the workshop floor. Features: Clean decoupling of the machine Significantly reduced emissions Improved smooth running Increased machine service life Durable material Easy to attach (glue) Quickly improve the installation situation Several strips are required to store the air hammer. These are glued under the steel base with polyurethane adhesive or simply placed underneath. We recommend: Base unfilled: 2 strips Base filled with concrete: 3 strips Base filled with reinforced concrete: 4 strips

€42.99*

pcs

damping mat 510x150x25 mm

00660062

suitable for AN-25 or other air and spring hammers These damping mats provide a technically clean decoupling of air forging or spring hammers. They are made of a special polyurethane elastomer and are mounted between the steel base and the workshop floor. Features: Clean decoupling of the machine Significantly reduced emissions Improved smooth running Increased machine service life Durable material Easy to attach (glue) Quickly improve the installation situation Several strips are required to store the air hammer. These are glued under the steel base with polyurethane adhesive or simply placed underneath. We recommend: Base unfilled: 2 strips Base filled with concrete: 3 strips Base filled with reinforced concrete: 4 strips

€91.00*

pcs

damping mat 620x150x25 mm

00660063

suitable for AN-40 or other air and spring hammers These damping mats provide a technically clean decoupling of air forging or spring hammers. They are made of a special polyurethane elastomer and are mounted between the steel base and the workshop floor. Features: Clean decoupling of the machine Significantly reduced emissions Improved smooth running Increased machine service life Durable material Easy to attach (glue) Quickly improve the installation situation Several strips are required to store the air hammer. These are glued under the steel base with polyurethane adhesive or simply placed underneath. We recommend: Base unfilled: 2 strips Base filled with concrete: 3 strips Base filled with reinforced concrete: 4 strips

€102.99*

pcs

damping mat 700x150x25 mm

00660064

suitable for AN-55 or other air and spring hammers These damping mats provide a technically clean decoupling of air forging or spring hammers. They are made of a special polyurethane elastomer and are mounted between the steel base and the workshop floor. Features: Clean decoupling of the machine Significantly reduced emissions Improved smooth running Increased machine service life Durable material Easy to attach (glue) Quickly improve the installation situation Several strips are required to store the air hammer. These are glued under the steel base with polyurethane adhesive or simply placed underneath. We recommend: Base unfilled: 2 strips Base filled with concrete: 3 strips Base filled with reinforced concrete: 4 strips

€120.00*

pcs

upper flexible tube for K/CF22

00663538

upper flexible tube for K/CF22 for Kuhn air hammer K/CF22 inside diameter 3/4", 19 mm, length 370 mm

€35.70*

pcs

lower flexible tube

00663539

lower flexible tube for K/CF22 for Kuhn air hammer K/CF22 inside diameter 3/4", 19 mm, length 470 mm

€35.70*

pcs

set of flexible tubes for K/CF40 and K/CF50

00663541

set of flexible tubes for K/CF40 and K/CF50 1 piece length 300 mm (top), one piece length 450 mm (bottom)

€74.90*

set

upper flexible tube for K/CF40 and K/CF50

00663542

upper flexible tube for K/CF40 and K/CF50 Outer diameter ~ 36 mm, inner diameter ~ 25 mm, length ~ 300 mm

€35.00*

pcs

lower flexible tube for K/CF40 and K/CF50

00663543

lower flexible tube for K/CF40 and K/CF50 Outer diameter ~ 36 mm, inner diameter ~ 25 mm, length ~ 450 mm

€40.00*

pcs

upper flexible tube for K/CF 65

00663544

upper flexible tube for K/CF 65 inside diameter 5/4" (32 mm), length 300 mm

€45.90*

pcs

lower flexible tube for K/CF 65

00663545

lower flexible tube for K/CF 65 for Kuhn air hammer K/CF65 inside diameter 5/4" (32 mm), length 500 mm

€47.60*

pcs

flexible tube per meter (1")

00663546

flexible tube per meter (1") for Kuhn air hammer K-0 (22 kg), KB-1 (34 kg), K-23 (50 kg), K-12/42 (38 kg) inner diameter 1"

€52.90*

flexible tube per meter (1¼")

00663547

flexible tube per meter (1¼") for Kuhn air hammer K-24/53 (50 kg), K-25 (60 kg) inner diameter 1¼"

€79.00*

air filter complete for 2000 K/CF 60

00663559

air filter complete for 2000 K/CF 60 for Kuhn air hammer

€189.00*

pcs

rubber profile for sound absorber

00663560

rubber profile for sound absorber for Kuhn air hammer KB-1 and K 23 length 720 mm

€10.00*

pcs

cylinder DZS 160

00663562

cylinder DZS 160 for Kuhn 2000K/CF 40 and CF 50

€2,190.00*

pcs

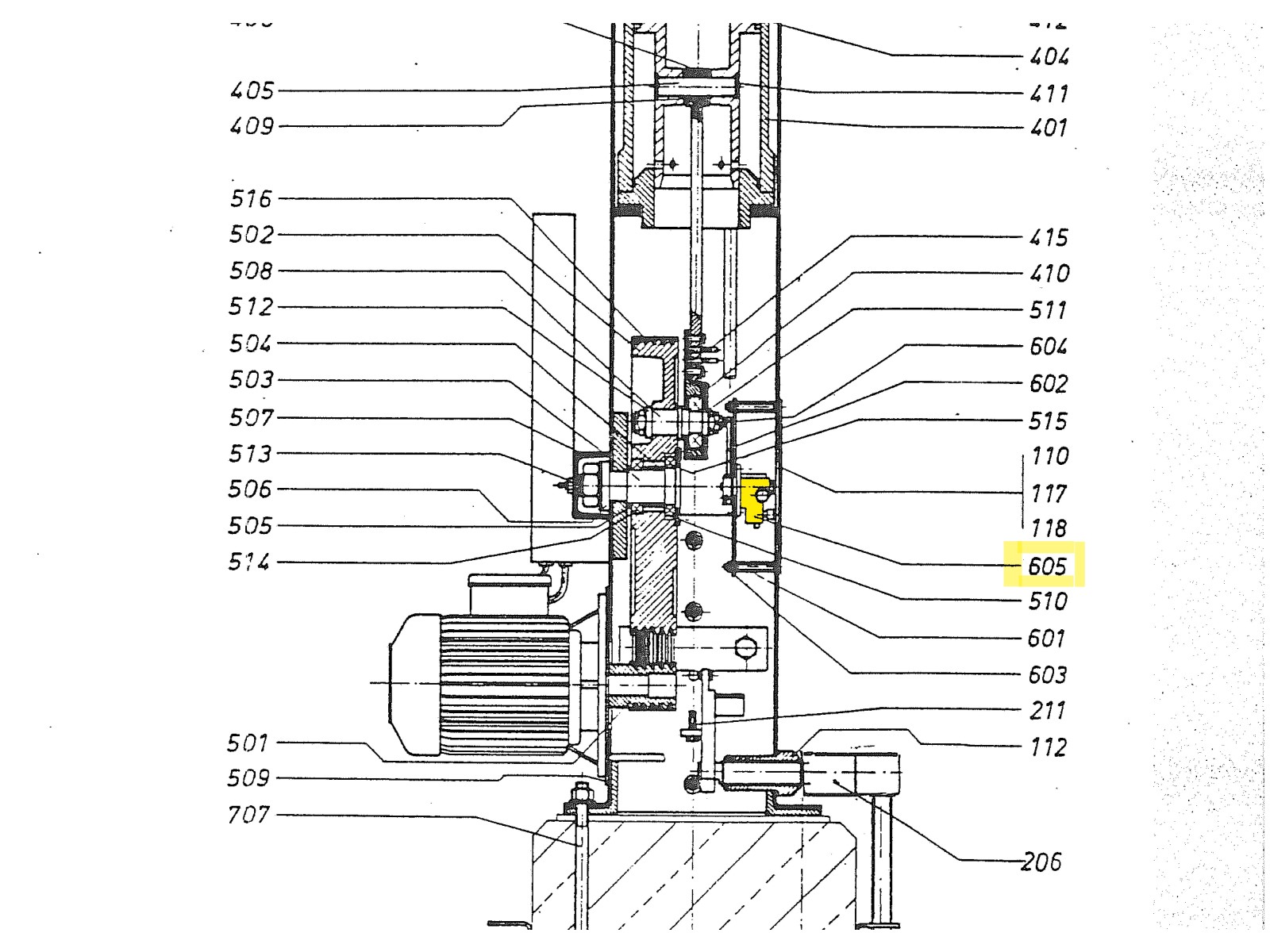

oil pump 1

00663571

oil pump 1 for Kuhn airhammer K 12/42 und K24/53 with one outlet Note: observe the direction of rotation

€485.00*

pcs

oil-non-return valve

00663576

oil-non-return valve for Kuhn airhammer K-0, KB-1 und K-23

€37.90*

pcs

oil gun

00663578

oil gun for Kuhn airhammer K-CF Technical specifications: Volume (ml): 150 Flow rate (cm³/stroke): 0.5 Media: Oil, petroleum, aerosols and oils with additives Housing: steel, powder-coated Mouthpiece: pointed and hollow/universal mouthpiece Connection thread: for tapered and ball grease nipples, DIN 71412, DIN 3402, for funnel type grease nipples, DIN 3405 Maximum pressure (bar): 150 Dimensions ØxL (mm): 40 x 230 Weight (kg): 0.25

€22.60*

pcs

V-belt for air hammer

00663580

From €14.90*

set of v-belts for KB-1

00663581

set of v-belts for KB-1 for Kuhn air hammer set of 3 pieces

€64.90*

set

set of v-belts for K23

00663582

set of v-belts for K23 for Kuhn air hammer set of 4 pieces

€74.90*

set

set of v-belts for K-0

00663583

set of v-belts for K-0 for Kuhn air hammer set of 2 pieces

€37.00*

set

set of v-belts for K/CF

00663584

set of v-belts for K/CF for Kuhn air hammer set of 4 pieces, each 1800 mm

€450.00*

set
