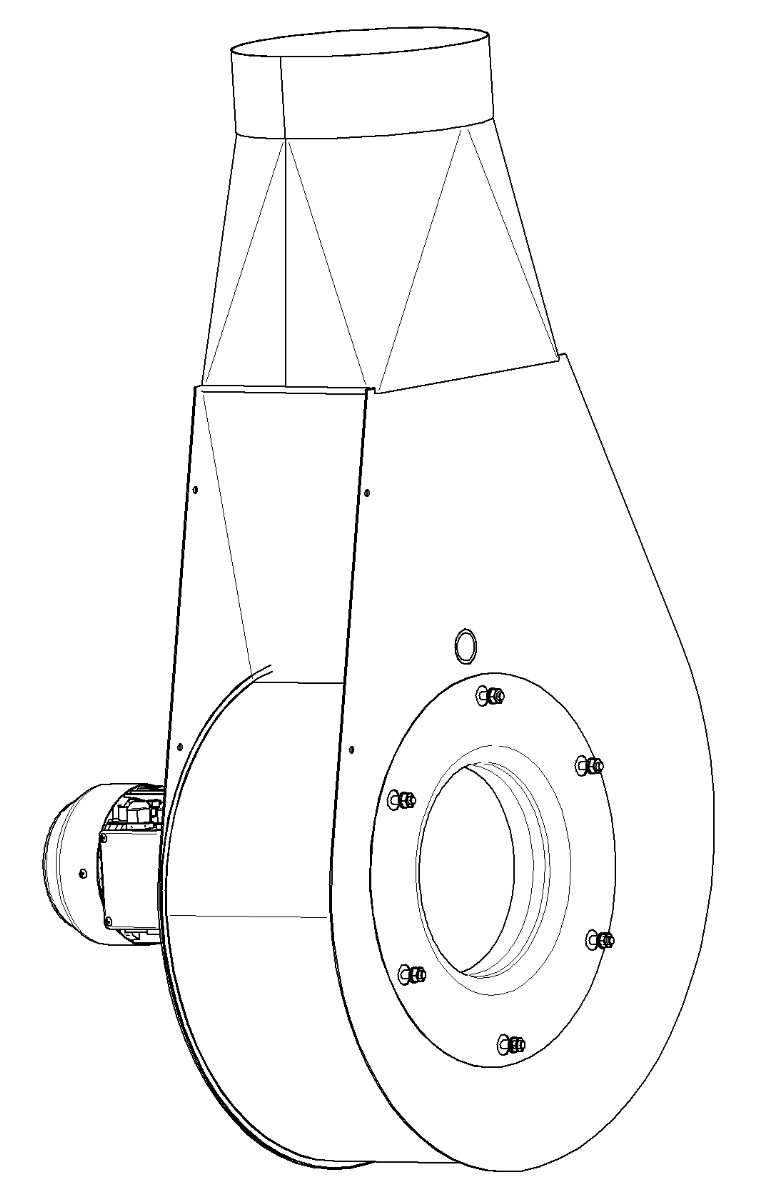

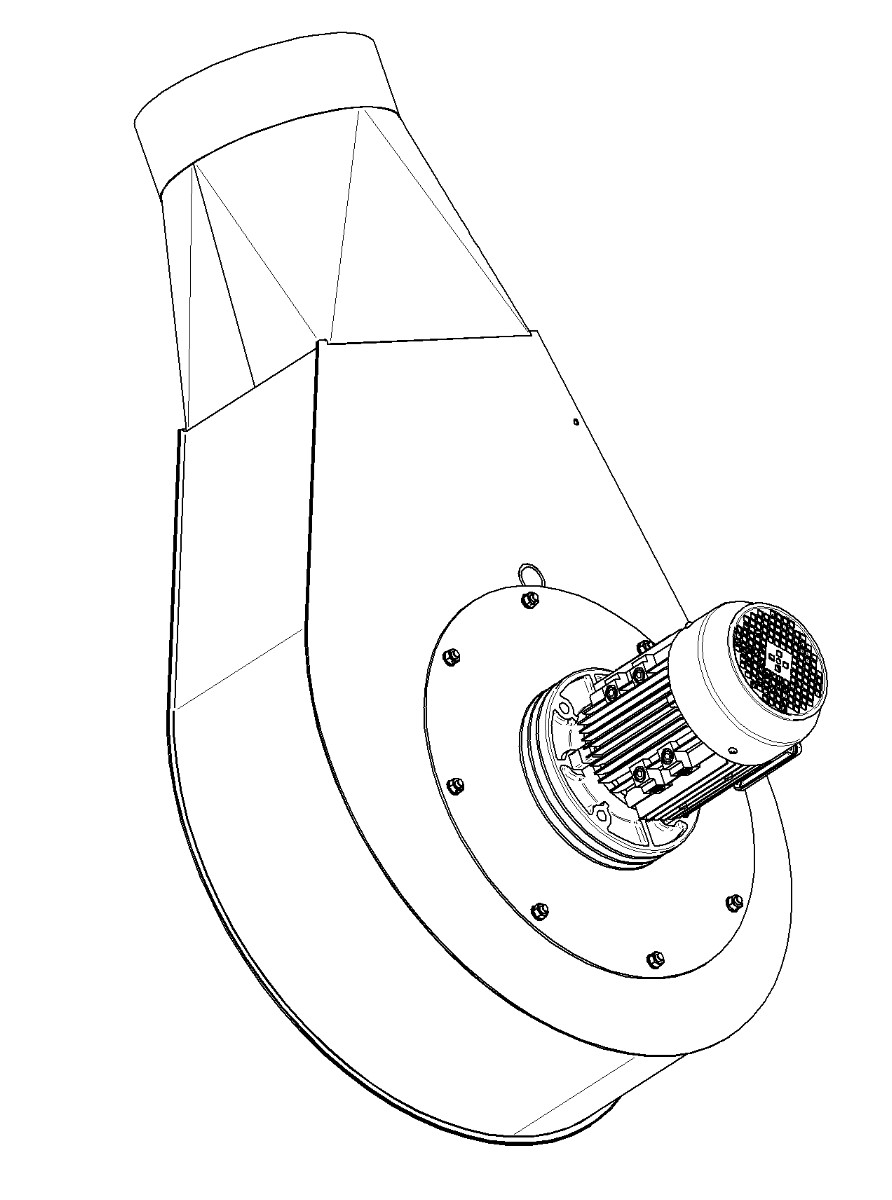

smoke extractor type G-30.4 (230V, 45°, 1400 r.p.m)
- made in Oberschwaben, Versand per Spedition
smoke extractor type G-30.4 (230V, 45°, 1400 r.p.m)
for existing smoke hoods,
for installations with one up to 3 fires,
air debit approx. 33 m³/min at 160 Pa,

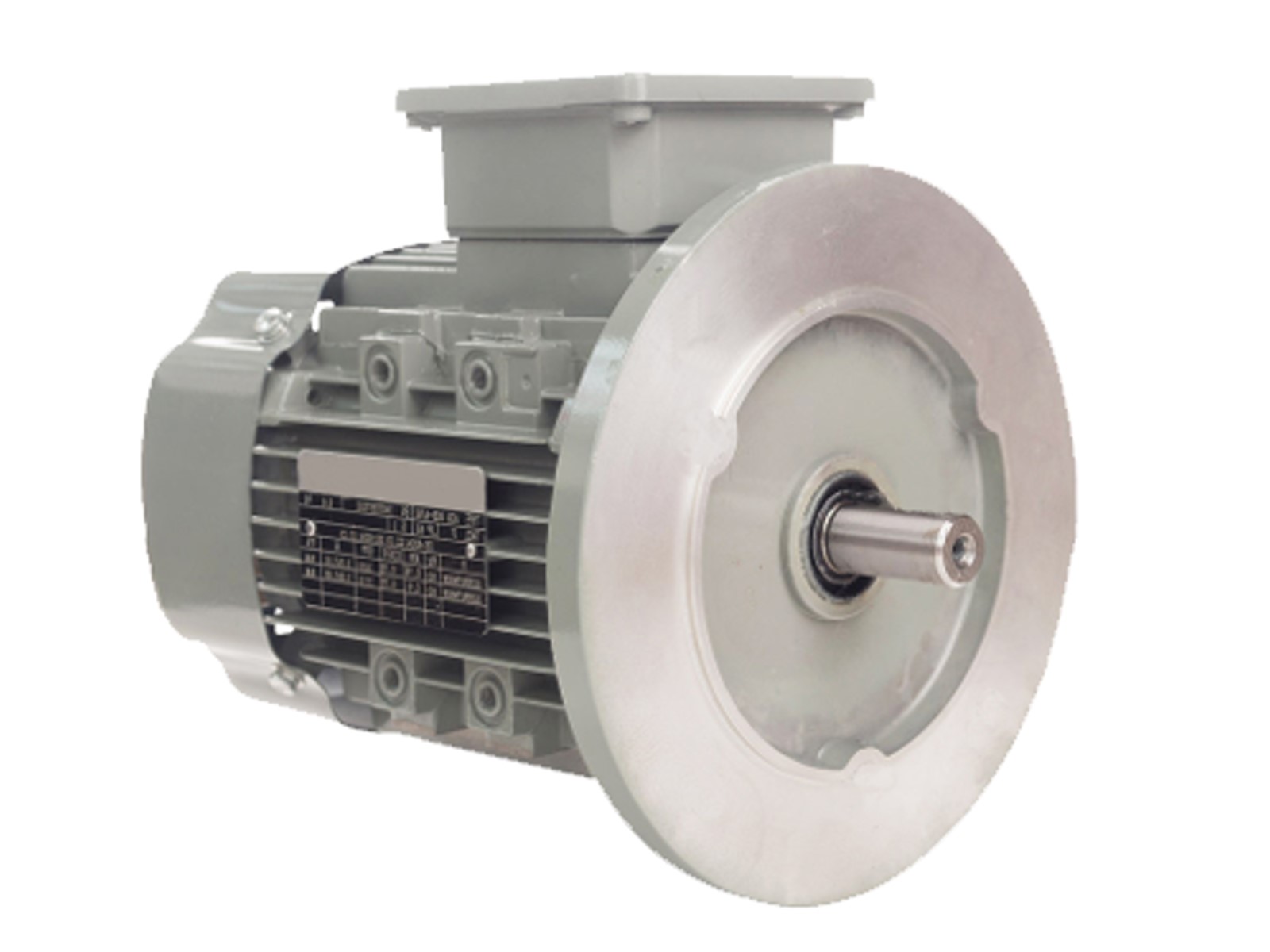

single-phase 230 volts, 50 Hz, 0,55 kW,
speed 1400 r.p.m.,
smoke tube connection outlet 250 mm dia,
smoke tube connection angled 45°,

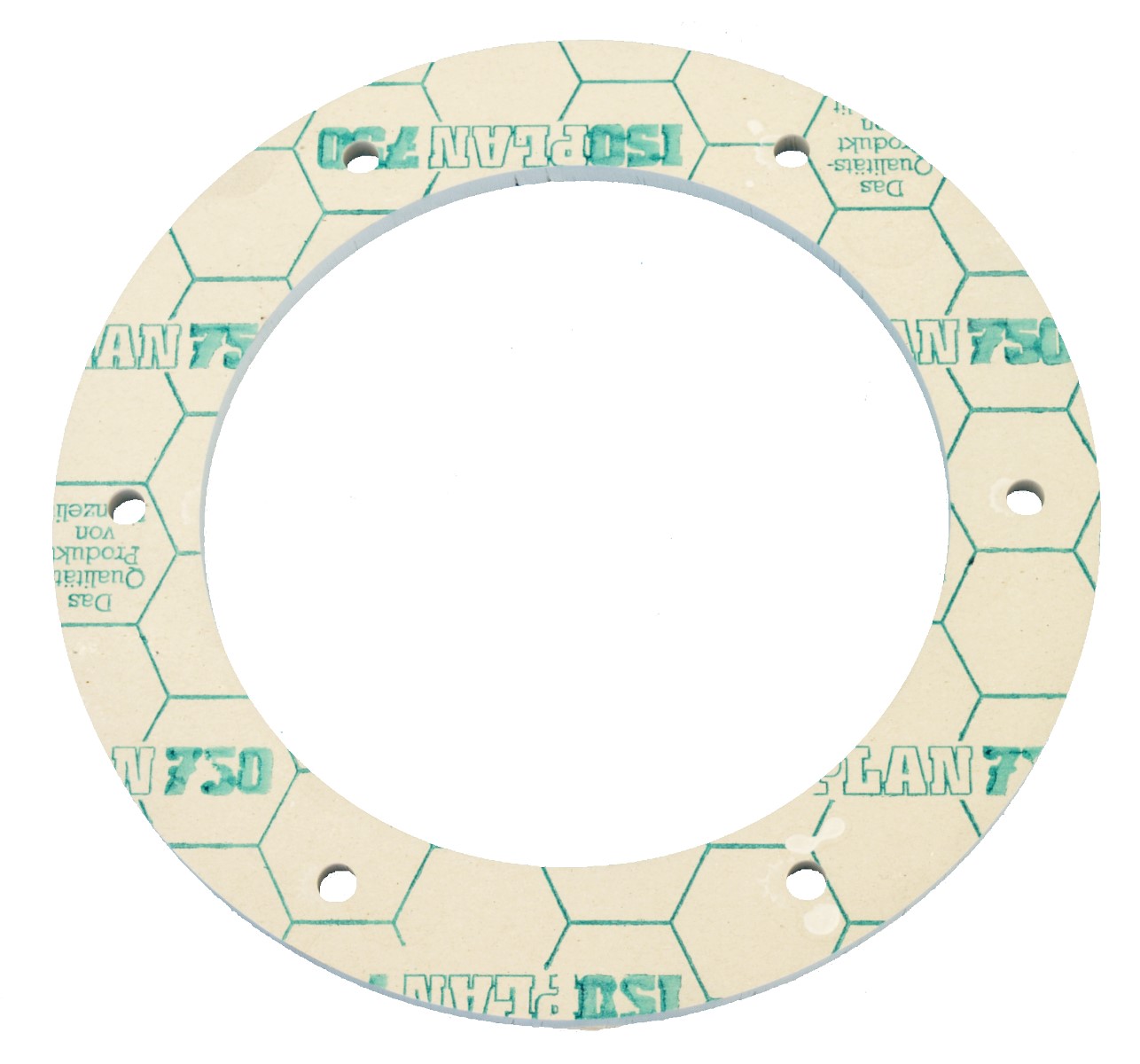

including ceramic seal (i.d. 200/ o.d. 280 mm).
| Fires: | 2 |
|---|
Information on product safety:
- Use only for users familiar with the product.
- Only for the intended purpose.
- Improper use can lead to damage and injury. Please also note the safety instructions included with the product.
Importer/manufacturer/distributor (unless another manufacturer is explicitly mentioned for the article):
ANGELE GmbH | Ringstrasse 25 | 88416 Ochsenhausen | Germany
info@angele-shop.com
Accessories
Available in 30 days, delivery time 1-3 days
