Smoke evacuation

The smoke gases produced when forging with coal and gas must be reliably captured and led outside. This can only be done with a special smoke extraction system.

A distinction is made here between systems with natural chimney draft or a smoke gas fan (extraction).

In addition to smoke extraction, we also offer suitable centrifugal separators (cyclones) to separate coarse particles from the smoke gases.

Before installing a new system, you should consult with the responsible authority or the district chimney sweep to avoid unforeseen surprises.

Are you not sure what you need or how to implement your project? Simply contact us and we will be happy to help you.

Smoke extractor with hood

Smoke hood

Smoke extractor

Smoke cleaning

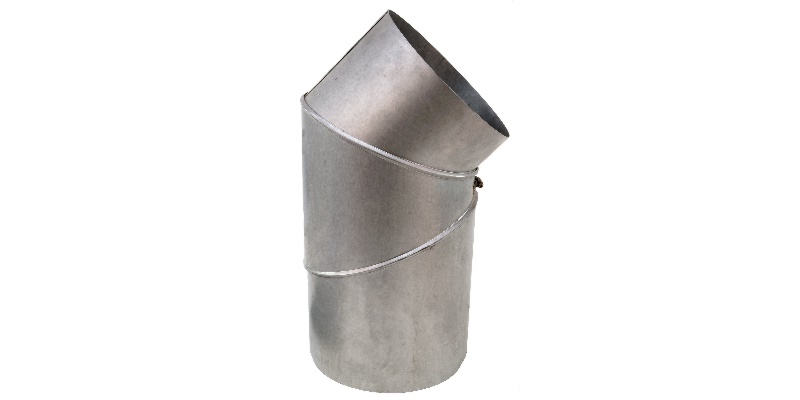

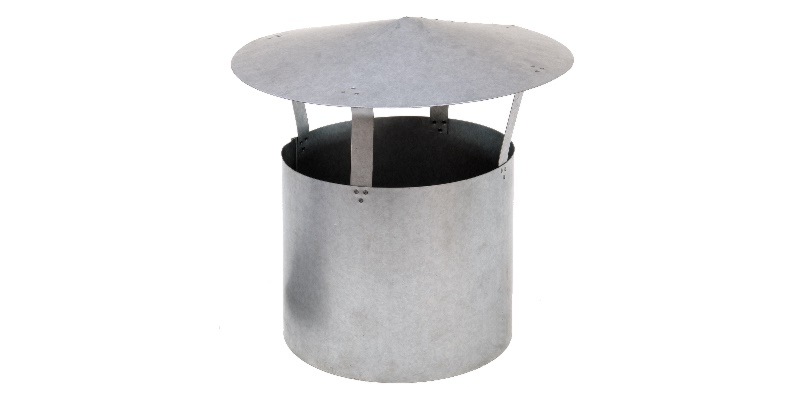

Smoke pipes

Accessories forges

Spare Parts Smoke Evacuation

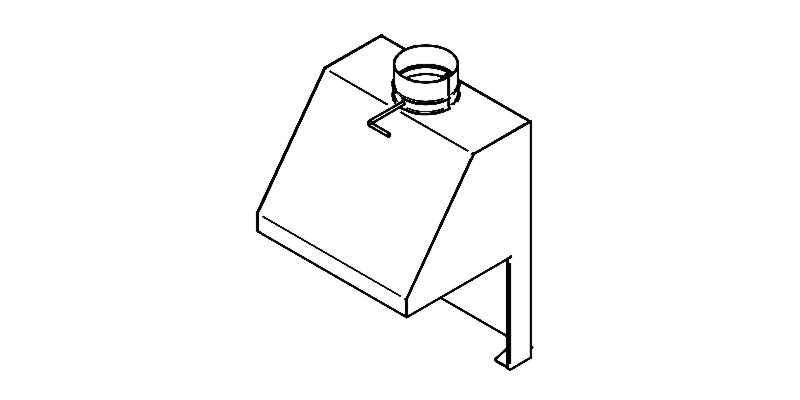

smoke hood type R-1.1

00211100

smoke hood type R-1.1 hood for natural chimney for portable forges, fixation on the forge or at wall, width 595 mm, depth 480 mm, height 890 mm, smoke tube connection diameter 180 mm

in stock

€389.00*

pcs

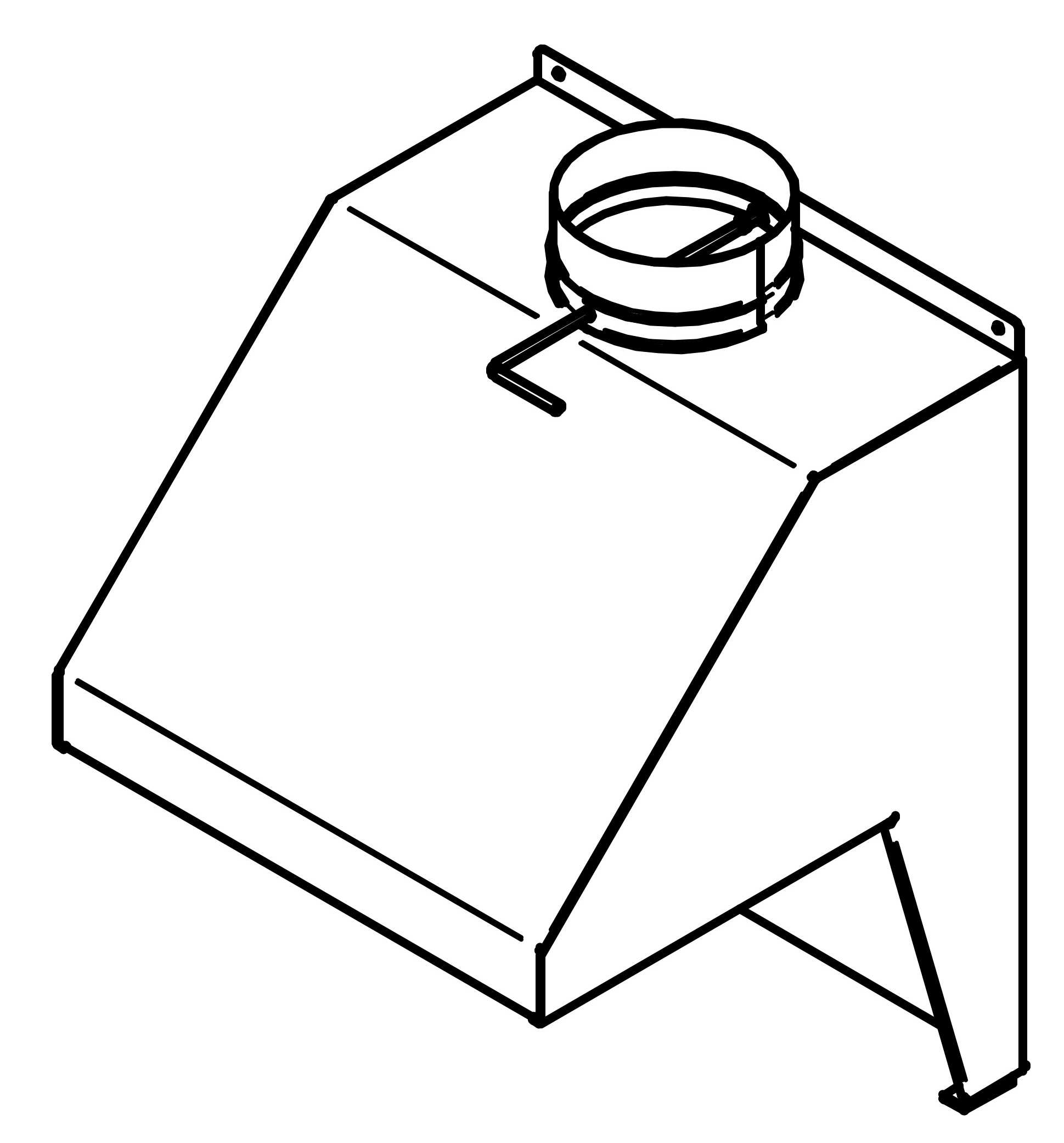

smoke hood type R-2.3 ø 250

00212103

smoke hood type R-2.3 ø 250 hood for natural chimney for forges with 1 fire, fixation on the forge or at wall, width 700 mm, depth 700 mm, height 1030 mm, smoke tube connection diameter: 250 mm

in stock

€495.00*

pcs

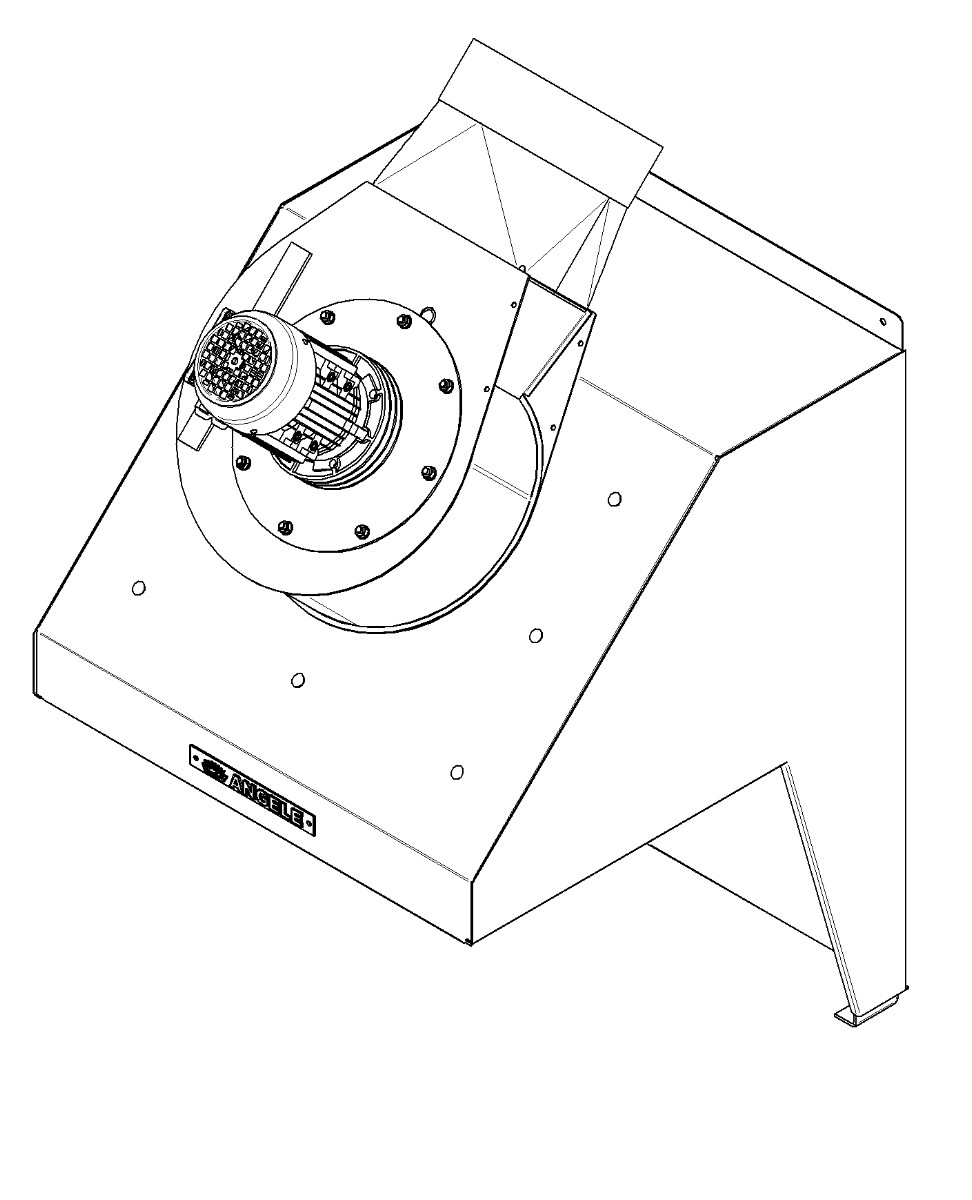

Smoke aspiration type A-15.4 (400V, straight)

00221540.0010

Smoke aspiration type A-15.4 (400V, straight) hood with electric blower for forges with 1 fire, fixation on the forge or at wall, width 700 mm, depth 700 mm, height 1030 mm, smoke tube connection diameter: 250 mm, air debit 14 m³/min at 60 Pa, 3-phase 400 volts, 50 Hz, 0,25 kW, 1400 r.p.m., smoke tube connection straight, operating noise level 67 dB(A)

Available in 30 days, delivery time 2-5 days

€1,795.00*

Details

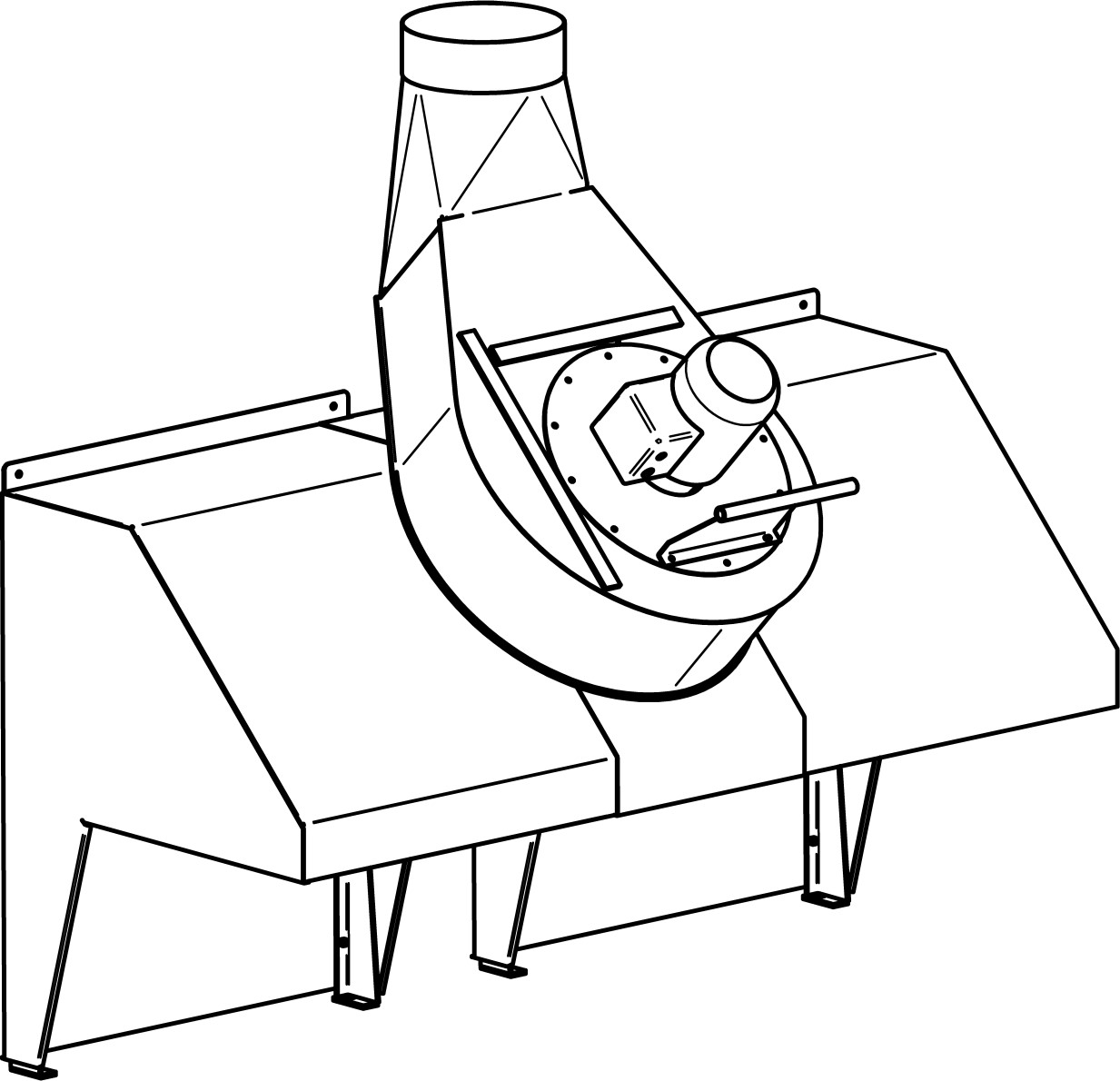

smoke aspiration type A-30.4 (400V, straight)

00223040.0010

smoke aspiration type A-30.4 (400V, straight) hood with electric blower, for double-forges, fixation on the forges or at the wall, width 1650 mm, depth 700 mm, height 1580 mm, smoke tube connection diameter: 250 mm, air debit 33 m³/min at 160 Pa, 3-phase 400 volts, 50 Hz, 0,55 kW, 1400 r.p.m., smoke tube connection straight, operating noise level 68 dB(A)

Available in 30 days, delivery time 2-5 days

€2,890.00*

Details

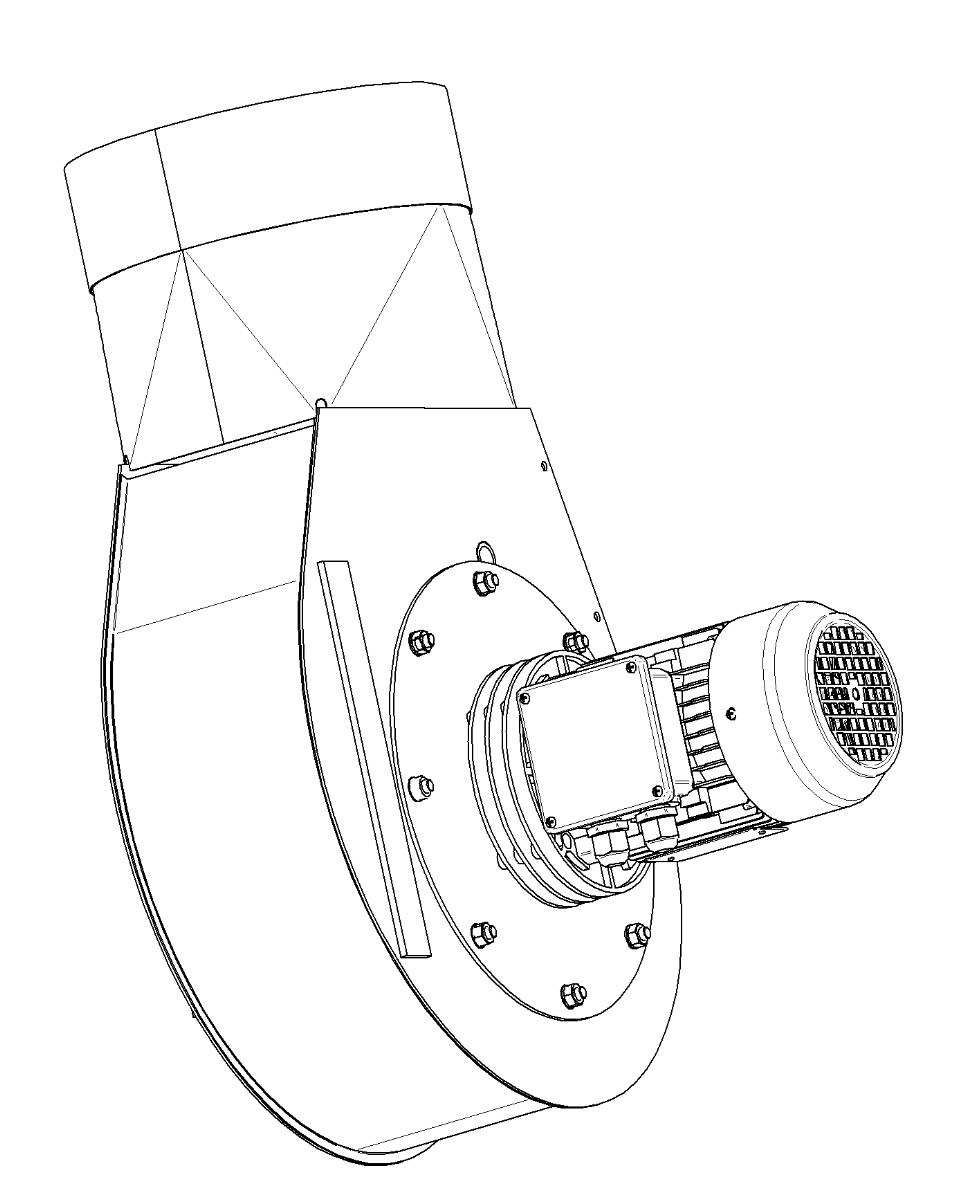

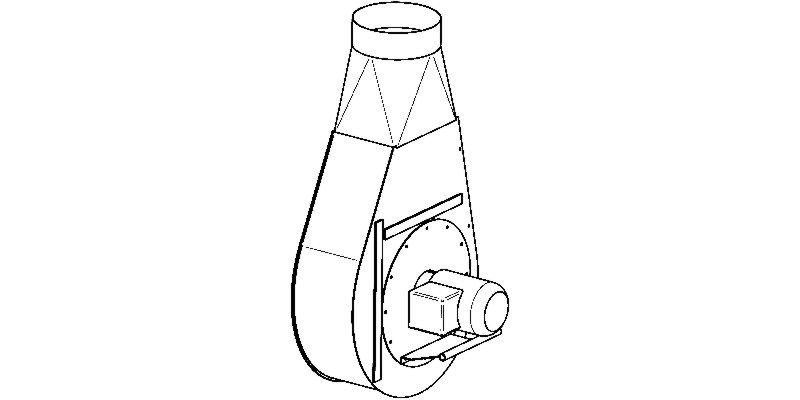

smoke extractor type G-15.4 (400V, straight, 1400 r.p.m)

00231540.0010

smoke extractor type G-15.4 (400V, straight, 1400 r.p.m) for existing smoke hoods, for installations with one fire, air debit approx. 14 m³/min at 60 Pa, three-phase 400 volts, 50 Hz, 0,25 kW, speed 1400 r.p.m., smoke tube connection outlet 250 mm dia, smoke tube connection straight, including ceramic seal (i.d. 200/ o.d. 280 mm).

in stock

€1,349.00*

Details

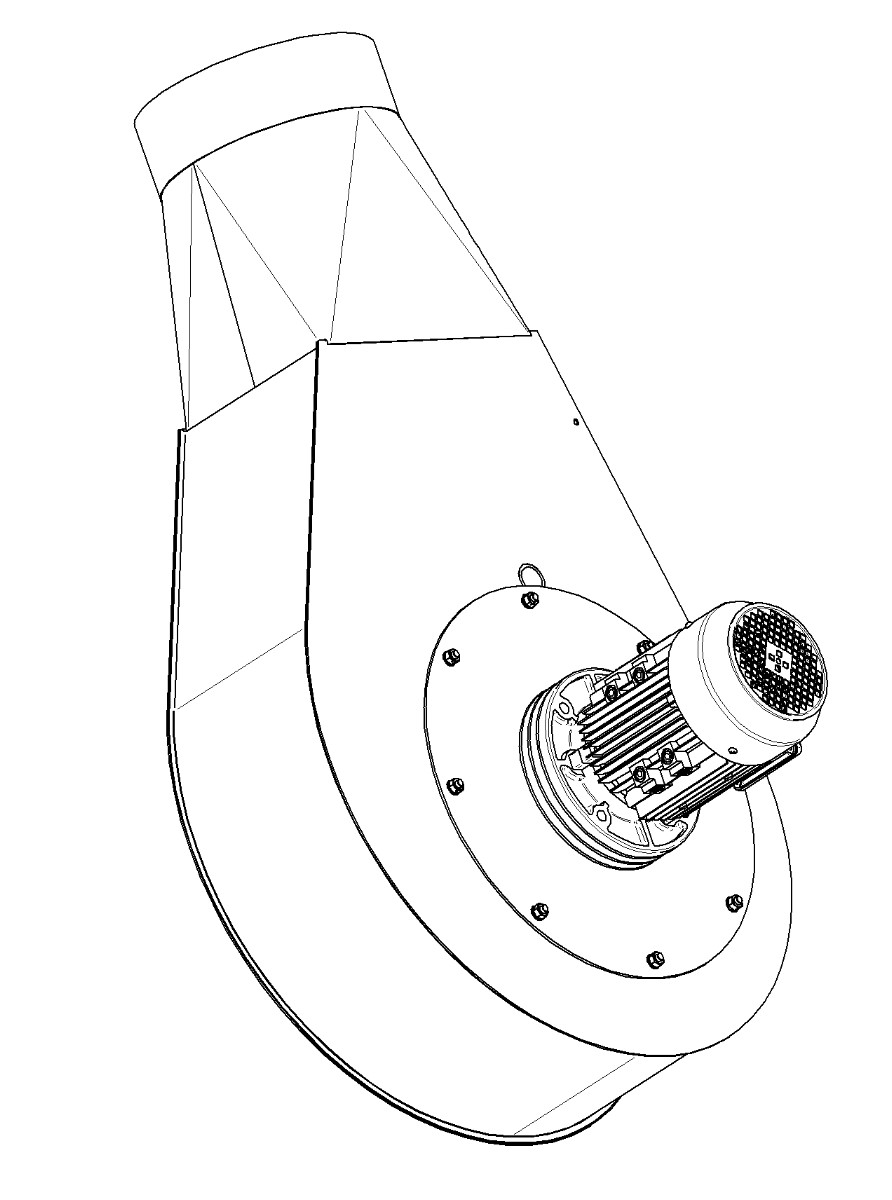

smoke extractor type G-30.4 (400V, straight, 1400 r.p.m)

00233040.0010

smoke extractor type G-30.4 (400V, straight, 1400 r.p.m) for existing smoke hoods, for installations with one up to 3 fires, air debit approx. 33 m³/min at 160 Pa, three-phase 400 volts, 50 Hz, 0,55 kW, speed 1400 r.p.m., smoke tube connection outlet 250 mm dia, smoke tube connection straight, including ceramic seal (i.d. 200/ o.d. 280 mm).

in stock

€2,079.00*

Details

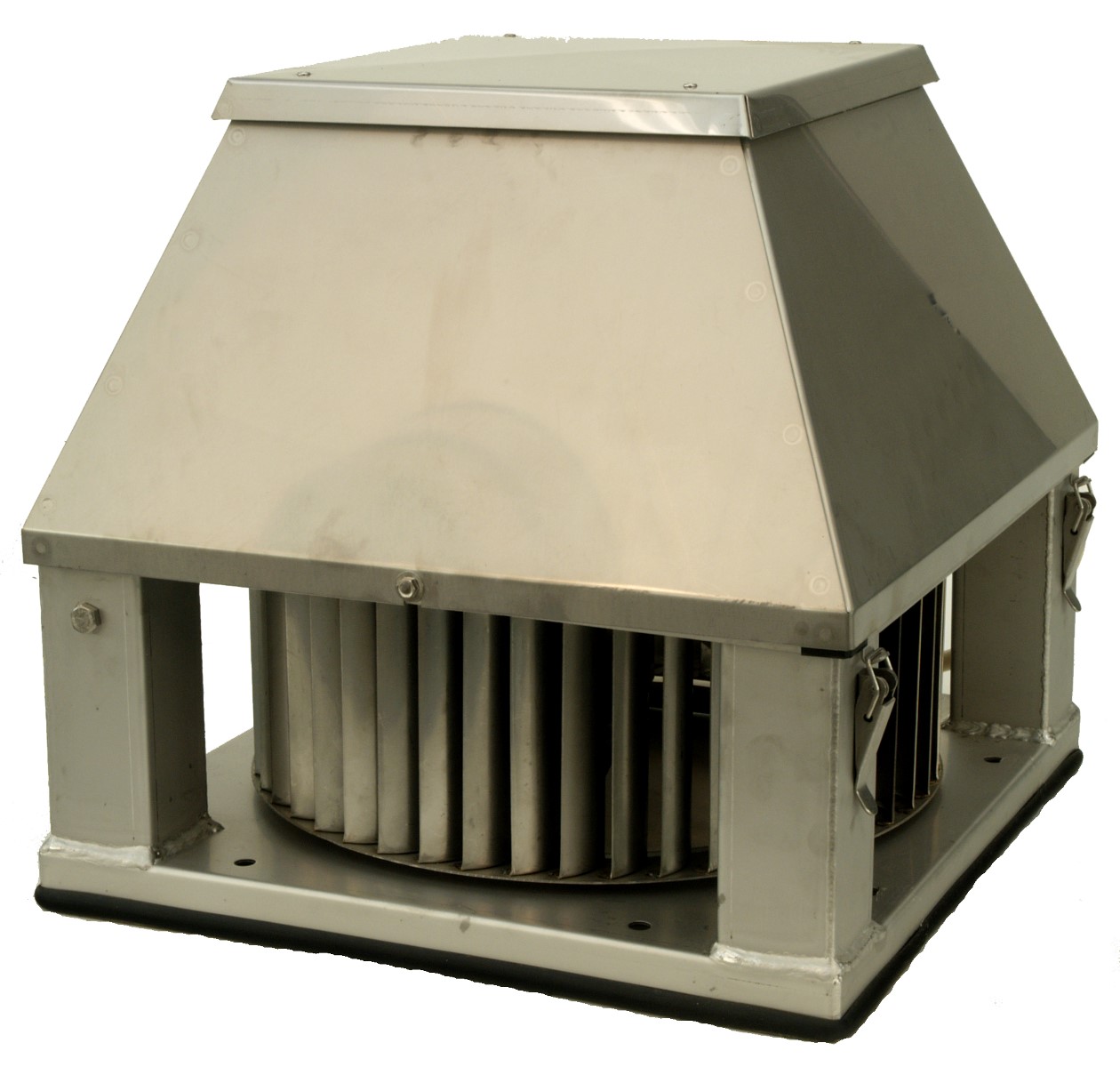

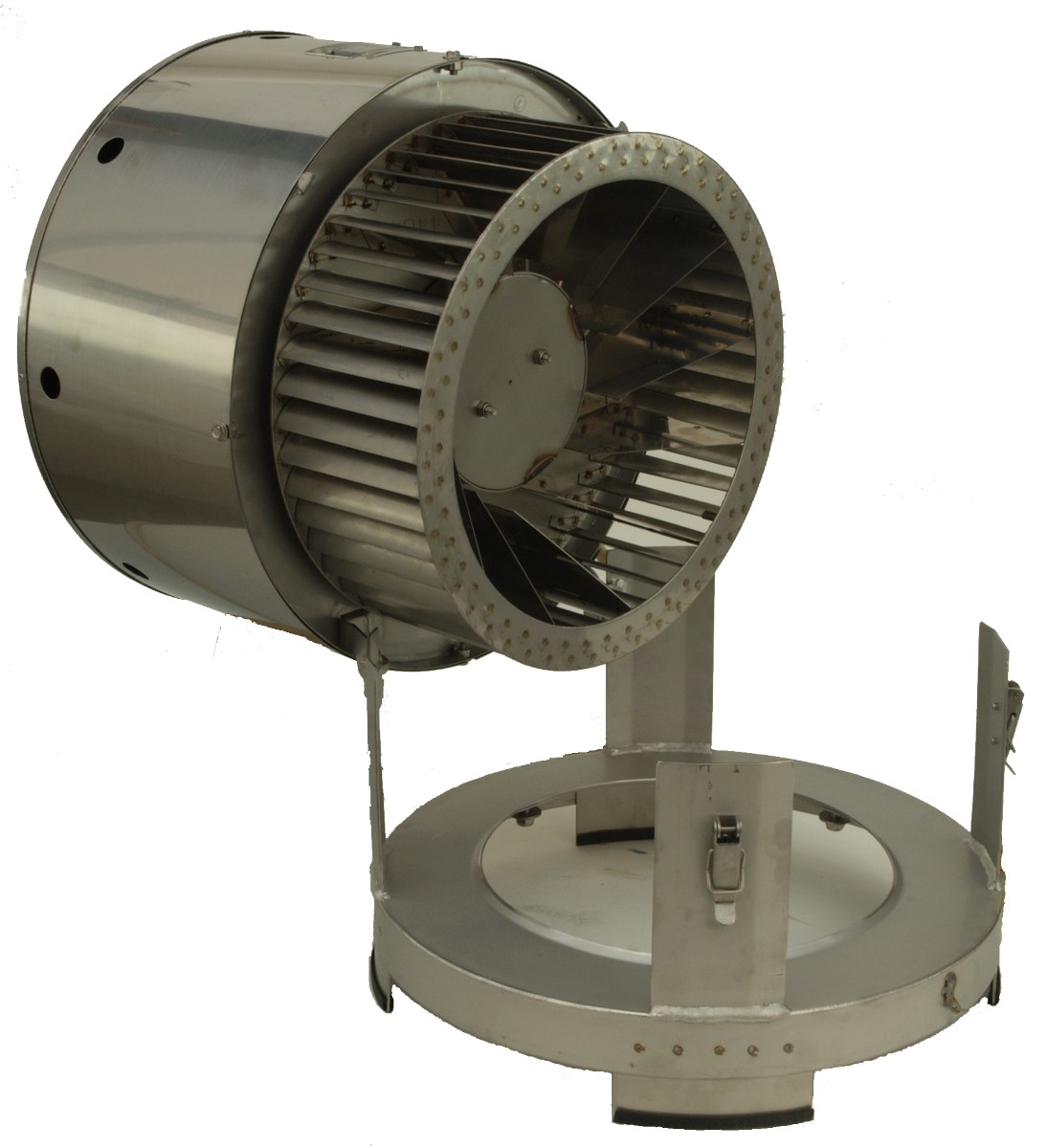

RH 36-4 smoke extractor (230V)

00237036

RH 36-4 smoke extractor (230V) for top of chimney round model to be mounted on top of the chimney, may be opened for cleaning, for installations with 1 fire, medium air debit approx. 900 m³/h at 130 Pa, single-phase 230 volts, 50 Hz, 0,12 kW, speed 1400 r.p.m., stainless steel construction 1.4404

Available in 30 days, delivery time 2-5 days

€2,940.00*

Details

HF 3-4 smoke extractor (230V)

00237134

HF 3-4 smoke extractor (230V) for top of chimney square model to be mounted on top of the chimney, may be opened for cleaning, for installations with 1 fire, medium air debit approx. 900 m³/h at 130 Pa, single-phase 230 volts, 50 Hz, 0,18 kW, speed 1400 r.p.m., stainless steel construction 1.4404

Available in 30 days, delivery time 2-5 days

€2,850.00*

Details

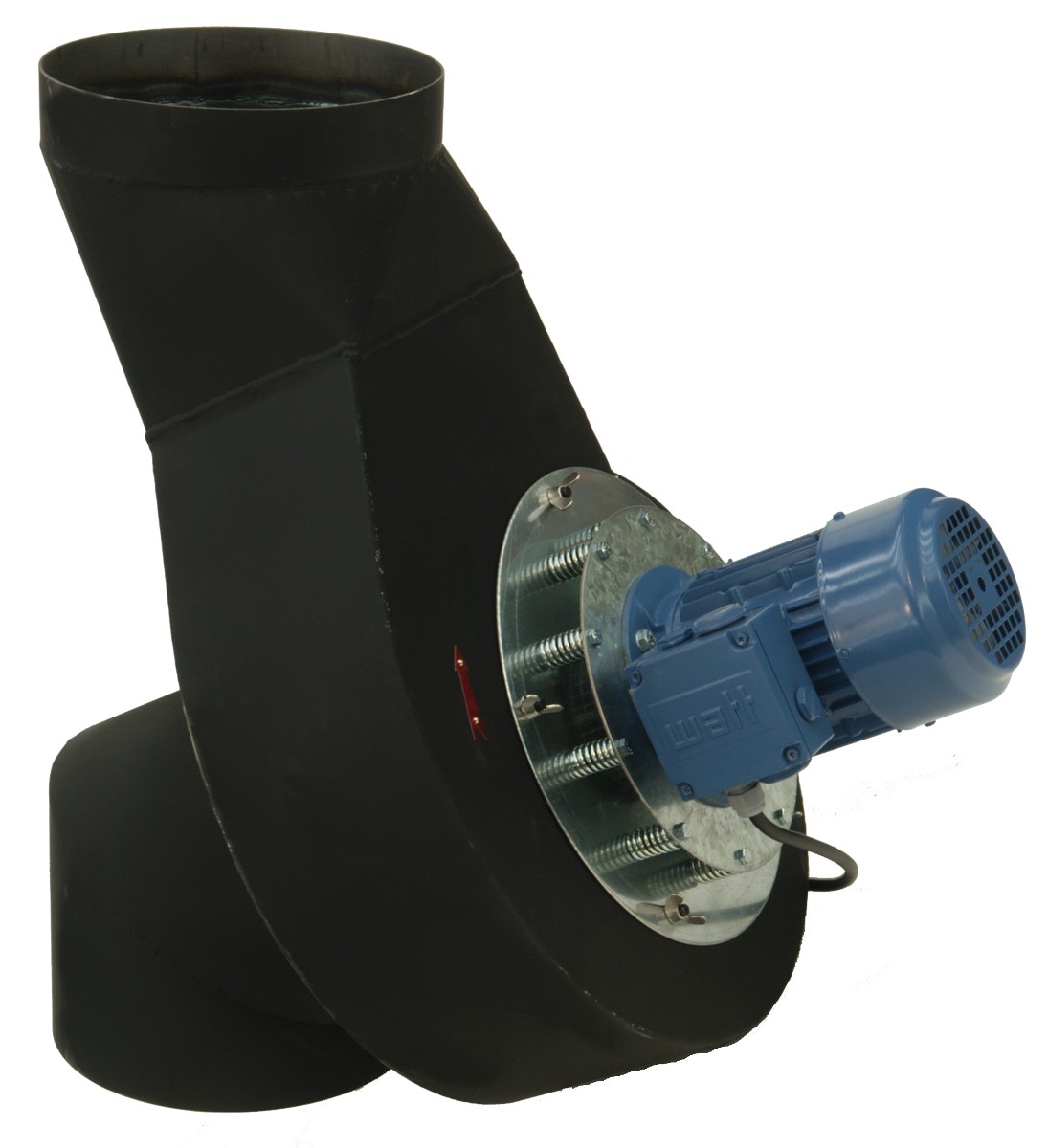

smoke extractor RG 5r-4 (230V)

00237454

smoke extractor RG 5r-4 (230V) for installations with 2 fires short construction (length 800 mm), steel housing, painted with heat resistant paint, medium operating point ca. 1200 m³/h at 200 Pa, max. debit 2040 m³/h, single-phase 230 volts, 50 Hz, 0,55 kW, speed 1400 r.p.m., smoke tube connection in and out 300 mm dia.

Currently not available

€3,255.00*

Details

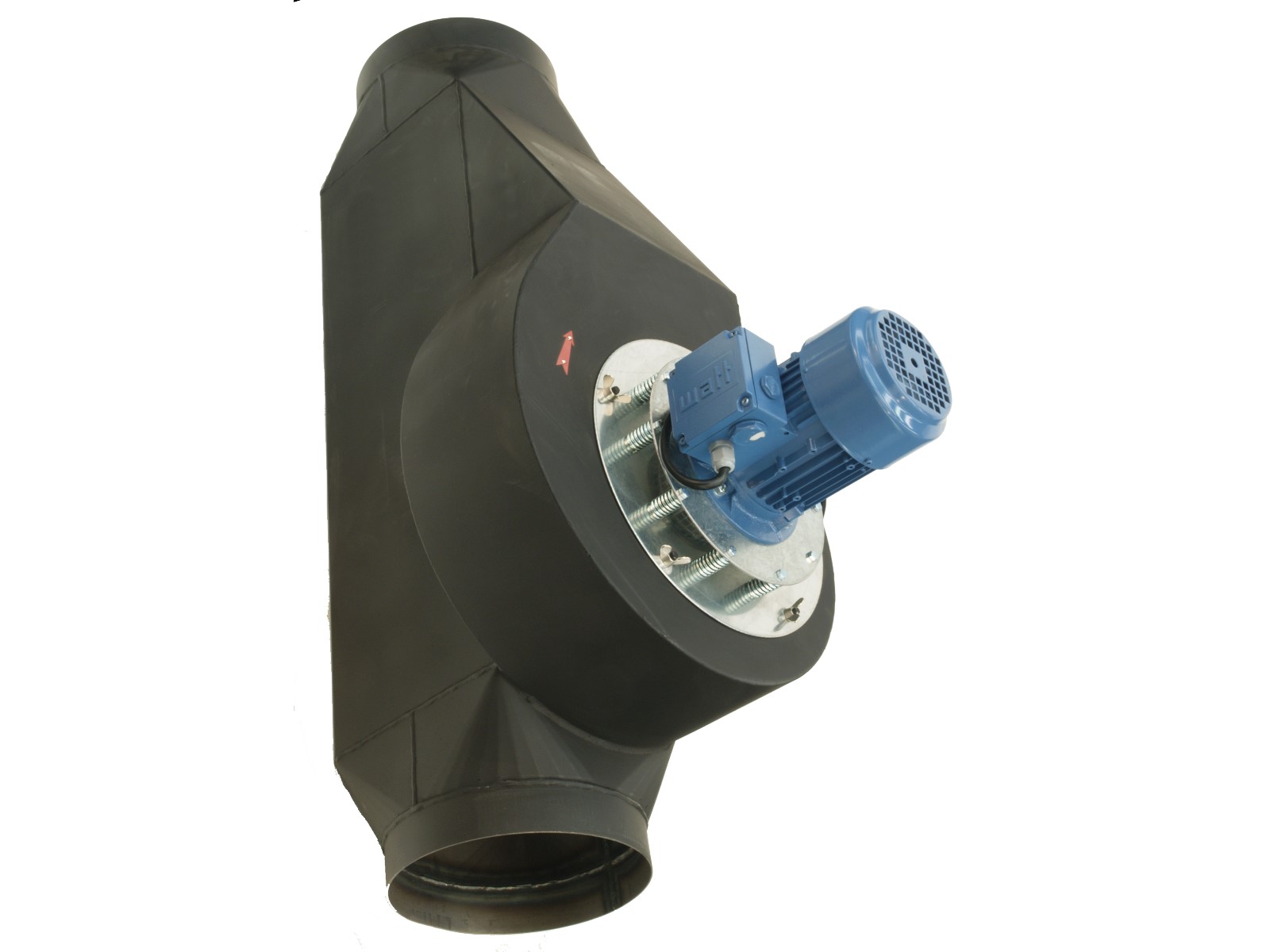

smoke extractor R 5r-4 (230V)

00237654

smoke extractor R 5r-4 (230V) for installations with 2 fires length 1250 mm, steel housing, painted with heat resistant paint, medium operating point ca. 1800 m³/h at 80 Pa, max. debit 2620 m³/h, single-phase 230 volts, 50 Hz, 0,55 kW, speed 1400 r.p.m., smoke tube connection in and out 300 mm dia.

Currently not available

€6,580.00*

Details

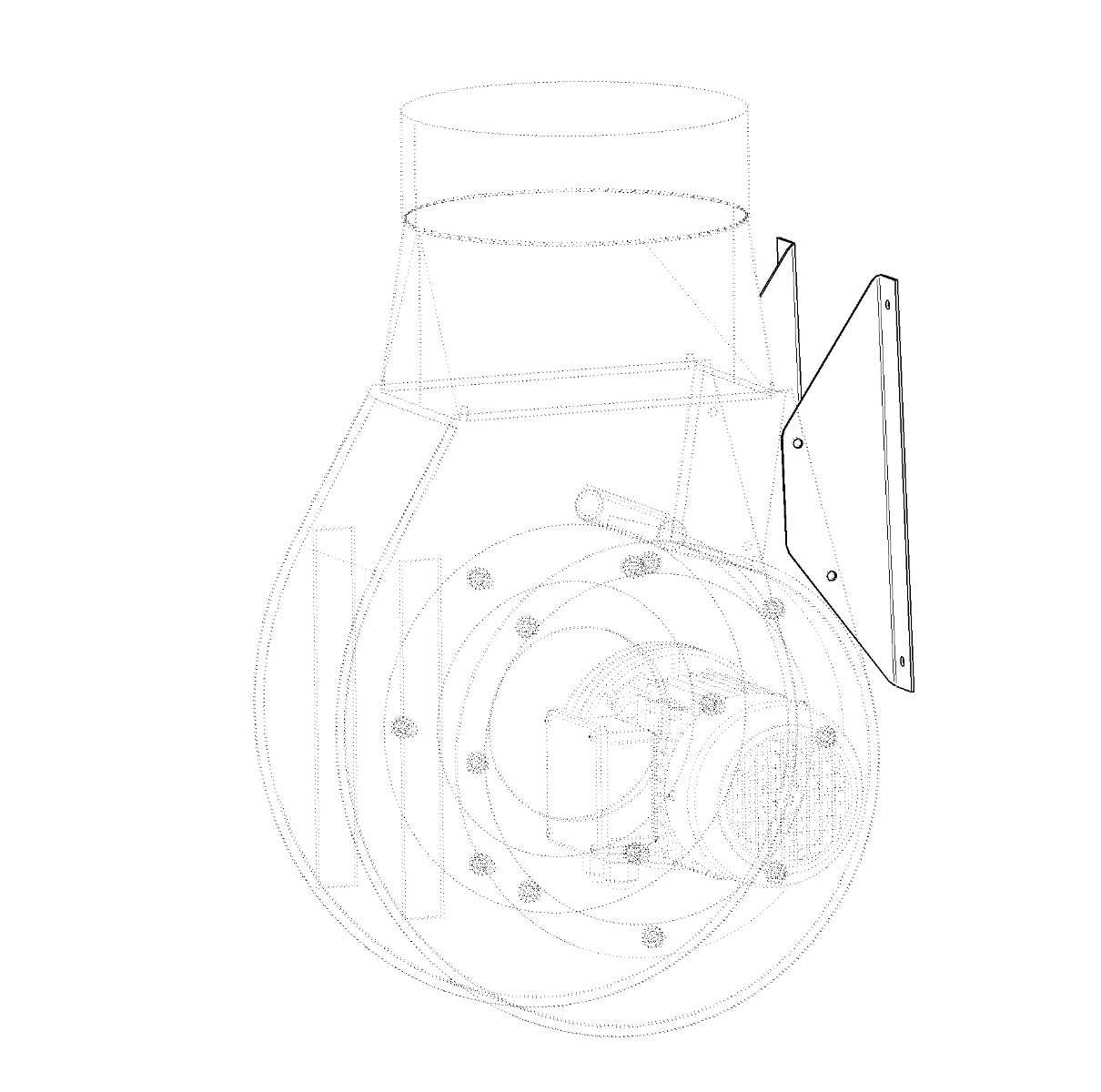

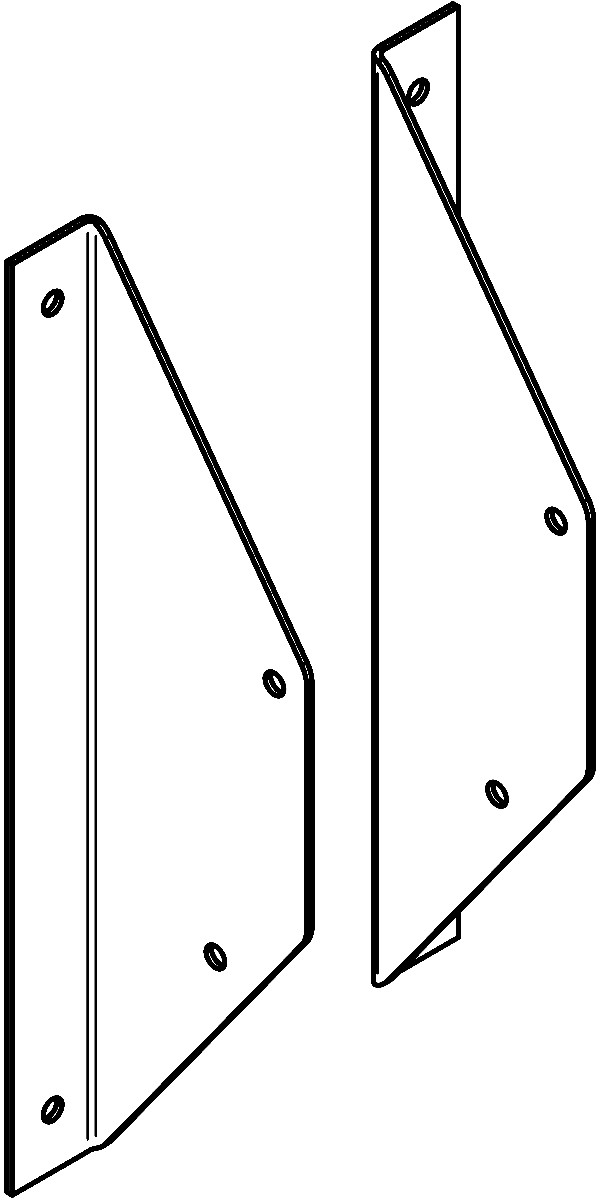

Wall fixation for G-15

00239011

Wall fixation for G-15 for smoke extractor G-15, stable angle plates made of stainless steel

in stock

€49.80*

pair

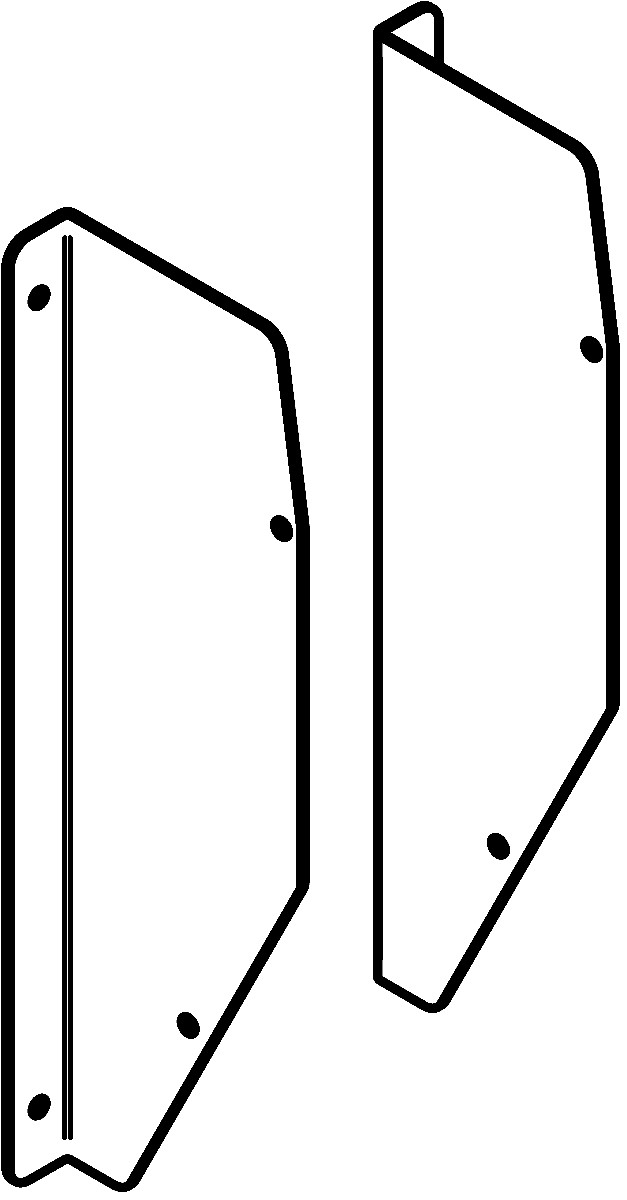

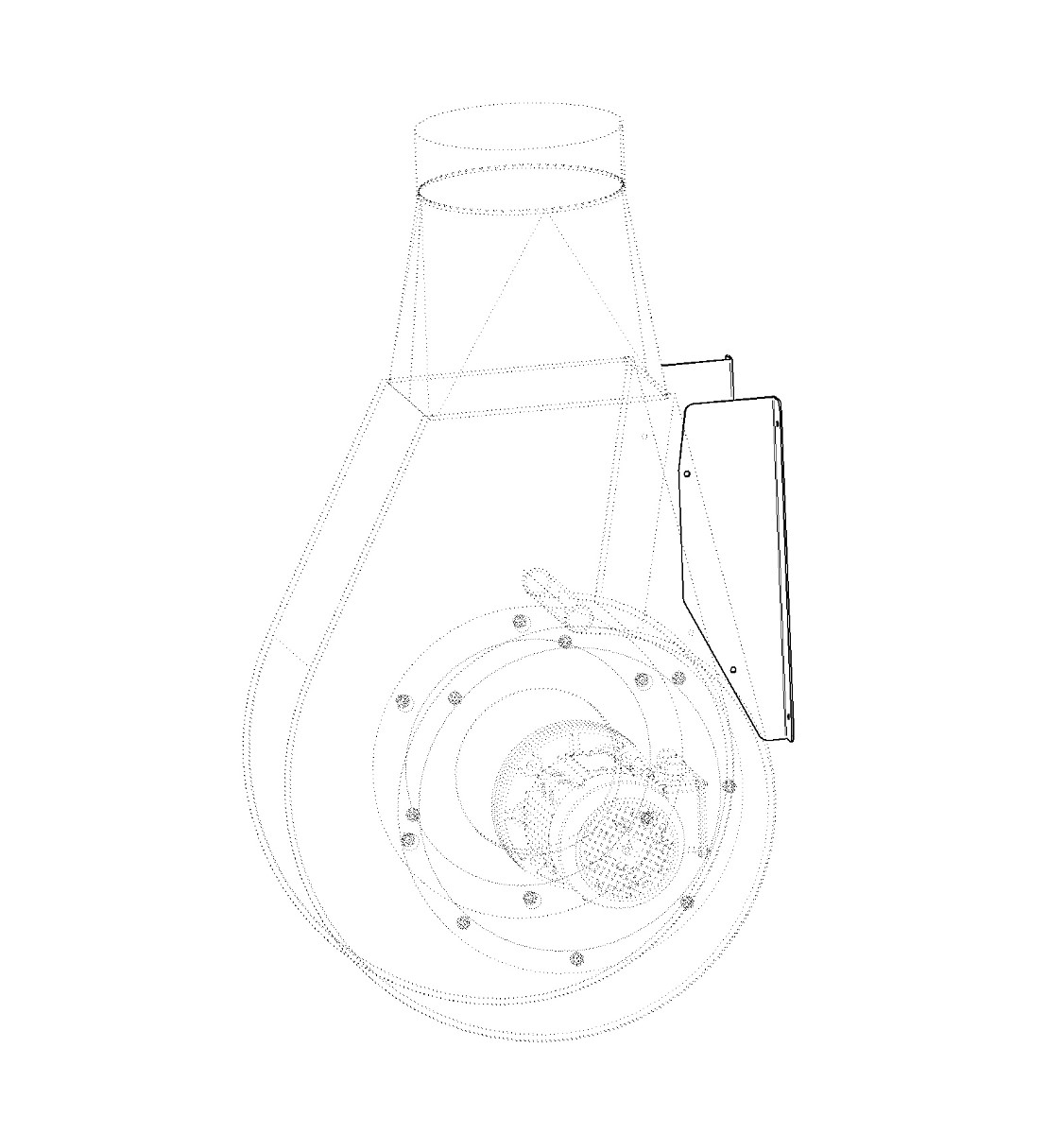

Wall fixation for G-30

00239013

Wall fixation for G-30 for smoke extractor G-30 stable angle plates made of stainless steel

in stock

€68.50*

pair

aspiration flange ø 180 mm

00239031

aspiration flange ø 180 mm for smoke extractor G-15

Available in 30 days, delivery time 1-3 days

€51.00*

Details

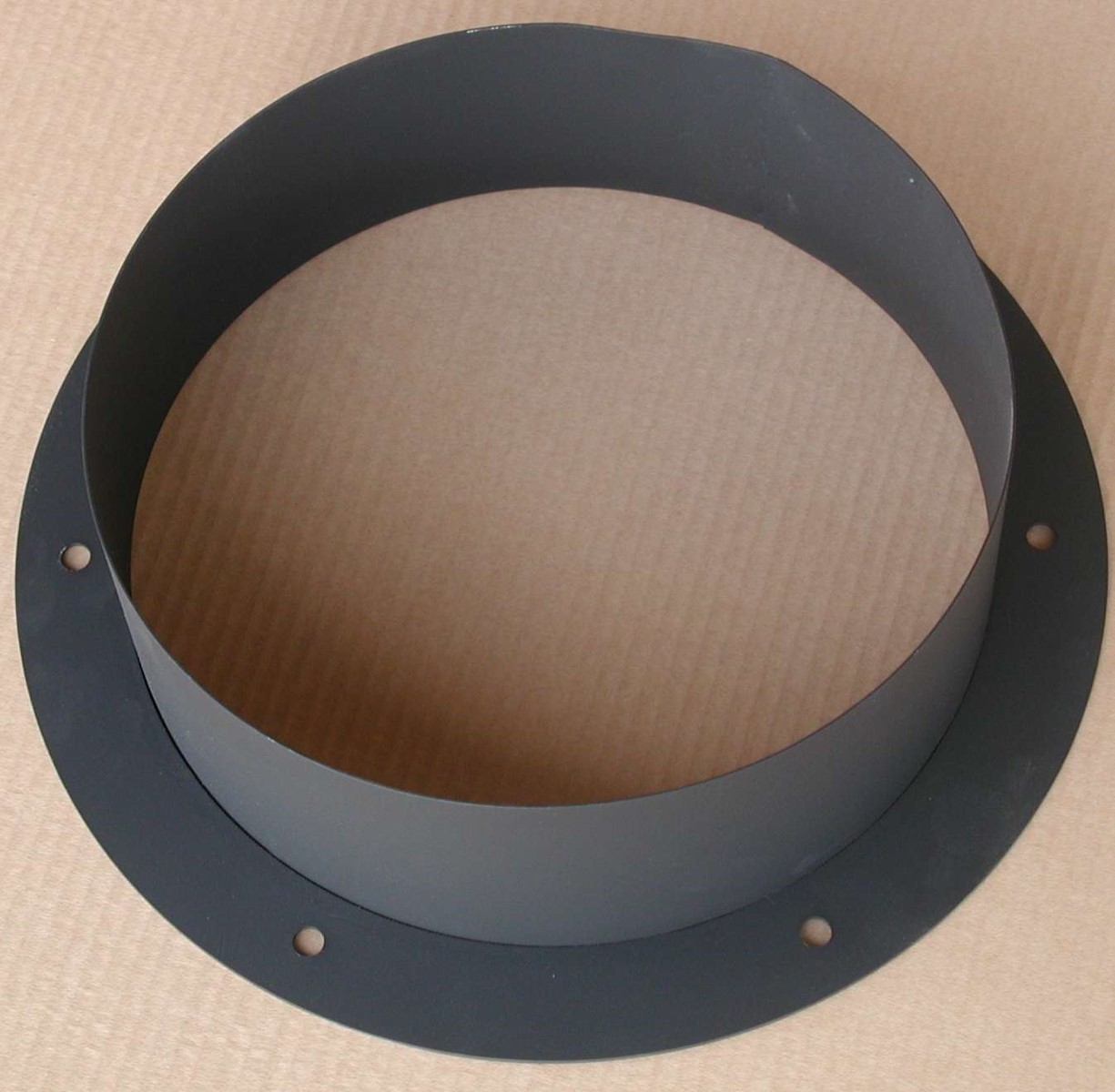

aspiration flange ø 300 mm

00239033

aspiration flange ø 300 mm for smoke extractor G-30

Available in 30 days, delivery time 1-3 days

€61.00*

pcs

aspiration flange ø 250 mm G-30

00239034

aspiration flange ø 250 mm G-30 for smoke extractor G-30

in stock

€59.00*

pcs

Cyclone-smoke-cleaner type Z 302

00243200

Cyclone-smoke-cleaner type Z 302 for 1 fire forge For the deposition of air impurities arising during forging with coal, such as carbon black particles, coal ash, slag and scale. Separation efficiency (average) approx. 230 g per hour, Compact design with smoke hood and external high-performance ventilator, three phase 400 V, 0.55 kW, speed 2800 r.p.m., smoke pipe outlet ø 250 mm Delivery time for this product is about 6-8 weeks.

Available in 90 days, delivery time 2-5 days

€3,980.00*

pcs

Cyclone-smoke-cleaner type Z 501-15

00245115

Cyclone-smoke-cleaner type Z 501-15 for 1 fire forge for the separation of air contaminants arising from forging with coal, such as soot particles, coal ash, slag and scale. Degree of dust removal approx. 89% (TÜV measurement), Separation performance (average) approx. 230 g/h, for arrangement next to the forge hearth using a floor frame (accessory) or wall mounting (accessory), three phase 400 V, 0.55 kW, speed 2800 r.p.m., outlet ø 250 mm Delivery time for this product is about 8 weeks.

in stock

€3,890.00*

pcs

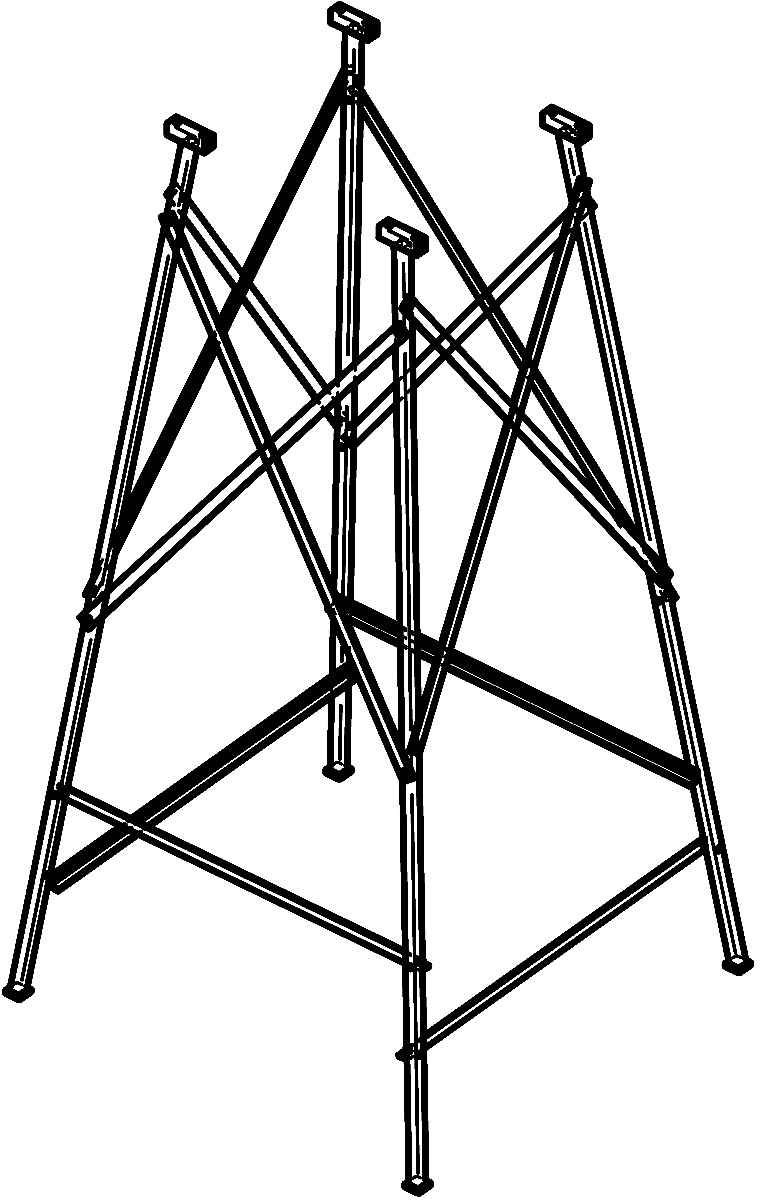

floor stand for type Z 501-15

00245150

floor stand for type Z 501-15

Available in 30 days, delivery time 2-5 days

€1,250.00*

pcs

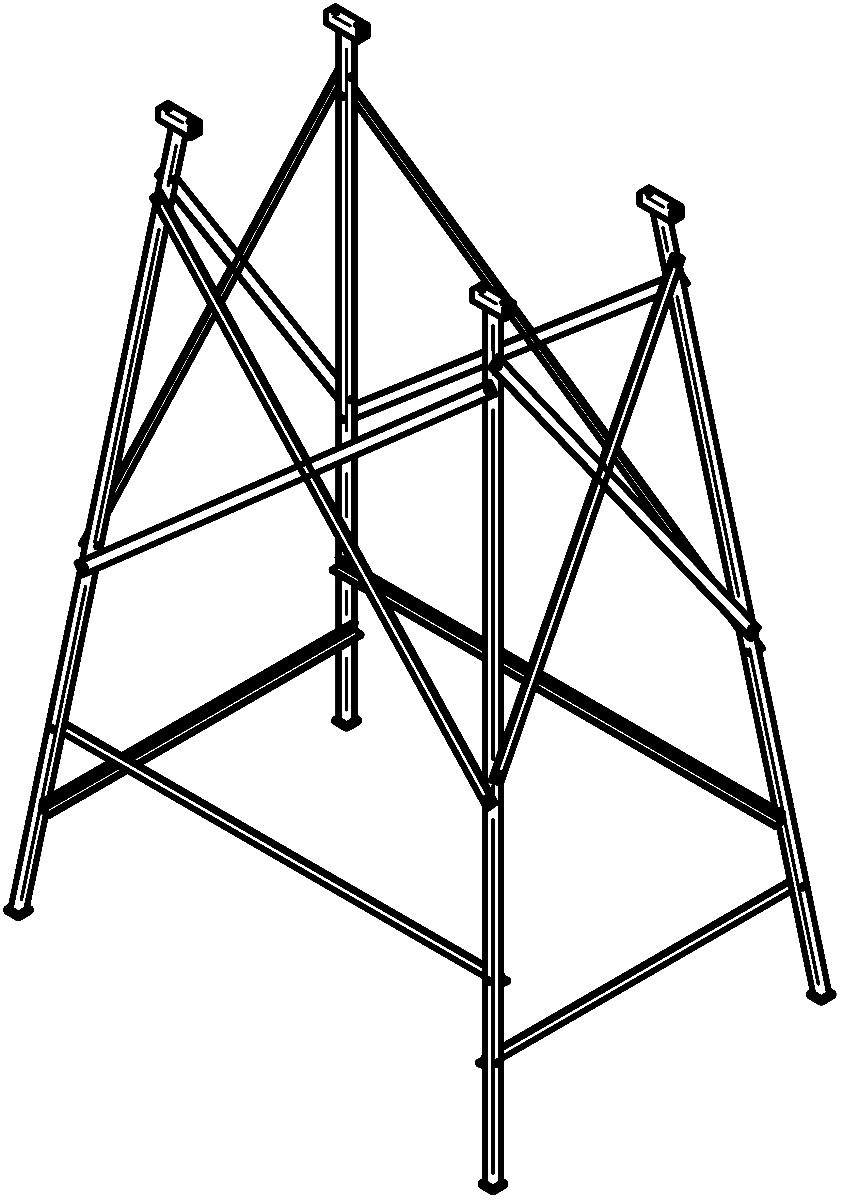

floor stand for type Z 502-30

00245151

floor stand for type Z 502-30

Available in 30 days, delivery time 2-5 days

€1,685.00*

pcs

fixation on the wall 15

00245155

fixation on the wall 15 for type Z 501-15

in stock

€309.00*

pair

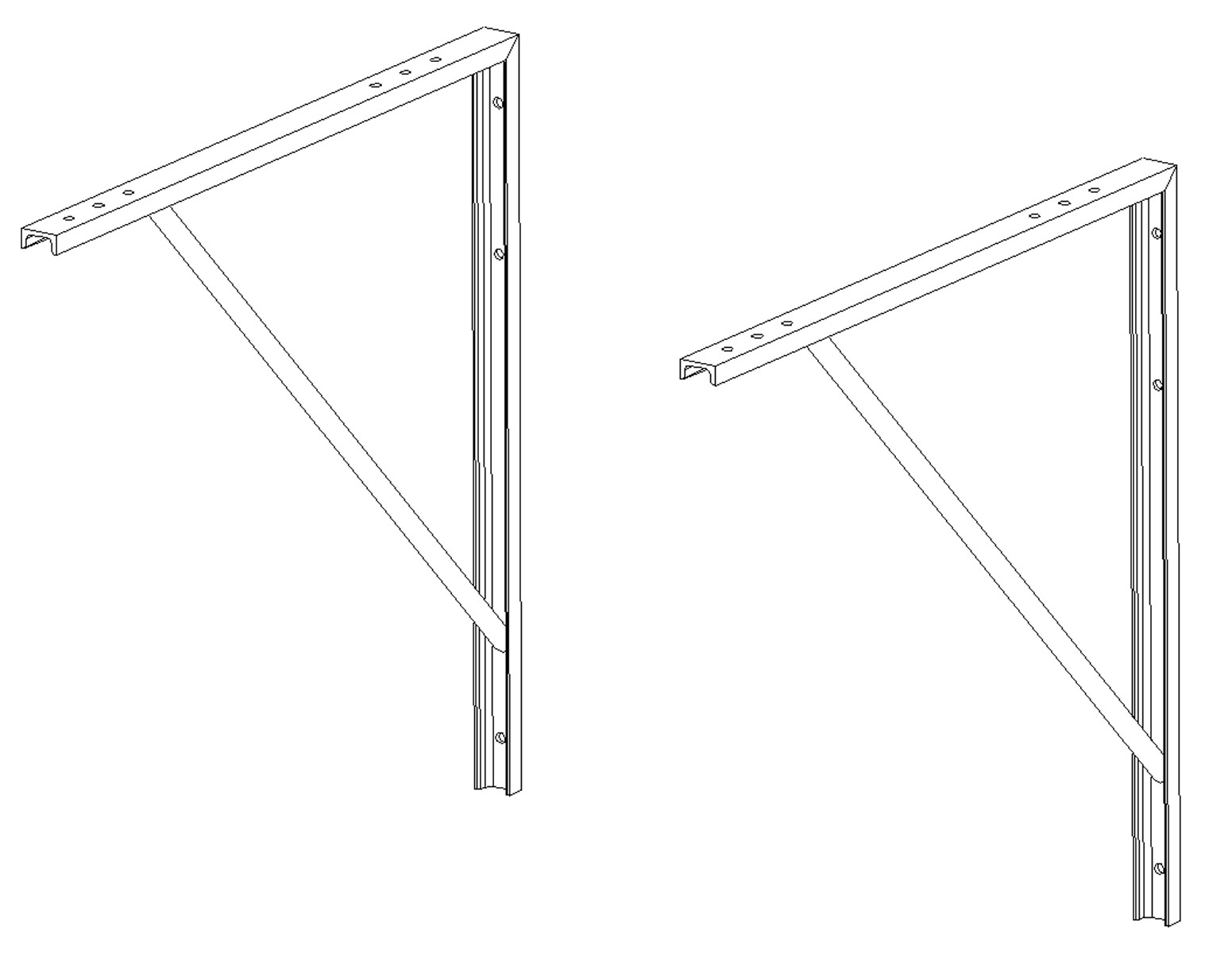

fixation on the wall 30

00245156

fixation on the wall 30 for type Z 502-30

Available in 30 days, delivery time 2-5 days

€399.00*

pair

Cyclone-smoke-cleaner type Z 502-30

00245230

Cyclone-smoke-cleaner type Z 502-30 for 1-3 forge fires for separating air impurities arising during forging with coal, such as carbon black particles, coal ash, slag and scale. Separation efficiency (average) approx. 89 % or 400 g per hour, design with two parallel cyclones (ø 500 mm), extraction ventilator, 3-phase, 1,1 kW, speed 2800 rpm, ventilator outlet diameter 250 mm Delivery time for this product is about 8 weeks.

Available in 90 days, delivery time 2-5 days

€6,890.00*

pcs

Particle Separators Airjekt® 1 Basic

00245600.3

Partikelabscheider Airjekt® 1 Basic zur Montage im Inneren, Werkstoff Edelstahl V4A, Abscheidegrad bis zu 90 %, Max. Abgastemperatur < 400 °C, Durchmesser Abgassystem 130–250 mm, Hochspannung bis 18 kV modulierend. Im Lieferumfang enthalten: Feinstaubpartikelabscheider und Elektronik zur Erzeugung der Hochspannung, 2 Dichtungen sowie 1 Reinigungsdeckel. Der Feinstaubpartikelabscheider muss gut zugänglich montiert werden. Elektrischer Anschluss: 230 V, Leistung: 30 W, Standby 2 W, Kabellänge Elektronik–Feinstaubpartikelabscheider ca. 3 m, Gehäuse Steuereinheit (Montage im Innenbereich) 70 x 360 x 230 mm (H x B x T) Egal ob für den Innenbereich, für doppelwandige Schornsteine im Außenbereich, keramische Systeme oder zur Montage direkt an der Schornsteinmündung – wir haben die Lösung. Dank seiner vielfältigen Einbaumöglichkeiten, der kurzen Abscheidestrecke und seiner Effizienz ist der Airjekt die Lösung zur Feinstaubreduzierung. Förderfähig über BAFA, mehr Infos unter bafa.de Eigenschaften: Abscheidegrad bis zu 90 % möglich geringe Einbaumaße - Abscheidestrecke von ca. 500 mm erwiesene Effizienz problemlose Wartung lässt sich in bereits bestehende Anlagen integrieren niedrige Betriebskosten einfach, schnelle Inbetriebnahme funktioniert automatisch elektrotechnisch nach europäischen Richtlinien geprüft und zugelassen Sicherheitsverschlusssystem max. Abgastemperatur < 400 °C Durchmesser Abgassystem 130–250 mm Das Funktionsprinzip: Das Prinzip der elektrostatischen Partikelabscheidung basiert auf folgenden Prozessen: 1. Erzeugung von Ladungsträgern 2. Aufladung der Partikel 3. Abscheidung der Partikel durch elektrostatische Kräfte Um eine Sägezahnelektrode wird ein elektrisches Feld erzeugt, sobald eine elektrische Spannung an die Elektrode angelegt wird. Bei ausreichend hoher Spannung wird die elektrische Feldstärke so hoch, dass es zu einer Koronaentladung kommt. Dadurch entstehen Ladungsträger, die zur Aufladung der Moleküle im Abgas führen. Beim Zusammentreffen der so gebildeten Gasionen mit den Partikeln im Abgasstrom werden schließlich die Staubpartikel aufgeladen. Aufgrund des elektrischen Feldes werden die geladenen Partikel dann an die Wände des Abgasrohres gedrängt, wo sie nachhaltig abgeschieden werden können. *Texte und Informationen laut Herstellerangaben

Available in 60 days, delivery time 2-5 days

€2,350.00*

Details

Parameterization of the frequency converter

00249008

Parameterization of the frequency converter Parameter programming according the exhaust fan When purchasing a fan in combination with a frequency converte the correct programming of the frequency converter is necessary. With the purchase of this item, we parameterize the frequency converter to suit your application.

Available in 30 days, delivery time 1-3 days

€149.00*

pcs
