melting furnace spare parts
Connection for one more gas bottle
€63.00*
00131204
Connection for one more gas bottle
fitting for german gas bottles 11 kg and 33 kg,
high pressure tube length 0,4 m and connecting T,
to connect one more gas bottle.
Combination connection for optional connection to 5, 11 or 33 kg gas bottles
Maximum permissible pressure: PS 30 bar
Hose: rubber with textile insert
Cold-resistant down to -30 °C
For longer operation of gas ovens, prevents "icing" due to lower extraction quantity per gas bottle.
Thermal security
€69.00*
00159051
consisting of thermal security valve in and thermal sensor and capillary tube,
ca. 750 mm length of the capillary tube.
Gas-entry M 14x1,5 AG (for cutting ring fitting Ø 8 mm),
Gas-outlet M 14x1,5 IG (cutting ring fitting Ø 8 mm)
Suitable for Proforge, P-301 and P-302, and other gas forge furnaces.
The thermal monitoring device is part of the thermoelectric ignition safety device for gas-fired forge furnaces and, in the event of a malfunction, is designed to quickly prevent the escape of unburned gas.
Function:
The gas flame heats the tip of the thermocouple. This generates a thermal voltage, which is conducted through the copper wire to a holding magnet. Once sufficient voltage has been built up, the magnet holds the valve open. If combustion ceases, the tip of the thermocouple cools down, the thermal voltage is reduced, and the holding magnet closes the valve. The response time is between 10 and 60 seconds, depending on the design.
An essential safety device for all gas-fired forge furnaces. Also suitable for DIY construction!

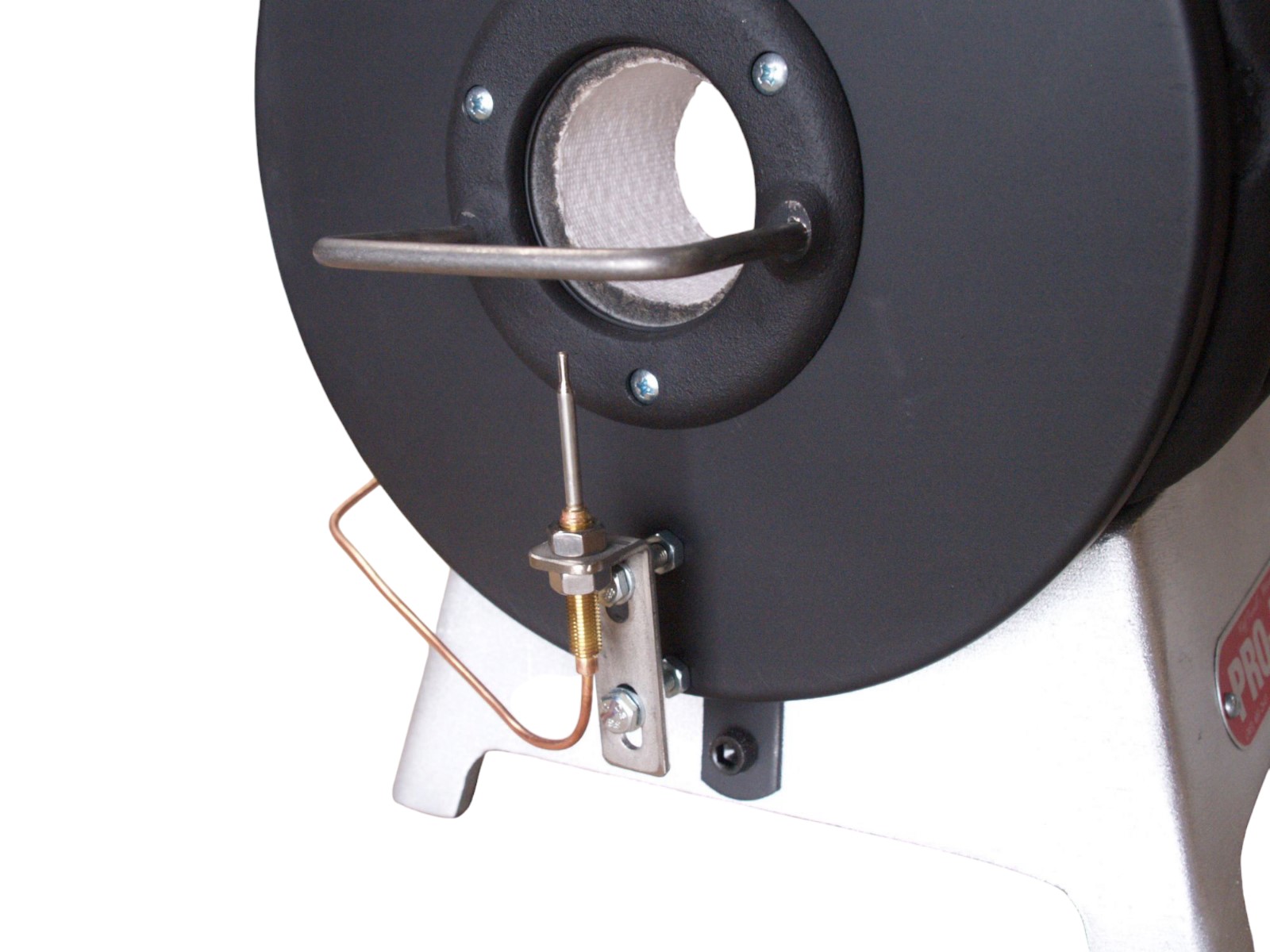

Thermal security for Proforge
€89.00*
00159053
consisting of:
Thermal safety valve
Thermocouple
Mounting bracket
Suitable adapters
The thermal monitoring device is part of the thermoelectric ignition safety device for gas-fired forge furnaces and is designed to quickly prevent the escape of unburned gas in the event of a malfunction.
Can be mounted between the ball valve and the burner tube. The mounting bracket is attached to the housing with screws. Holes must be drilled and threaded for this purpose.
Function:
The gas flame heats the tip of the thermocouple. This generates a thermal voltage, which is conducted through the copper wire to a holding magnet. Once sufficient voltage is built up, the magnet holds the valve open. If combustion ceases, the tip of the thermocouple cools, the thermal voltage is reduced, and the holding magnet closes the valve. The response time is between 10 and 60 seconds, depending on the design.
An essential safety device for all gas-fired forge furnaces. Also suitable for DIY construction!
Atmospheric burner P-30x
€220.99*
00160111
Atmospheric burner P-30x
for propane gas forge oven
gas consumption 0.6...1.2 kg/h,
for pressure up to 2.5 bar,
as spare part for gas forge oven type P-301 and P-302,
with sparking plug, without ball valve
Revision kit for electric crucible furnace ET
From
€298.00*
00188133
After many years of intensive use or a defect, it may happen that this part has to be replaced.
Characteristics:
complete revision set includes not only insulation but also all other wearing parts such as heating element, temperature sensor, etc.
durable heating element for the "ET" series crucible furnaces
powerful up to a melting temperature of approx. 1,150 °C
the heating element can be changed independently and easily
even heat distribution in the furnace and heating of the crucible
Crucible tong for electric furnace crucible
€49.00*
00188135
Crucible tong for electric furnace crucible
Suitable for crucibles from 1 kg to 4 kg
Melting crucible for electrical melting furnace
From
€48.00*
00861060
with lip,
height XX mm,
inner diameter XX mm,
external diameter XX mm,
capacity approx. 0,XX l
fast heating-up time
all-over heat conduction
slight slag accretion
good chemical resistance
The capacity is specified in kg, based on the density of copper and the volume in liters.
The crucible is suitable for the electric crucible melting furnace.
Flame non-return valve
€39.00*
71211011
G 3/8 LH-ÜM x G 3/8 LH-KN,
for installation between hose breaking security and gas hose
Prevents dangerous gas mixture formation through a gas non-return valve
Stops flashbacks through a flame arrester
Interrupts the gas flow through an integrated thermal afterflow stop before a certain temperature is reached
Dirt filter protects the gas non-return valve from contamination
Gas forging furnaces must be protected with a flashback arrester in accordance with the professional association requirements of DGUV Regulation 79 (German Statutory Accident Insurance - previously BGV D 34).
Propane regulator 0,5 - 4 bar
€66.00*
71211025
Propane regulator 0,5 - 4 bar
12 kg/h, combi /3/8"LH,
with pressure gauge and excess flow device, 35° angled
gas hose high pressure (30 bar)
€22.00*
71801019
gas hose high pressure (30 bar)
length 2 m, 3/8" LH / 3/8" LH
Gas hose for connecting to small pressure regulators and for operating gas ovens.
Please note that the hoses can become porous or brittle over the years and should therefore be checked regularly.
We use high-quality hoses from a German manufacturer that meet all safety requirements.
