Coal Fires

With our coal fires, we differentiate between blacksmith's hearths and field forges.

Field forges are very handy, with a tabletop measuring 600x500 mm and weighing approximately 30 kg, and are easy and uncomplicated to set up, allowing you to forge outdoors without the need for an extractor.

Blacksmith hearths are heavier and larger; we supply hearths with 800 or 1000 mm table widths as standard. Depending on the intended use, we offer fire bowls in various sizes, as well as fans with 230 V or 400 V AC voltage.

All of our coal fires feature a high-quality cast-iron fire bowl, embedded in a sturdy steel tabletop and a sturdy U-shaped steel table frame.

In addition to complete forge stoves, we also offer individual components for building your own fireplace, tailored to your needs.

Coal forges
Coal forges
Portable forges
Portable forges
Hearth sole
Hearth sole
Fans
Fans
Accessories coal forges
Accessories coal forges
Coal forge spare parts
Coal forge spare parts
wind guard
00119060
wind guard for portable forge F 600 and F 620 made from stainless steel

€34.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
flat belt for portable forge
00119111
  foot operated type F 600 Fu 2080 x 20 mm,

€56.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
Mounting leather flat belt and belt buckle
00119150
  we assemble for you the leather flat belt and belt buckles individually according to your length specification. So you can be sure that the belt buckles are connected to the belt permanently.   Please also order the matching leather flat strap in the desired length. You are also welcome to let us know the finished strap length you want - you can enter this in the comments field at the end of the order.   Attention: customized product - No cancellation, exchange or return!

€10.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
hearth sole type EE-2
00312210
hearth sole type EE-2 with cast iron fire pan outside dimensions 305 x 225 mm, inside dimensions 250 x 175 mm, depth 53 mm, casing with air valve, ash-cleaner and nozzle regulation, with hose connection dia. 50 mm

€390.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
hearth sole type EE-4
00312410
hearth sole type EE-4 with cast iron fire pan outside dimensions 355 x 270 mm, inside dimensions 290 x 200 mm, depth 65 mm, casing with air valve, ash-cleaner and nozzle regulation, with hose connection dia. 50 mm

€420.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
hearth sole type EE-5
00312510
hearth sole type EE-5 with cast iron fire pan outside dimensions 405 x 295 mm, inside dimensions 340 x 225 mm, depth 77 mm, casing with air valve, ash-cleaner and nozzle regulation, with hose connection dia. 50 mm

€429.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
hearth sole type EE-6
00312610
hearth sole type EE-6 with cast iron fire pan outside dimensions 550 x 340 mm, inside dimensions 470 x 260 mm, depth 105 mm, casing with air valve, ash-cleaner and nozzle regulation, with hose connection dia. 50 mm

€575.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
hearth sole EE-7 long fire
00312710
hearth sole EE-7 long fire with cast iron fire pan outside dimensions 560 x 290 mm, inside dimensions 505 x 225 mm, depth 72 mm, casing with air valve and ash-cleane, full or half-side operation possible, with hose connection dia. 50 mm

€630.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
tube conection rear side
00312911
tube conection rear side for EE-2 ... EE-7, diameter of the inlet Ø 50 mm,

€60.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
Hearth sole type EE-2/R
00313202
Hearth sole type EE-2/R with electric blower, inside dimensions 250 x 175 mm, depth 53 mm.

From €1,000.00*
Hearth sole type EE-4/R
00313402
Hearth sole type EE-4/R with electric blower, inside dimensions 290 x 200 mm, depth 65 mm.

From €1,050.00*
Hearth sole type EE-5/R
00313502
Hearth sole type EE-5/R with electric blower, inside dimensions 340 x 225 mm, depth 77 mm.

From €1,070.00*
Hearth sole type EE-6/R
00313602
Hearth sole type EE-6/R with electric blower, inside dimensions 470 x 260 mm, depth 105 mm.

From €1,220.00*
Hearth sole EE-7/R long fire
00313702
Hearth sole EE-7/R long fire with electric blower, inside dimensions 505 x 225 mm, depth 72 mm.

From €0.00*
hearth sole type C 10
00315110
hearth sole type C 10 cast iron construction inside dimensions top 250 x 225 mm, depth 100 mm, bottom diameter of fire pan 150 mm, casing with nozzle regulation and ash-cleaner, with flange for connection of ventilator

€695.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
hearth sole type C 15
00315115
hearth sole type C 15 cast iron construction, inside dimensions top 310 x 270 mm, depth 120 mm, bottom diameter of fire pan 150 mm, casing with nozzle regulation and ash-cleaner, with flange for connection of ventilator

€720.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
fire limitations type B 1A
00315121
fire limitations type B 1A pair of limitation elements to be set on the fire pan of the type C 10, height over the fire pan 50 mm

€180.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pair
fire limitations type B 1C
00315122
fire limitations type B 1C pair of limitation elements to be set on the fire pan of the type C 10, height over the fire pan 90 mm

€390.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pair
fire limitations type B 15
00315125
fire limitations type B 15 pair of limitation elements to be set on the fire pan of the type C 15, height over the fire pan 130 mm

€410.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pair
swirljet
00315126
swirljet for  hearth sole C10 and C15

€59.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
cast iron half-ball
00315127
cast iron half-ball for  hearth sole C10 and C15

€69.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
clip for hearth sole C10 or C15
00315128
clip for hearth sole C10 or C15

€8.60*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
lower part
00315129
lower part for  hearth sole C10 and C15 without levers etc.

€249.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs
blower type SV 370
00315133
blower type SV 370 400/230 V, 50 Hz, 370 W three-phase, 2800 U/min, 0,98/1,7 A, air debit  6,0 m³/min, pression 1200 Pa

€649.00*
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
pcs

Custom-made coal forge


From the idea to implementation square, oval, or round? 2 or 10 fireplaces?

We also manufacture blacksmith stoves including smoke extraction in custom designs according to customer specifications.

Using CAD design, we create a detailed plan in close collaboration with the customer.

Production then takes place carefully after customer approval in our own production facility in Germany.

Idea

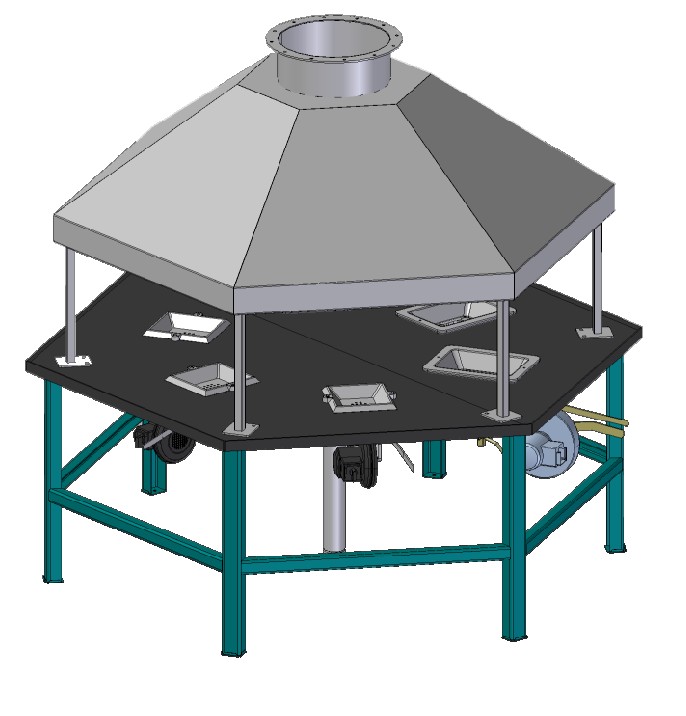

planning

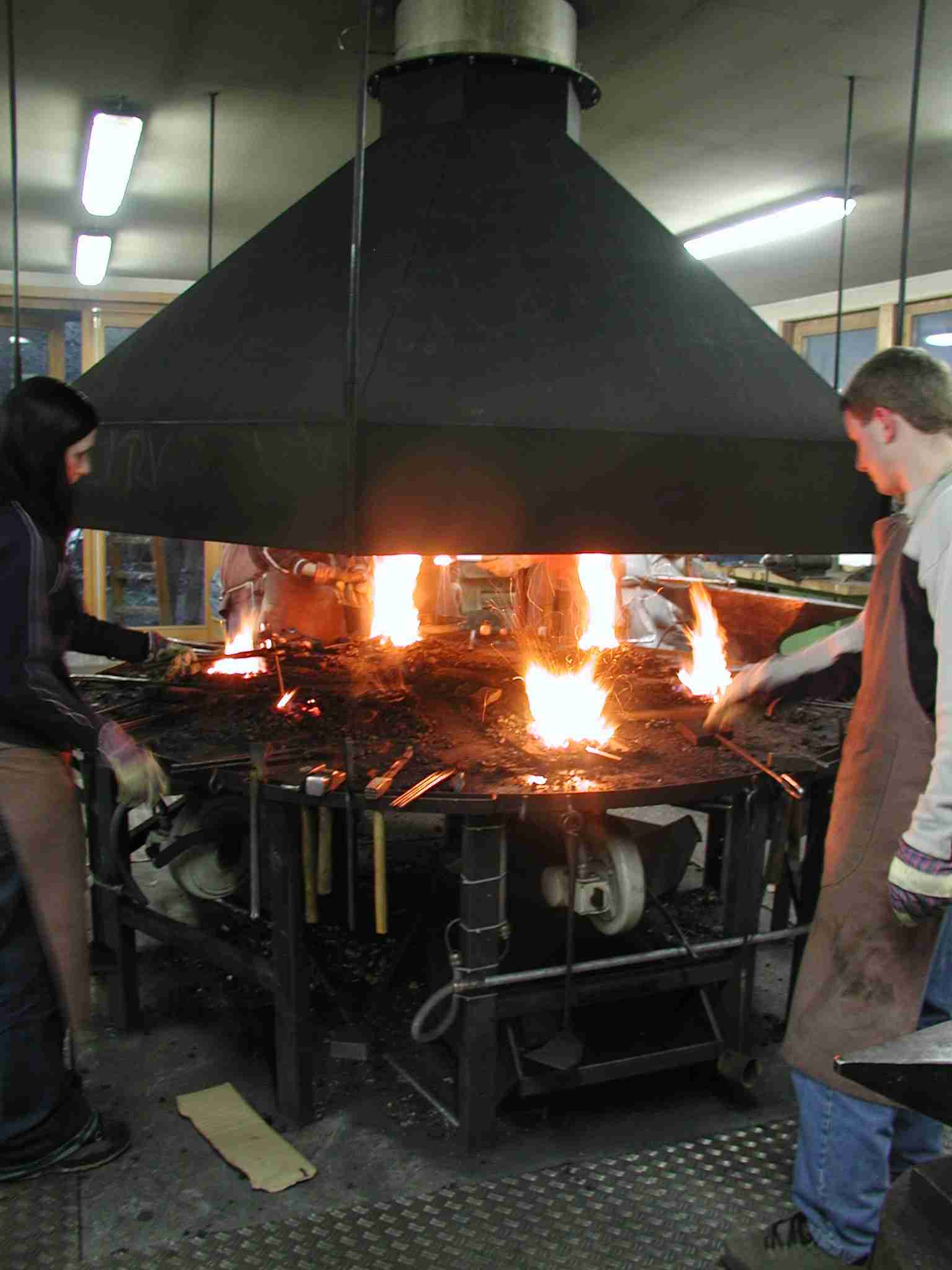

implementation


Lighting a coal fire

How do I light a coal fire?

This is no problem for the professionals, and everyone makes the fire in their own way and the way they learned it.

In this video, you'll see how to light a forge fire, and everyone can decide if this is the right method for them...

Questions - Answers - FAQ


Many questions about our coal fires that we try to answer, without meaningless AI texts.

Do you still have questions? Then feel free to ask us directly here:

Email:

What is a coal fire?

A coal fire typically consists of a tabletop containing a fire insert with a fan.
The fire insert contains a fire bowl in which coal is burned to heat a workpiece to forging temperature.
There are many variations, and a few specific versions have prevailed over the decades.

What is a coal fire?

A coal fire typically consists of a tabletop containing a fire insert with a fan.
The fire insert contains a fire bowl in which coal is burned to heat a workpiece to forging temperature.
There are many variations, and a few specific versions have prevailed over the decades.

What is a coal fire?

A coal fire typically consists of a tabletop containing a fire insert with a fan.
The fire insert contains a fire bowl in which coal is burned to heat a workpiece to forging temperature.
There are many variations, and a few specific versions have prevailed over the decades.

What is a coal fire?

A coal fire typically consists of a tabletop containing a fire insert with a fan.
The fire insert contains a fire bowl in which coal is burned to heat a workpiece to forging temperature.
There are many variations, and a few specific versions have prevailed over the decades.

What is a coal fire?

A coal fire typically consists of a tabletop containing a fire insert with a fan.
The fire insert contains a fire bowl in which coal is burned to heat a workpiece to forging temperature.
There are many variations, and a few specific versions have prevailed over the decades.

What is a coal fire?

A coal fire typically consists of a tabletop containing a fire insert with a fan.
The fire insert contains a fire bowl in which coal is burned to heat a workpiece to forging temperature.
There are many variations, and a few specific versions have prevailed over the decades.

What is a coal fire?

A coal fire typically consists of a tabletop containing a fire insert with a fan.
The fire insert contains a fire bowl in which coal is burned to heat a workpiece to forging temperature.
There are many variations, and a few specific versions have prevailed over the decades.

What is a coal fire?

A coal fire typically consists of a tabletop containing a fire insert with a fan.
The fire insert contains a fire bowl in which coal is burned to heat a workpiece to forging temperature.
There are many variations, and a few specific versions have prevailed over the decades.
