Self-construction

There are a number of DIY videos and instructions online for building gas ovens.

We are happy to offer advice and support as well as high-quality materials.

Certain safety devices such as a non-flame-retourn-valve or a hose rupture protection device should always be installed.

gas connection kit

00151062

gas connection kit, ready for connection to 11 kg gas bottles with regulator, manometer, hose burst safety device and 2 m hose for atmospheric gas forges, like PS-230, Proforge, P-301/P-302

in stock

€83.00*

pcs

atmospheric burner P-30x

00160110

atmospheric burner P-30x for propane gas forge oven gas consumption 0.6...1.2 kg/h, for pressure up to 2.5 bar, as a spare part for gas forge oven type P-301 and P-302, with ball valve, gas connection 3/8" LH

Available in 30 days, delivery time 1-3 days

€242.00*

pcs

Atmospheric burner P-30x

00160111

Atmospheric burner P-30x for propane gas forge oven gas consumption 0.6...1.2 kg/h, for pressure up to 2.5 bar, as spare part for gas forge oven type P-301 and P-302, with sparking plug, without ball valve

in stock

€220.99*

pcs

$refractory concrete 1650 °C, 5 kg$

refractory concrete 1650 °C, 5 kg

59104001.1650.05

refractory concrete 1650 °C, 5 kg for building or repairing gas forges, Temperature resistant up to approx. 1650 °C Characteristics: High thermal shock resistance Max. application temperature approx. 1650 ° C Good heat storage capacity High resistance against borax or other fire welding utilities typical applications: Gas furnace Gas forge Melting furnace kiln Note: The gas furnace should be lined with approx. 10-20 mm of refractory concrete in order to achieve good heat storage with a moderate heating time. Attention! Please note the information in the download area!

Content: 5 Kilogramm (€5.60* / 1 Kilogramm)

in stock

€28.00*

Details

High temperature wool 2,5 cm, 61 cm, 180 cm

59104252.25.61.180

High temperature wool 2,5 cm, 61 cm, 180 cm for building or repairing of gas forges, Classification temperature 1250 °C Characteristics: Very good insulating Very good thermal shock resistance Easy installation Max. application temperature approx. 1250 ° C typical applications: Gas furnace Gas forge Melting furnace kiln Note: The gas furnace should be lined with approx. 50-100 mm of insulation in order to achieve a good insulation effect. We recommend cladding the wool with fireproof concrete to avoid mechanical damage. Refractory concrete also protects the wool from wear when borax or welding powder is used. Attention! Please note the information in the download area!

Available in 10 days, delivery time 1-3 days

€46.20*

Details

Flame non-return valve

71211011

Flame non-return valve G 3/8 LH-ÜM x G 3/8 LH-KN, for installation between hose breaking security and gas hose Prevents dangerous gas mixture formation through a gas non-return valve Stops flashbacks through a flame arrester Interrupts the gas flow through an integrated thermal afterflow stop before a certain temperature is reached Dirt filter protects the gas non-return valve from contamination Gas forging furnaces must be protected with a flashback arrester in accordance with the professional association requirements of DGUV Regulation 79 (German Statutory Accident Insurance - previously BGV D 34).

in stock

€35.00*

pcs

connection gas hose 2 m

71211022

connection gas hose 2 m 3/8" LH / 3/8" LH Gas hose for connecting to small pressure regulators and for operating gas ovens. Please note that the hoses can become porous or brittle over the years and should therefore be checked regularly. We use high-quality hoses from a German manufacturer that meet all safety requirements.

in stock

€20.00*

pcs

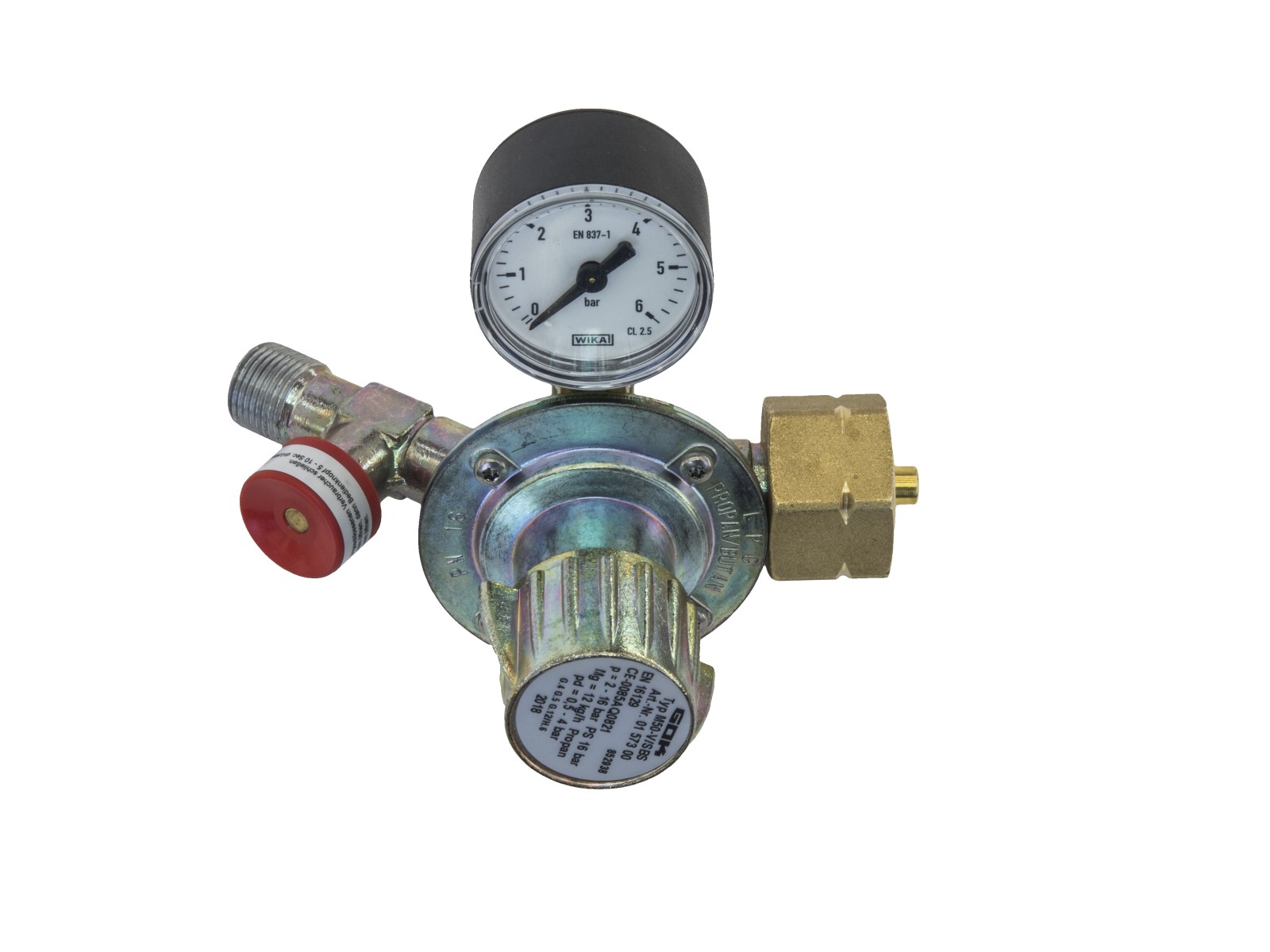

propane regulator 0,5 - 4 bar Shell

71211024

propane regulator 0,5 - 4 bar Shell 12 kg/h, Shell x 3/8" LH-KN with pressure gauge and excess flow device, 35° angled, for gas bottles with Shell thread (FR, BE, CH, RU)

in stock

€65.00*

pcs

Propane regulator 0,5 - 4 bar

71211025

Propane regulator 0,5 - 4 bar 12 kg/h, combi /3/8"LH, with pressure gauge and excess flow device, 35° angled

in stock

€63.00*

pcs

manometer 0-6 bar

71211026

manometer 0-6 bar for gas-regulator spare part for article 71211021 / 71211024 / 151062

in stock

€14.80*

pcs

sealing washer

71211039

sealing washer between regulator and gas cylinders diameters 18 mm / 7 mm, thickness 2 mm

in stock

€1.00*

pcs
