Hearth sole without blower

Complete hearth sole without fan for heating with coal and cast iron fire bowl in various sizes.

Including cast iron fire pan in various sizes and flange - Ø50mm.

Lower part with air flap for precise dosing of the air volume and an ash flap for easy cleaning.

portable forge insert type EE-1 without blower

00311110

cast iron fire pan inner top dim. 215 x 195 mm, casing with air valve and ash-cleaner, (for blower type EMV 133, EMV 133/S, DMV 133/S, GMV 133)

€220.00*

pcs

Portable forge insert type EE-1 without blower

00311125

hobby version cast iron fire pan inner top dim. 215 x 195 mm, casing with air valve and ash-cleaner, for blower type ATV 125

€220.00*

pcs

hearth sole type EE-2

00312210

with cast iron fire pan outside dimensions 305 x 225 mm, inside dimensions 250 x 175 mm, depth 53 mm, casing with air valve, ash-cleaner and nozzle regulation, with hose connection dia. 50 mm

€390.00*

pcs

hearth sole type EE-4

00312410

with cast iron fire pan outside dimensions 355 x 270 mm, inside dimensions 290 x 200 mm, depth 65 mm, casing with air valve, ash-cleaner and nozzle regulation, with hose connection dia. 50 mm

€420.00*

pcs

hearth sole type EE-5

00312510

with cast iron fire pan outside dimensions 405 x 295 mm, inside dimensions 340 x 225 mm, depth 77 mm, casing with air valve, ash-cleaner and nozzle regulation, with hose connection dia. 50 mm

€429.00*

pcs

hearth sole type EE-6

00312610

with cast iron fire pan outside dimensions 550 x 340 mm, inside dimensions 470 x 260 mm, depth 105 mm, casing with air valve, ash-cleaner and nozzle regulation, with hose connection dia. 50 mm

€575.00*

pcs

hearth sole EE-7 long fire

00312710

with cast iron fire pan outside dimensions 560 x 290 mm, inside dimensions 505 x 225 mm, depth 72 mm, casing with air valve and ash-cleane, full or half-side operation possible, with hose connection dia. 50 mm

€630.00*

pcs

hearth sole type C 10

00315110

cast iron construction inside dimensions top 250 x 225 mm, depth 100 mm, bottom diameter of fire pan 150 mm, casing with nozzle regulation and ash-cleaner, with flange for connection of ventilator

€695.00*

pcs

hearth sole type C 15

00315115

cast iron construction, inside dimensions top 310 x 270 mm, depth 120 mm, bottom diameter of fire pan 150 mm, casing with nozzle regulation and ash-cleaner, with flange for connection of ventilator

€720.00*

pcs

53.33 %

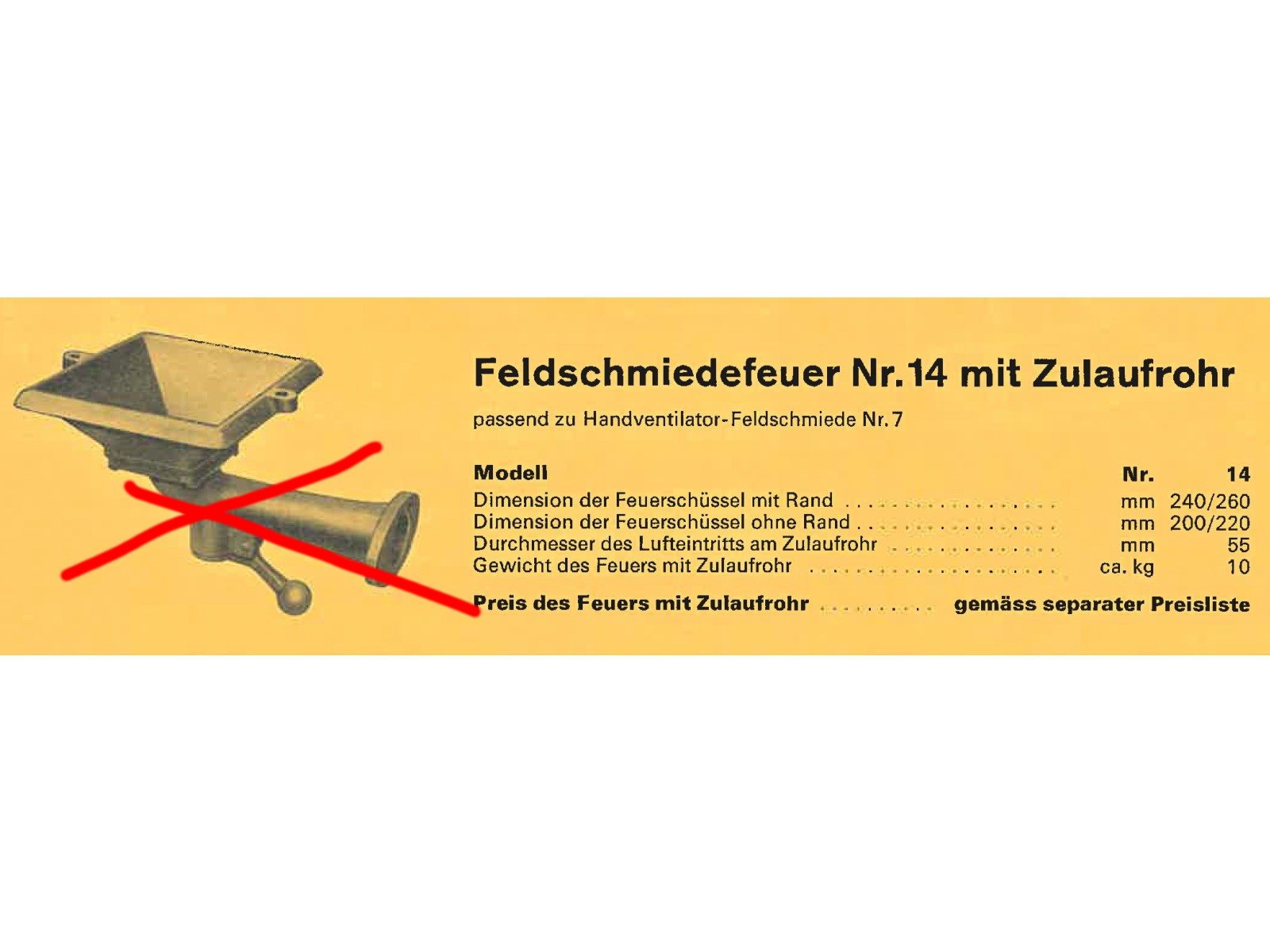

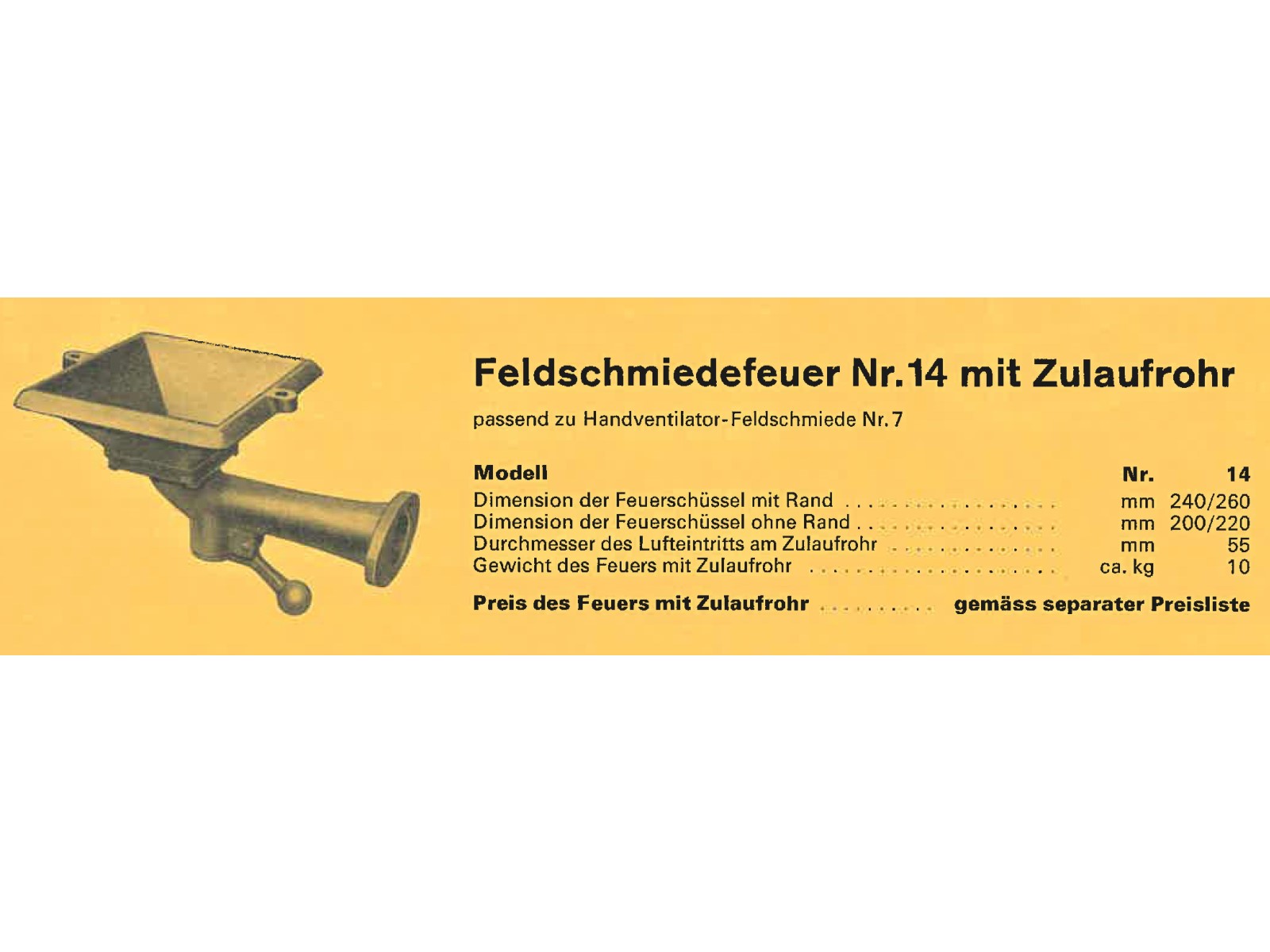

Field Forge Insert No. 14

00941010.14

for Manual Operation Two-piece, cast iron, without fire tongue Air inlet diameter at the inlet pipe: 55 mm Distance between screw holes for fan: Distance between screw holes for bowl: 125 mm Fire bowl dimensions: Outer dimensions: 260 x 240 mm, inside diameter: 220 x 20 mm, depth: 68 mm Original price in 1991 at Gebrüder Häfliger AG: CHF 375 This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€175.00* €375.00*

pcs

cast iron fire pan for Field Forge No. 14

00941010.14.1

cast iron, without fire tongue Outer dimensions: 260 x 240 mm, inside diameter: 220 x 20 mm, depth: 68 mm This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€160.65*

pcs

53.99 %

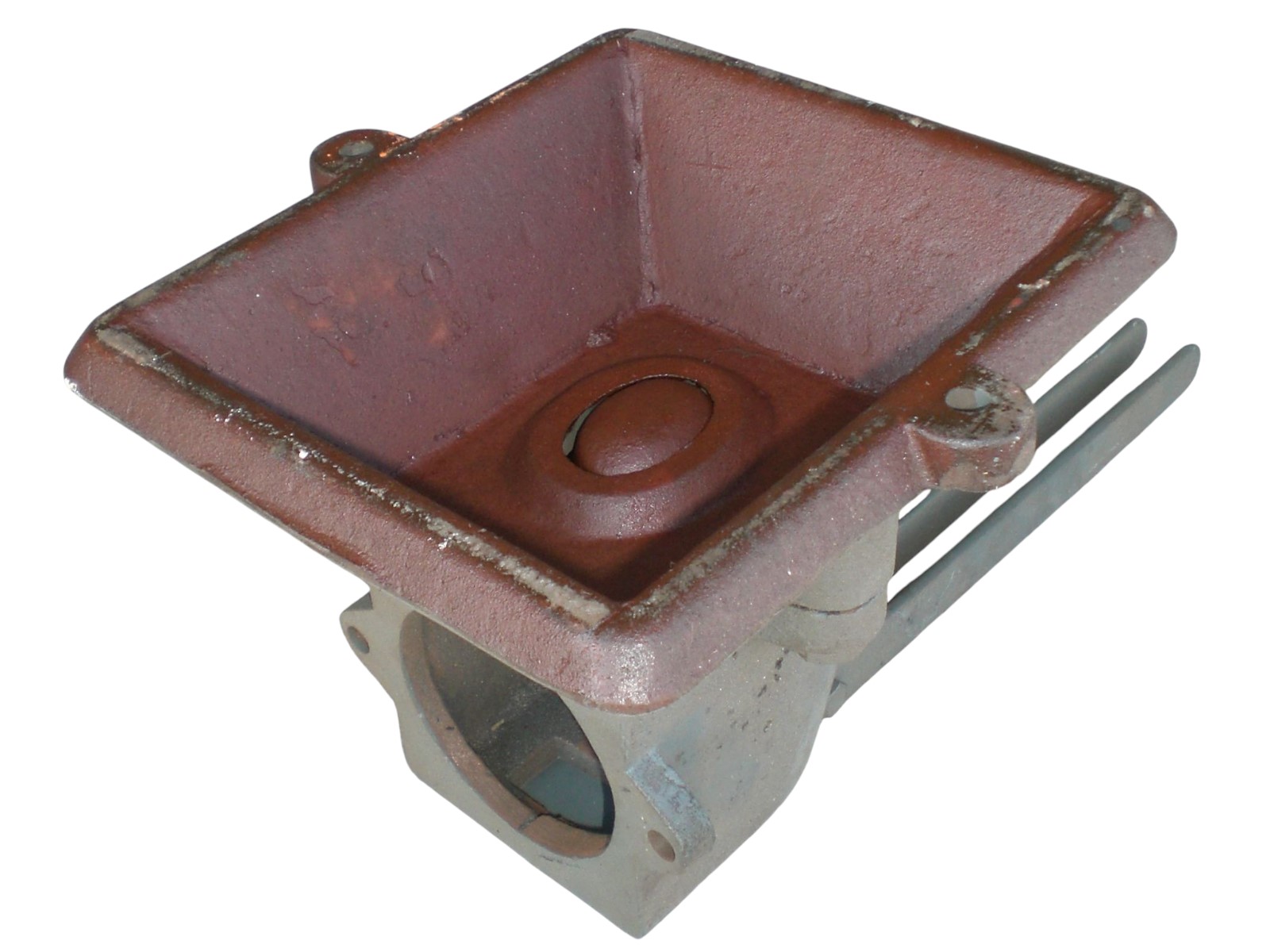

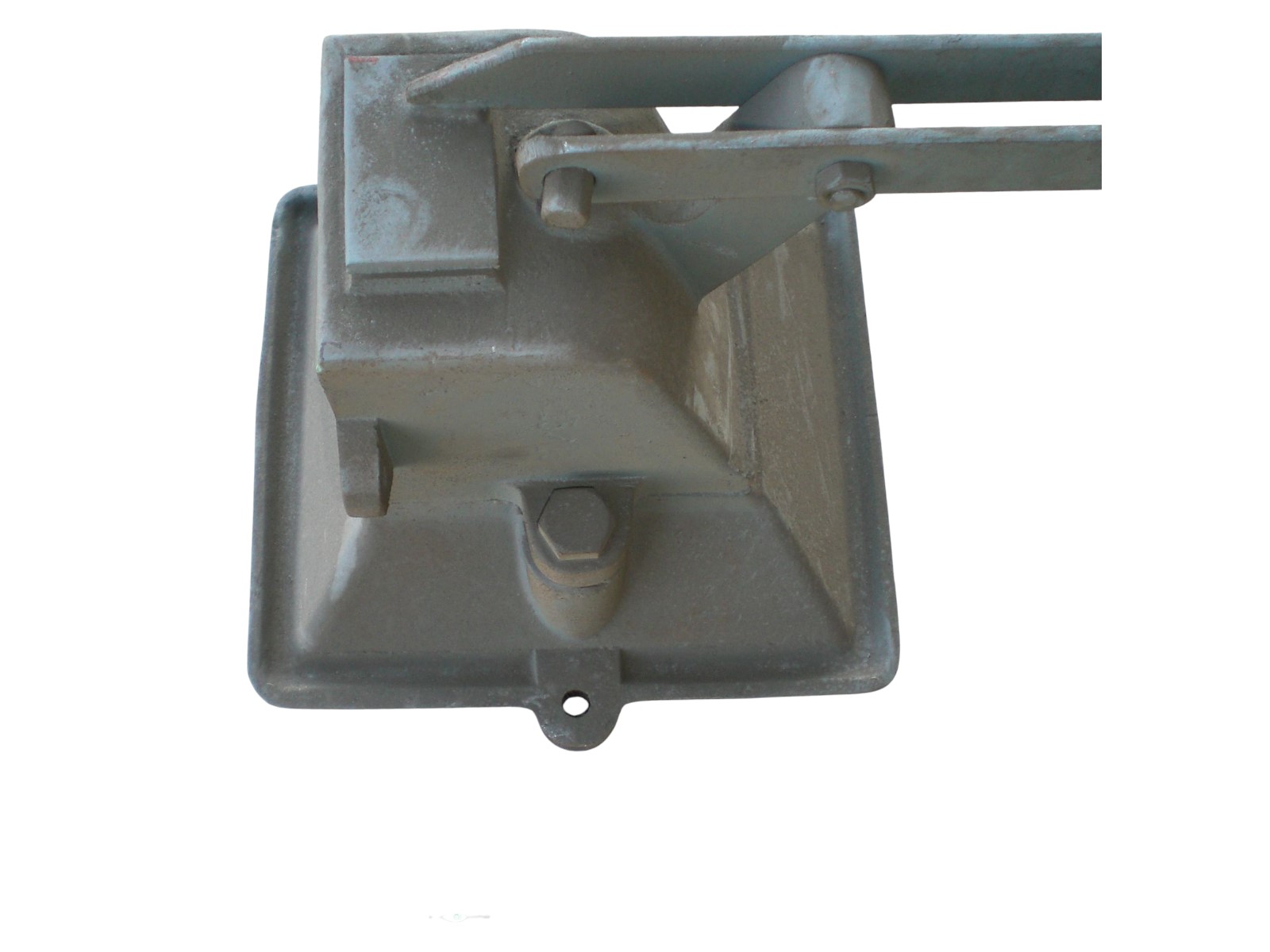

Field Forge Insert No. 15

00941010.15

Two-piece, cast iron, with fire tongue Air inlet diameter: 90 mm Screw hole spacing: 125 mm Fire bowl dimensions: Outer dimensions: 250 x 225 mm, inside dimension: 210 x 190 mm, depth: 68 mm Picture 4 shows the iron with the adapter 00941010.15.4 for direct connection of our electric fan EMV 133 This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€150.00* €326.00*

pcs

48.02 %

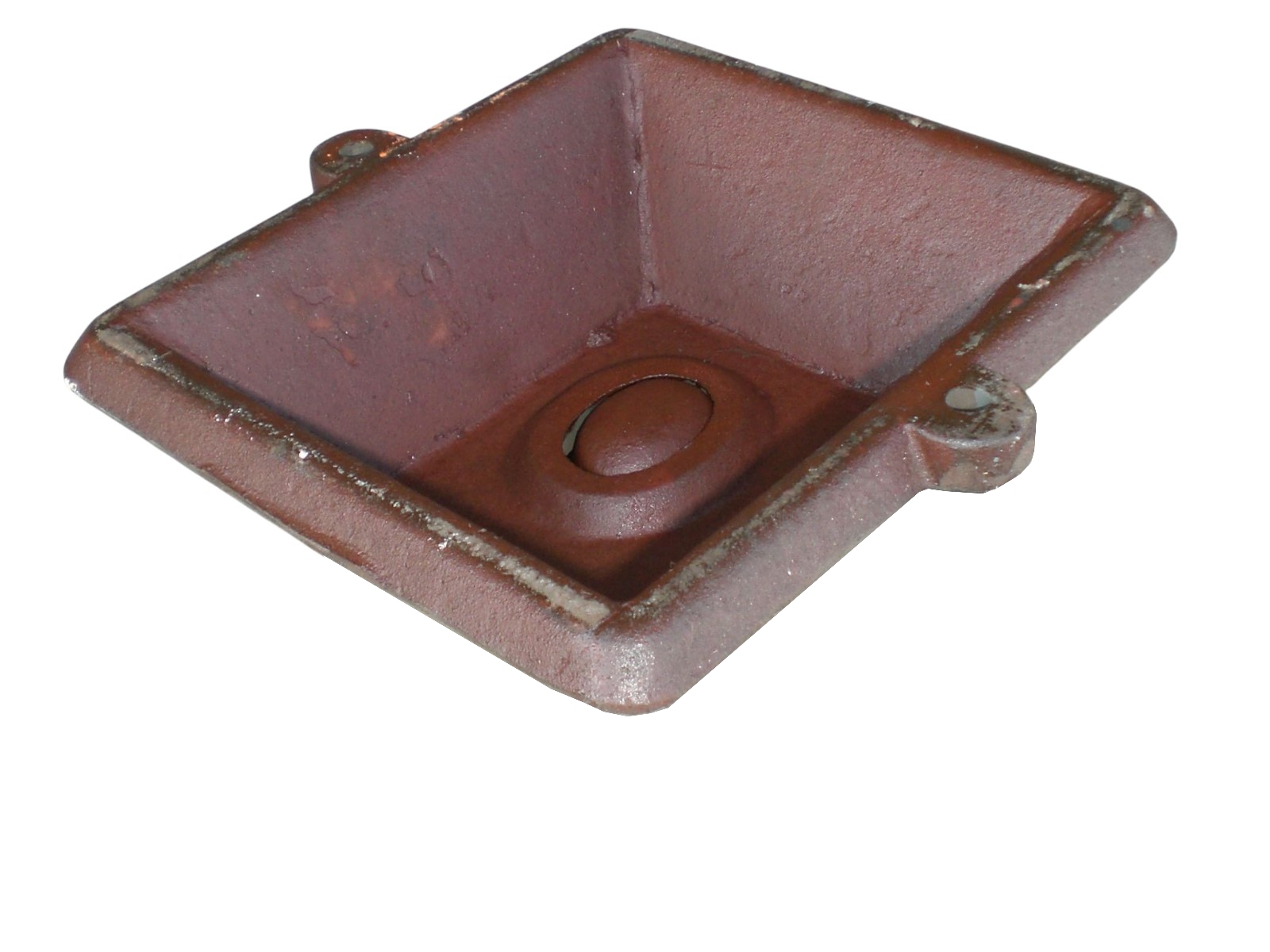

Fire Pan fo Field Forge Insert No. 15

00941010.15.1

Fire Pan for Field Forge Insert No. 15 cast iron, Outer dimensions: 250 x 225 mm, inside dimension: 210 x 190 mm, depth: 68 mm This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€69.90* €134.47*

pcs

75.12 %

Bottom part for Field Forge Insert No. 15

00941010.15.2

cast iron, without fire tongue Air inlet diameter: 90 mm Screw hole spacing: 125 mm This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€19.90* €79.99*

pcs

Fire tongue for Field Forge Insert No. 15

00941010.15.3

cast iron This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€39.00*

Details

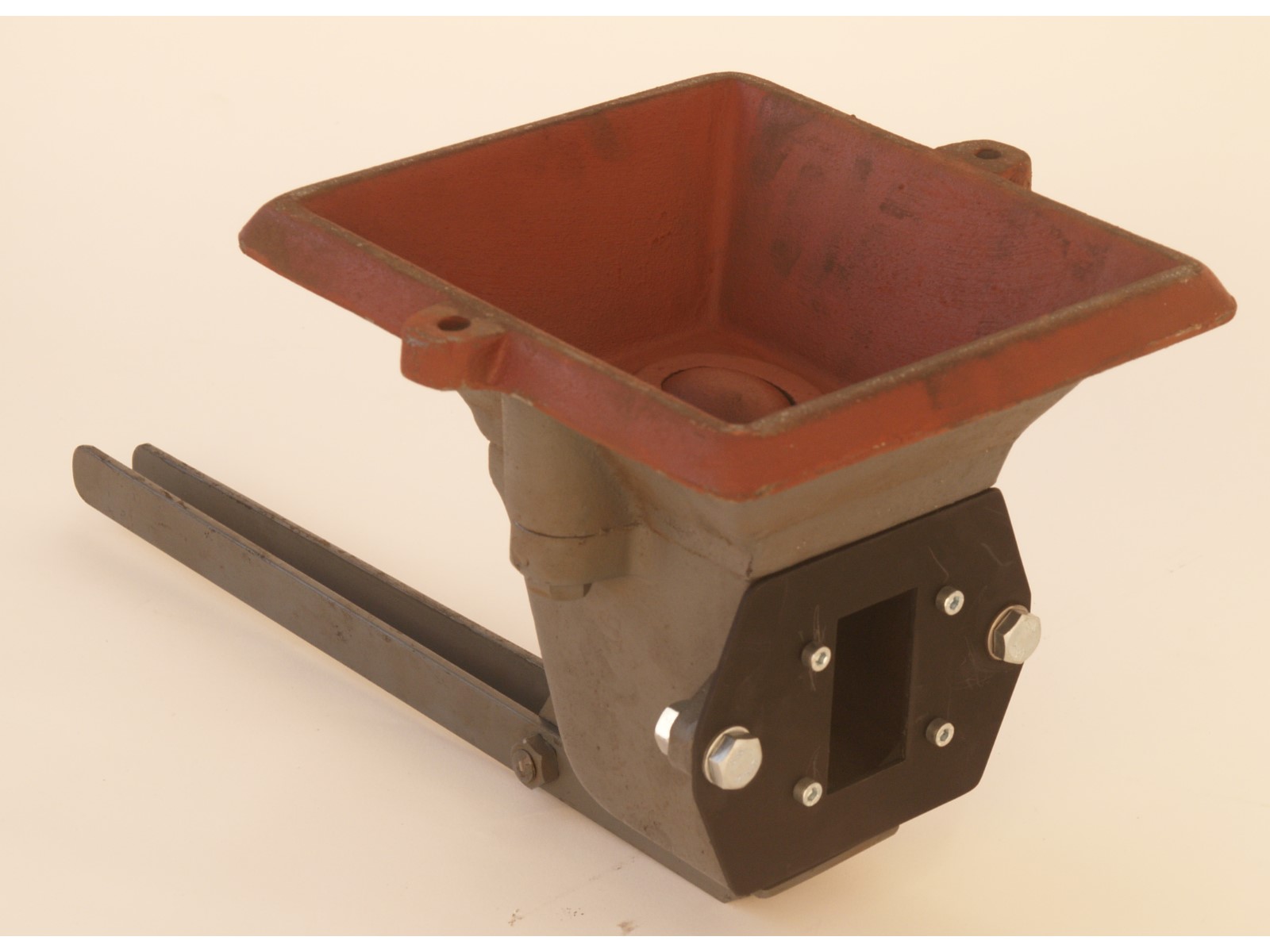

Adaptor for field Forge Insert No. 15

00941010.15.4

for connecting the electric fan EMV 133 Picture 2 shows the adapter mounted on the iron type 15 (iron not included) This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€24.95*

Details

47.66 %

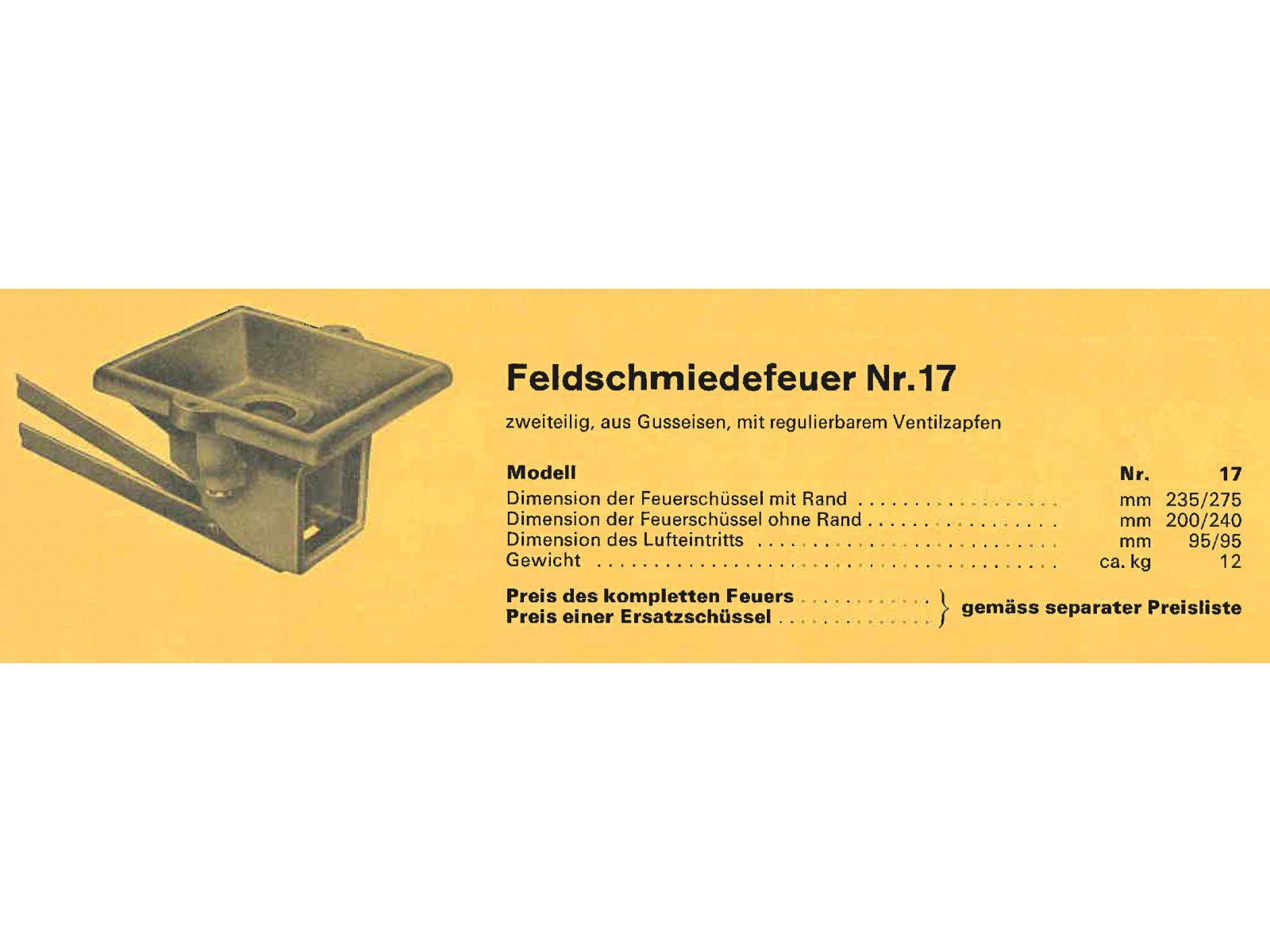

Field Forge Insert No. 17

00941010.17

Two-piece, cast iron, with fire tongue Air inlet diameter: 95x95 mm Screw hole spacing: 125 mm Fire bowl dimensions: Outer dimensions: 275 x 235 mm, inside dimension: 240 x 200 mm, depth: 70 mm This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€190.00* €363.00*

pcs

44.52 %

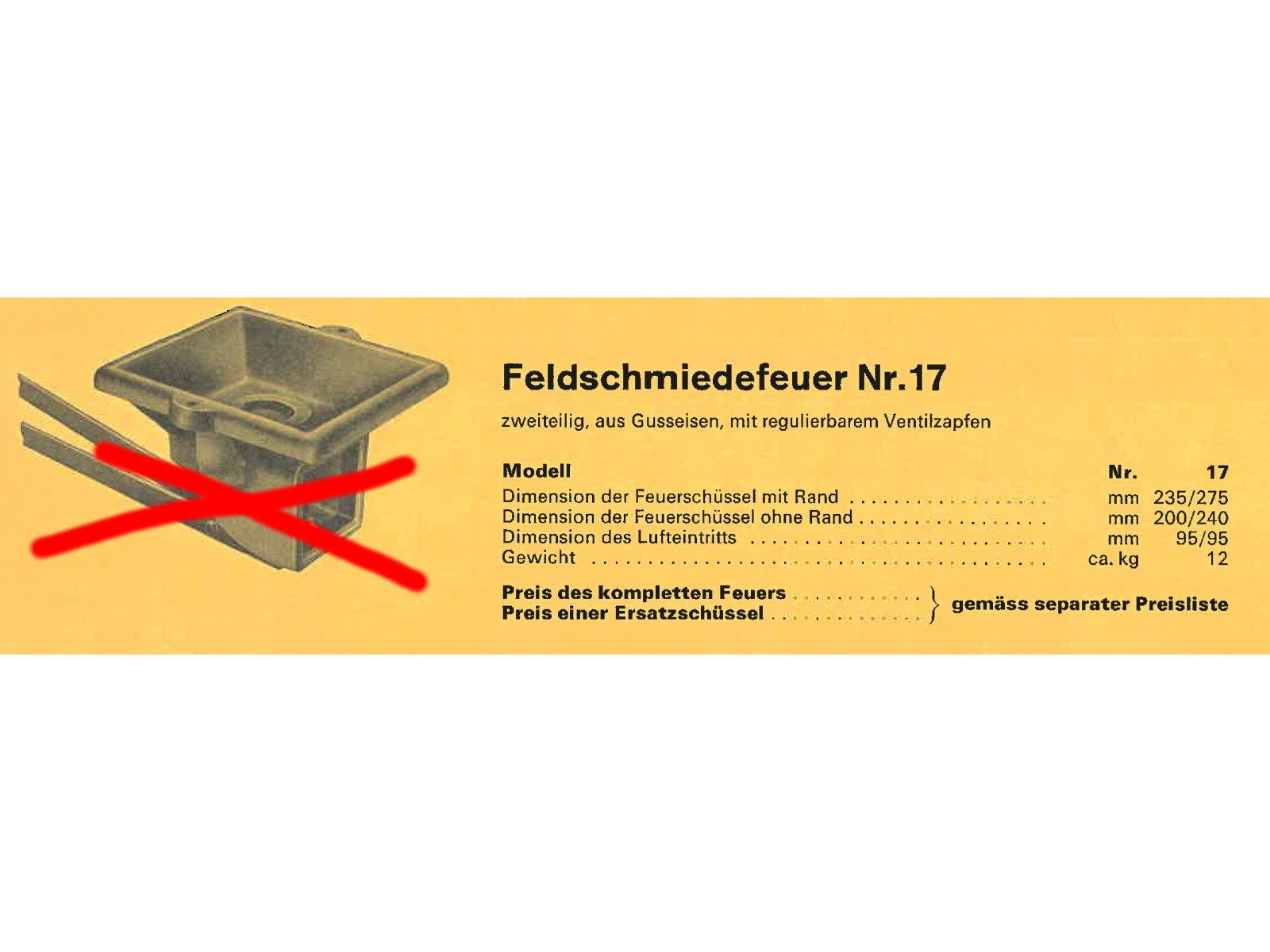

Fire pan for Field Forge Insert No. 17

00941010.17.1

cast iron, Outer dimensions: 275 x 235 mm, inside dimension: 240 x 200 mm, depth: 70 mm This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€69.90* €126.00*

pcs

75.12 %

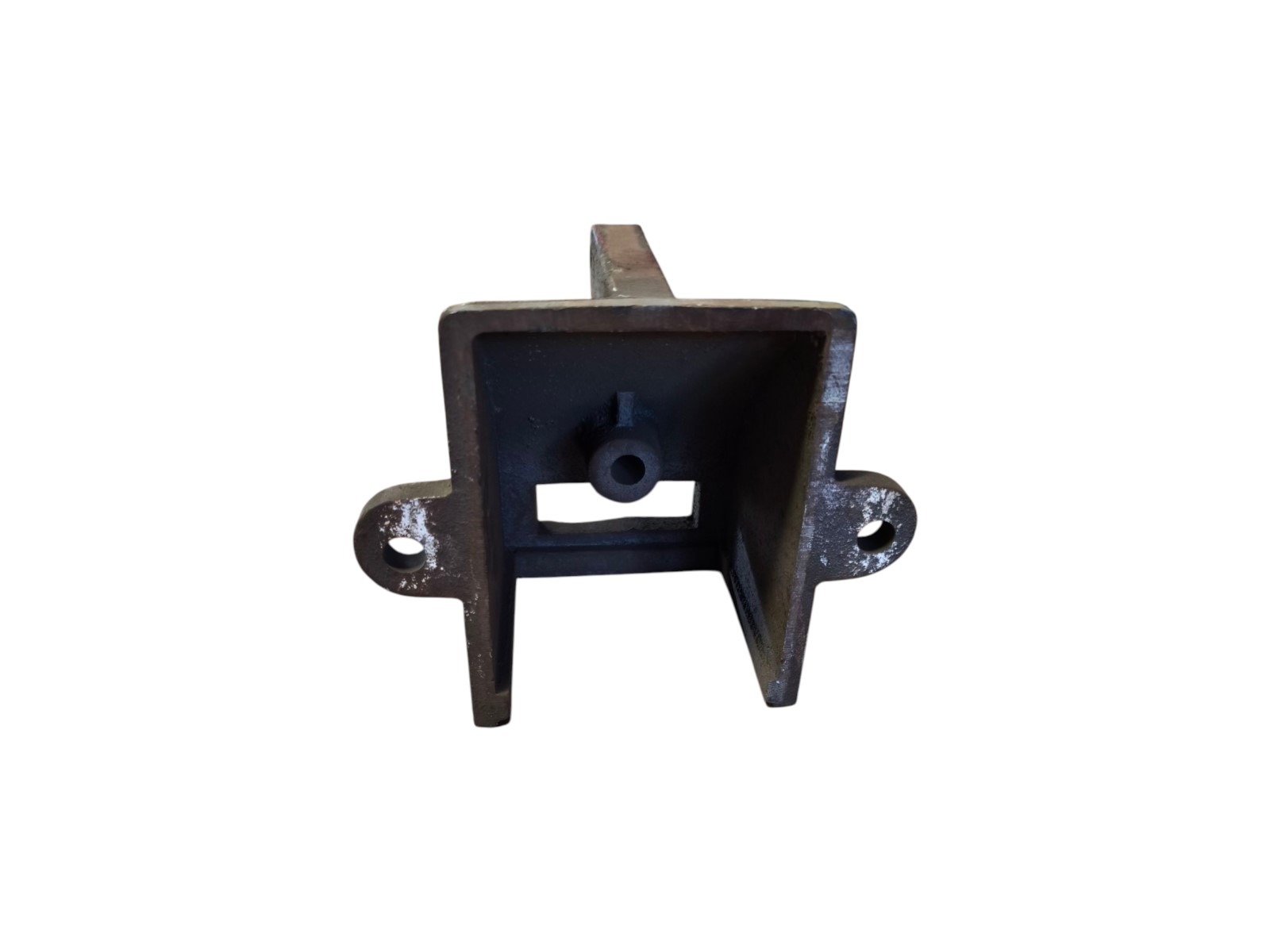

bottom part pour Field Forge Insert No. 17

00941010.17.2

cast iron, Air inlet diameter: 95x95 mm Screw hole spacing: 125 mm This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€19.90* €79.99*

pcs

40.45 %

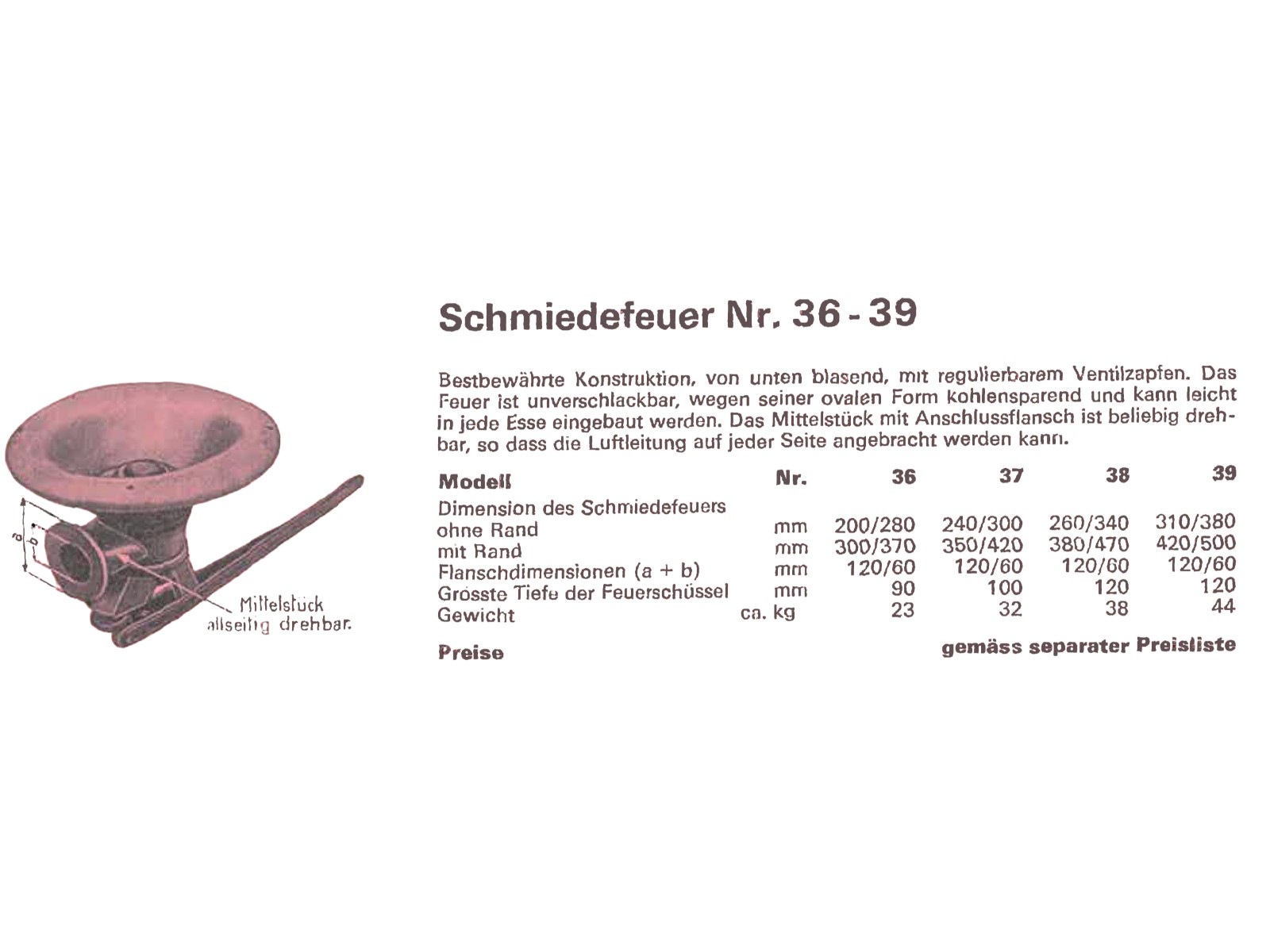

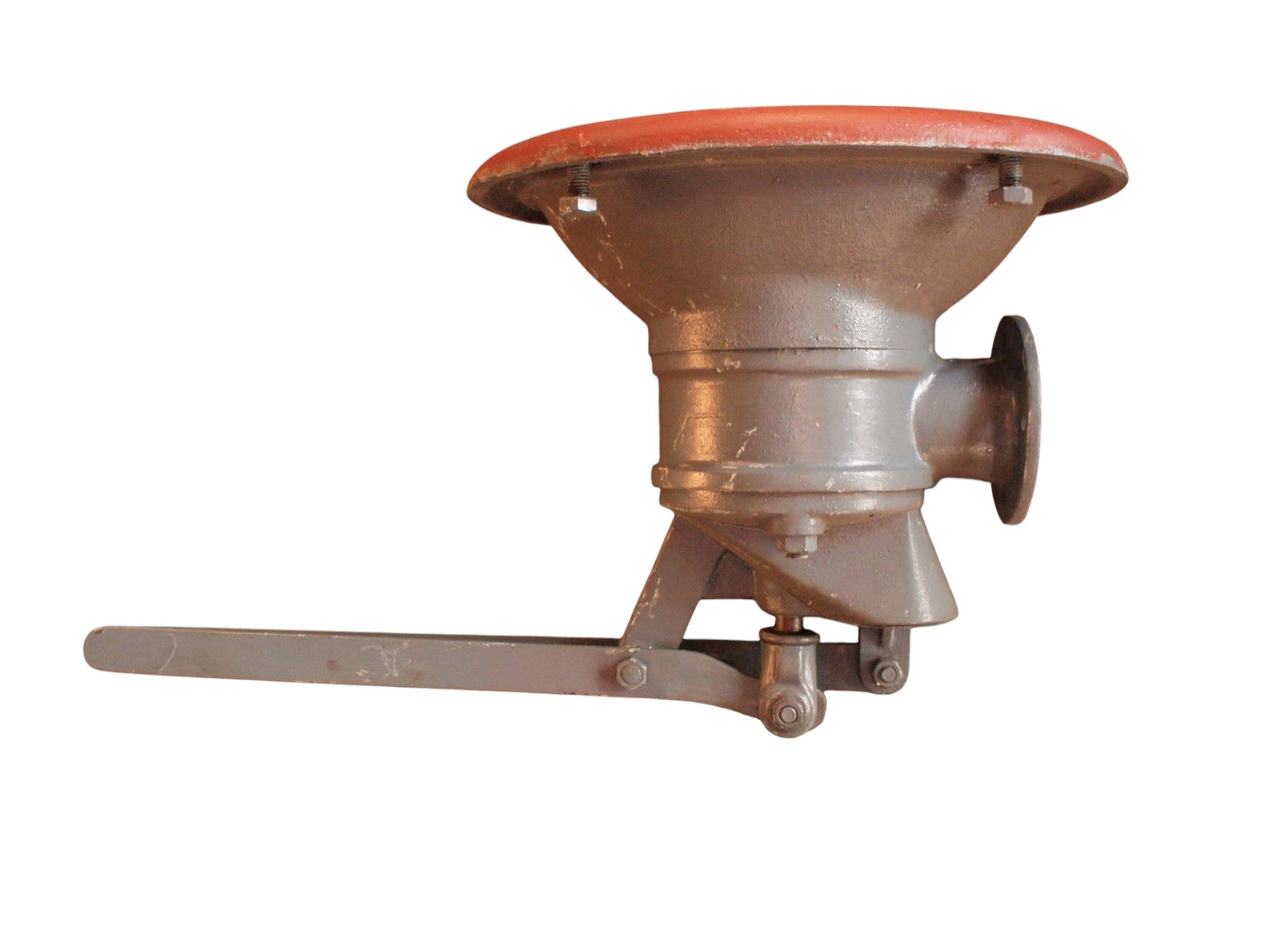

Forge Fire No. 36

00941036

Complete forging iron External dimensions: 370 x 300 mm Clearance: 280 x 200 mm Depth: 90 mm Flange dimensions: 120 / 60 mm Proven Swiss construction, Bauhofer/Häfliger system Cast iron upper and lower sections Oval fire bowl shape Center piece with connecting flange, freely rotatable Original price in 1991 at Gebrüder Häfliger AG: CHF 754 This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€449.00* €754.00*

pcs

54.41 %

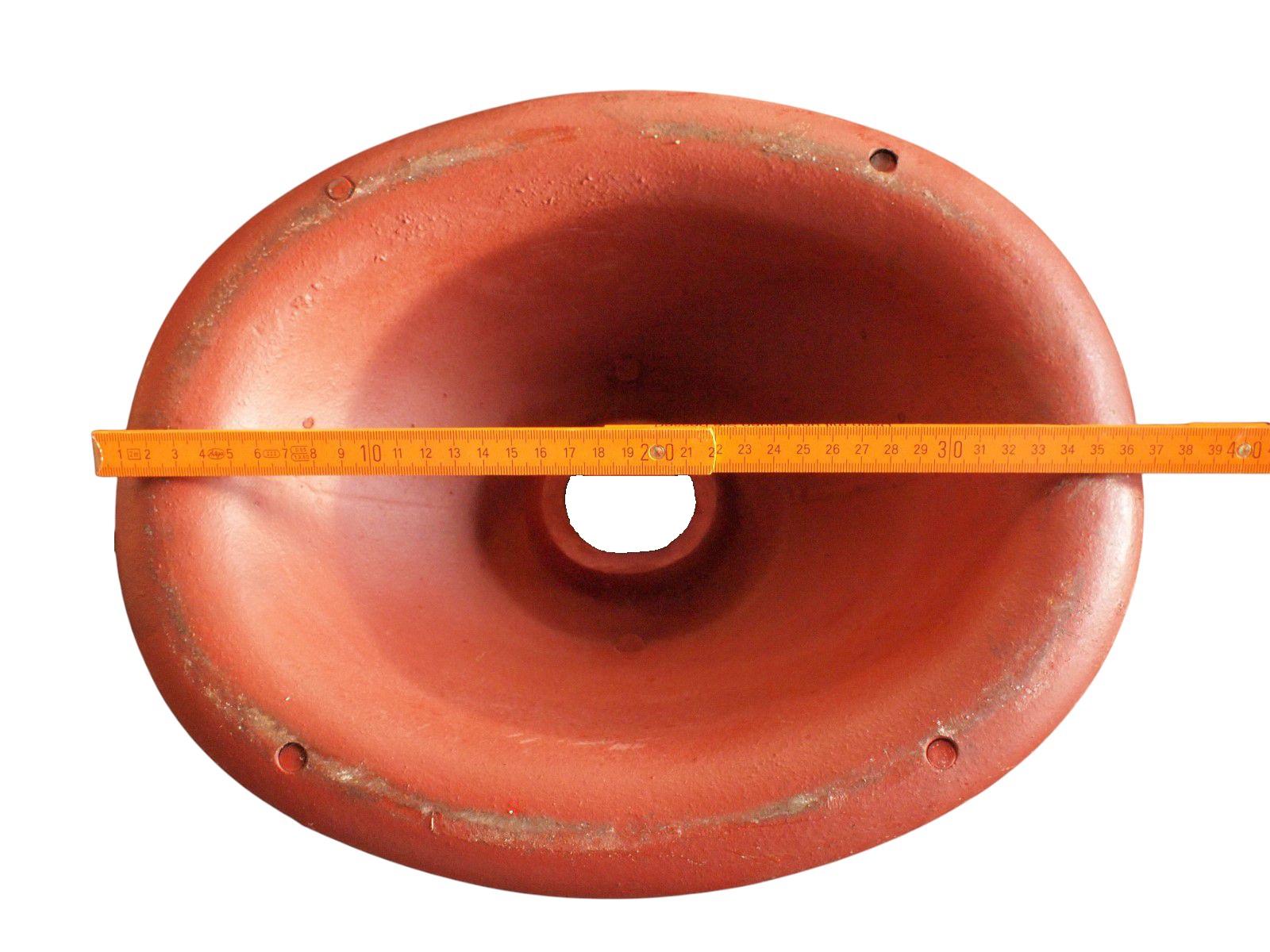

Fire pan for Forge Fire No. 36

00941036.1

Oval fire bowl shape, cast iron, External dimensions: 370 x 300 mm Clearance: 280 x 200 mm Depth: 90 mm Proven Swiss construction, Bauhofer/Häfliger system Original price in 1991 at Gebrüder Häfliger AG: CHF 261 This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€119.00* €261.00*

pcs

70.11 %

Middle ring for Forge Fire No. 36

00941036.2

cast iron Proven Swiss construction, Bauhofer/Häfliger system This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€29.89* €100.00*

pcs

37.99 %

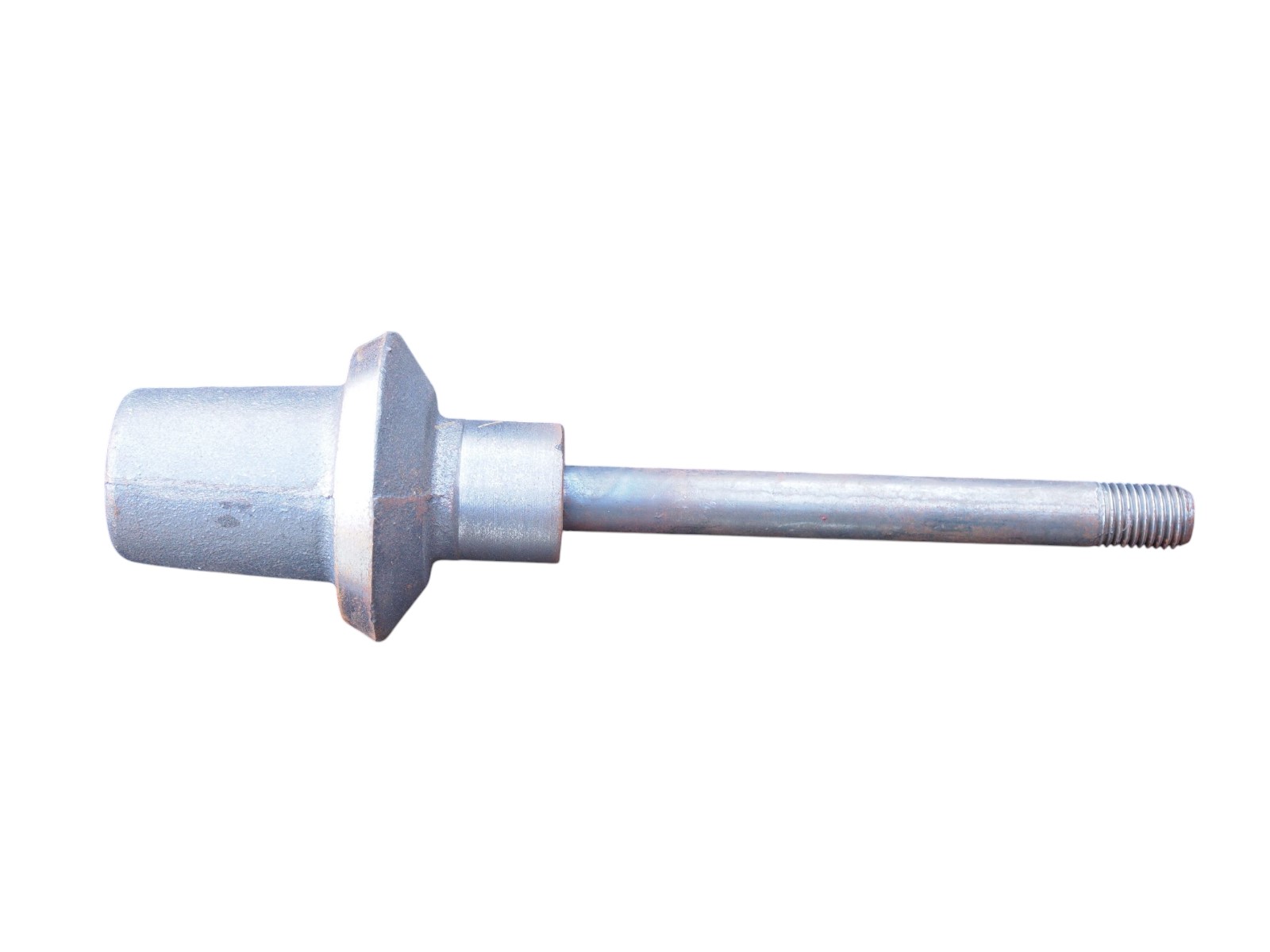

Fire tong for Forge Fire No. 36

00941036.3

slightly oval shape, cast iron, shank diameter 16 mm, total length about 240 mm Proven Swiss construction, Bauhofer/Häfliger system This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible.

€48.99* €79.00*

pcs
