Cast iron fire pan
Cast fire bowl for a long service life
Our fire pansare made entirely of cast iron and are therefore more durable than welded steel constructions.
Nevertheless, every fire bowl is a wearing part that must be replaced after a certain period of time, depending on the intensity of use and treatment.
as a spare part cast iron construction inside dimensions top 250 x 225 mm, depth 100 mm bottom diameter of fire pan 150 mm
as a spare part cast iron construction inside dimensions top 310 x 270 mm, depth 120 mm bottom diameter of fire pan 150 mm
for fires blowing from the side cast iron, to be packed with clay, length 200mm, width (back) 200 mm,width (front) 70 mm, height 115 mm, width of the hole 30 mm
with air holes for portable forges F 600/F 620 or forge S 800-1, dimensions 215 x 195 mm (top), with fixing bolts and ceramic seal
with oval hole for portable forges of older type, top dimensions 215 x 195 mm, fixation holes M 10, distance 130 mm, oval hole approx. 55 x 45 mm, with fixing bolts and ceramic seal This fire bowl is unfortunately no longer available. A similar size is our bowl number 1 (item number 343111).
top dimensions 305 x 225 mm for solid fuel blacksmith's forges, inside dimensions 250 x 175 mm, depth 53 mm, fixation holes M 12, distance 260 mm, oval hole approx. 70 x 50 mm, with fixing bolts and ceramic seal
top dimensions 355 x 270 mm for solid fuel blacksmith's forges, inside dimensions 290 x 200 mm, depth 65 mm, fixation holes M 12, distance 260 mm, oval hole approx. 70 x 50 mm, with fixing bolts and ceramic seal
top dimensions 405 x 295 mm for solid fuel blacksmith's forges, inside dimensions 340 x 225 mm, depth 77 mm, fixation holes M 12, distance 260 mm, oval hole approx. 70 x 50 mm, with fixing bolts and ceramic seal
top dimensions 550 x 340 mm for solid fuel blacksmith's forges, inside dimensions 470 x 260 mm, depth 105 mm, fixation holes M 12, distance 260 mm, oval hole approx. 70 x 50 mm, with fixing bolts and ceramic seal

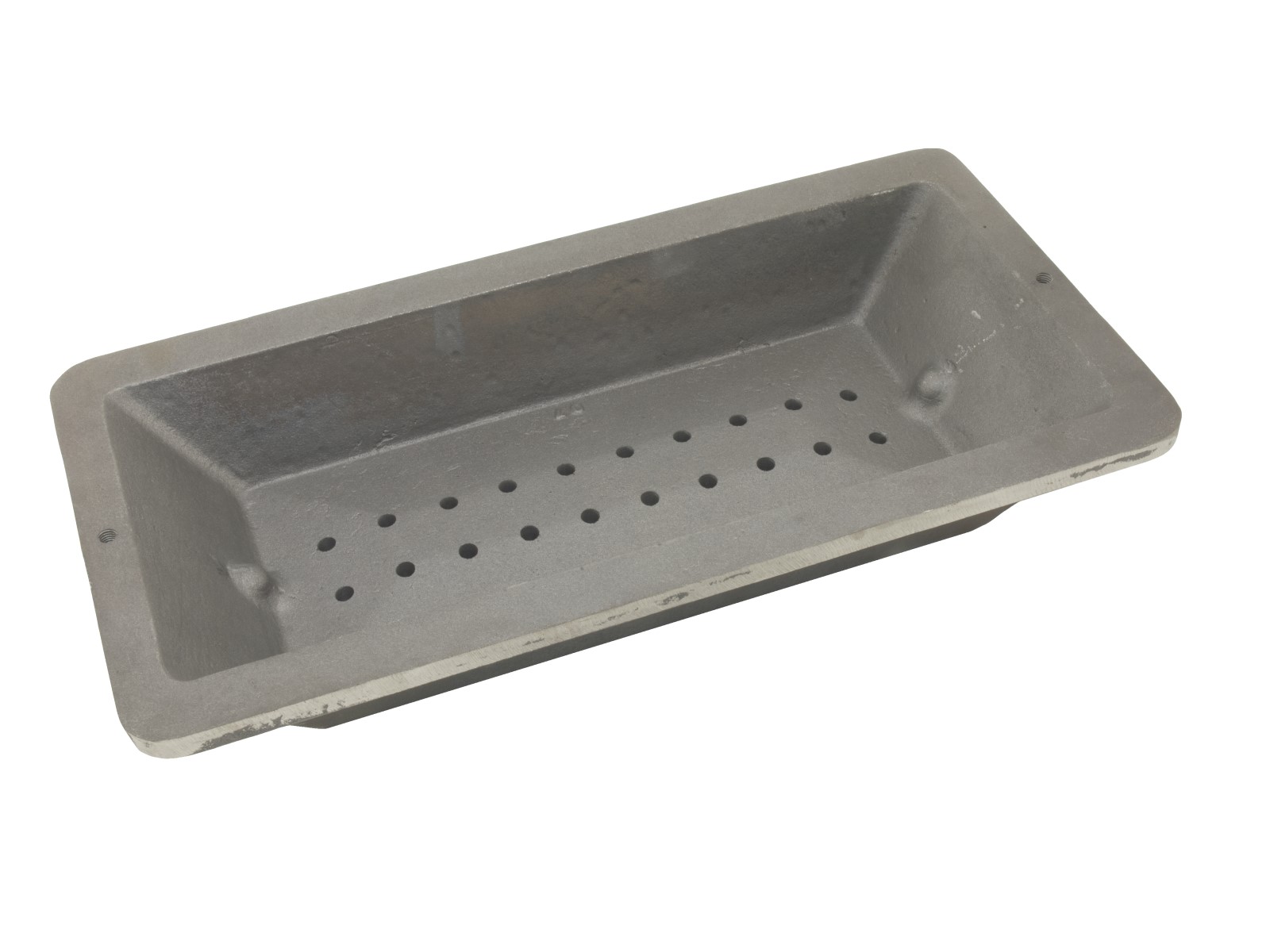

top dimensions 560 x 290 mm for solid fuel blacksmith's forges, inside dimensions 505 x 225 mm, depth 72 mm, fixation holes M 12, distance 410 mm, with 20 air nozzle holes, with fixing bolts and ceramic seal
cast iron, without fire tongue Outer dimensions: 260 x 240 mm, inside diameter: 220 x 20 mm, depth: 68 mm This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible. The parts are cast and have certain tolerances. Therefore, reworking may be necessary.
Fire Pan for Field Forge Insert No. 15 cast iron, Outer dimensions: 250 x 225 mm, inside dimension: 210 x 190 mm, depth: 68 mm This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible. The parts are cast and have certain tolerances. Therefore, reworking may be necessary.
cast iron, Outer dimensions: 275 x 235 mm, inside dimension: 240 x 200 mm, depth: 70 mm Distance screw holes 155 mm, This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible. The parts are cast and have certain tolerances. Therefore, reworking may be necessary.
Oval fire bowl shape, cast iron, External dimensions: 370 x 300 mm Clearance: 280 x 200 mm Depth: 90 mm Proven Swiss construction, Bauhofer/Häfliger system Original price in 1991 at Gebrüder Häfliger AG: CHF 261 This item originates from a company liquidation and has been "sleeping" for decades in dry storage. It is new, but some parts naturally show some signs of storage. We are selling this item on clearance while stocks last returns or exchanges are not possible. The parts are cast and have certain tolerances. Therefore, reworking may be necessary.
