Forging presses

An open-die forging press is ideal for welding damask packages and forging workpieces precisely.

Not only the forging itself, but also other operations that follow the forging, such as straightening, can be carried out quickly with the hydraulic open-die forging press.

Wherever the installation of an air hammer appears to be problematic, the hydraulic press offers a good alternative to make work easier and work more efficiently.

Forging presses

Accessories and Spare Parts Forging Presses

Dies Forging Presses

Industrial grease gun 1-HHFP

00663579

Industrial grease gun 1-HHFP Filling nipple (FN), M 10 x 1 male 400 g grease cartridge, DIN 1284, grease filling system or loose grease using a spatula The grease gun for eternity! Specification Filling nipple (FN), M 10 x 1 male Polybag, with headcard, for hanging display High pressure hose, M 10 x 1 male, 11 x 300 mm, with 4-claws-coupler, M 10 x 1 female Special notes Operates with greases up to NLGI grade 2 at 20°C Plunger with exactly fitting when using bulk grease or cartridge Due to the flexibility of the push rod, the plunger can be inserted into damaged cartridges or cartridges not exactly matching the standard dimensions acc. to DIN 1283 TÜV - certified Pump piston, cylinder and O-ring with 6 μ fit (no dummy lubrication) No dummy (apparent) lubrication. Sealing system: O-ring and ball valve prevent grease compressed in the grease gun head from feeding back. Performance unchanged after 40.000 actuating cycles Separate filling and ventilation valves on grease gun head Grease gun head, zinc die casting Z 410 Sure grip handling due to deep band knurls Safe handle on the push rod Slip resistant handle on grease gun lever Enables even under extreme backpressure, a variable lubrication pressure with steady effort applied Allows lubrication in difficult to reach locations because the smallest lever operation results in grease being pumped reliably to the lubrication point. Plunger rod clamp on end cap enables manual pressure to be applied to spring to compress bulk grease, or to force in the plunger in damaged cartridges. Push rod can be locked in any position - push rod does not have to be fully retracted to release the spring pressure on the grease (grease does not saponify) High-speed ventilation, by half a rotation of the grease gun tube

in stock

€64.00*

pcs

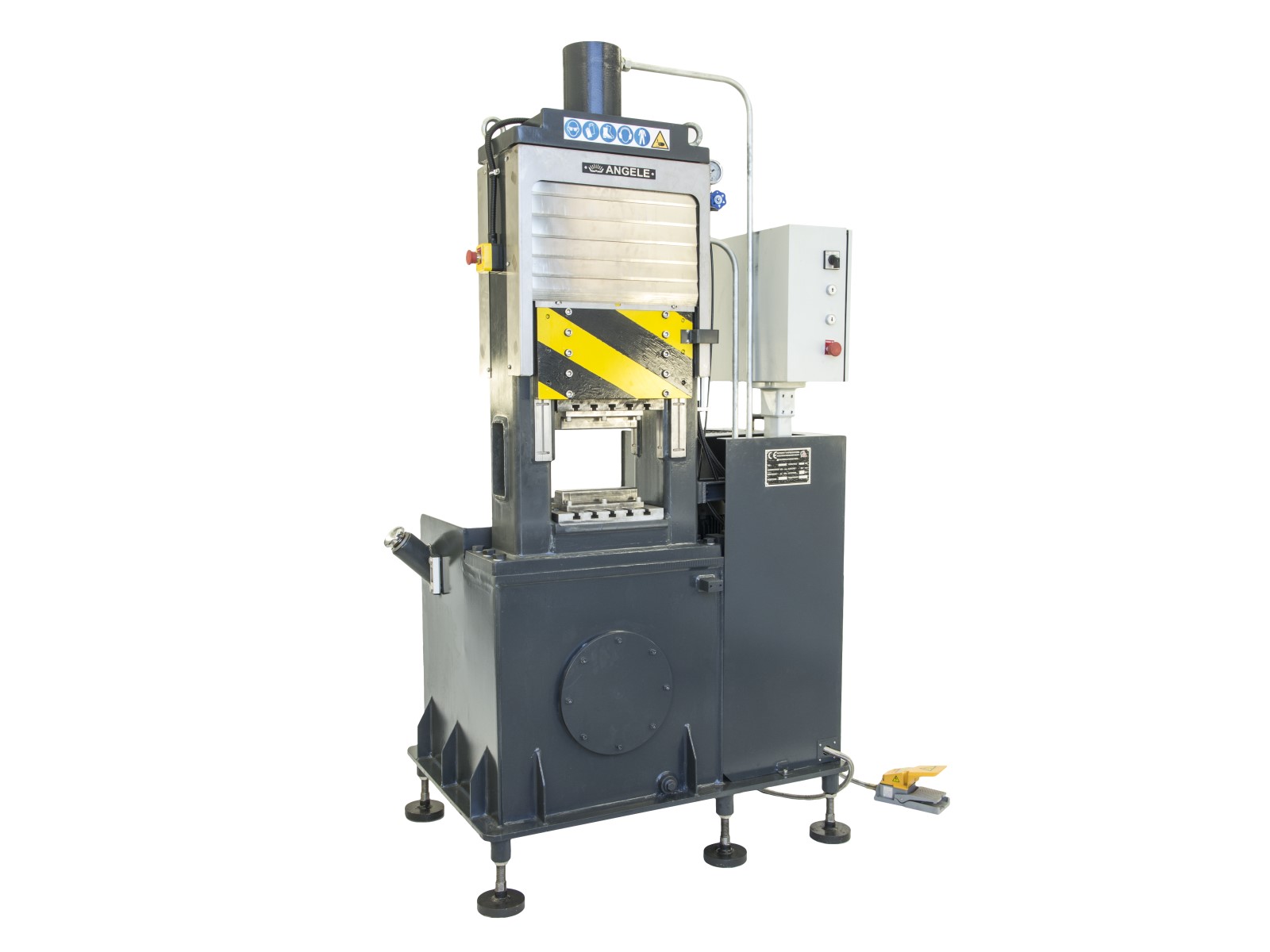

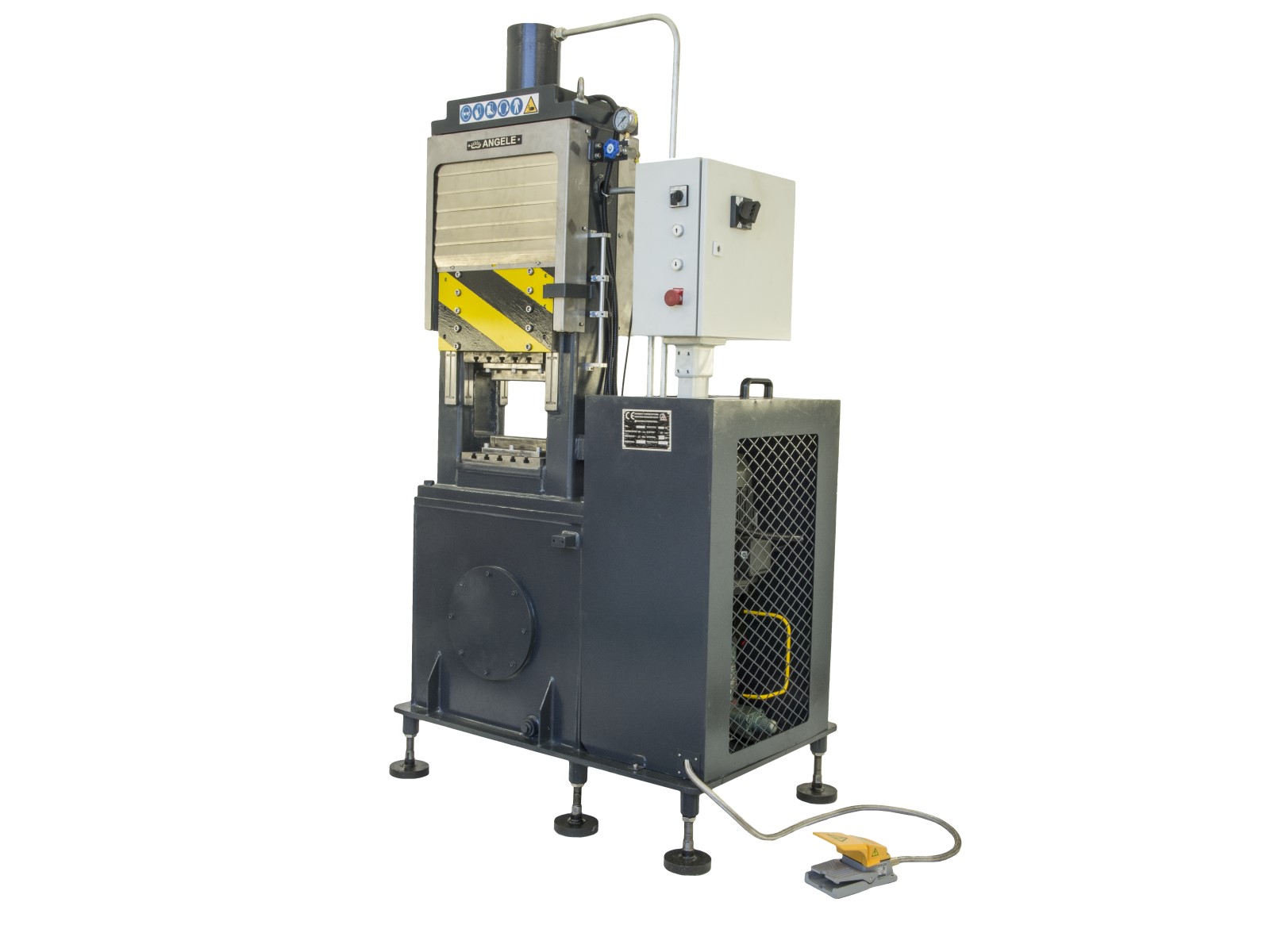

Hydraulic forging press AN-Y04-25t

00671125

Hydraulic forging press AN-Y04-25t for hot-freeform-forging, 25 MPa (~ 25 t) press capacity, lift height 300 mm, lifting speed without load: down: 40 mm/s up: 60 mm/s 7 mm/s working speed, worktable 300 x 200 mm, motor power 4 kW, three-phase 3x400 V, total weight 880 kg (without oil), external dimension (LxWxH): 1200 mm x 750 mm x 2080 mm, basic equipment 1 pair flat dies (approx. 230x130x50 mm). Serial number #N Applications: damask free form forging punching, thorning,... flattening, upsetting,... NEW: Setup mode with slow lifting speed! Easy to use via the second switch on the foot switch. Advantages: stable steel welding construction of the press frame small required space free positioning end positions (with mm-scale for exact positioning) adjustable hydraulic pressure simple and exact control with foot pedal double-acting hydraulic cylinder high pressing speed large lift height significantly lower noise emission than power hammers quick and easy start up of the machine robust, durable and low ammount of maintenance flexible in use due to lateral insertion (80mm x 180mm) easy and flexible die mounting with T-slots on the press table

in stock

€10,980.00*

pcs

Hydraulic forging press AN-Y04-50t

00671150

Hydraulic forging press AN-Y04-50t for hot-freeform-forging, 50 MPa (~ 50 t) press capacity, lift height 300 mm, lifting speed without load: down: 50 mm/s, up: 55 mm/s 8 mm/s working speed, worktable 380 x 300 mm, motor power 7,5 kW, three-phase 3x400 V, total weight 1950 kg (without oil), external dimension (LxBxH): 1560 mm x 1110 mm x 2140 mm, basic equipment 1 pair flat dies Serial number #N Applications: damask free form forging punching, thorning,... flattening, upsetting,... Advantages: stable steel welding construction of the press frame small required space free positioning end positions adjustable hydraulic pressure simple and exact control with foot pedal double-acting hydraulic cylinder high pressing speed large lift height significantly lower noise emission than power hammers quick and easy start up of the machine robust, durable and low ammount of maintenance flexible in use due to lateral insertion (80mm x 180mm) easy and flexible die mounting with T-slots on the press table

Available in 90 days, delivery time 2-5 days

€18,450.00*

pcs

Flat die for AN-Y04-25t

00671501.225

Flat die for AN-Y04-25t suitable for above or below, dimensions 230x130x50 mm, made of hardened tool steel

in stock

€290.00*

Details

Special die for Special die for forging press AN-Y04-25t

00671599.225

Special die for Special die for forging press AN-Y04-25t for hydraulic forging press, hardened from tool steel, including drawing creation Just ask us, we will create an offer and after the order has been approved, the dies will be individually manufactured.

Available in 30 days, delivery time 1-3 days

€590.00*

Details

Foot switch for forging press AN-Y04 - 1 Pedal

00671602.01

Foot switch for forging press AN-Y04 - 1 Pedal casing made of aluminium, foot switch-cover prevents unintentional operation, for forging press with one speed level.

in stock

€100.00*

pcs

Manometer for forging press AN-Y04

00671603

Manometer for forging press AN-Y04 0-400 bar (0-40 MPa)

in stock

€55.00*

pcs

Oil filter for forging press AN-Y04-25t

00671604

Oil filter for forging press AN-Y04-25t Chief cause of damage and malfunction of hydraulic machines is polluted oil. The oil filter ensures that the hydraulic system (pump, valves, pipes) remains free of dirt particles and prevents damage. Replacing the oil filter and hydraulic oil regular ensures a long life and high performance of the system.

in stock

€59.00*

pcs

Oil filter for forging press AN-Y04-50t

00671605

Oil filter for forging press AN-Y04-50t Chief cause of damage and malfunction of hydraulic machines is polluted oil. The oil filter ensures that the hydraulic system (pump, valves, pipes) remains free of dirt particles and prevents damage. Replacing the oil filter and hydraulic oil regular ensures a long life and high performance of the system.

in stock

€68.00*

pcs

Oil-level indicator for forging press AN-Y04

00671606

Oil-level indicator for forging press AN-Y04 with integrated temperature gauge Chief cause of damage and malfunction of hydraulic machines is polluted oil. The oil filter ensures that the hydraulic system (pump, valves, pipes) remains free of dirt particles and prevents damage. Replacing the oil filter and hydraulic oil regular ensures a long life and high performance of the system.

in stock

€25.00*

pcs

Limit switch for forging press AN-Y04

00671607

Limit switch for forging press AN-Y04 Length of the sensor approx. 65 mm, Diameter of the sensor approx. 12 mm

in stock

€76.01*

pcs

Wearing plate for forging press AN-Y04-25t

00671608

Wearing plate for forging press AN-Y04-25t approx. 45x220x15 mm

in stock

€51.00*

pcs

Wearing plate for forging press AN-Y04-50t

00671609

Wearing plate for forging press AN-Y04-50t approx. 50x260x15 mm

in stock

€72.00*

pcs

Oil filler filler plug for forging press AN-Y04

00671610

Oil filler filter for forging press AN-Y04

in stock

€99.00*

pcs

Spacer claw coupling for forging press AN-Y04-25t

00671611

Spacer claw coupling for forging press AN-Y04-25t spacer/ring for elastic coupling, for coupling between hydraulic pump and electric motor This part should be replaced regularly, depending on wear to avoid damage of the electric motor and hydraulic pump.

in stock

€30.00*

pcs

Spacer claw coupling for forging press AN-Y04-50t

00671612

Spacer claw coupling for forging press AN-Y04-50t spacer/ring for elastic coupling, for coupling between hydraulic pump and electric motor This part should be replaced regularly, depending on wear to avoid damage of the electric motor and hydraulic pump.

in stock

€51.00*

pcs

hexagon socket 75 for AN-Y04-25t

00671616

hexagon socket 75 for AN-Y04-25t wrench size 75 mm, with cross holes for using a lever, for changing the guide block

in stock

€58.00*

pcs

hexagon socket AN-Y04-50t

00671617

hexagon socket AN-Y04-50t wrench size 120 mm, with cross holes for using a lever, for changing the guide block

in stock

€63.00*

pcs

Hydraulic pump for AN-Y04-25t

00671710

Hydraulic pump for AN-Y04-25t Axial piston pump, suitable for hydraulic forging press AN-Y04-25t

in stock

€933.00*

pcs

Hydraulic pump for AN-Y04-50t

00671711

Hydraulic pump for AN-Y04-50t

in stock

€1,237.01*

pcs

hydrauli oil HLP 46

42702111

hydrauli oil HLP 46 for forgingpress AN-Y04 AN-Y04-25t requires 220-240 l, AN-Y04-50t requires 450-500 l packing unit in barrels with 60 l

Content: 60 Liter (€0.06* / 1 Liter)

Available in 30 days, delivery time 1-3 days

€3.36*

Slideway grease for forging press

42704008

Slideway grease for forging press AN-Y04-25t/50t, for lubrication of slideways, for dusty and damp conditions, cartridge with 400g

in stock

€5.90*

pcs
