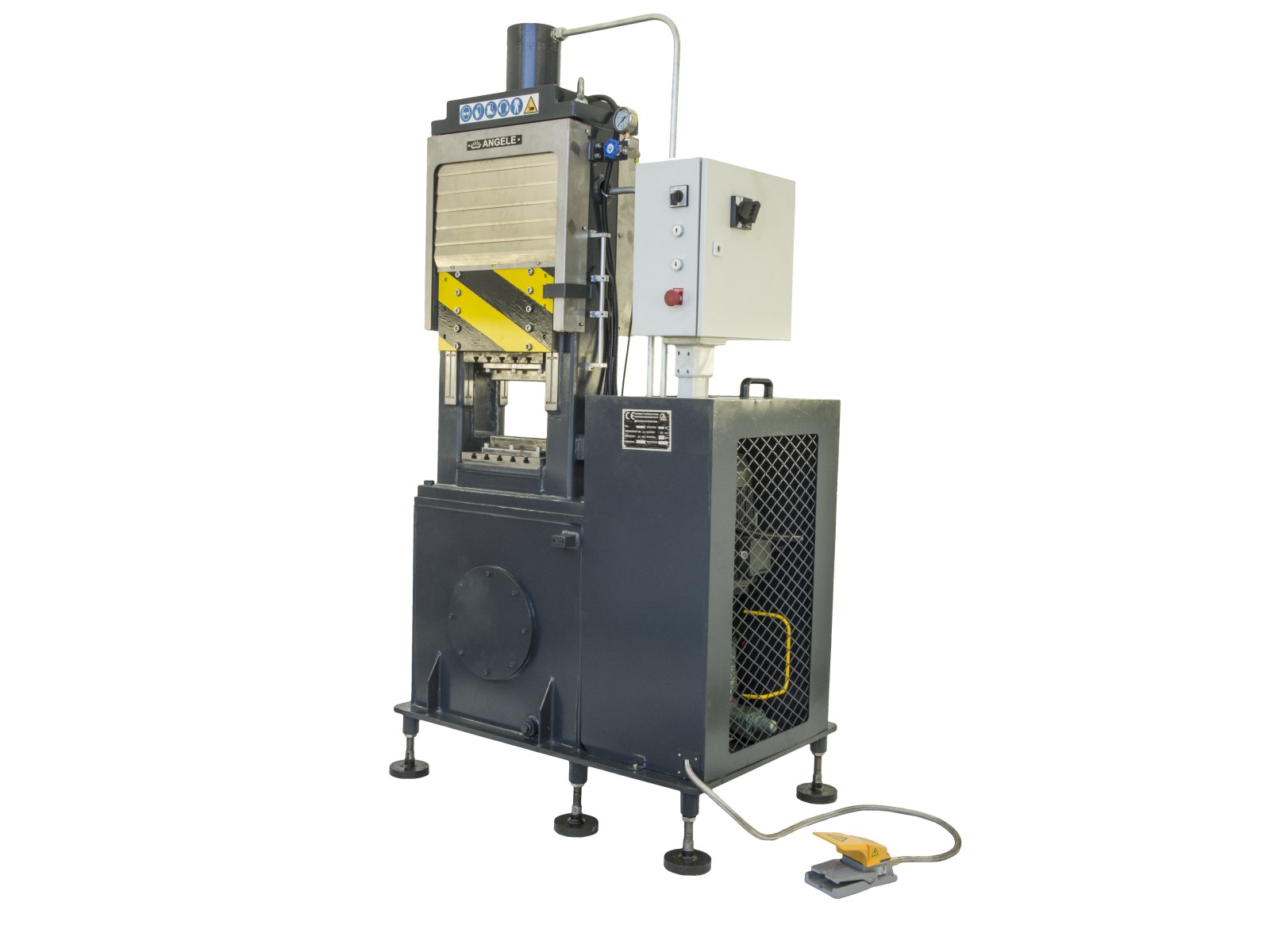

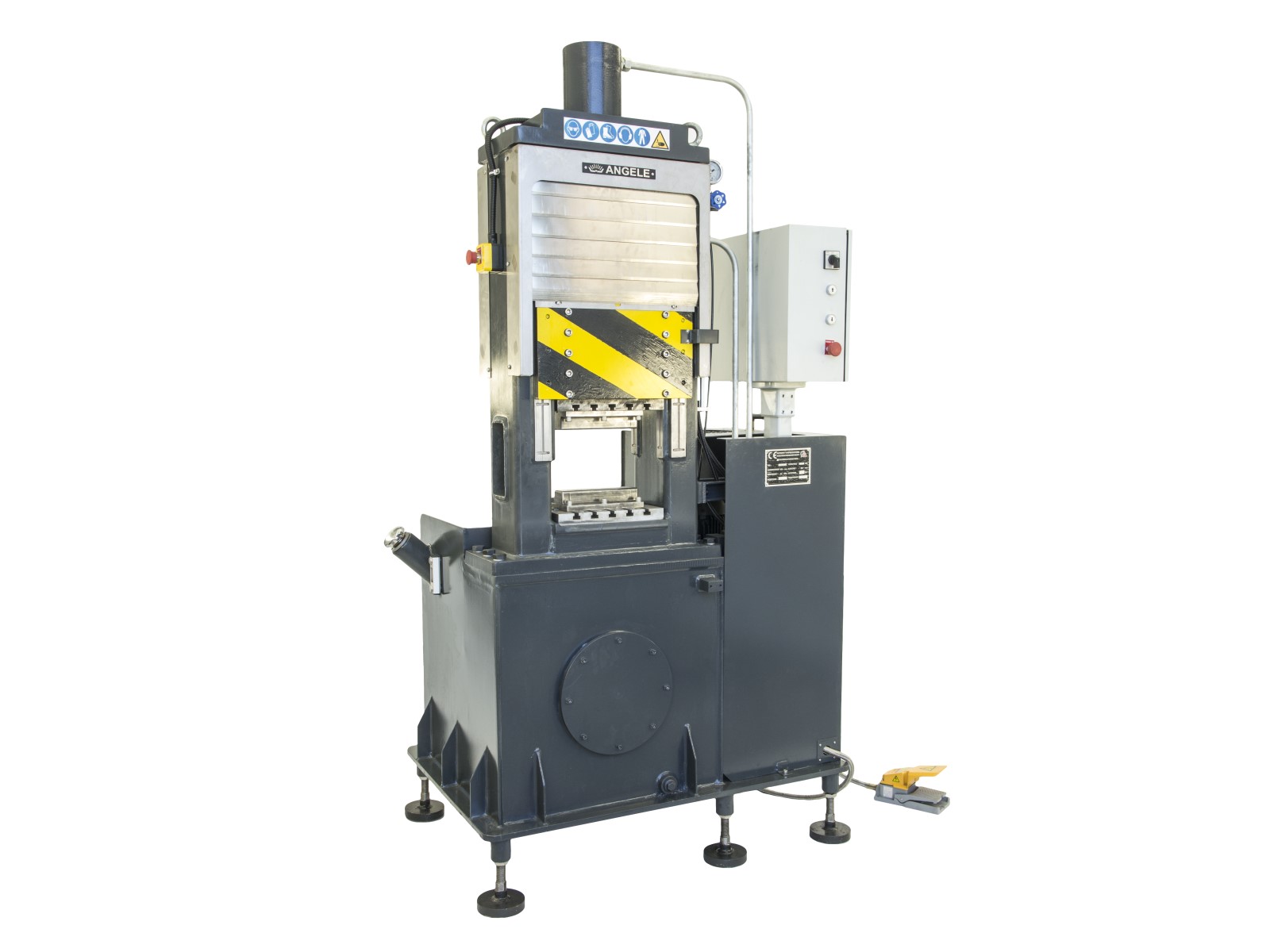

Hydraulic forging press AN-Y04-25t
Hydraulic forging press AN-Y04-25t
for hot-freeform-forging,
25 MPa (~ 25 t) press capacity,
lift height 300 mm,
lifting speed without load:
down: 40 mm/s
up: 60 mm/s
7 mm/s working speed,
worktable 300 x 200 mm,
motor power 4 kW, three-phase 3x400 V,
total weight 880 kg (without oil),

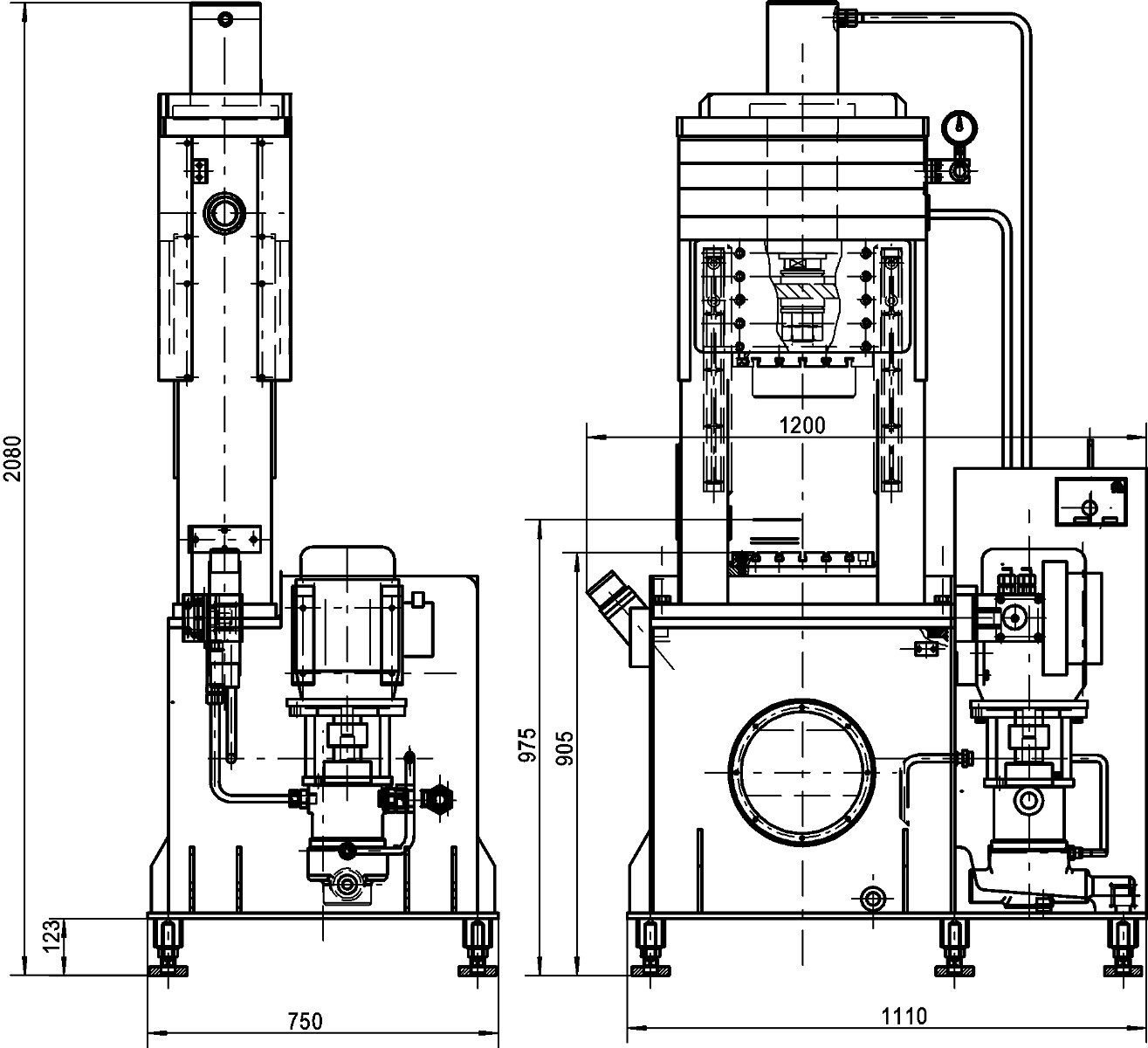

external dimension (LxWxH): 1200 mm x 750 mm x 2080 mm,

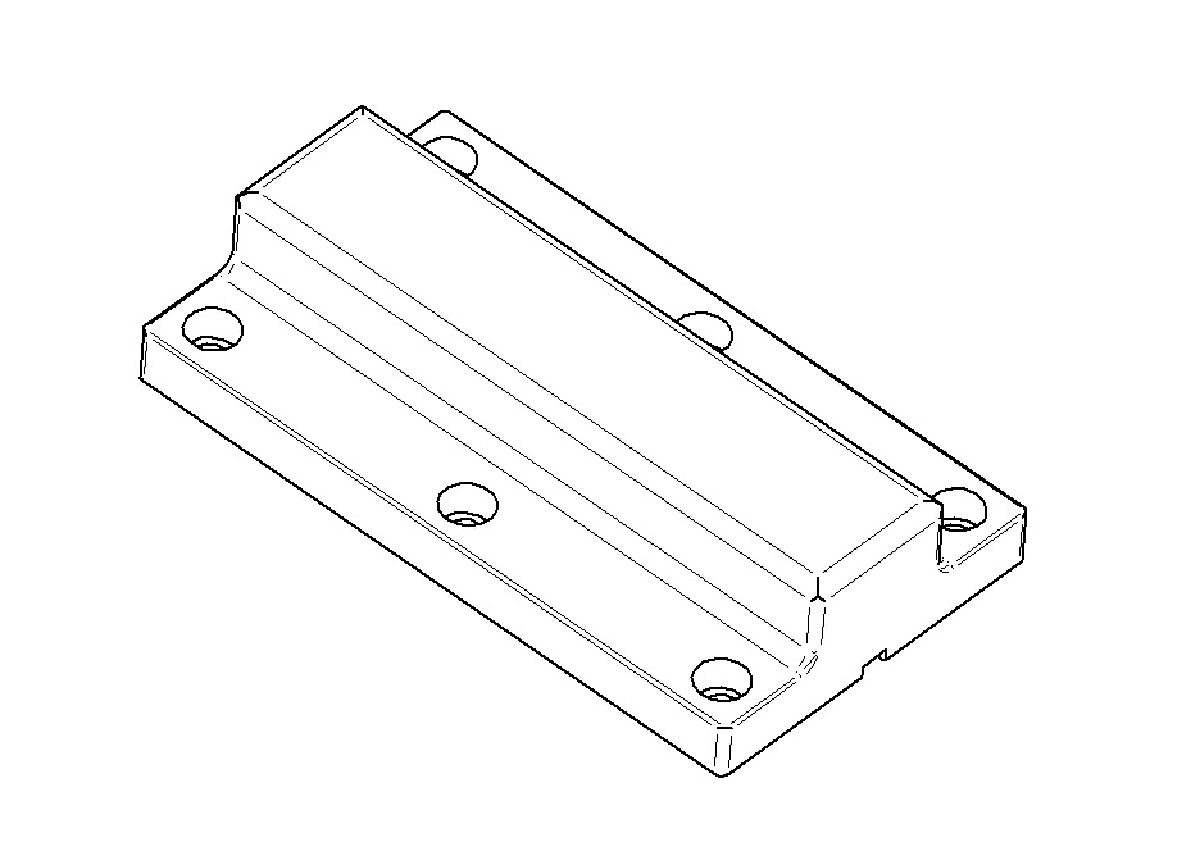

basic equipment 1 pair flat dies (approx. 230x130x50 mm).
Serial number #N
Applications:
- damask
- free form forging
- punching, thorning,...
- flattening, upsetting,...
NEW:
Setup mode with slow lifting speed!
Easy to use via the second switch on the foot switch.
Advantages:

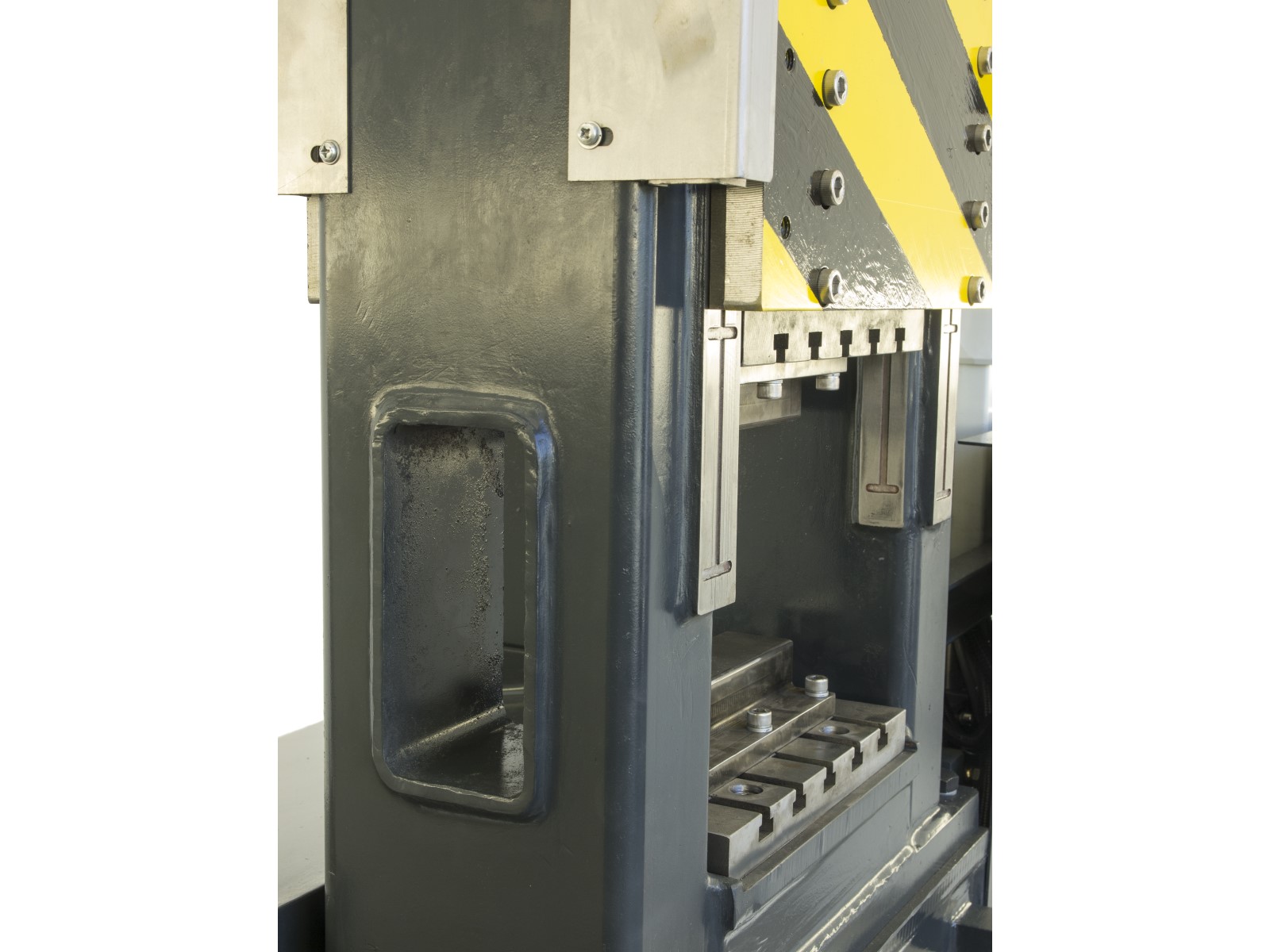

- stable steel welding construction of the press frame
- small required space

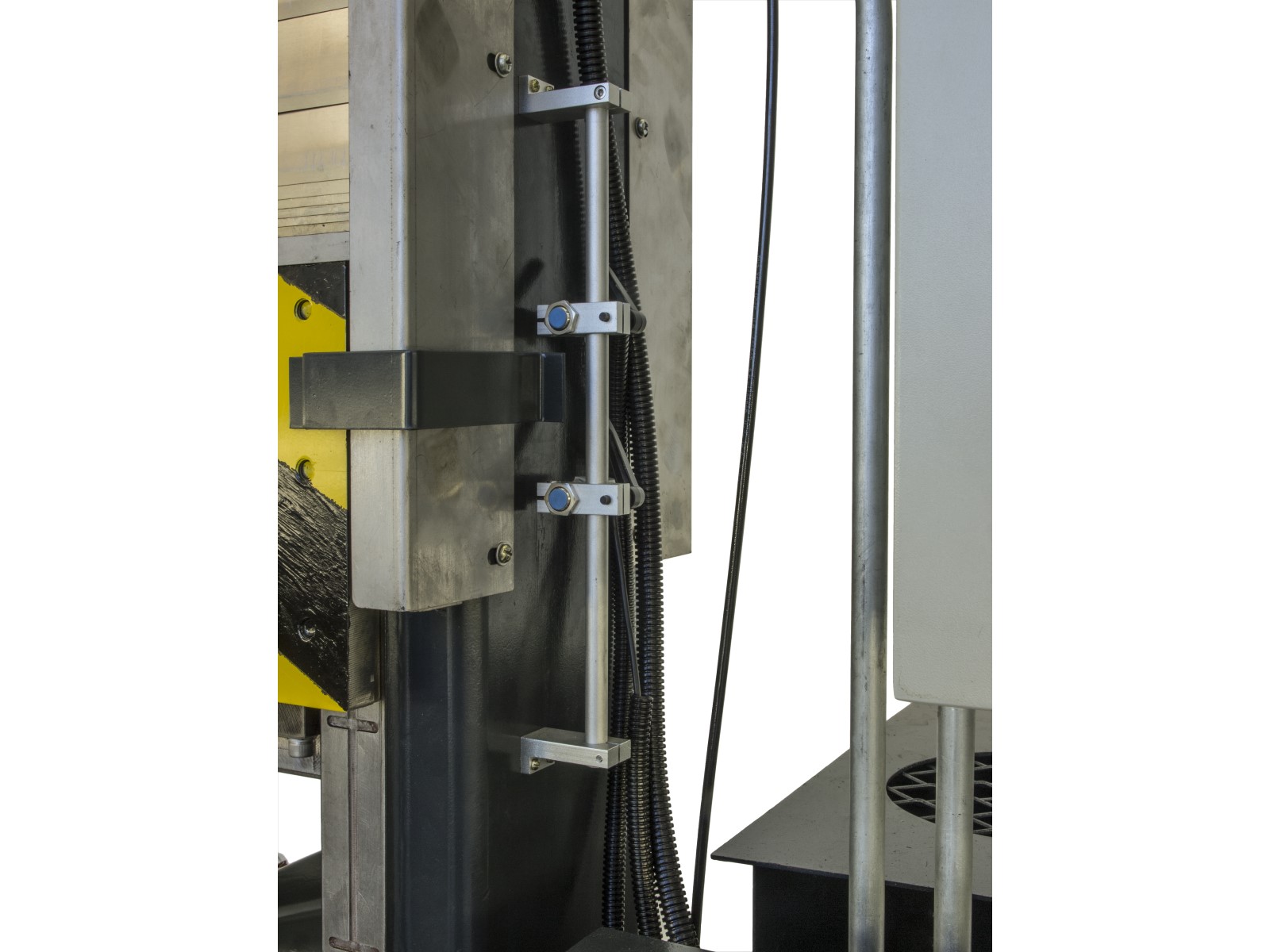

- free positioning end positions (with mm-scale for exact positioning)
- adjustable hydraulic pressure
- simple and exact control with foot pedal
- double-acting hydraulic cylinder
- high pressing speed
- large lift height
- significantly lower noise emission than power hammers
- quick and easy start up of the machine
- robust, durable and low ammount of maintenance
- flexible in use due to lateral insertion (80mm x 180mm)

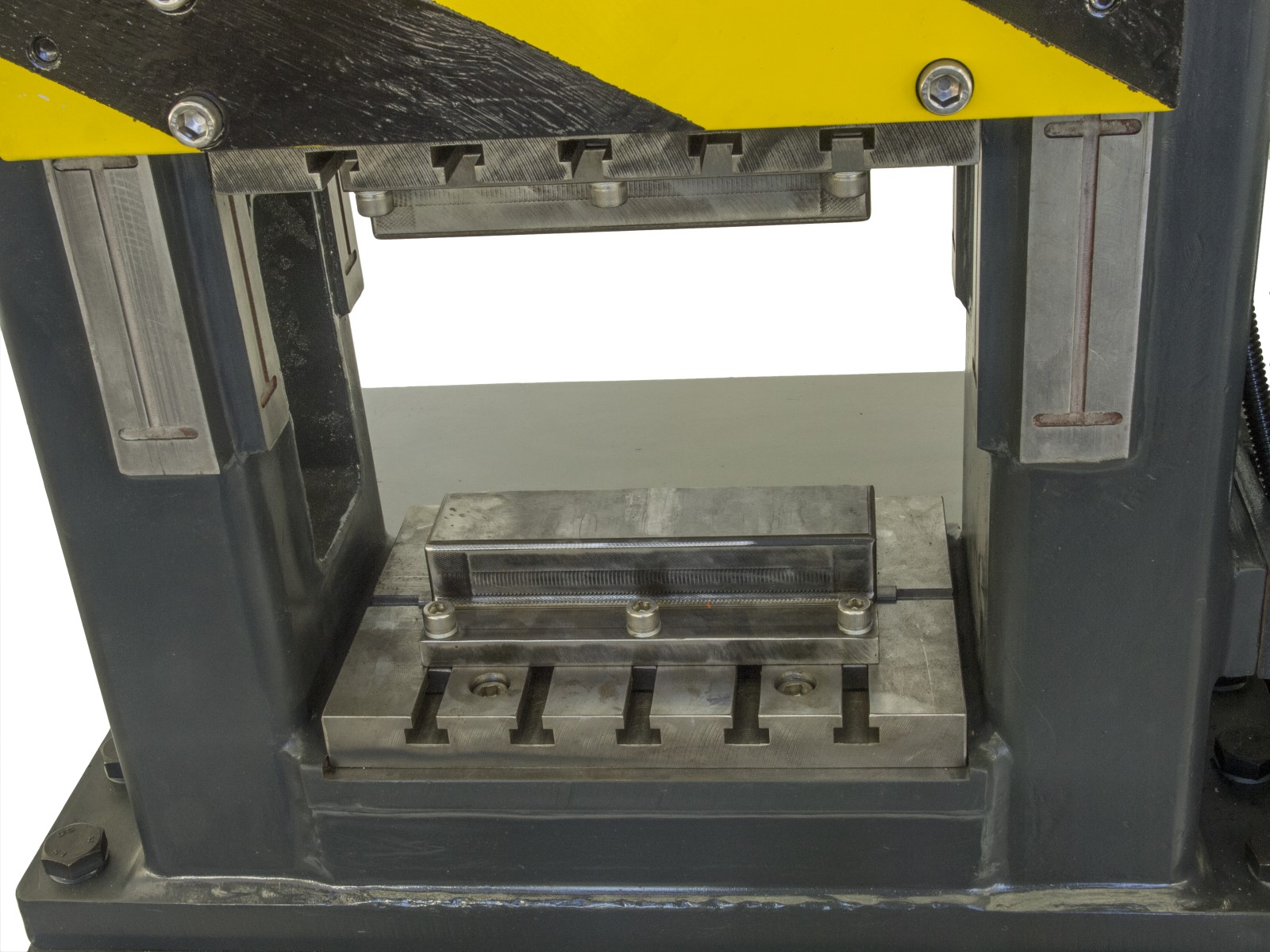

- easy and flexible die mounting with T-slots on the press table

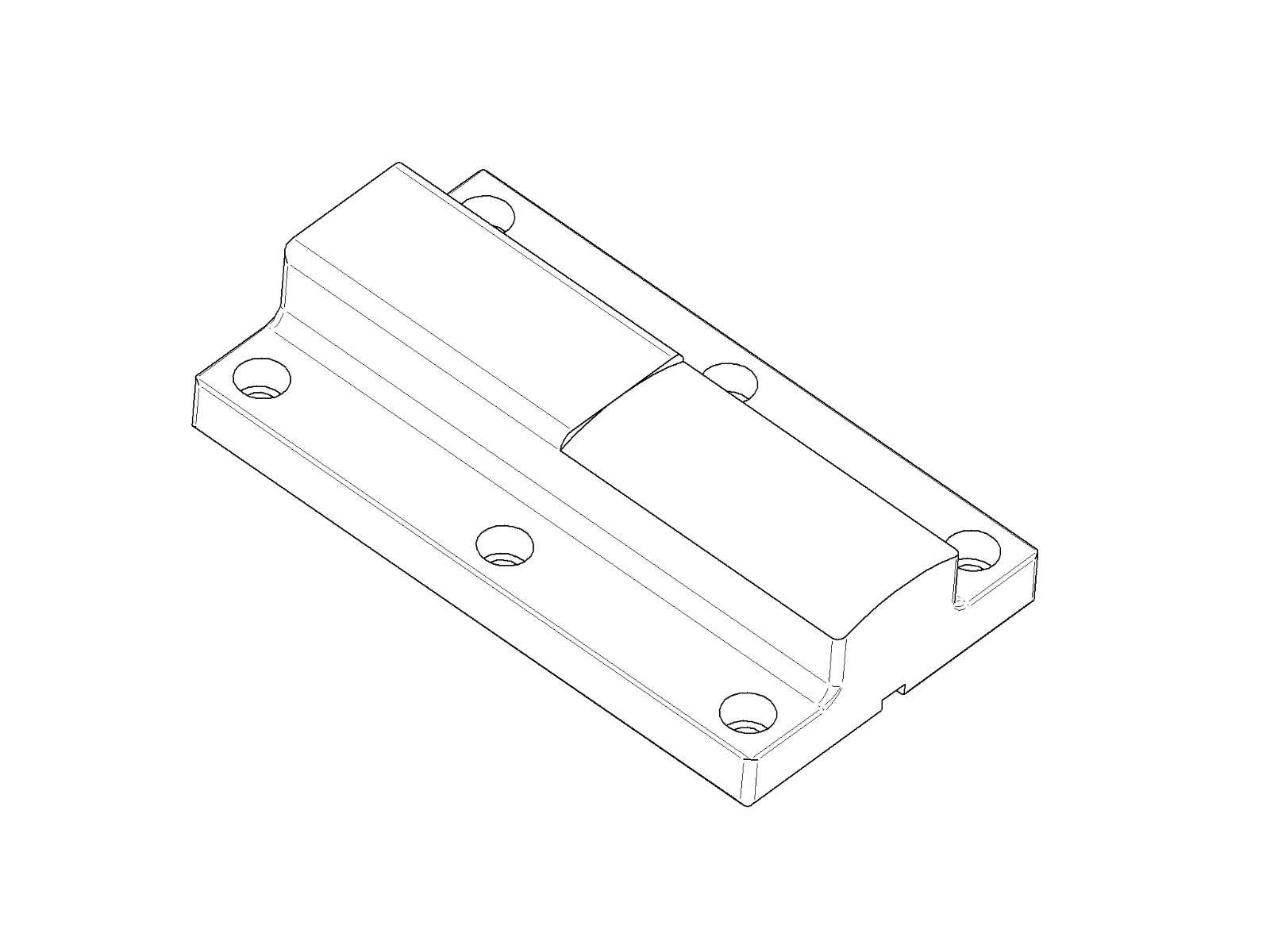

Accessories
