for hot-freeform-forging, 25 MPa (~ 25 t) press capacity, lift height 300 mm, lifting speed without load: down: 40 mm/s up: 60 mm/s 7 mm/s working speed, worktable 300 x 200 mm, motor power 4 kW, three-phase 3x400 V, total weight 880 kg (without oil), external dimension (LxWxH): 1200 mm x 750 mm x 2080 mm, basic equipment 1 pair flat dies (approx. 230x130x50 mm).   Serial number #N   Applications: damask free form forging punching, thorning,... flattening, upsetting,...   NEW: Setup mode with slow lifting speed! Easy to use via the second switch on the foot switch.   Advantages: stable steel welding construction of the press frame small required space free positioning end positions (with mm-scale for exact positioning) adjustable hydraulic pressure simple and exact control with foot pedal double-acting hydraulic cylinder high pressing speed large lift height significantly lower noise emission than power hammers quick and easy start up of the machine robust, durable and low ammount of maintenance flexible in use due to lateral insertion (80mm x 180mm) easy and flexible die mounting with T-slots on the press table

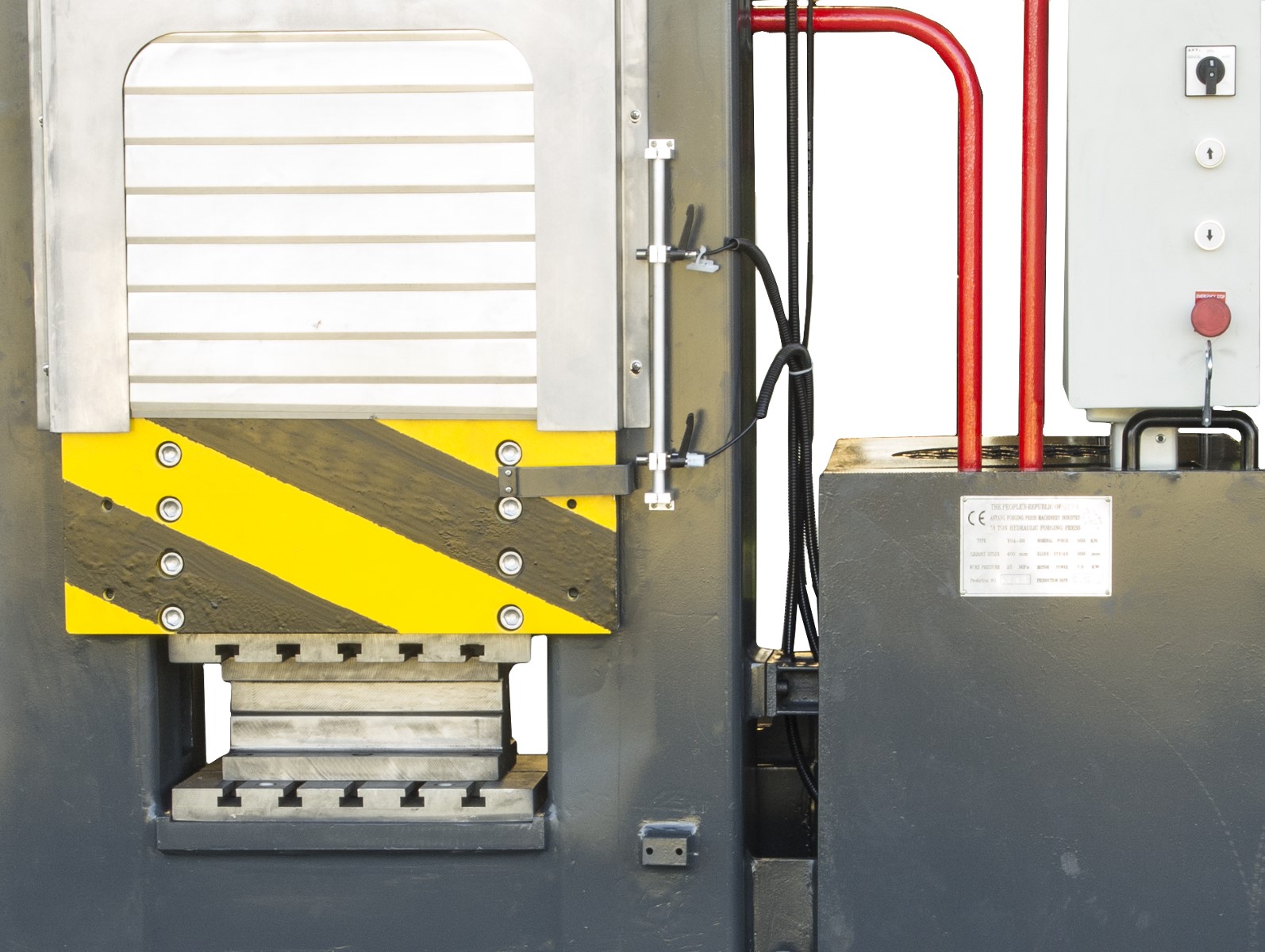

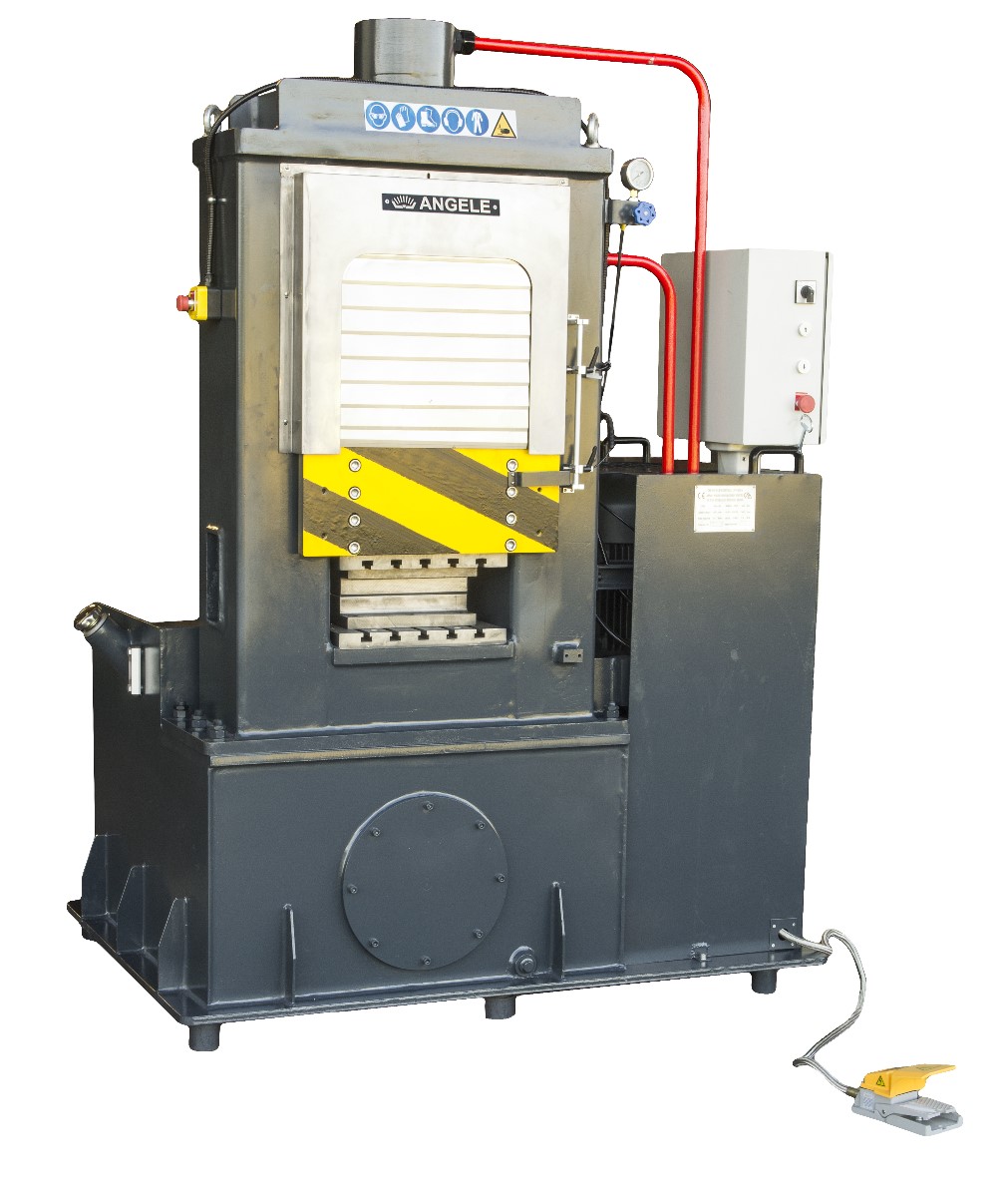

  for hot-freeform-forging, 50 MPa (~ 50 t) press capacity, lift height 300 mm, lifting speed without load: down: 50 mm/s, up: 55 mm/s 8 mm/s working speed, worktable 380 x 300 mm, motor power 7,5 kW, three-phase 3x400 V, total weight 1950 kg (without oil), external dimension (LxBxH): 1560 mm x 1110 mm x 2140 mm, basic equipment 1 pair flat dies   Serial number #N   Applications: damask free form forging punching, thorning,... flattening, upsetting,...   Advantages: stable steel welding construction of the press frame small required space free positioning end positions adjustable hydraulic pressure simple and exact control with foot pedal double-acting hydraulic cylinder high pressing speed large lift height significantly lower noise emission than power hammers quick and easy start up of the machine robust, durable and low ammount of maintenance flexible in use due to lateral insertion (80mm x 180mm) easy and flexible die mounting with T-slots on the press table
