Hydraulic forging press AN-Y04-50t
Hydraulic forging press AN-Y04-50t
for hot-freeform-forging,
50 MPa (~ 50 t) press capacity,
lift height 300 mm,
lifting speed without load:
down: 50 mm/s, up: 55 mm/s
8 mm/s working speed,
worktable 380 x 300 mm,
motor power 7,5 kW, three-phase 3x400 V,
total weight 1950 kg (without oil),
external dimension (LxBxH):
1560 mm x 1110 mm x 2140 mm,
basic equipment 1 pair flat dies
Serial number #N
Applications:
- damask
- free form forging
- punching, thorning,...
- flattening, upsetting,...
Advantages:
- stable steel welding construction of the press frame
- small required space
- free positioning end positions
- adjustable hydraulic pressure
- simple and exact control with foot pedal
- double-acting hydraulic cylinder
- high pressing speed
- large lift height
- significantly lower noise emission than power hammers
- quick and easy start up of the machine
- robust, durable and low ammount of maintenance
- flexible in use due to lateral insertion (80mm x 180mm)
- easy and flexible die mounting with T-slots on the press table
Accessories

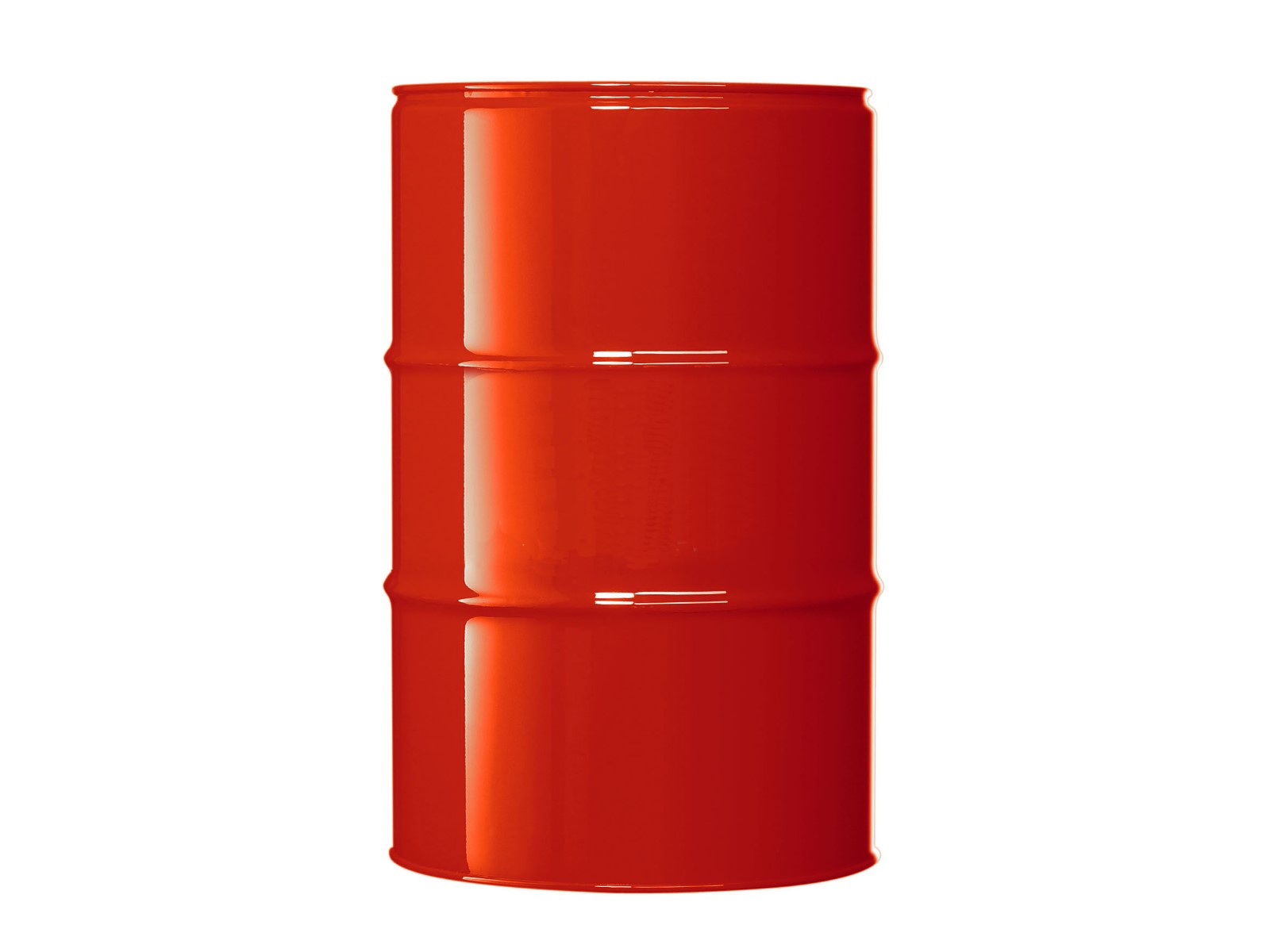

Content: 60 Liter (€0.06* / 1 Liter)
Available in 90 days, delivery time 2-5 days
