Blacksmith guillotine

This little helper enables various tasks without the need for an additional tool.

quick, easy tool chang
robust design
can be attached to the anvil or workbench
flexible handling

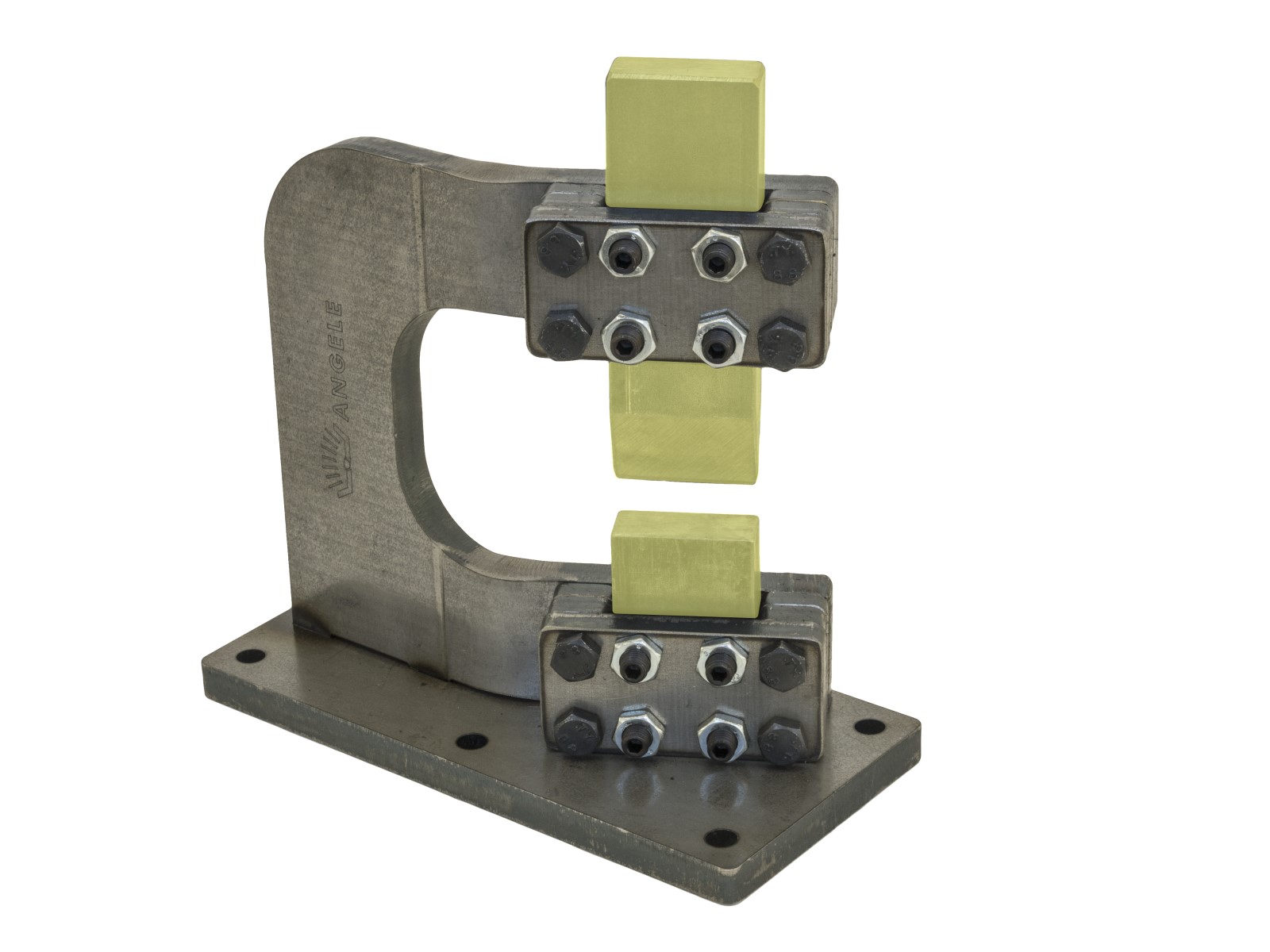

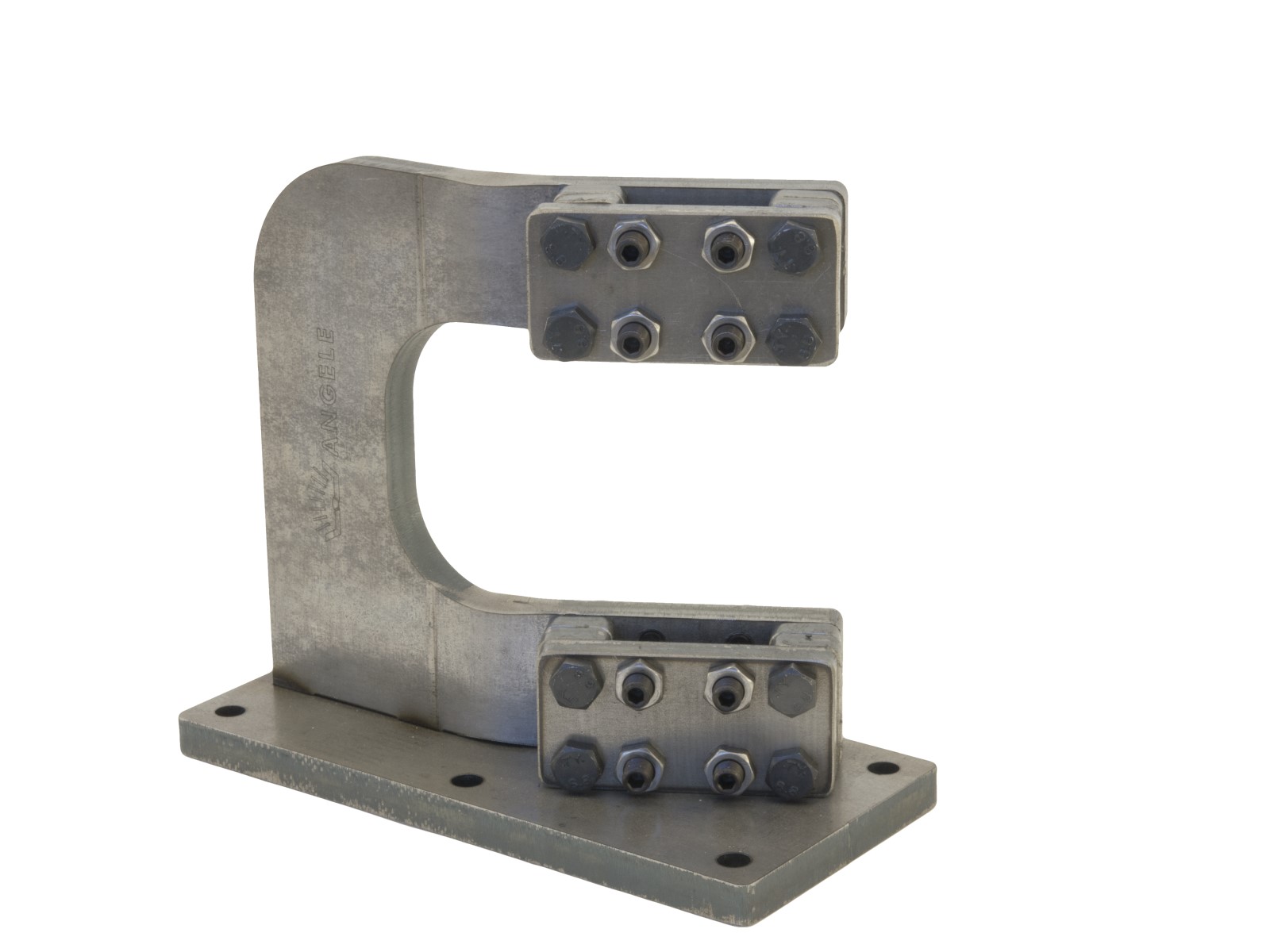

Blacksmith Guillotine

00561100

Blacksmith Guillotine making work easier, flexible handling due to C-frame design. Suitable for various tools (ideal for 20x50 mm), flexible and fast adjustment of the tools. Opening (height) C-frame 100 mm, Baseplate 120x250x15 mm This helper allows various jobs if you are working alone. Finishing, settling, punching and much more ... fast and easy tool change suitable for different tool dimensions minimum tool width 39 mm / maximum tool width 57 mm With square hole for the anvil or mounting through holes in the workbench Flexibel handling due to the design The forge guillotine is supplied without tools and square for the anvil. These are available separately as accessories.

in stock

€188.00*

pcs

Universal Shank 25 mm for Anvil

00561110

Universal Shank 25 mm for Anvil for fixing the guillotine, riveting plate or other tools in the square hole of the anvil, Square 25 x 25 mm, length approx. 60 mm, incl. M10 cylinder head screw

in stock

€16.01*

pcs

Universal Shank 30 mm for Anvil

00561115

Universal Shank 30 mm for Anvil for fixing the guillotine, riveting plate or other tools in the square hole of the anvil, Square 30 x 30 mm, length approx. 60 mm, incl. M10 cylinder head screw

in stock

€16.01*

pcs

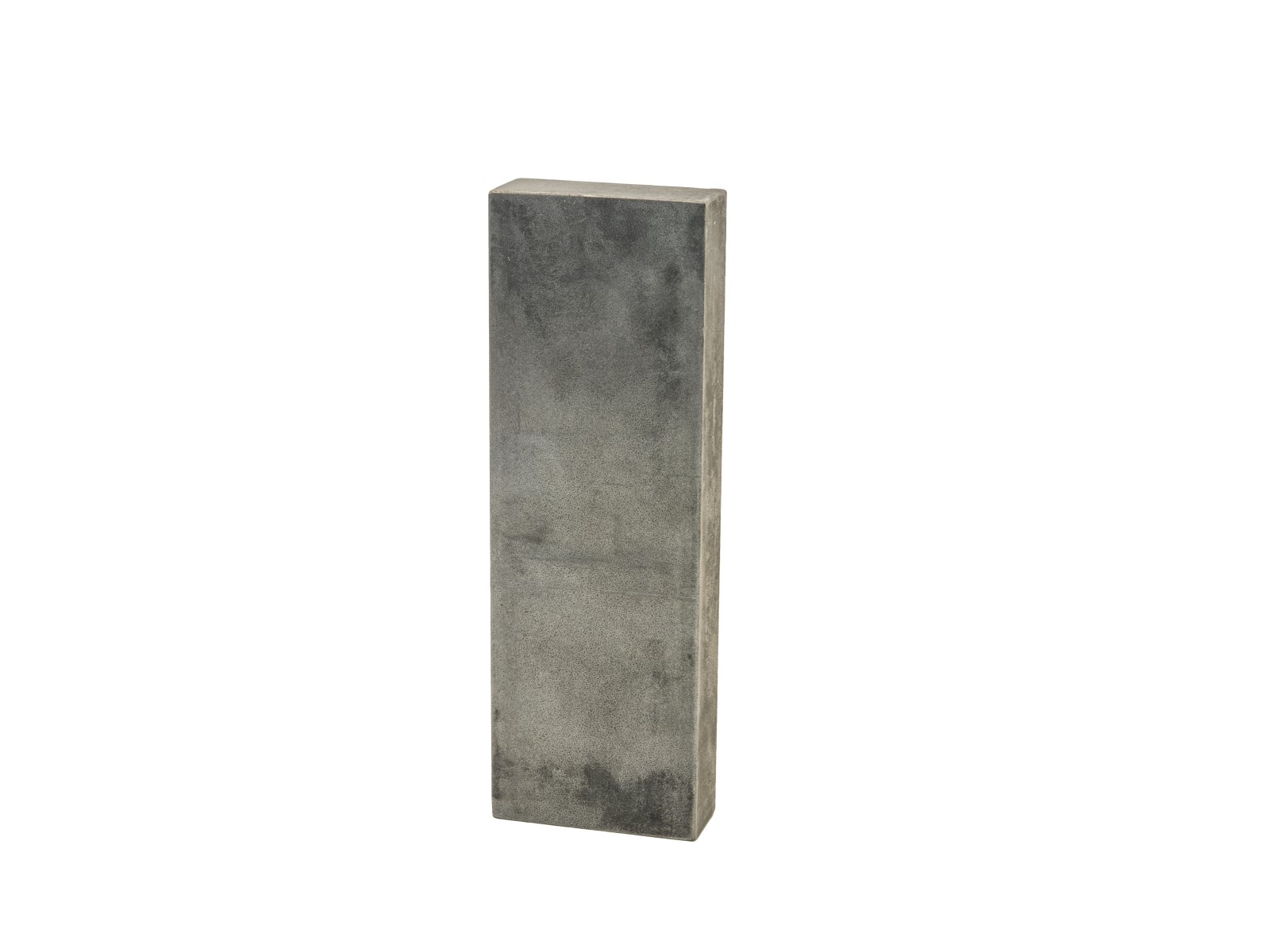

Blank-Die (Top) for Guillotine

00561151

Blank-Die (Top) for Guillotine made of C 45, untempered 50x20x150 mm This blank die can be used to make your own tools and dies for the blacksmith guillotine. C45 is easy to forge and you could harden it in water or oil. For further information click the download tab.

in stock

€21.00*

pcs

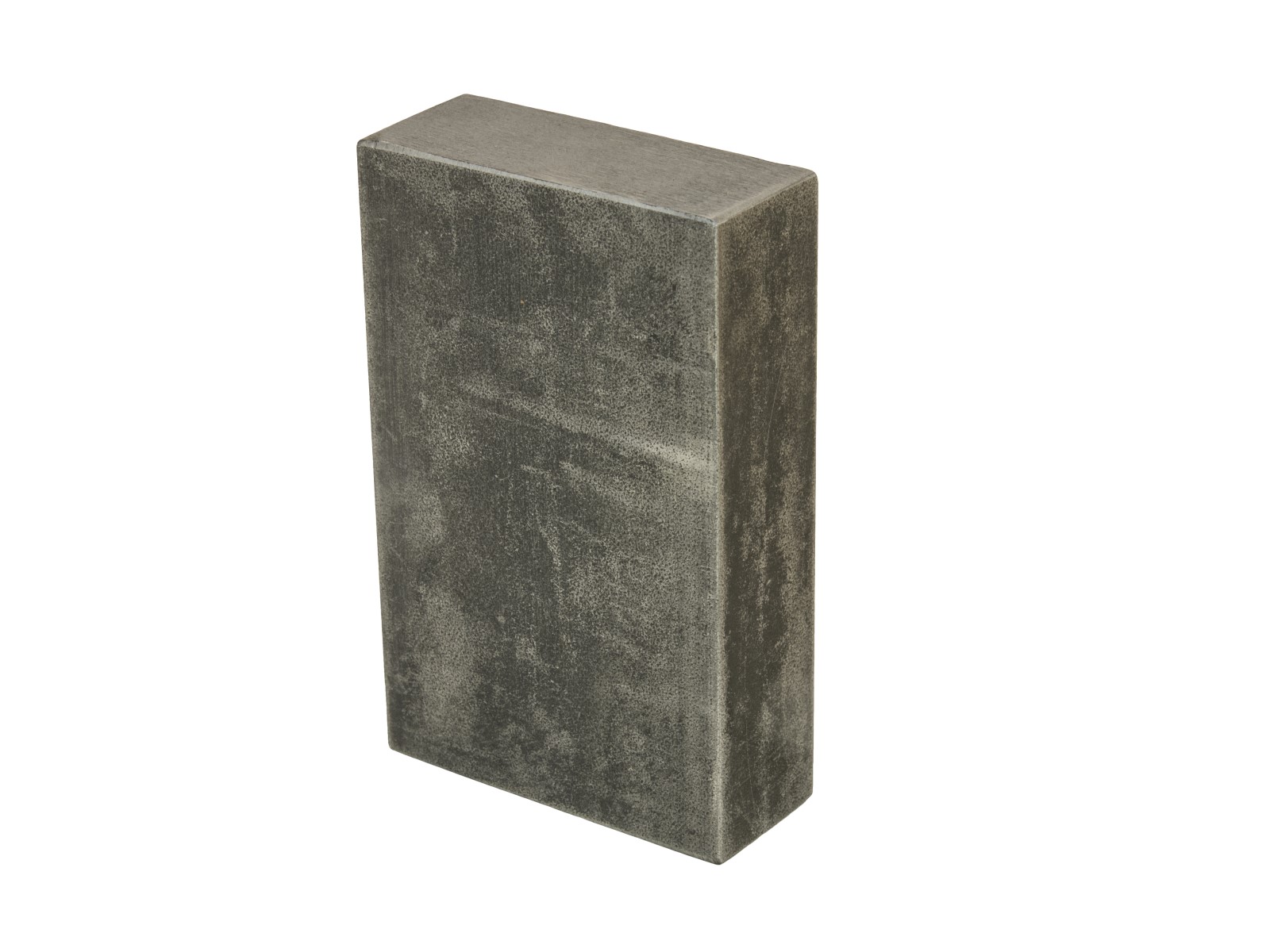

Blank-Die (Bottom) for Guillotine

00561152

Blank-Die (Bottom) for Guillotine made of C 45, untempered 50x20x80 mm This blank die can be used to make your own tools and dies for the blacksmith guillotine. C45 is easy to forge and you could harden it in water or oil. For further information click the download tab.

in stock

€13.99*

pcs

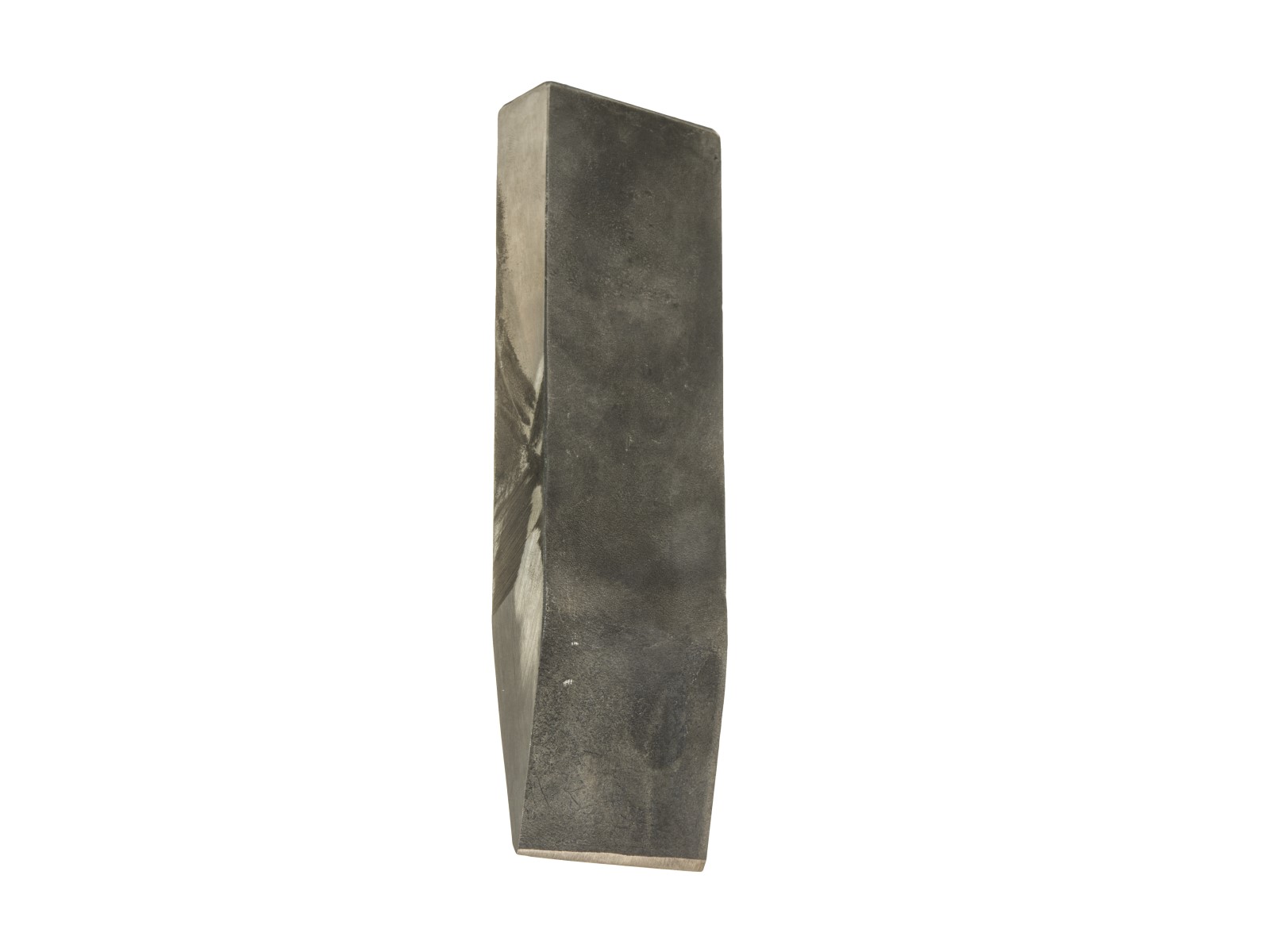

Hardy-Die (Top) for Guillotine

00561153

Hardy-Die (Top) for Guillotine forged of C 45, hardened 50x20x170 mm The die is hardened on the cutting edge and soft on the other side.

in stock

€57.00*

pcs

Hardy-Die (Bottom) for Guillotine

00561154

Hardy-Die (Bottom) for Guillotine forged of C 45, hardened 50x20x100 mm The die is hardened on the cutting edge and soft on the other side.

in stock

€54.00*

pcs

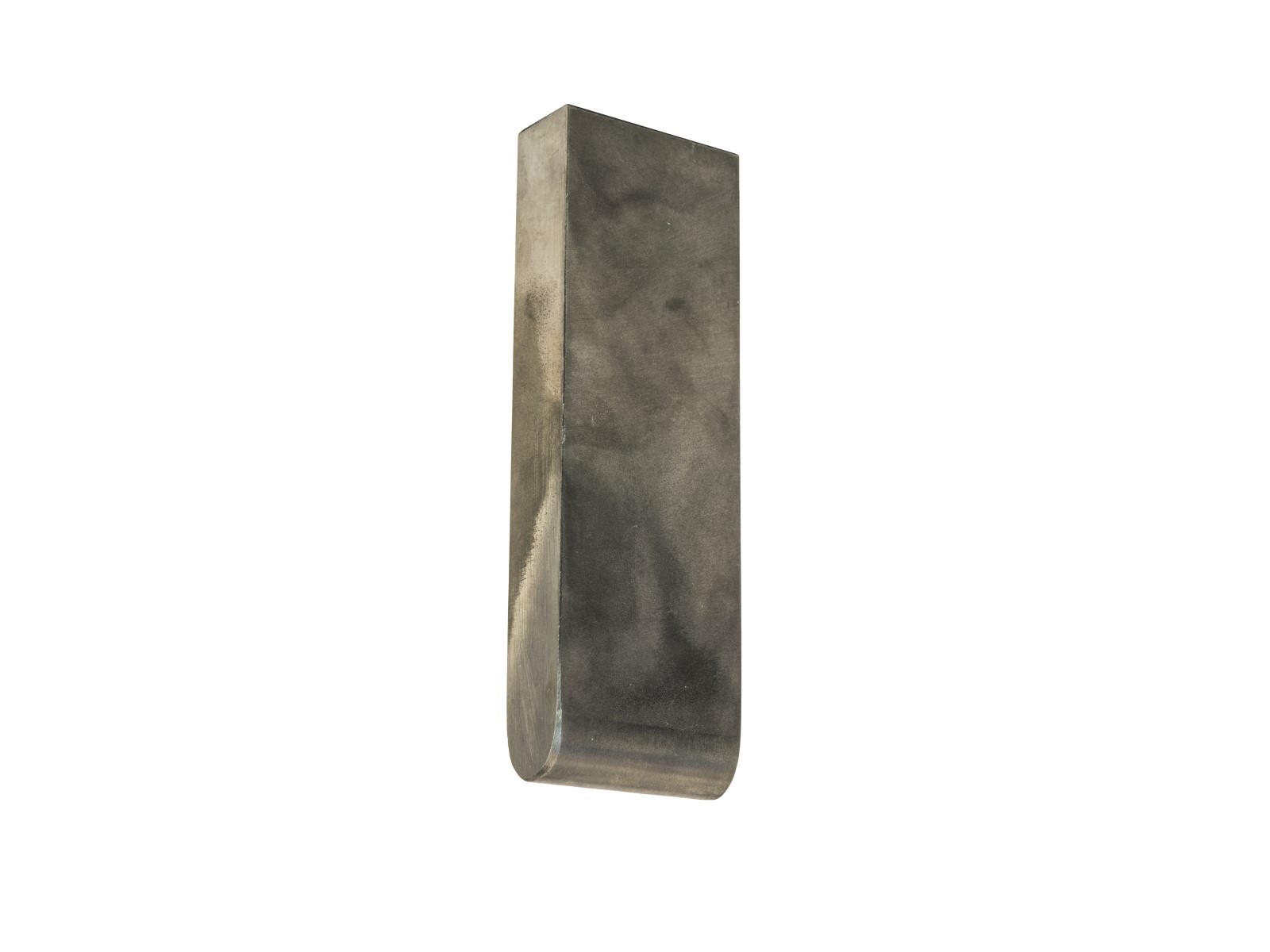

Round-Die (Top) for Guillotine

00561155

Round-Die (Top) for Guillotine forged of C 45, hardened radius ca. 10 mm, 50x20x150 mm The die is hardened on the functional surface and soft on the other side.

in stock

€55.00*

pcs

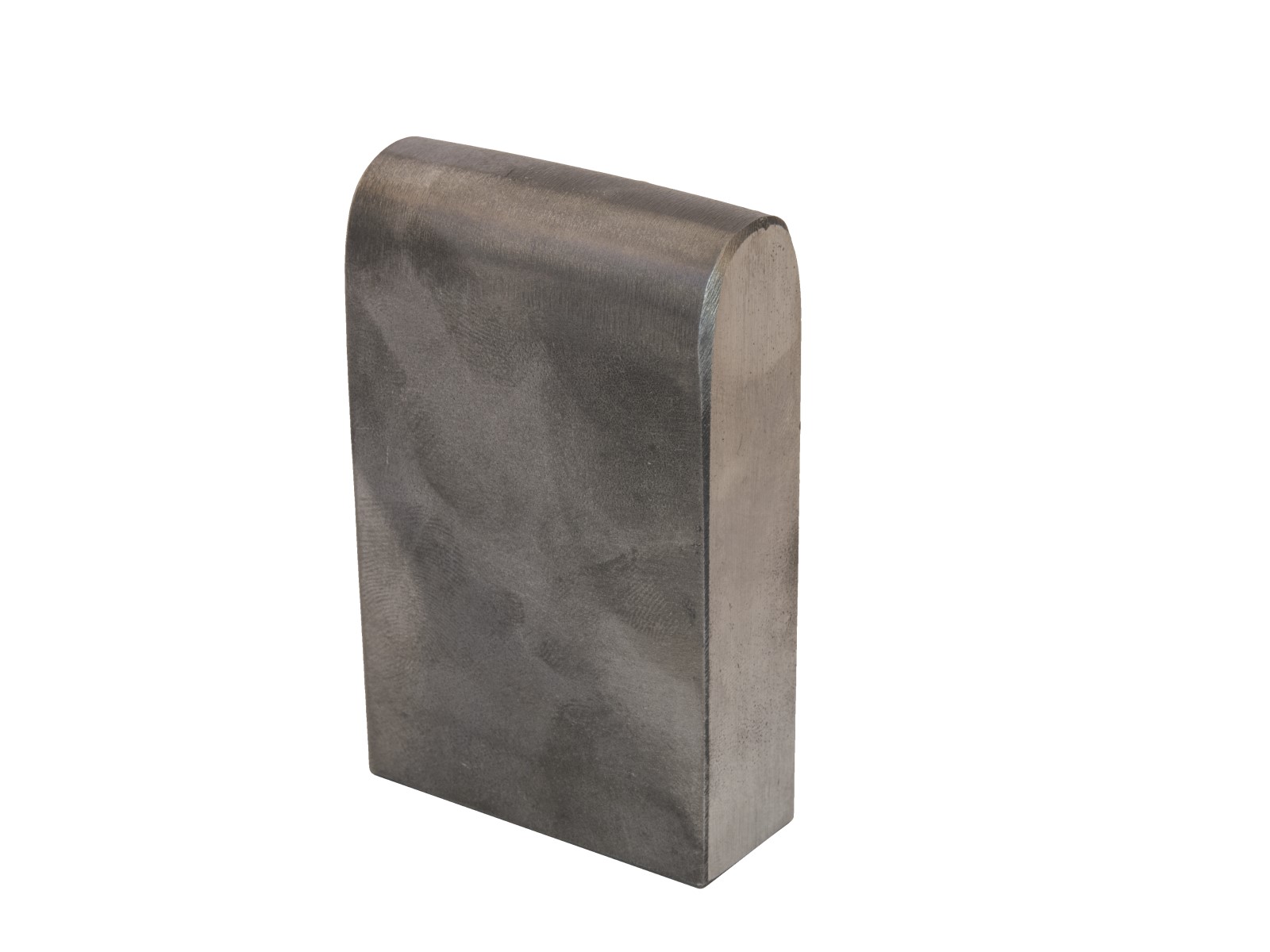

Round-Die (Bottom) for Guillotine

00561156

Round-Die (Bottom) for Guillotine forged of C 45, hardened radius ca. 10 mm, 50x20x80 mm The die is hardened on the functional surface and soft on the other side.

in stock

€50.00*
