To secure the dies against slippage.

  Consisting of: slider, pin, spring   Only required for older AN pneumatic hammer dies with plunge pistons. For upper die securing.   All AN dies are supplied without T-nut, spring, or latch as standard.

  Special V-belt for air forge hammer #Varinfo X pieces are required for the #Varinfo   The very robust and reinforced design is suitable for use in the forge or workshop. The V-belts are used to transmit power to the motor and ensure that the machine runs optimally. The V-belt tension and the condition of the V-belts should be checked regularly. A V-belt change is necessary if the V-belt is porous or cracked. A squeaking noise can also be due to a defective V-belt.

  2x holes for countersunk screw, with oil grooves, 2 pieces are required for a revision

 #Varinfo set of two pieces, diameter ø   mm

  M27x1,5

  M24x1,5

  suitable for all AN-L air hammer models, 45° angled, with band clamp, prevents the ingress of dirt and is rewashable.

  for spring hammer type Meitinger Rationell or Record 60x60 mm, height approx. 150 mm, high quality tool steel, properly hardened

  type Meitinger Rationell or Record made from high quality tool steel, properly hardened

  for spring hammer type Meitinger Rationell or Record, height approx. 150 mm, 60 x 60 mm, high quality tool steel, properly hardened

  type Meitinger Rationell or Record made from high quality tool steel, properly hardened

  type Meitinger Rationell or Record steel C65, hardened, drawing die and flat die.

  for spring hammer type Meitinger Rationell or Record, made from high quality tool steel, properly hardened

  type Meitinger Rationell or Record steel C65, hardened, flat die and fullering die (R=75 mm)

  for spring hammer type Meitinger Rationell or Record, made from high quality tool steel, properly hardened, flat die and fullering die (R=75 mm)

  for spring hammer type Meitinger Rationell or Record, height approx. 150 mm, width 60 mm, high quality tool steel, properly hardened

  for spring hammer type Meitinger Rationell or Record, height approx. 150 mm, width 120 mm, high quality tool steel, properly hardened

  type Rationell or Record two pieces needed

  type Rationell or Record one piece needed

  Length 1000 mm   While felt or leather seals were used in the past, modern materials are the standard today. Our guide rubbers are made from a highly advanced rubber compound specifically engineered to meet the demands of air hammers.   Key benefits at a glance: Excellent wear resistance: Withstands constant mechanical stress during continuous operation No hardening: The material remains permanently elastic, ensuring a consistently effective seal Oil-resistant: Ideal for contact with the machine and lubricating oils used in air hammers   Installation tip for an optimal fit: As guide grooves vary in depth and width depending on the manufacturer and machine model, you may need to customize the guide rubber during installation.   However, the material is easy to work with: You can trim the rubber to perfectly fit the specific groove using a sharp knife (e.g., a utility knife) or by simply sanding it down. This ensures an ideal fit for your machine.

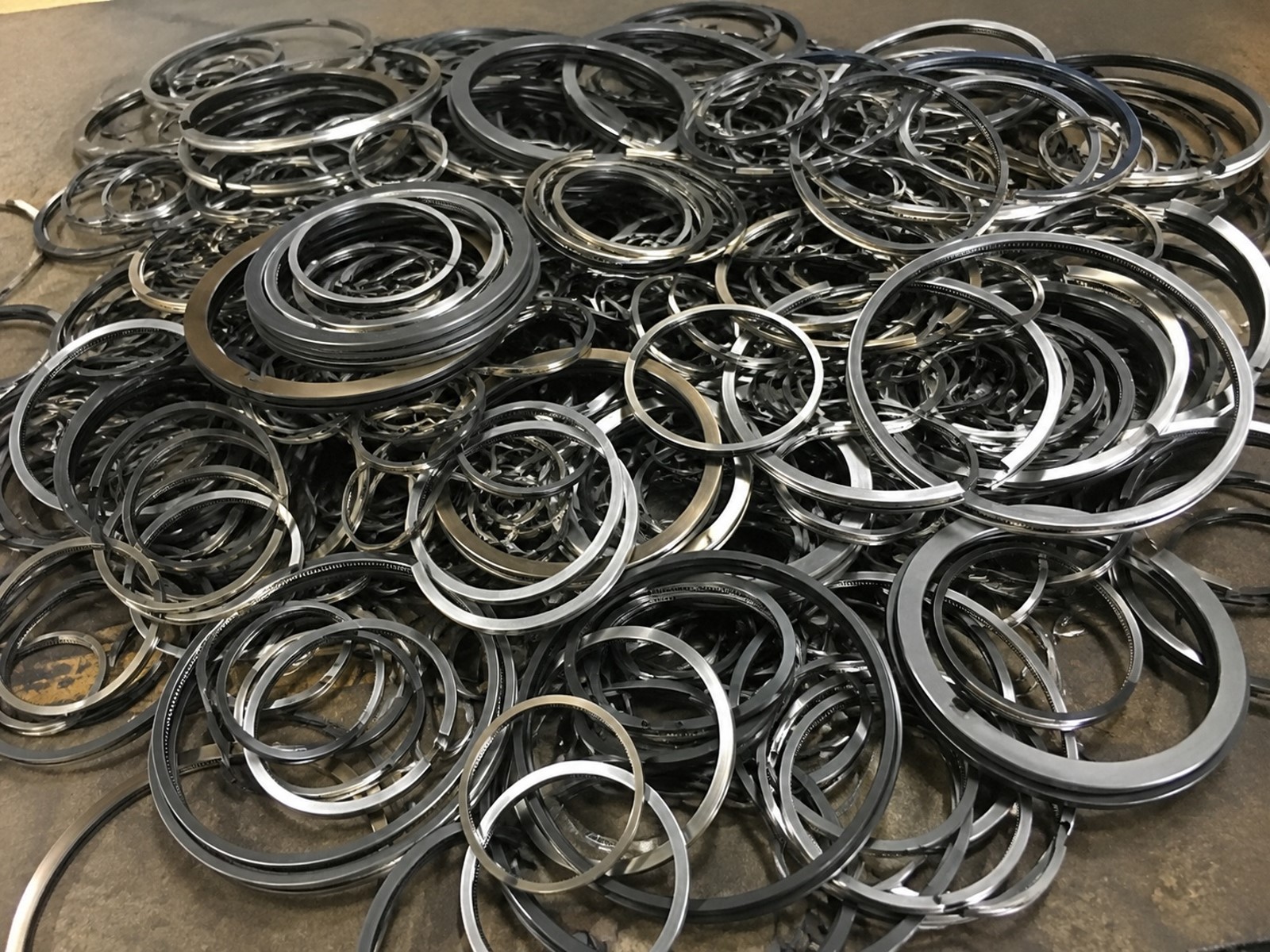

Piston ring – Power hammer Custom size, made to customer specifications, starting from a quantity of 1, express production available   We offer high-quality piston rings in special sizes and custom dimensions—manufactured precisely according to your specifications and drawings.   These are suitable for a variety of machinery; we can specifically manufacture pistons for older types of air hammers.   ⦁ Customized flexibility: Production of specific diameters, wall thicknesses, and axial heights ⦁ Optimal sealing performance: Perfect geometry for minimal gas or oil leakage and maximum efficiency ⦁ Premium quality: High-grade materials ensure a long service life—even under the harshest operating conditions ⦁ Versatile joint types: Available in various joint configurations (e.g., straight cut, angle cut, or step cut) to suit your specific application.   Ordering information: As these are custom-sized products, we require exact dimensions (cylinder diameter, groove width, groove depth) or a technical drawing to process your inquiry. Simply contact us directly—we would be happy to provide a personalized quote! Custom-made items are excluded from exchange or return.

  for setting up air hammer or spring hammer, 60 Shore, outer diameter 47 mm, inner diameter ~ 17 mm   These buffer bearings are required for the vibration-free attachment of air forges or spring hammers to the floor/foundation. They ensure vibration-free fixation of the machine.
