propane gas forge oven type P-302
propane gas forge oven type P-302
transportable gas forge oven with 2 atmospheric burners.
With piezo-starter and thermal security control valve.
Frontdoor and backdoor adjustable in height.
Interior dimensions 200 x 190 mm, depth 500 mm.
Shipment:
Complete with regulator and manometer, gas hose 2 m with hose breaking security,
Flame non-return valve, ready for connection to 11 kg gas bottles. (gas consumption approx. 2x 0.8 kg/h)
Characteristics:
- Forge oven with an atmospheric burner for a wide range of forging work
- Suitable for one-off production, but predestined for series production
- Stable housing made of stainless steel
- Front and rear doors made of stainless steel, insulated and adjustable in height

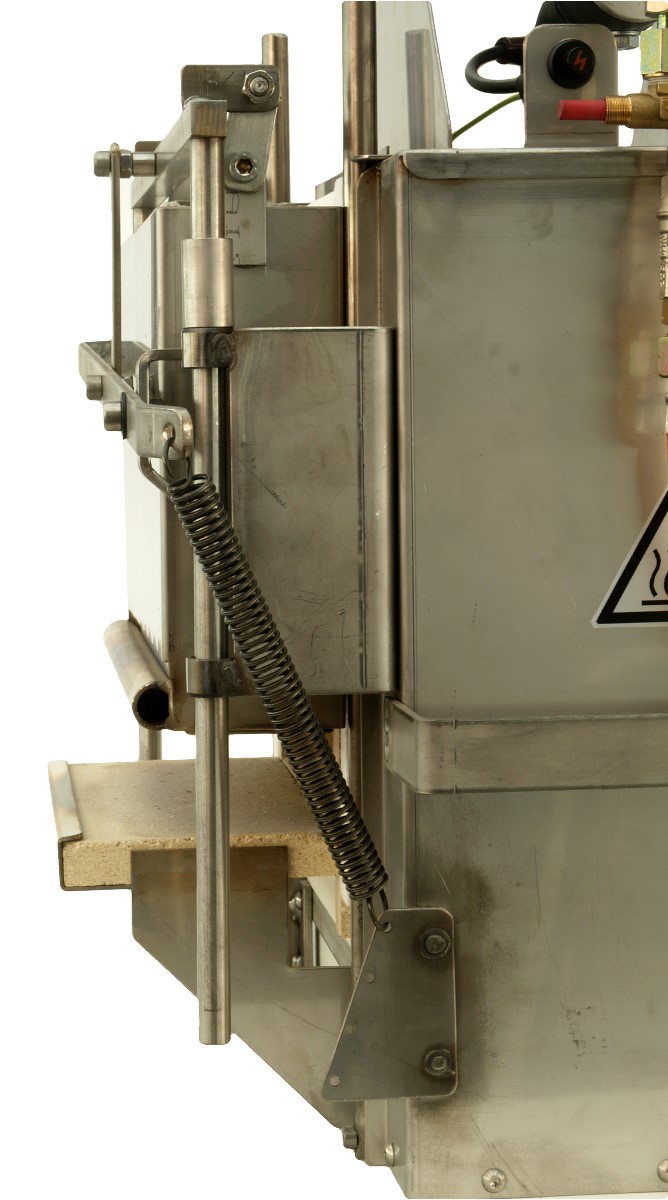

- Both doors can be adjusted in height as required. This allows longer workpieces to be pushed through

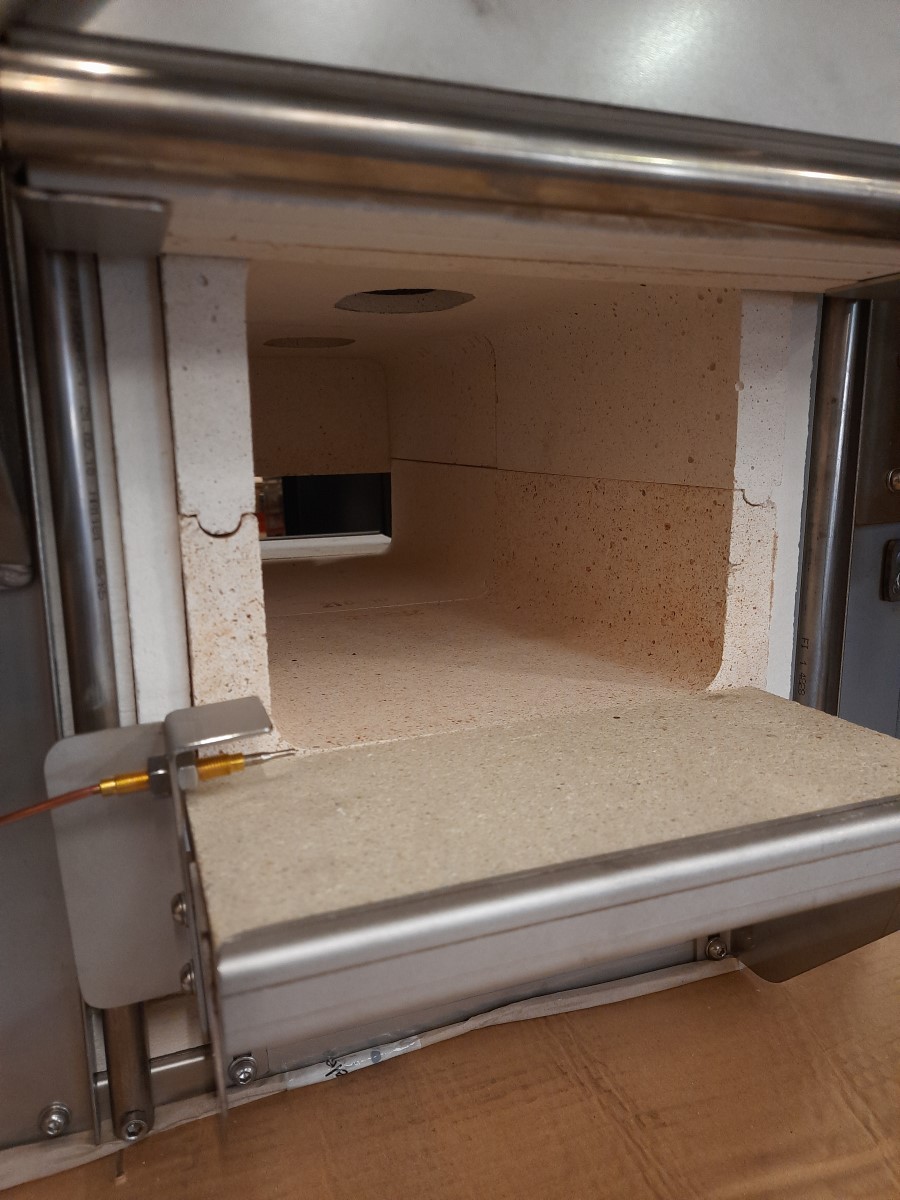

- Combustion chamber made of refractory concrete (up to 1650 ° C) temperature-resistant
- Multi-layer insulation structure with biosoluble insulation
- Specially designed, powerful atmospheric burner - economical in energy consumption. Adjustable air and gas volume. (Gas consumption: approx. 0.8 kg / h per burner)
- Easy starting with a piezo igniter
- Monitoring with thermal safety valve
- Clear opening of the combustion chamber: width: 210 mm, height: 190 mm
Shipment complete with regulator and manometer, gas hose 2 m with hose breaking security,
Flame non-return valve, ready for connection to gas bottles.
Information on product safety:
- Use only for users familiar with the product.
- Only for the intended purpose.
- Improper use can lead to damage and injury. Please also note the safety instructions included with the product.
Importer/manufacturer/distributor (unless another manufacturer is explicitly mentioned for the article):
ANGELE GmbH | Ringstrasse 25 | 88416 Ochsenhausen | Germany
