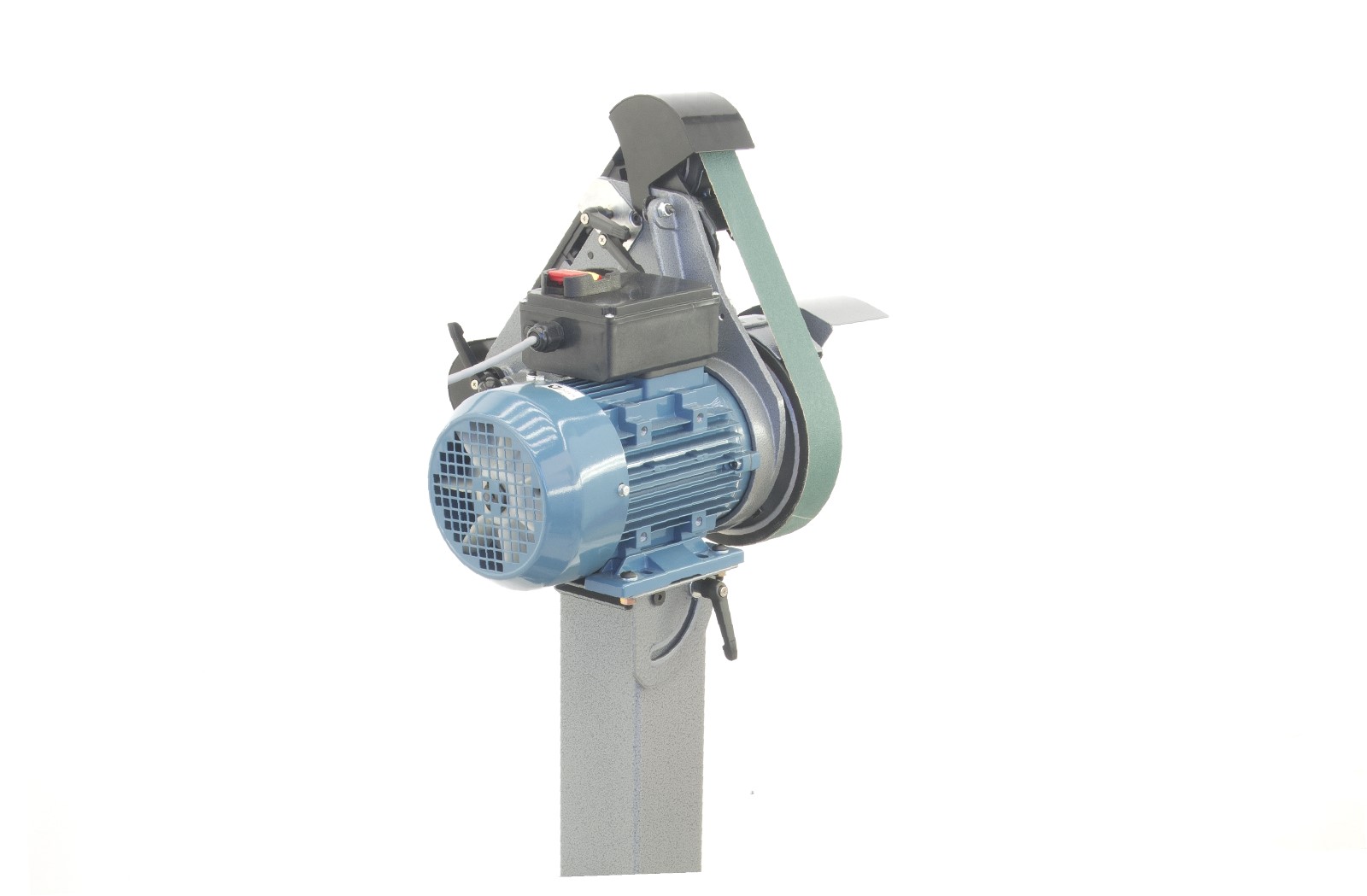

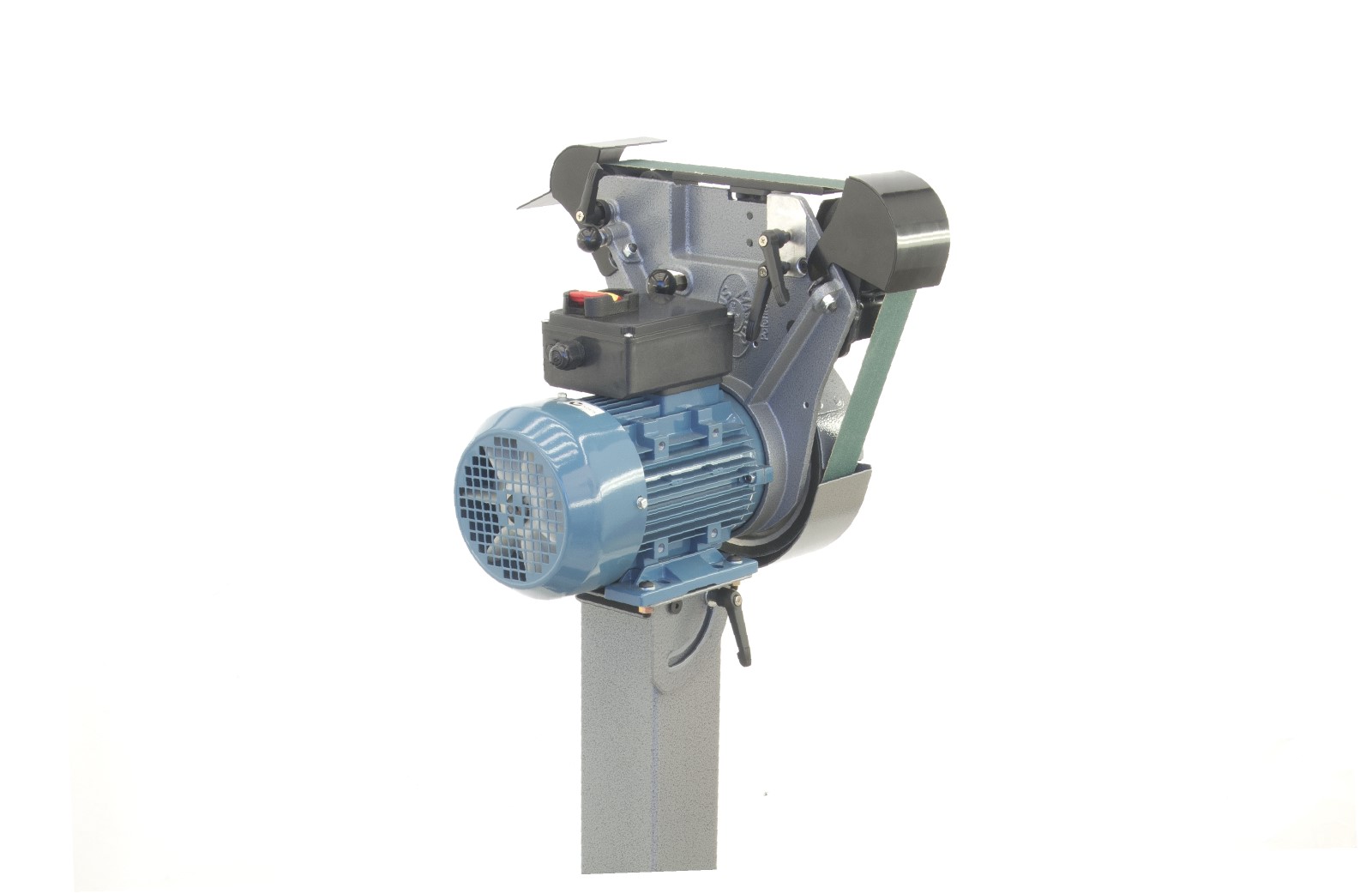

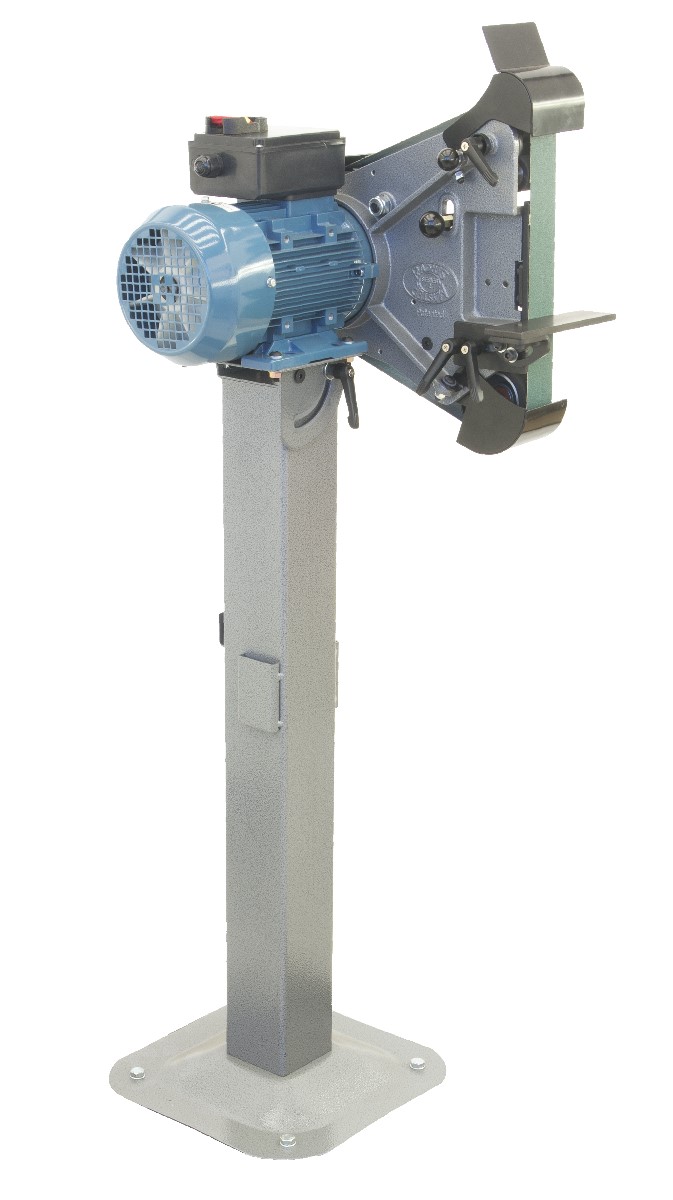

Belt grinder RadiusMaster RM 48 (230 V)
Belt grinder RadiusMaster RM 48 (230 V)
single phase 230 V, 50 Hz, 1,5 kW,
with five different rolls, diameters (203, 90, 50, 38, 25 mm),
quick and easy adjustable in horizontal / vertical direction,
multi-station belt grinder for belts 1220 x 50 mm (2x48"),
Belt speed approx. 62 ft/s equals 18 m/s
Mounting foot (350 x 350 mm) for attachment on the floor included,
incl. support table "horizontal" and standard support table.
Properties:
- powerful drive
- quick tool-free roll change
- tiltable
- fast sanding belt change (1220 x 50 mm)
- Tape rolls: 203, 90, 50, 38, 25 mm

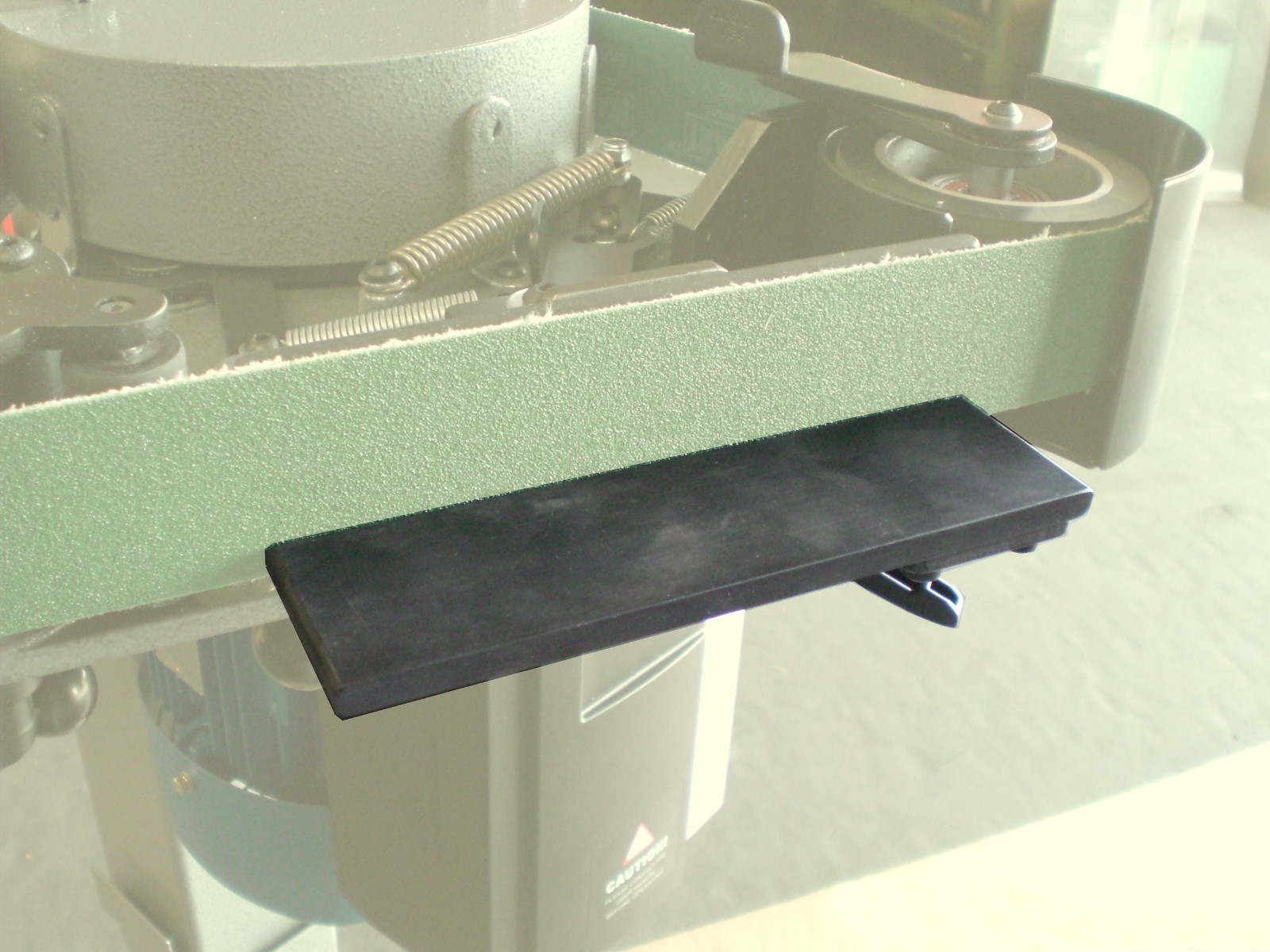

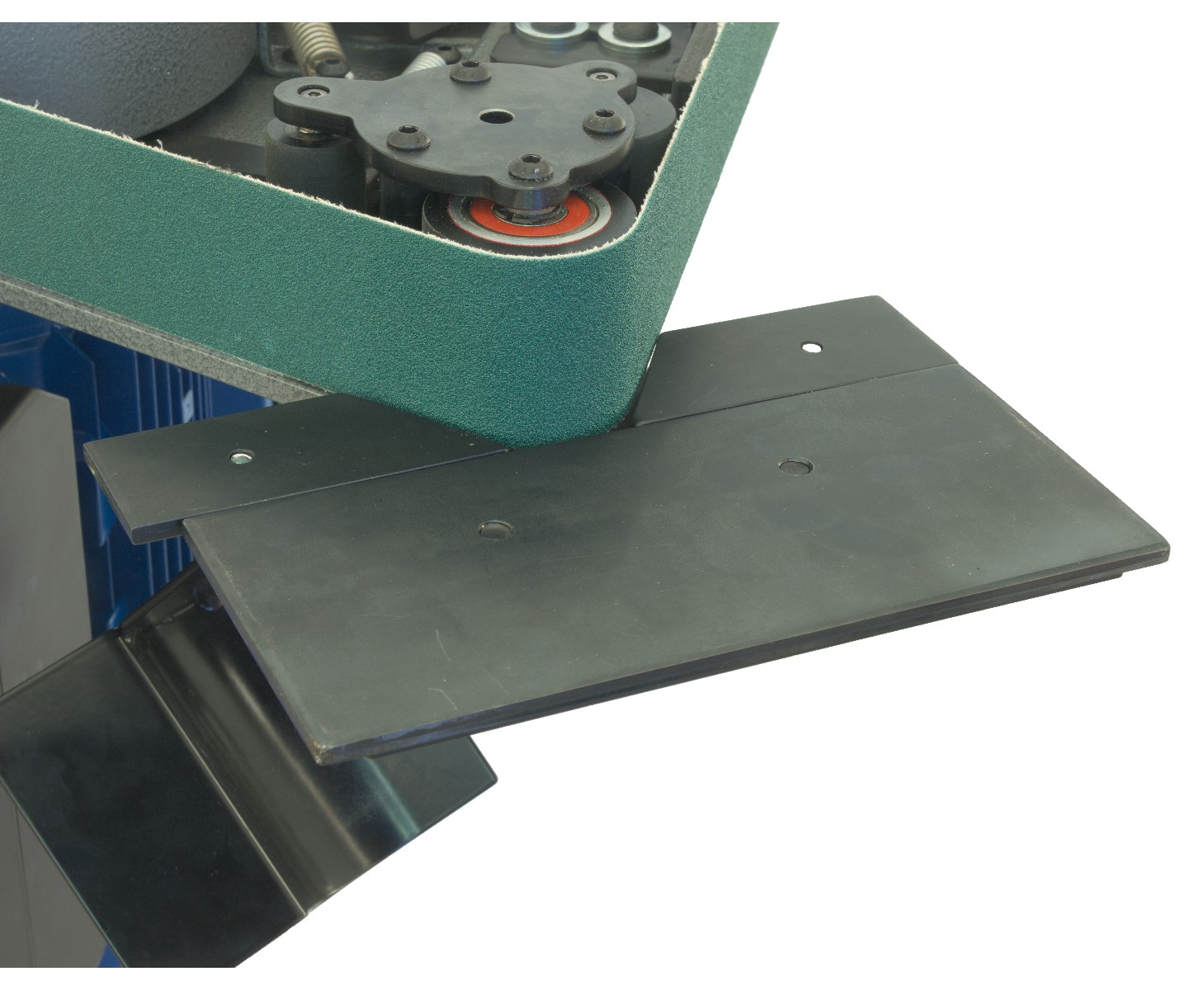

- incl. support table "horizontal"
- incl. support table with "recess" adjustable
With the RadiusMaster, we offer a universal belt grinder that was developed by a practitioner for practitioners and is characterized by exceptional versatility.
The machine produced in Australia has proven itself for decades - and the details are constantly being improved and optimized.
The Radius Master provides a multitude of uses selected by using an easy to operate index knob. Instantly available is a choice of contact wheel grinding, flat and edge grinding and slack belt grinding.
The five contact wheels are brought into position by simply actuating an index knob and rotating in seconds to the desired position.
The wheel diameters are 25mm, 38mm, 50mm, 89mm and 203mm. All guards swivel out of position for easy access.
The various radii can be easily and quickly brought into the optimal working position with a quick clamp.

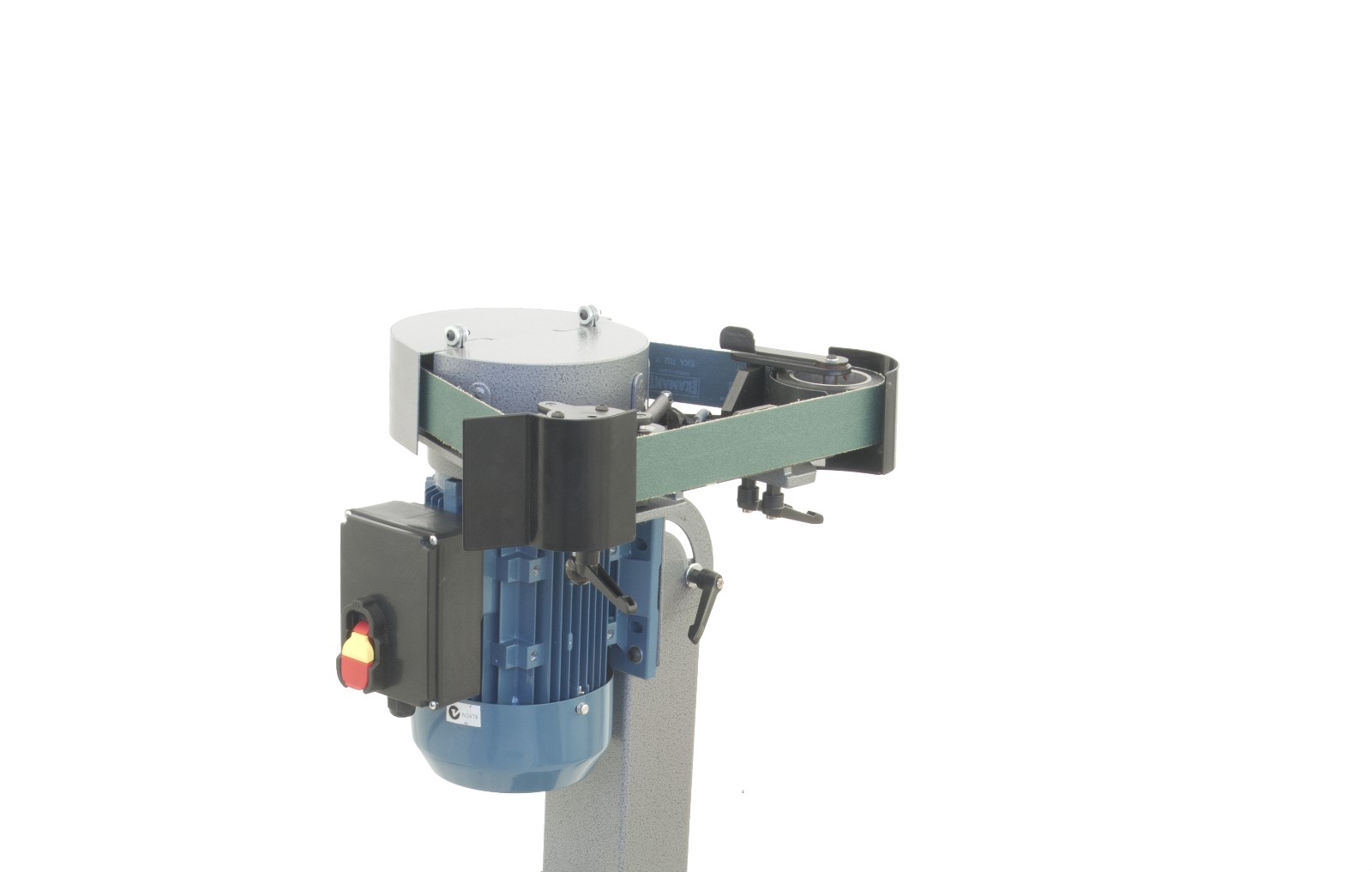

In addition, the machine can be adjusted in several stages between horizontal and vertical alignment in just a few simple steps.
You can find more videos (in English) on the versatile uses of the Radius Master on the manufacturer's website: https://www.radiusmaster.com.au

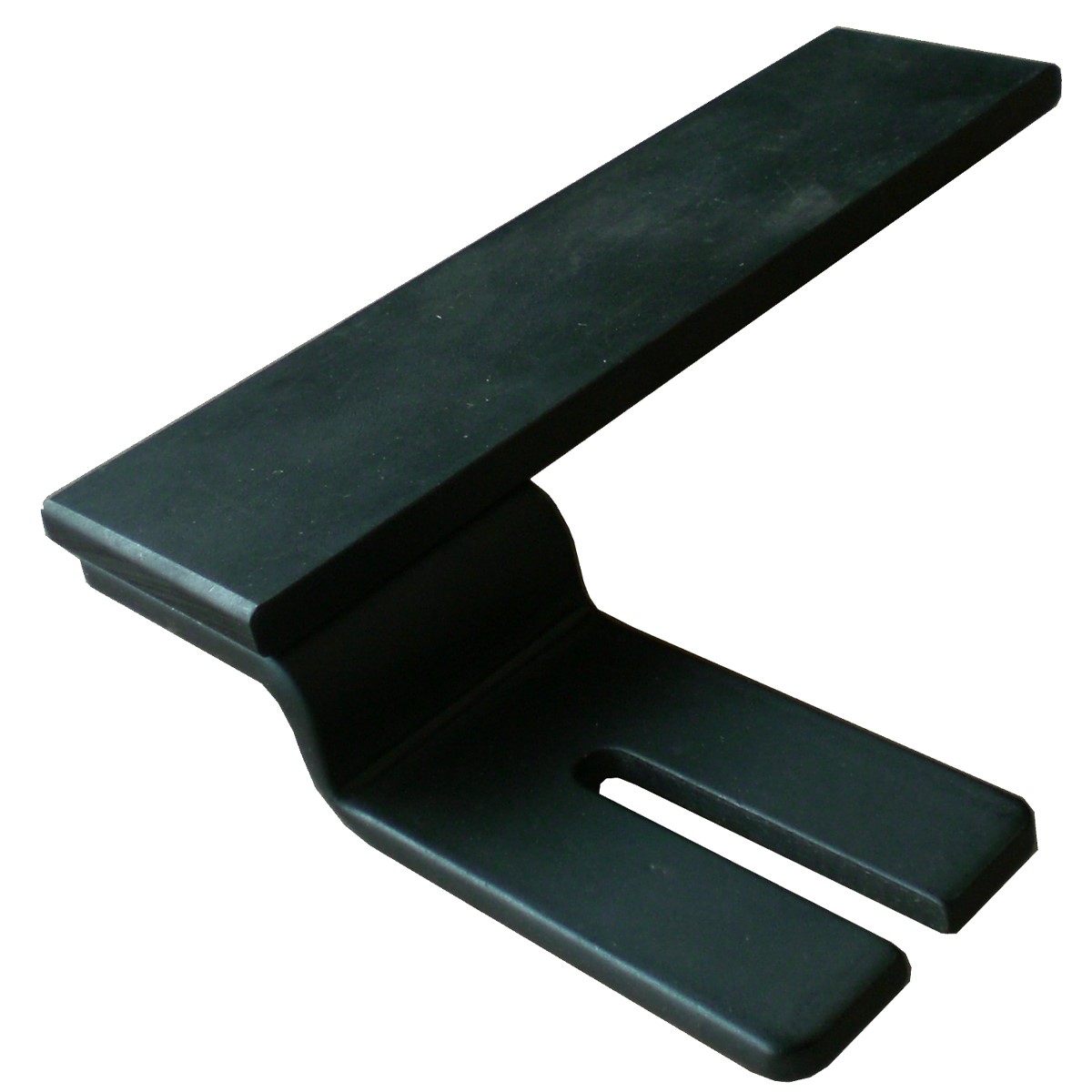

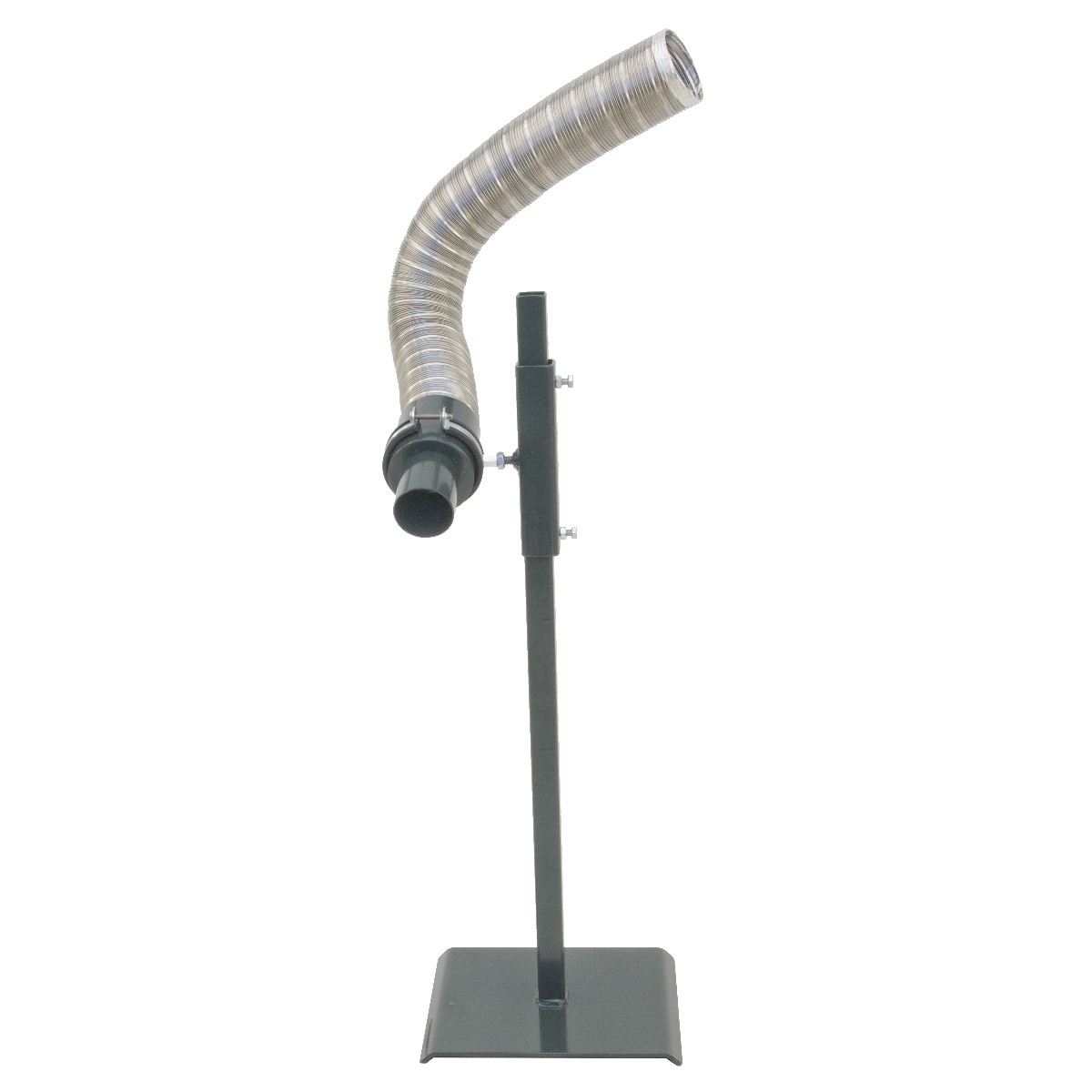

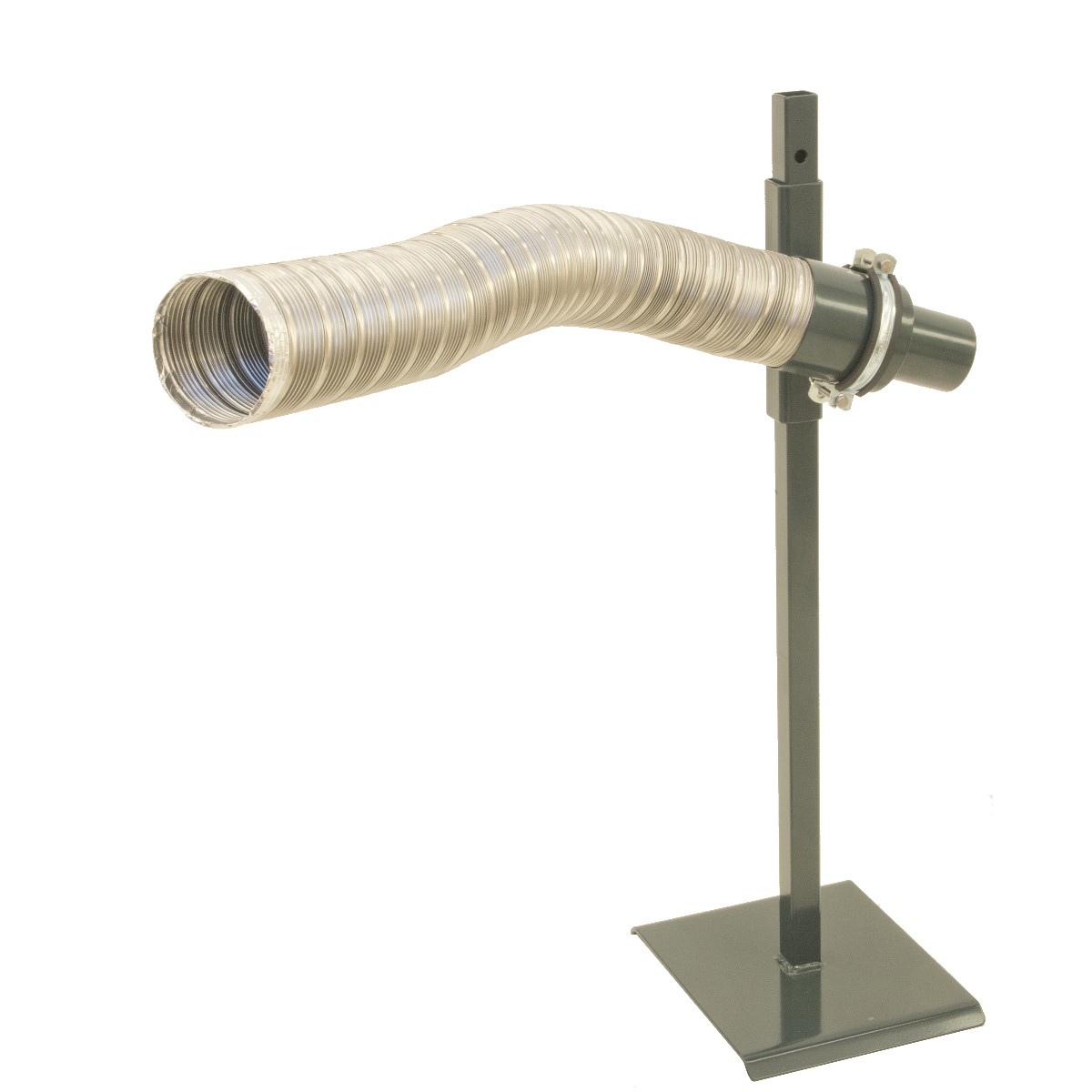

Accessories
