Spare parts Kuhn
Items 1–24 of 48
damping mat 450x80x25 mm
€45.01*
00660061
suitable for AN-15 or other air and spring hammers
These damping mats provide a technically clean decoupling of air forging or spring hammers. They are made of a special polyurethane elastomer and are mounted between the steel base and the workshop floor.
Features:
Clean decoupling of the machine
Significantly reduced emissions
Improved smooth running
Increased machine service life
Durable material
Easy to attach (glue)
Quickly improve the installation situation
Several strips are required to store the air hammer. These are glued under the steel base with polyurethane adhesive or simply placed underneath.
We recommend:
Base unfilled: 2 strips
Base filled with concrete: 3 strips
Base filled with reinforced concrete: 4 strips
damping mat 510x150x25 mm
€95.00*
00660062
suitable for AN-25 or other air and spring hammers
These damping mats provide a technically clean decoupling of air forging or spring hammers. They are made of a special polyurethane elastomer and are mounted between the steel base and the workshop floor.
Features:
Clean decoupling of the machine
Significantly reduced emissions
Improved smooth running
Increased machine service life
Durable material
Easy to attach (glue)
Quickly improve the installation situation
Several strips are required to store the air hammer. These are glued under the steel base with polyurethane adhesive or simply placed underneath.
We recommend:
Base unfilled: 2 strips
Base filled with concrete: 3 strips
Base filled with reinforced concrete: 4 strips
damping mat 620x150x25 mm
€107.00*
00660063
suitable for AN-40 or other air and spring hammers
These damping mats provide a technically clean decoupling of air forging or spring hammers. They are made of a special polyurethane elastomer and are mounted between the steel base and the workshop floor.
Features:
Clean decoupling of the machine
Significantly reduced emissions
Improved smooth running
Increased machine service life
Durable material
Easy to attach (glue)
Quickly improve the installation situation
Several strips are required to store the air hammer. These are glued under the steel base with polyurethane adhesive or simply placed underneath.
We recommend:
Base unfilled: 2 strips
Base filled with concrete: 3 strips
Base filled with reinforced concrete: 4 strips
damping mat 700x150x25 mm
€125.00*
00660064
suitable for AN-55 or other air and spring hammers
These damping mats provide a technically clean decoupling of air forging or spring hammers. They are made of a special polyurethane elastomer and are mounted between the steel base and the workshop floor.
Features:
Clean decoupling of the machine
Significantly reduced emissions
Improved smooth running
Increased machine service life
Durable material
Easy to attach (glue)
Quickly improve the installation situation
Several strips are required to store the air hammer. These are glued under the steel base with polyurethane adhesive or simply placed underneath.
We recommend:
Base unfilled: 2 strips
Base filled with concrete: 3 strips
Base filled with reinforced concrete: 4 strips
upper flexible tube for K/CF22
€37.00*
00663538
for Kuhn air hammer K/CF22
inside diameter 3/4", 19 mm,
length 370 mm
lower flexible tube
€37.00*
00663539
for K/CF22
for Kuhn air hammer K/CF22
inside diameter 3/4", 19 mm,
length 470 mm
set of flexible tubes for K/CF40 and K/CF50
€78.00*
00663541
1 piece length 300 mm (top),
one piece length 450 mm (bottom)
upper flexible tube for K/CF40 and K/CF50
€36.00*
00663542
Outer diameter ~ 36 mm, inner diameter ~ 25 mm,
length ~ 300 mm
lower flexible tube for K/CF40 and K/CF50
€42.00*
00663543
Outer diameter ~ 36 mm, inner diameter ~ 25 mm, length ~ 450 mm
lower flexible tube for K/CF 65
€50.00*
00663545
for Kuhn air hammer K/CF65
inside diameter 5/4" (32 mm),
length 500 mm
flexible tube per meter (1")
€55.00*
00663546
for Kuhn air hammer K-0 (22 kg), KB-1 (34 kg), K-23 (50 kg), K-12/42 (38 kg)
inner diameter 1"
flexible tube per meter (1¼")
€82.00*
00663547
flexible tube per meter (1¼")
for Kuhn air hammer K-24/53 (50 kg), K-25 (60 kg)
inner diameter 1¼"
air filter insert for KB-1 and K 23
€30.00*
00663551
for Kuhn air hammer
øa=83 mm, øi=50mm, H=60mm
We recommend changing the air filter approximately once a year.
air filter complete for KB-1 and K 23
€52.00*
00663552
for Kuhn air hammer
plastic housing with air filter insert øa=83 mm, øi=50mm, H=60mm
We recommend changing the air filter approximately once a year.
air filter for K12 und K 24
€36.00*
00663553
for Kuhn air hammer
ø 130 mm
We recommend changing the air filter approximately once a year.
Air filter insert for 2000 K/CF 60
€82.00*
00663555
for Kuhn air hammer
We recommend changing the air filter approximately once a year.
Air filter insert for 2000 K/CF 22 up to K/CF 50
€68.00*
00663556
for Kuhn air hammer
We recommend changing the air filter approximately once a year.
air filter complete for 2000 K/CF 22 up to K/CF 50
€165.01*
00663557
for Kuhn air hammer
We recommend changing the air filter approximately once a year.
cylinder Kuhn Powerhammer KCF 40/50
€2,300.00*
00663563
for Kuhn 2000K/CF 40 and CF 50
rear compressor cylinder
Supplied without swivel fork and bolts.
The existing swivel fork can be used.

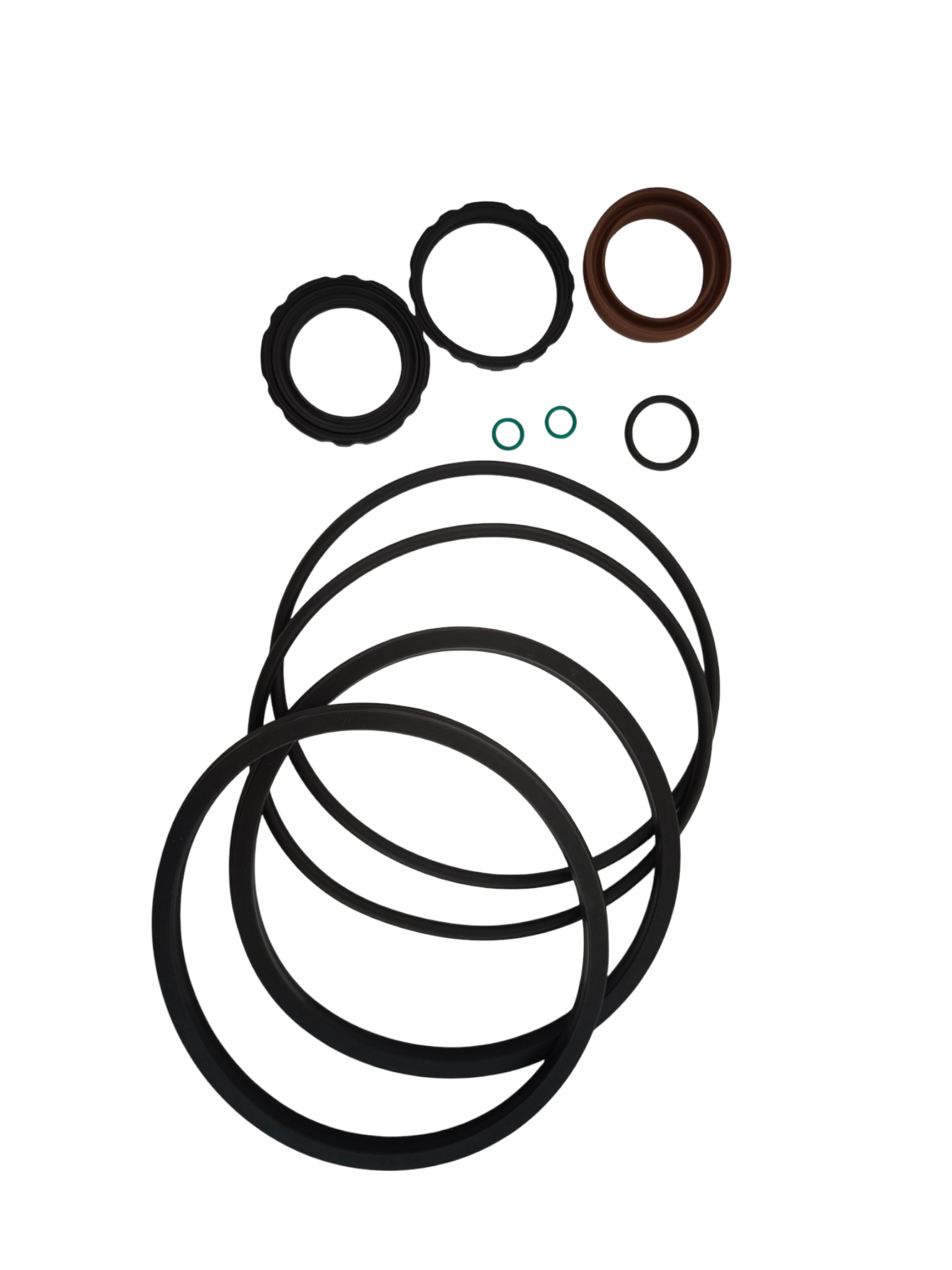

Gasket set for Kuhn KCF 40/50 cylinders
€320.00*
00663563.10
for Kuhn 2000K/CF 40 and CF 50 cylinders
suitable from cylinder production date 02/2026
consisting of all wear seals
ATTENTION:
Not suitable for Parker "DS160" cylinder units - before 03/2026
Cylinder head for Kuhn KCF 40/50 cylinders
€360.00*
00663563.15
for Kuhn 2000K/CF 40 and CF 50 cylinders
suitable from cylinder production date 02/2026
consisting of cylinder head with pressed-in guide bushing
The brass guide bushing is not available separately.
ATTENTION:
Not suitable for Parker "DS160" cylinder units - before 03/2026
Items 1–24 of 48
