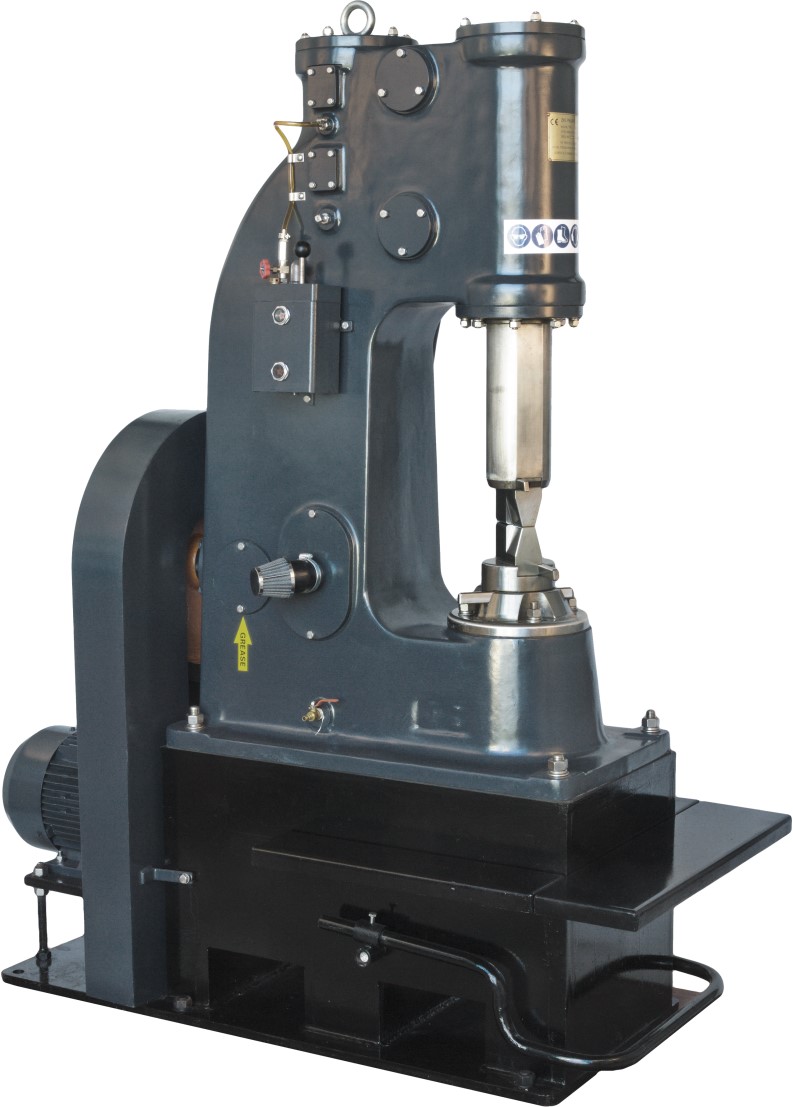

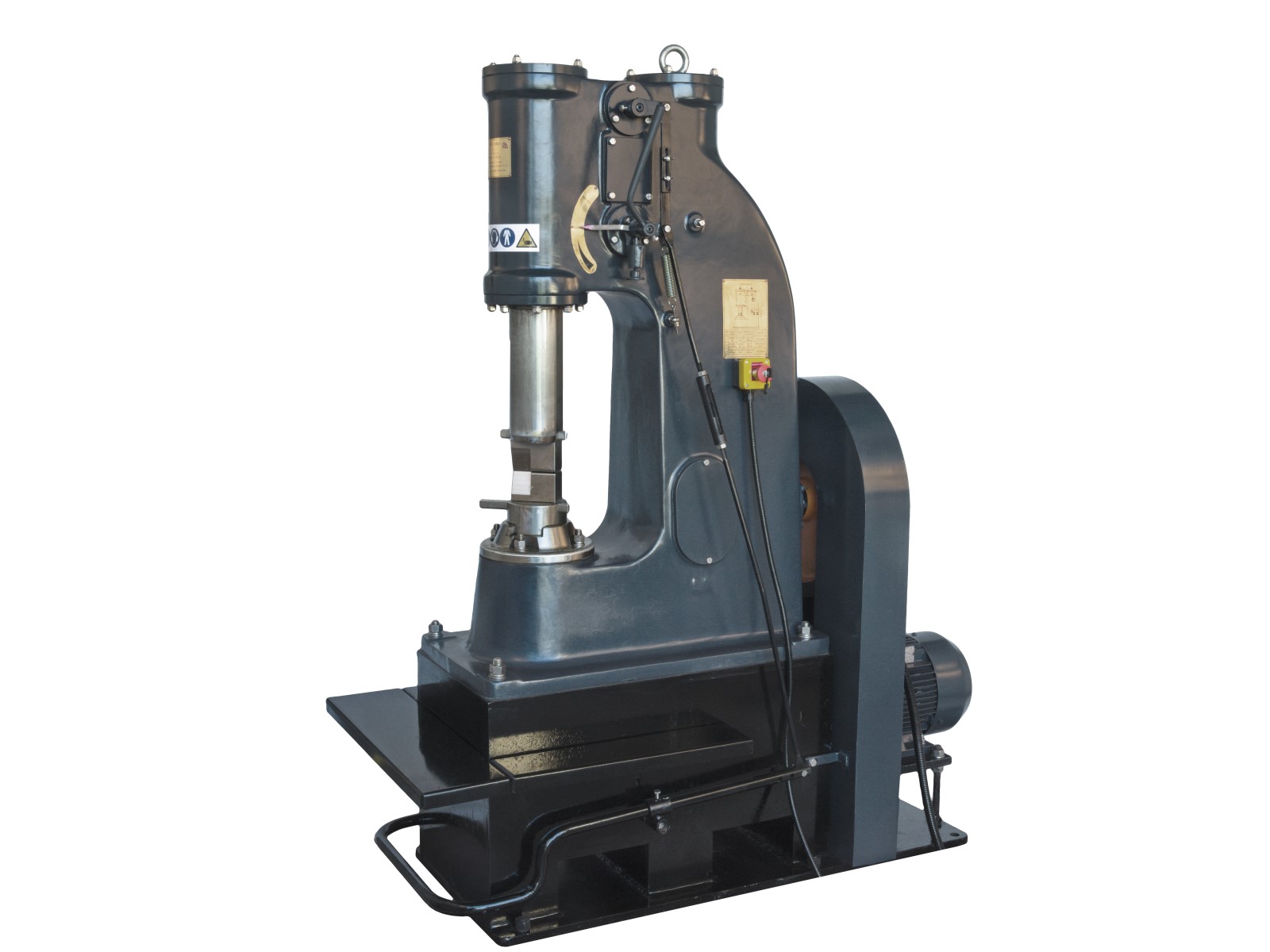

Description



ram weight 25 kg

hit energy 0.27 kJ,

horiz. clearance 235 mm, free height of working area 240 mm,

number of strokes 250 strokes/min,

electric power 3,0 kW, three-phase 3 x 400 Volt,

total weight 1040 kg,

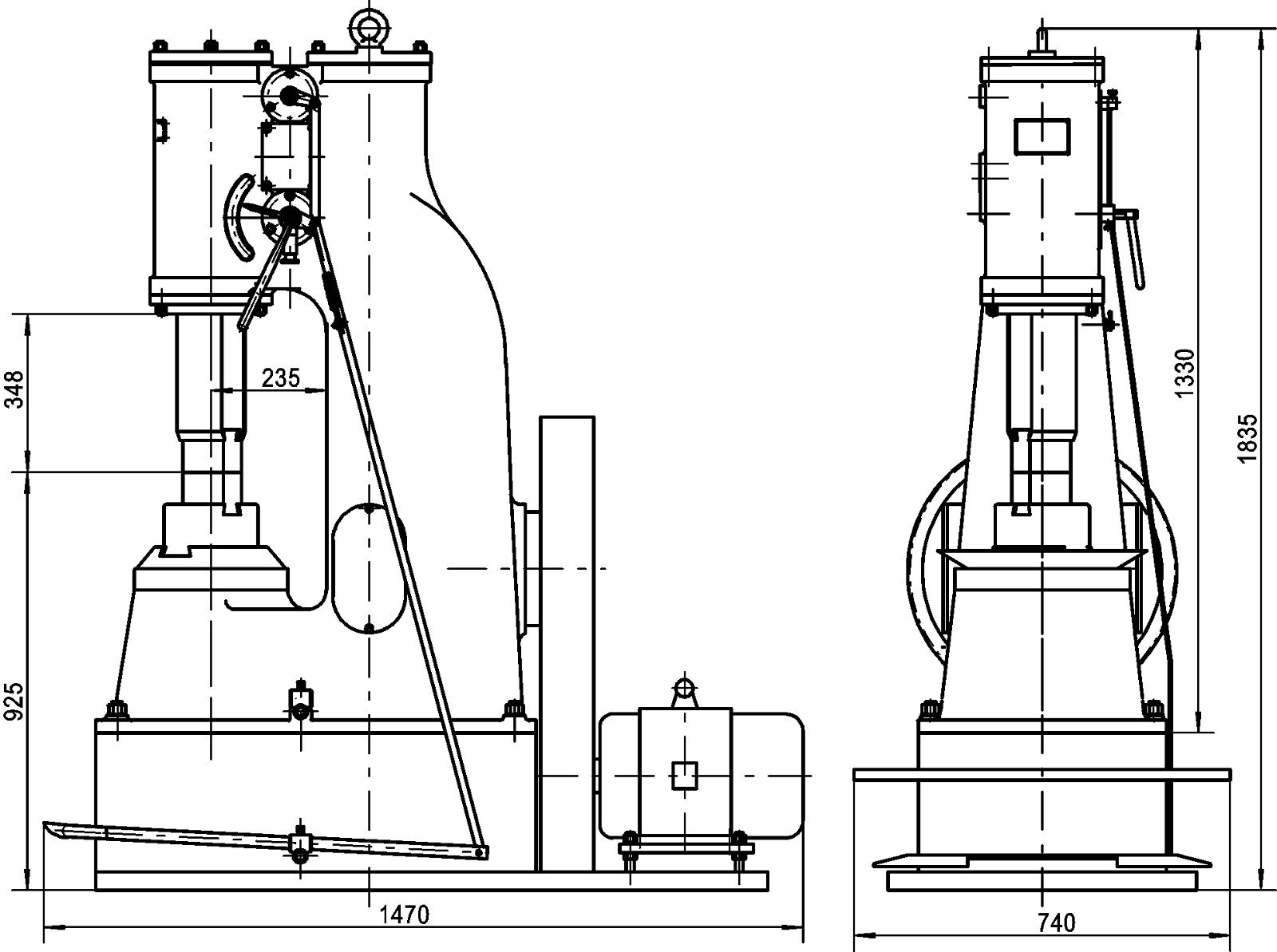

length x width x height: 1470 x 740 x 1835 mm

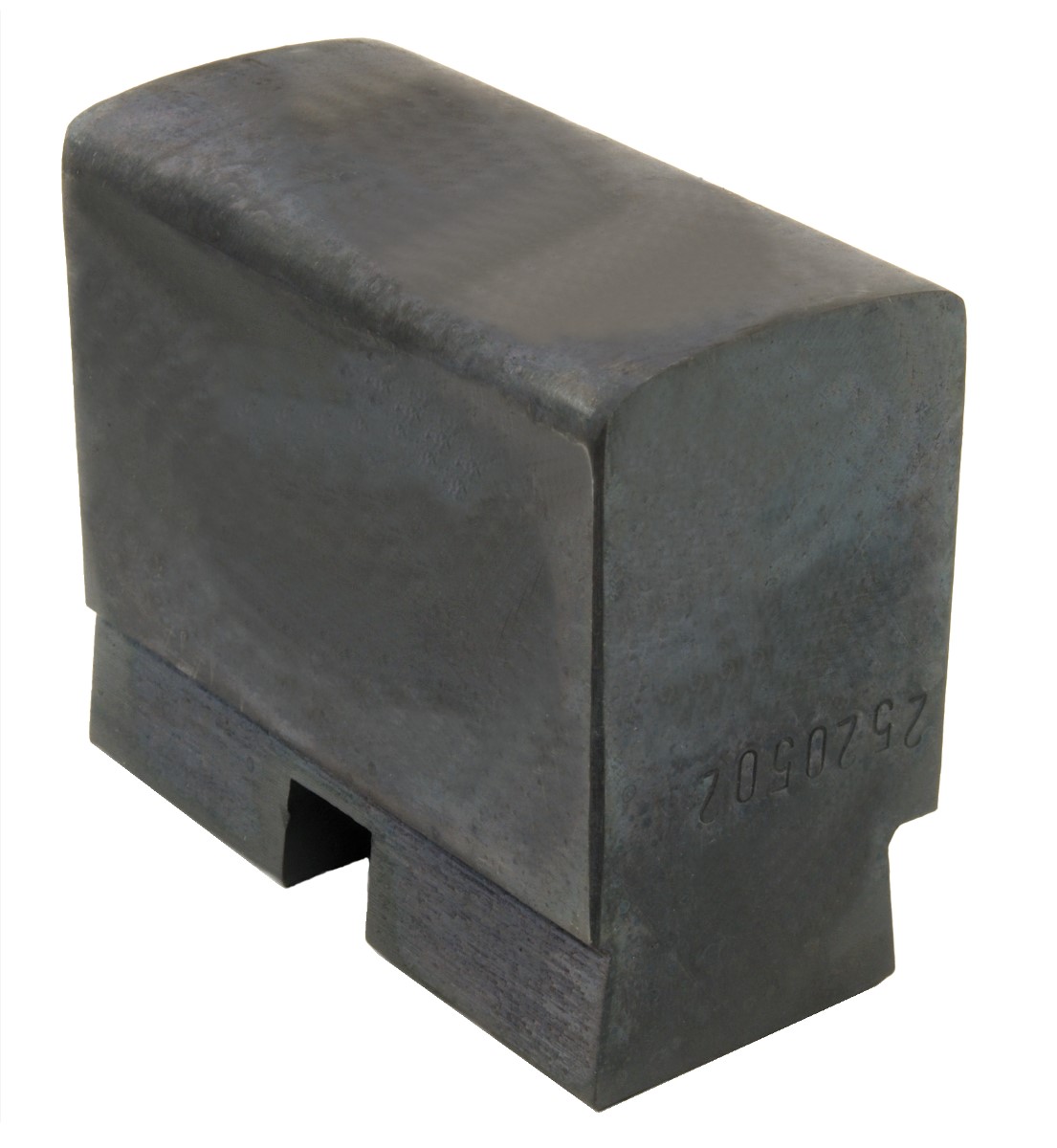

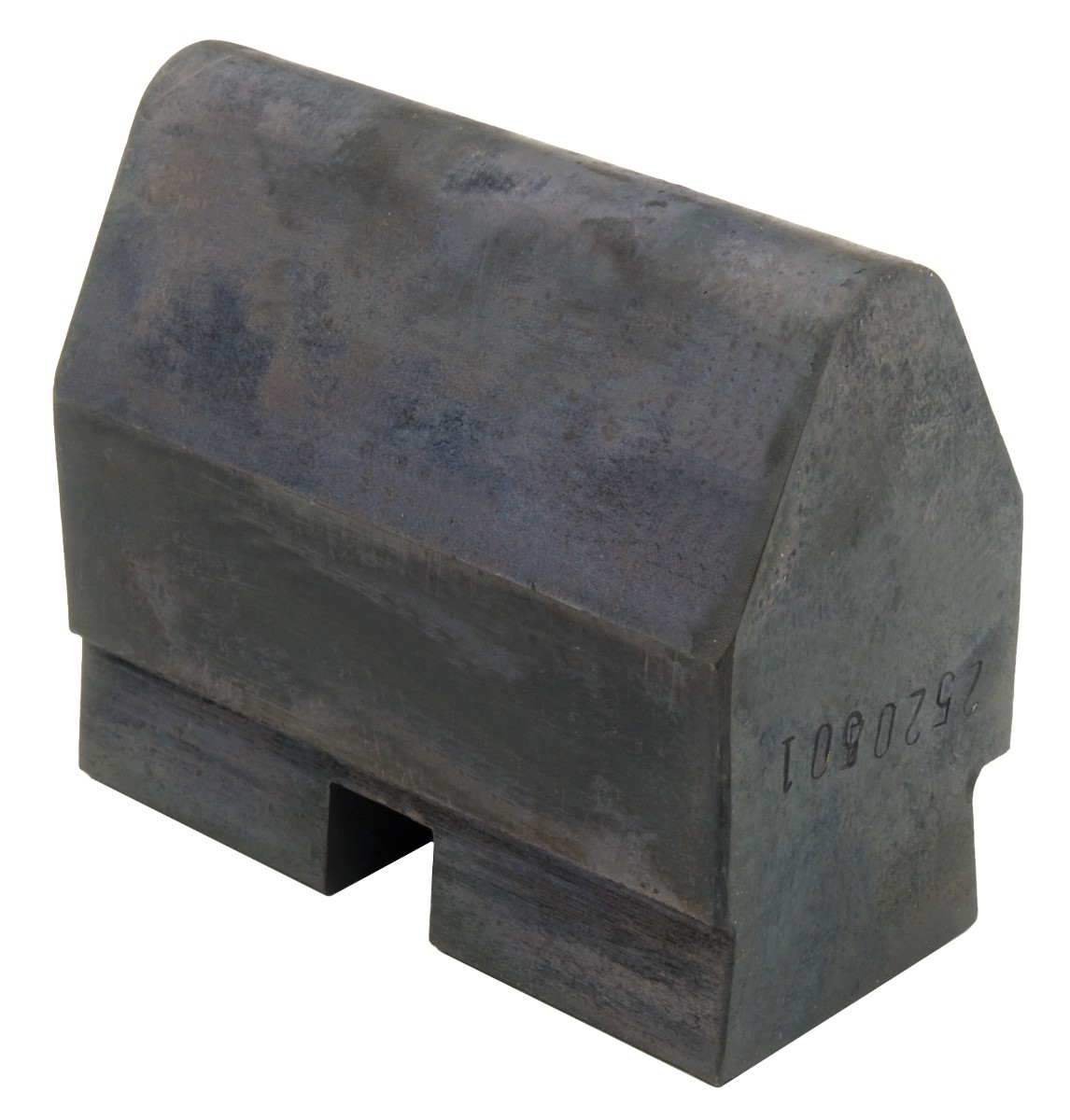

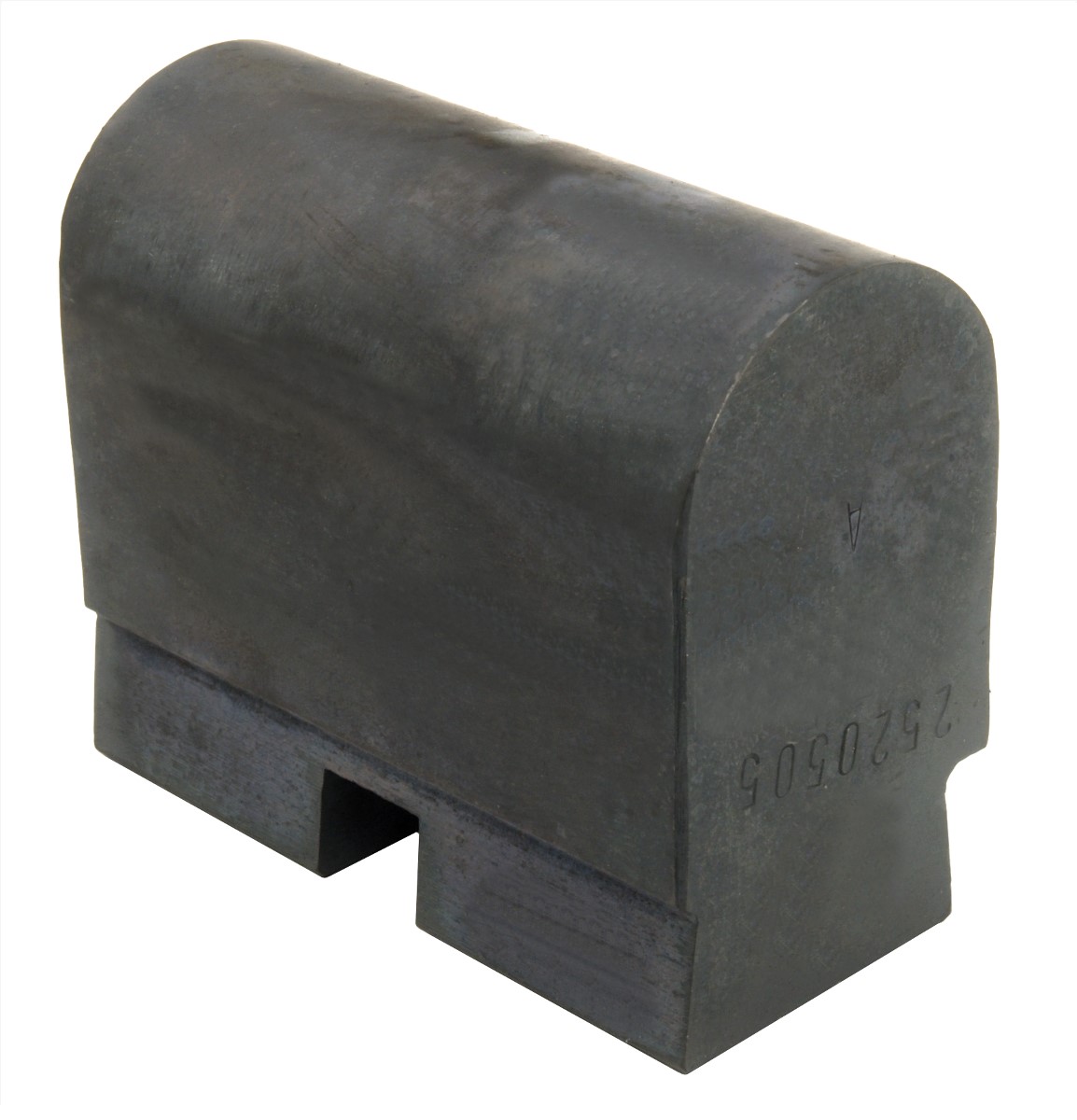

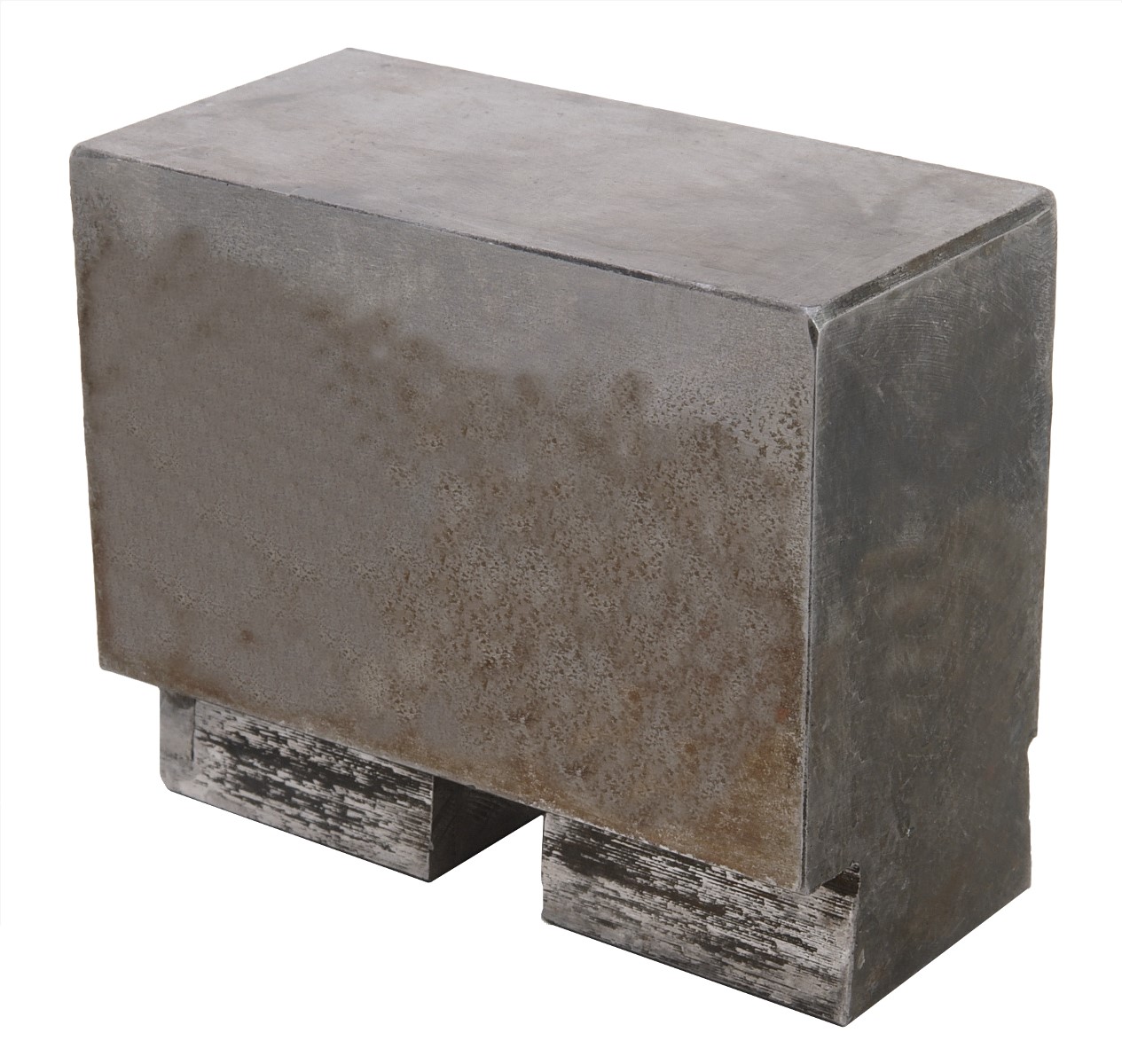

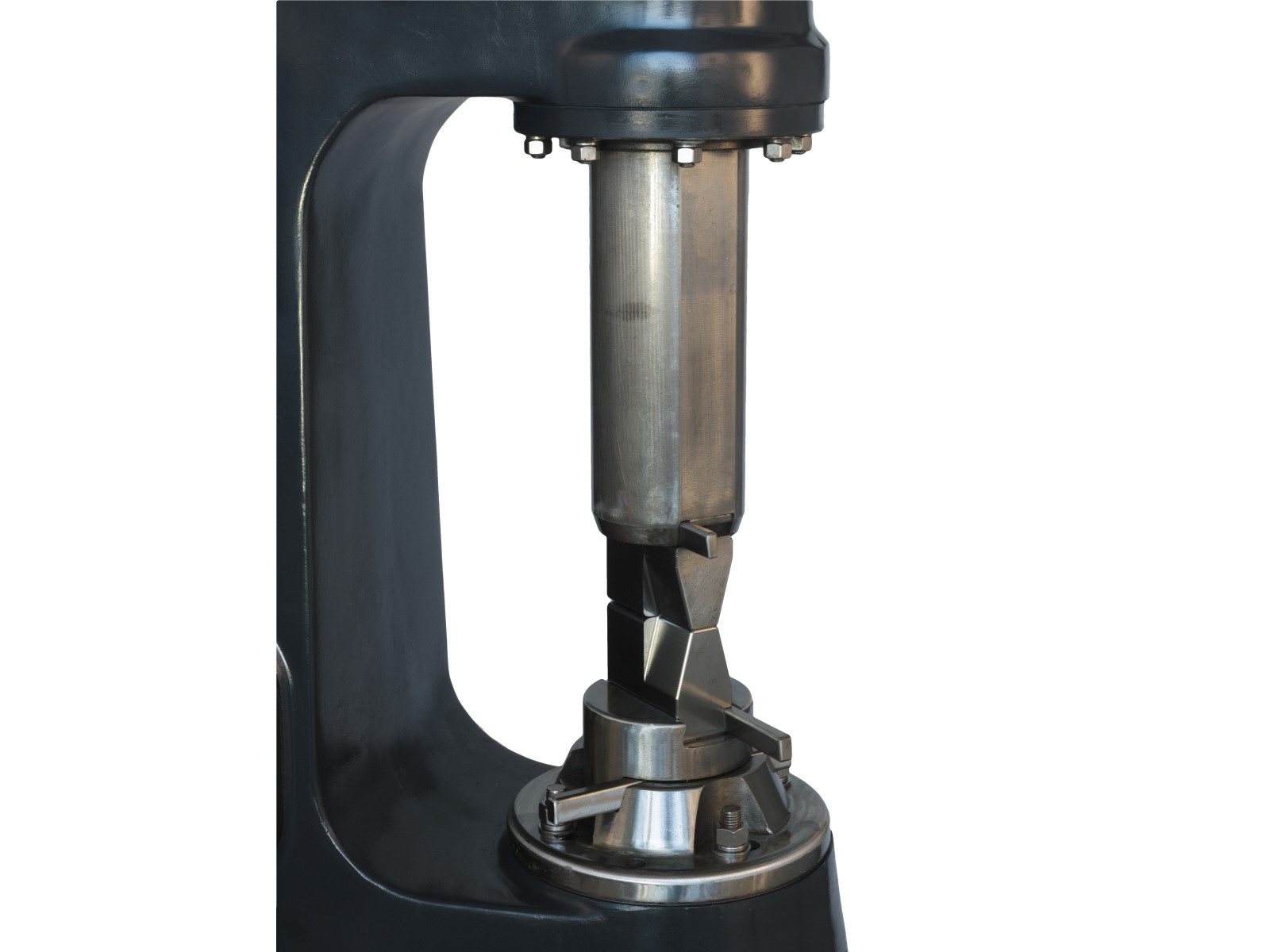

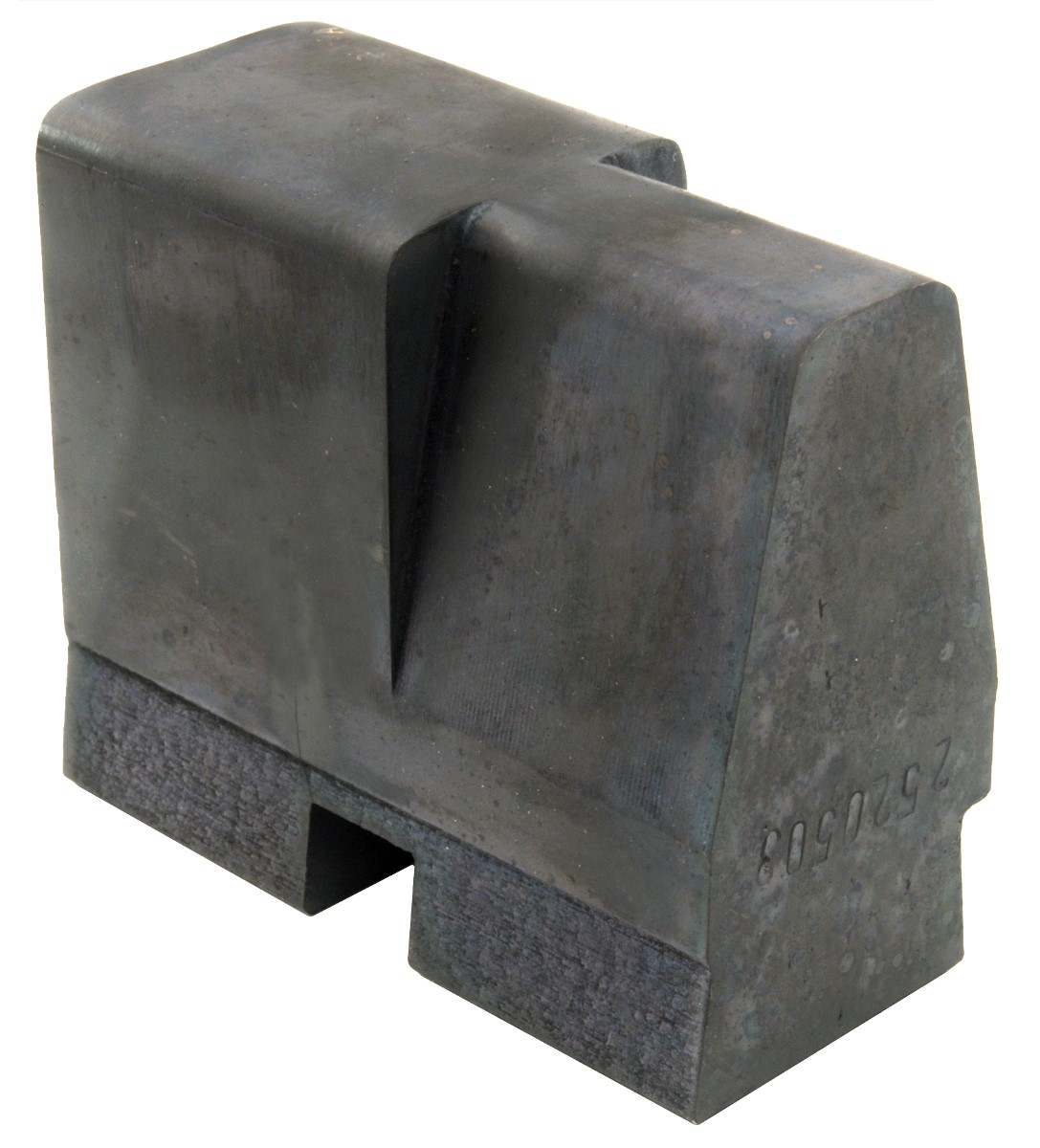

equipped with 2 combination dies (top/bottom),

with motor-protection-switch and emergency-stop,

mounted on steel base.



serial no. #N

New / revised series of airhammers:

  • No insertion of the dies into the bear -> enables the installation of extra wide dies
  • increased projection of the C-frame -> larger working area
  • Higher anvil weight -> larger counterweight to the bear
