Spare parts gas

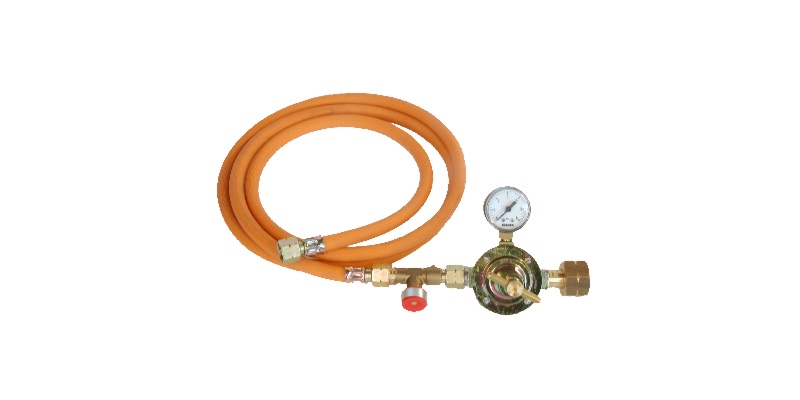

gas connection kit
€83.00*
00151062
gas connection kit, ready for connection to 11 kg gas bottles
with regulator, manometer, hose burst safety device and 2 m hose
for atmospheric gas forges, like PS-230, Proforge, P-301/P-302

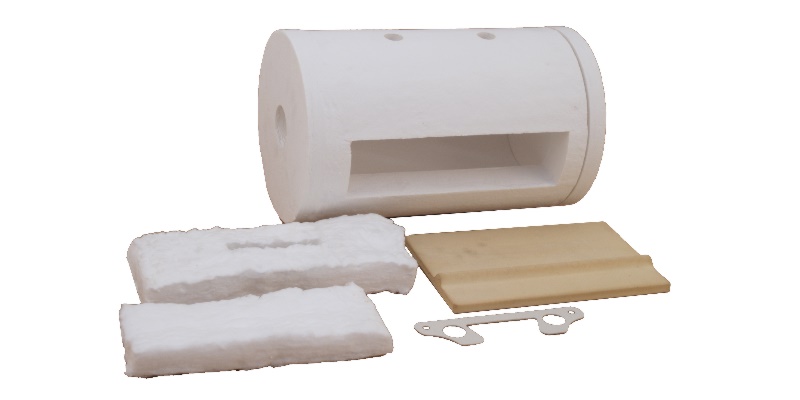

reliner kit (complete) for Proforge PF 200
€345.00*
00153022
reliner kit (complete) for Proforge PF 200
kit (PF20) consisting of firebox, soft door, cushion, gasket, hearthplate,
(parts 202 +203 + 213 + 220 + 221 + 222 + 225)
piezo ignitor, complete
€40.00*
00153023
piezo ignitor, complete
PF205 for Proforge
push button, cable 250 mm, electrode
steel bar stock support
€12.99*
00153041
steel bar stock support
PF211 for Proforge PF 200
stainless
gasket
€10.00*
00153043
gasket
PF213 for proforge PF200
(between forge manifold burner and forge shell)

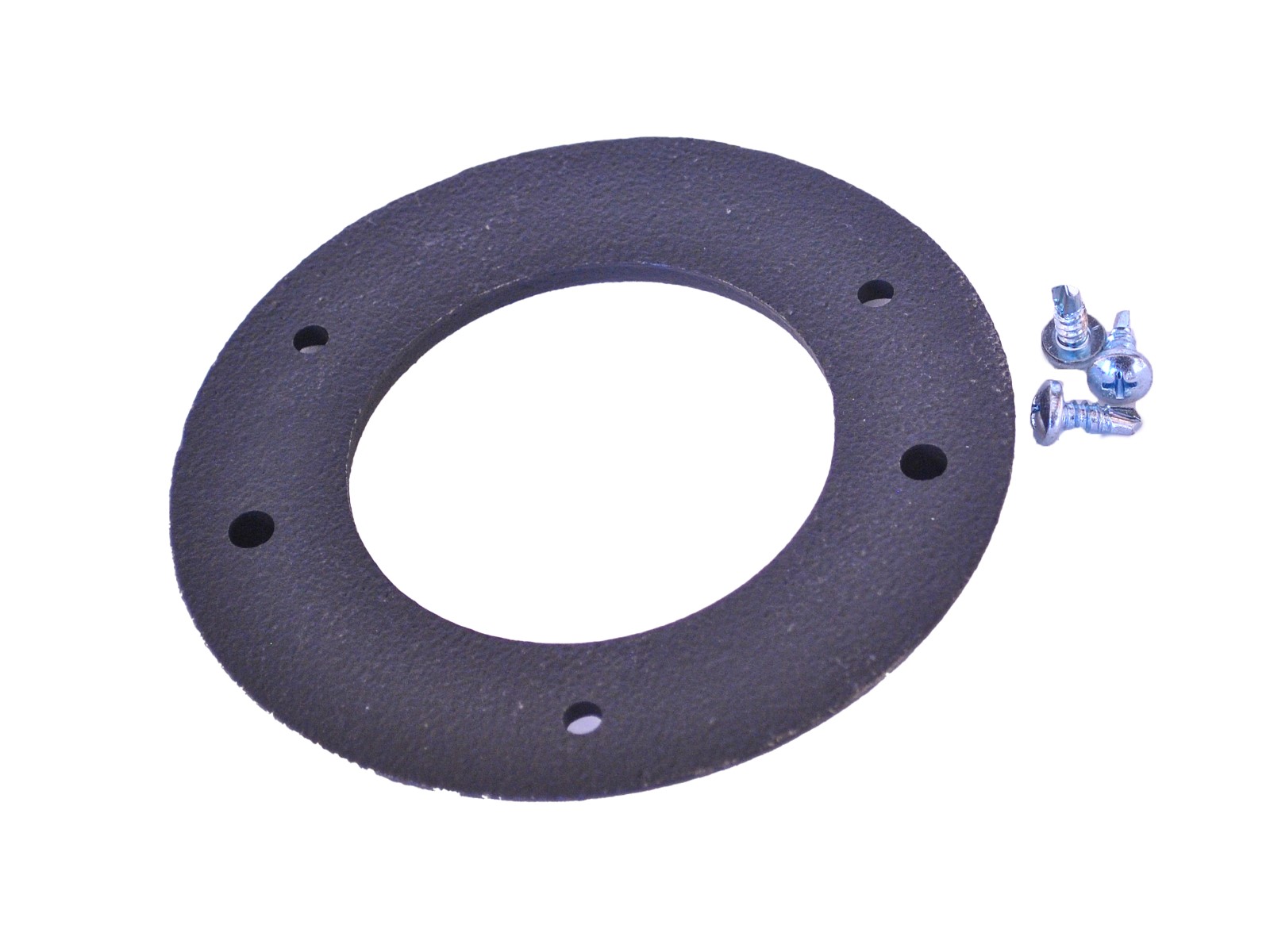

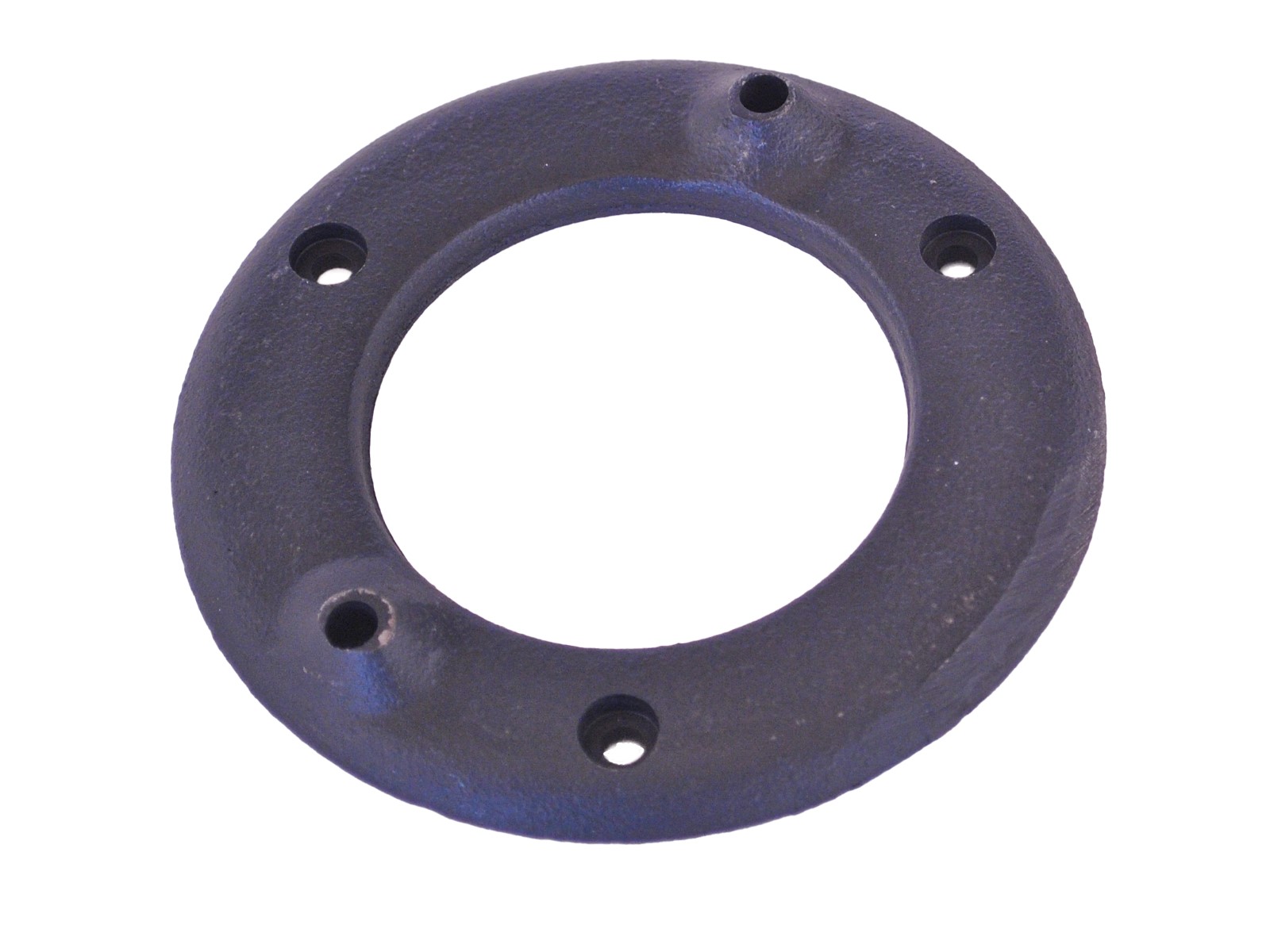

casted end port for metal end cap
€16.01*
00153047
casted end port for metal end cap
PF230 for proforge PF200
end cap fiber refractory without port
€58.00*
00153050
end cap fiber refractory without port
PF220 for proforge PF200
end cap fiber refractory with port
€73.99*
00153051
end cap fiber refractory with port
PF221 for proforge PF200
forge shell
€208.00*
00153060
forge shell complete with door
PF214 for proforge PF200,
delivered with frame (PF215A) and door (PF215)
chamotte plate for back of gas oven PS 230..
€20.00*
00155514
chamotte plate for back of gas oven PS 230..
180 x 125 x 20 mm
chamotte plates for gas oven PSB 230..
€57.00*
00155562
chamotte plates for gas oven PSB 230..
set of two pieces
1 piece: 230 x 150 x 30 mm and
1 piece: 230 x 200 x 30 mm,
as a protection of the bottom
Thermal security for Proforge
€89.00*
00159053
consisting of:
Thermal safety valve
Thermocouple
Mounting bracket
Suitable adapters
The thermal monitoring device is part of the thermoelectric ignition safety device for gas-fired forge furnaces and is designed to quickly prevent the escape of unburned gas in the event of a malfunction.
Can be mounted between the ball valve and the burner tube. The mounting bracket is attached to the housing with screws. Holes must be drilled and threaded for this purpose.
Function:
The gas flame heats the tip of the thermocouple. This generates a thermal voltage, which is conducted through the copper wire to a holding magnet. Once sufficient voltage is built up, the magnet holds the valve open. If combustion ceases, the tip of the thermocouple cools, the thermal voltage is reduced, and the holding magnet closes the valve. The response time is between 10 and 60 seconds, depending on the design.
An essential safety device for all gas-fired forge furnaces. Also suitable for DIY construction!
