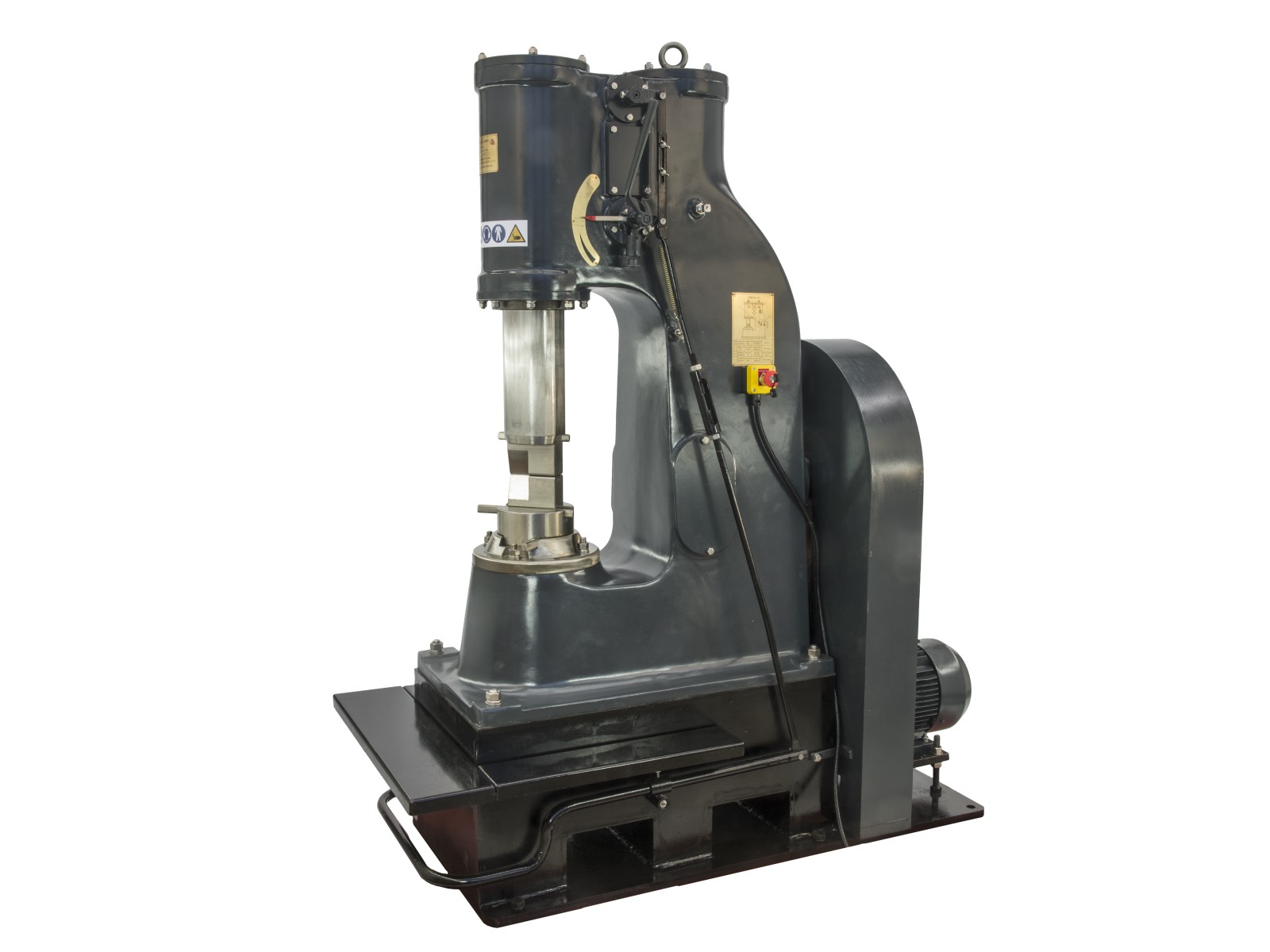

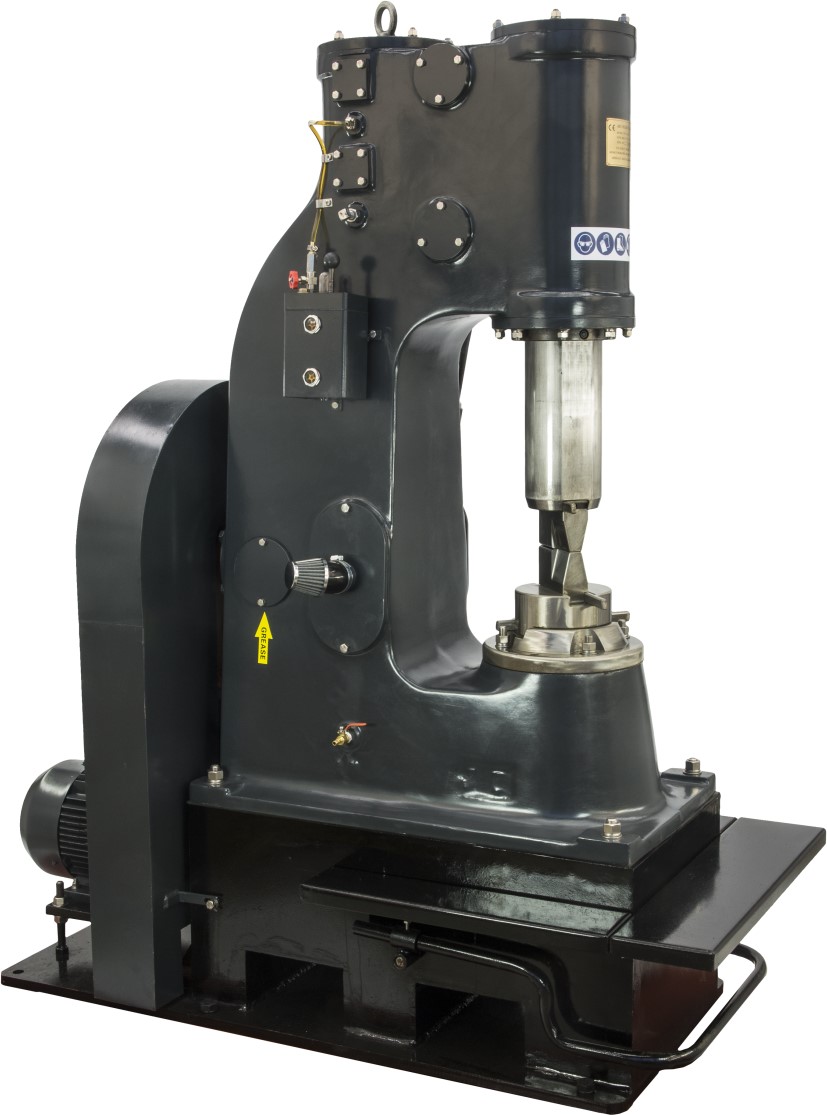

AN-40 L airhammer
Product number:
00667042
Weight:
1300 kg
Please note:
Freight costs are calculated by weight!
Description
ram weight 40 kg
hit energy 0.53 kJ,

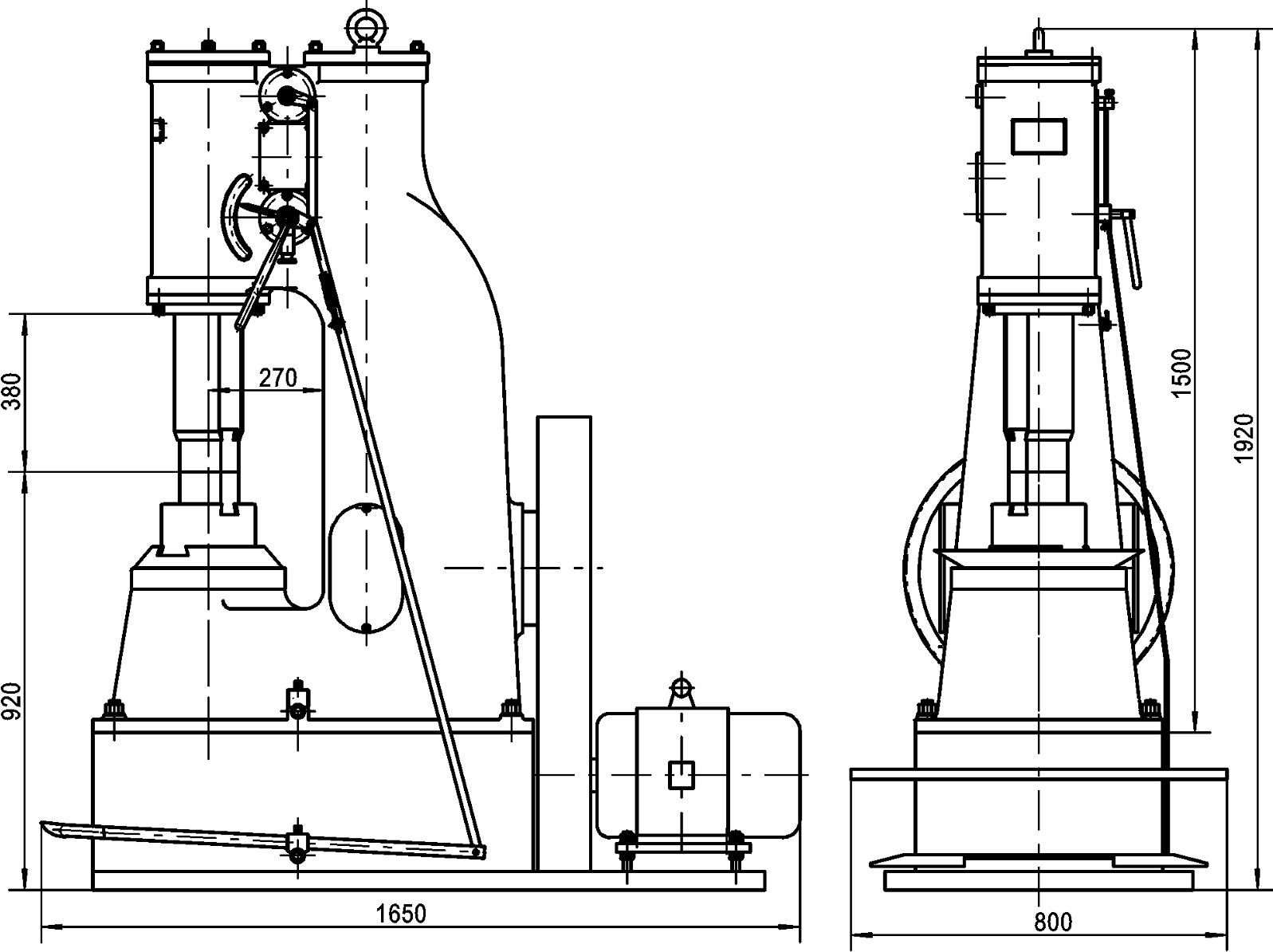

horiz. clearance 270 mm, free height of working area 245 mm,
number of strokes 245 strokes/min,
electric power 4,0 kW, three-phase 3 x 400 Volt,
total weight 1300 kg,
length x width x height: 1650 x 800 x 1920 mm

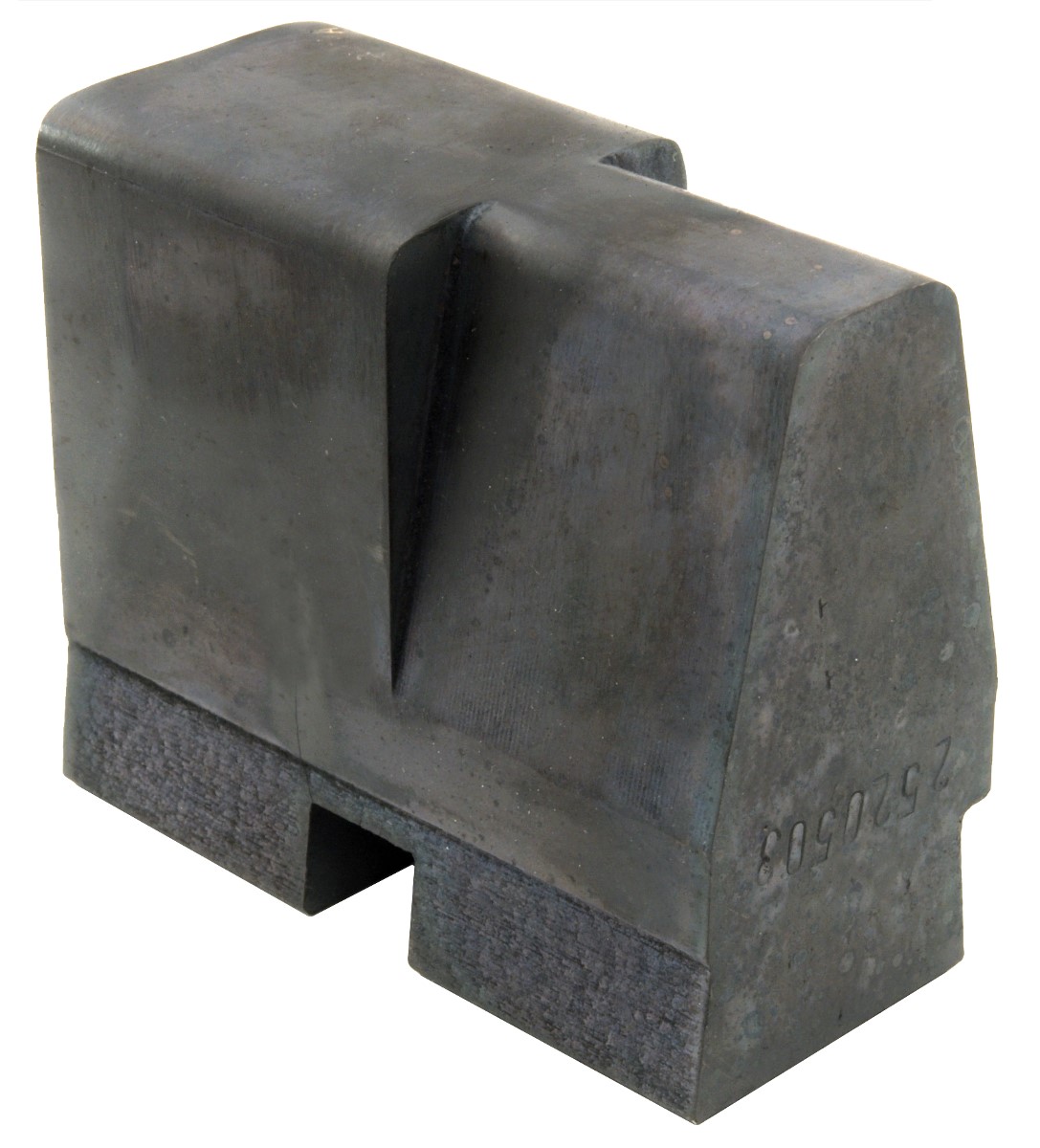

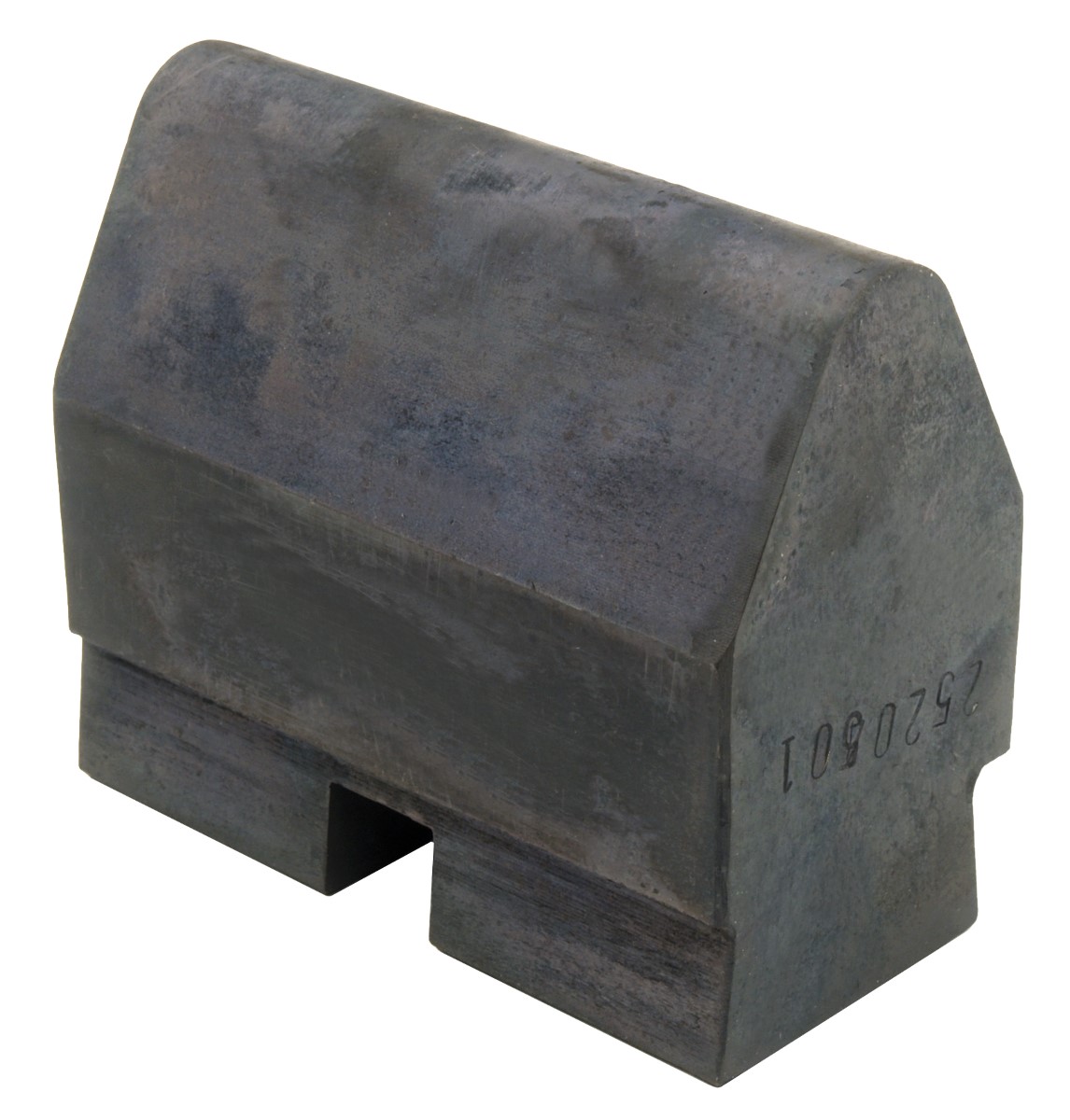

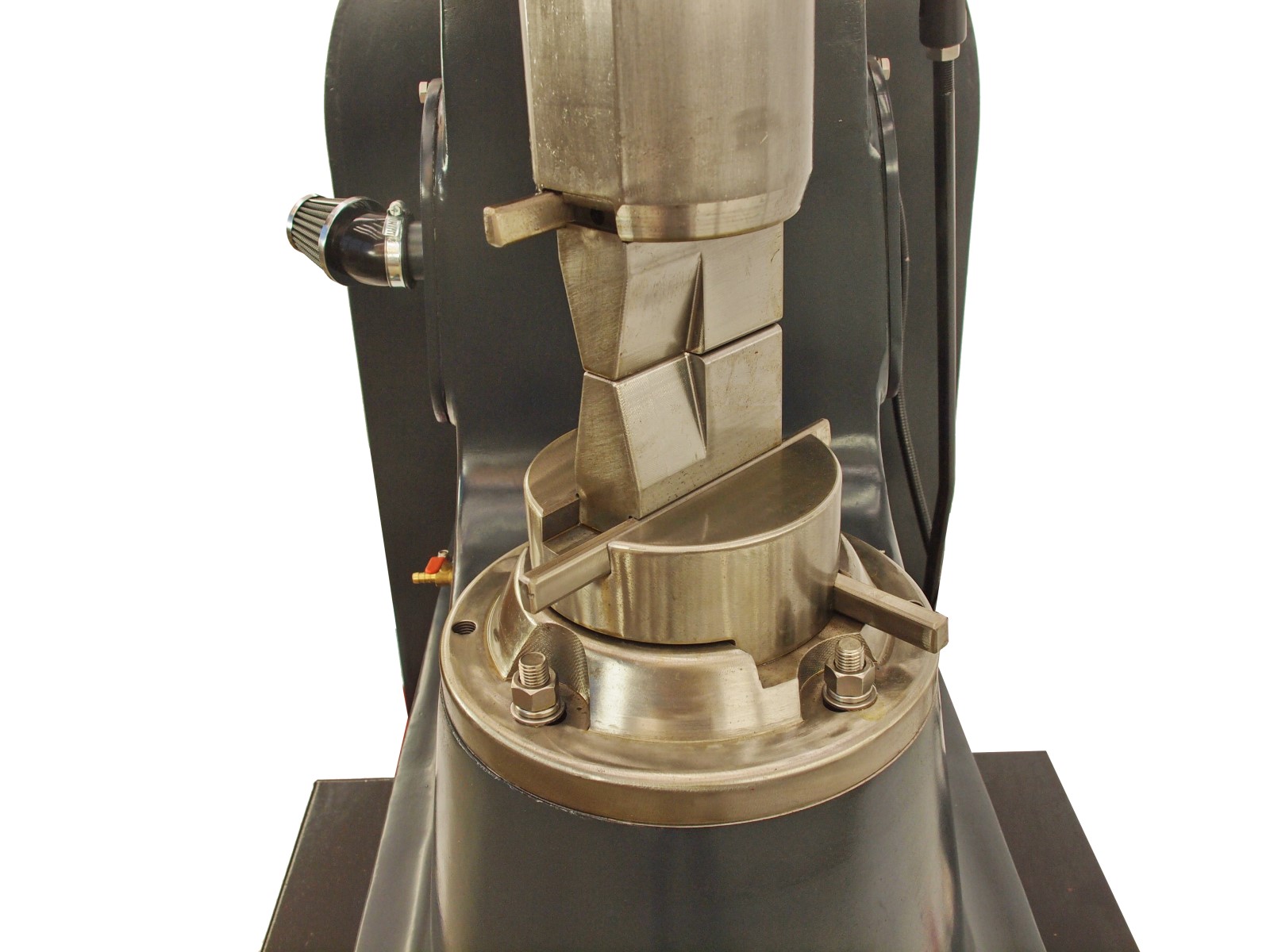

equipped with 2 combination dies (top/bottom),
with motor-protection-switch and emergency-stop,
mounted on steel base.
serial no. #N
New / revised series of airhammers:
- No insertion of the dies into the bear -> enables the installation of extra wide dies
- increased projection of the C-frame -> larger working area
- Higher anvil weight -> larger counterweight to the bear
